Where Custom Craftsmanship Meets Timeless Style

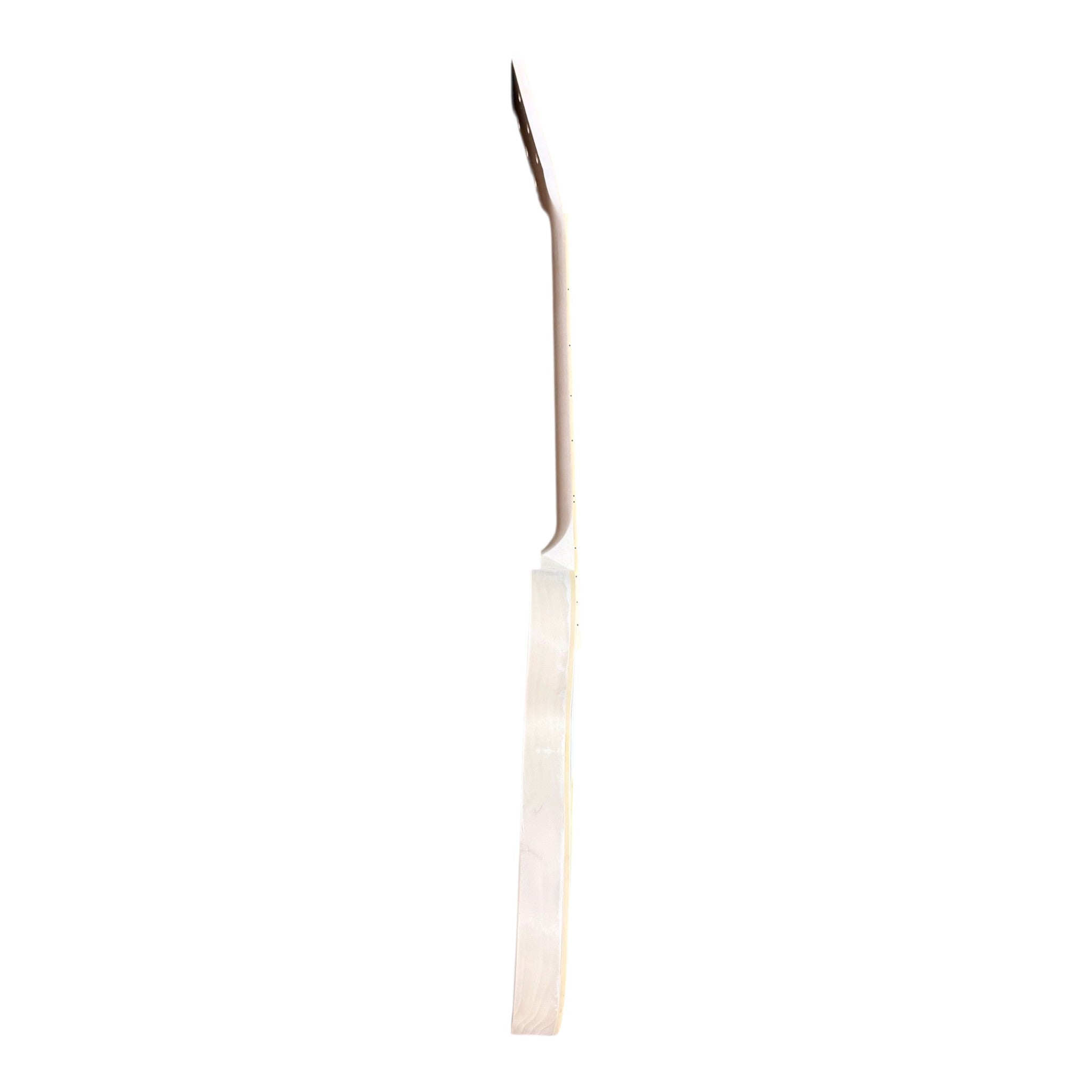

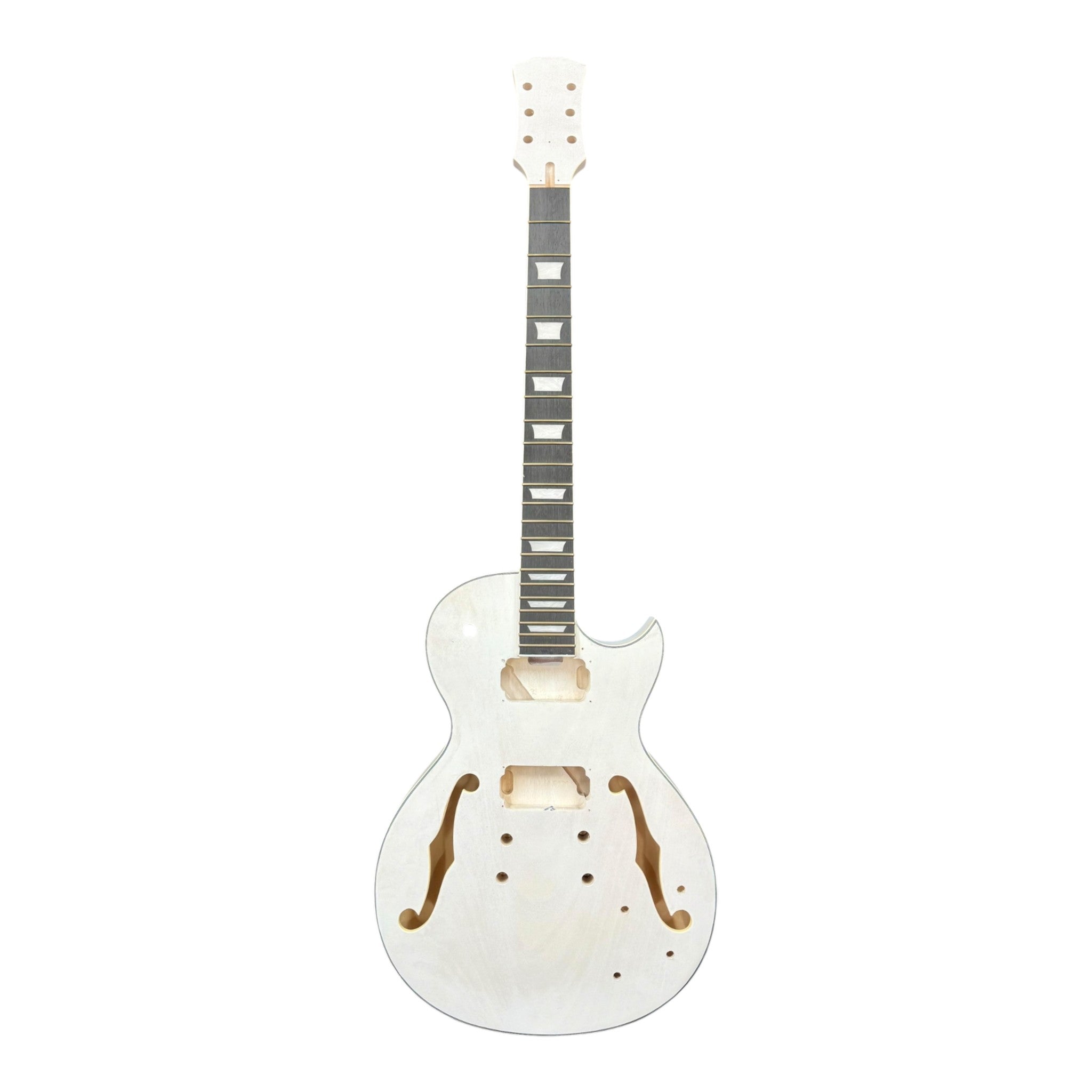

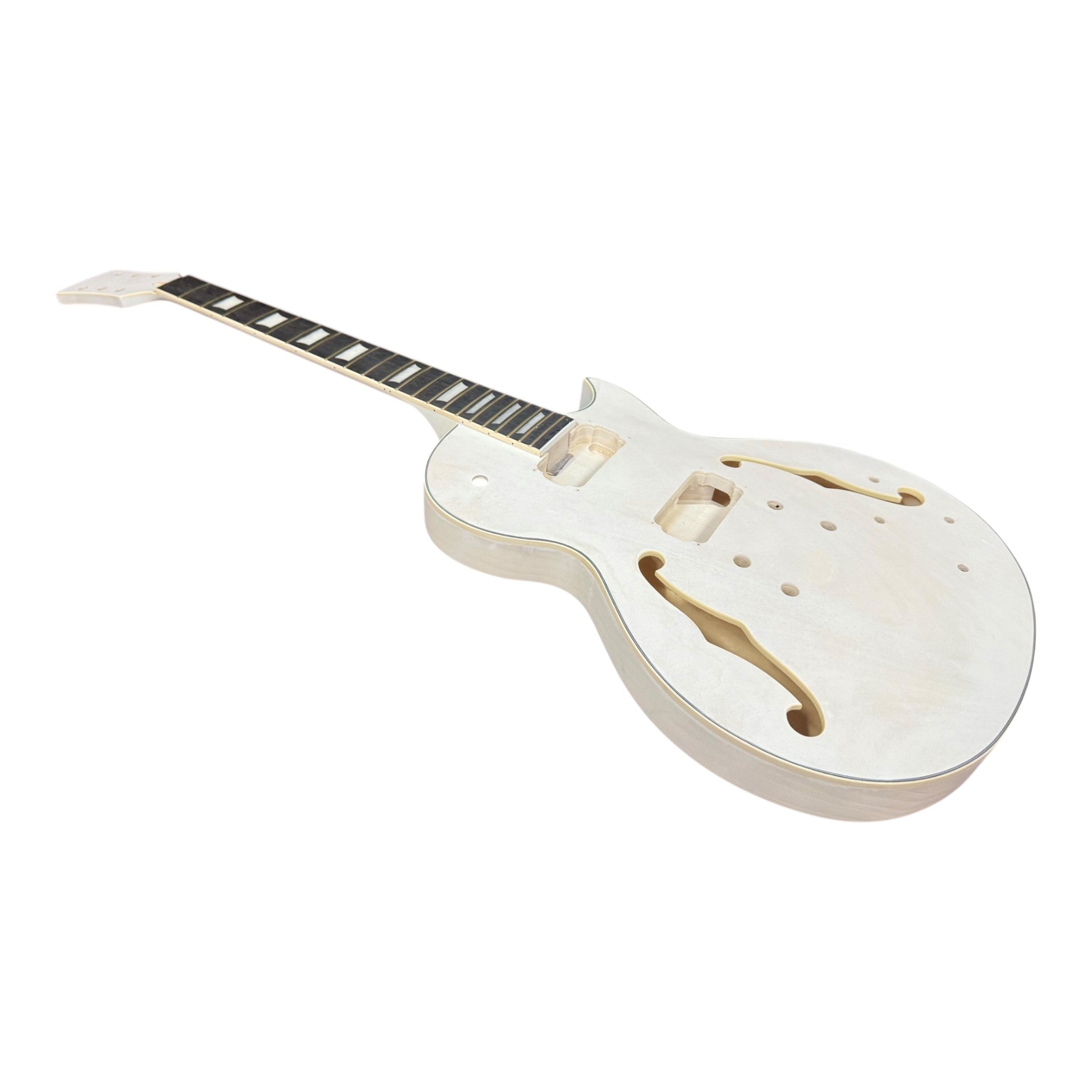

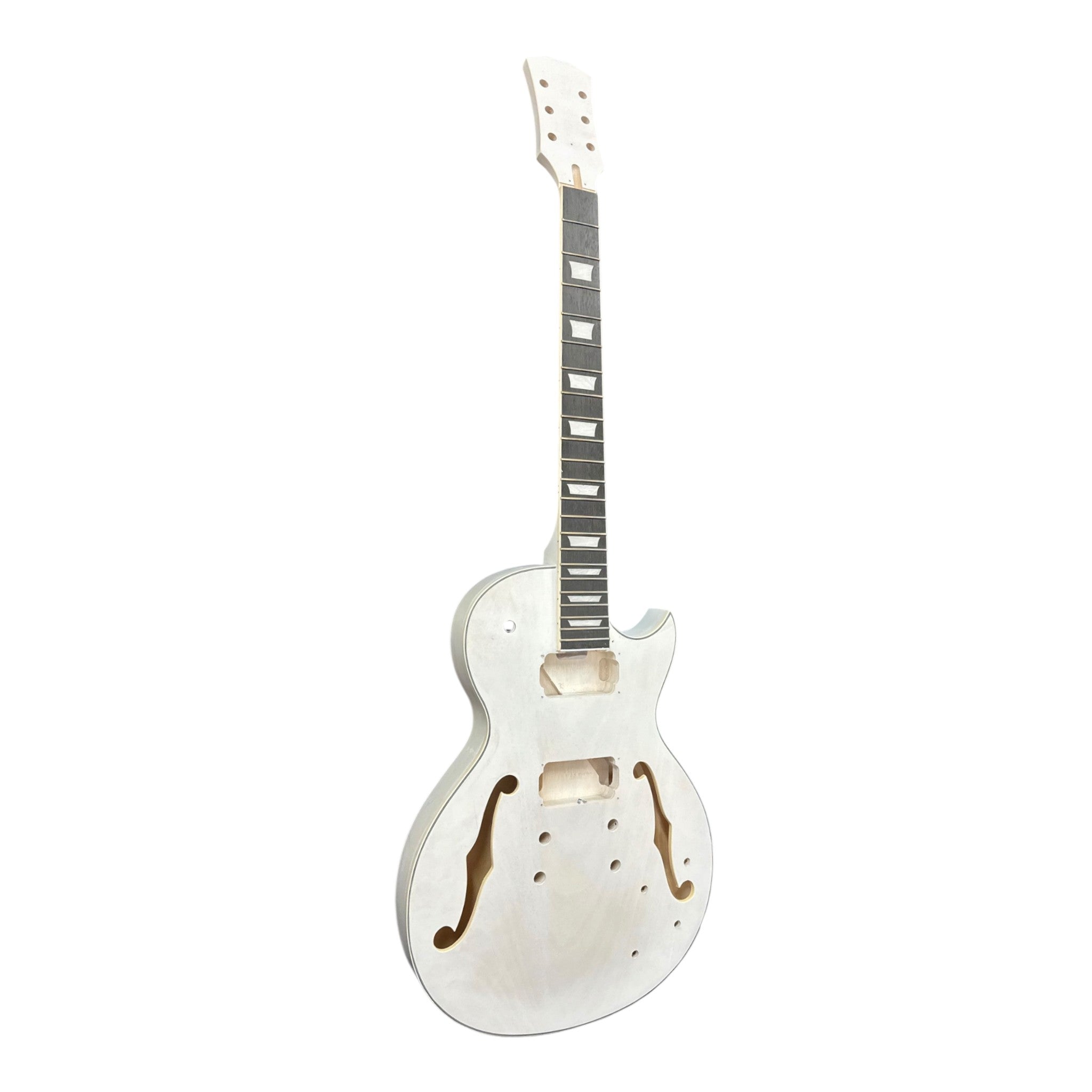

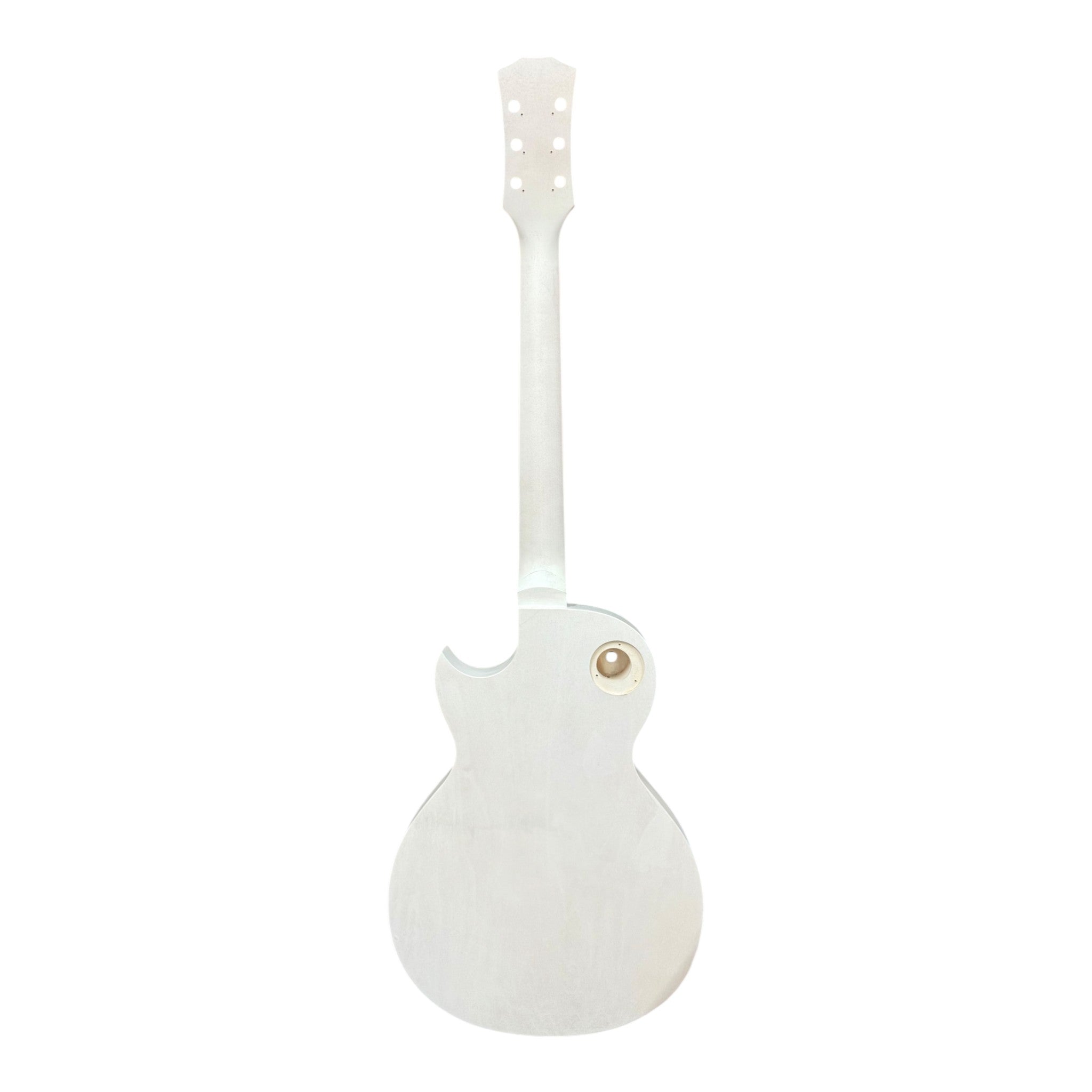

Unleash your creativity with the E239DIYWH Semi-Hollow Electric Guitar DIY Kit, a refined LP-inspired semi-hollow platform designed for dedicated builders and hands-on players. Built with a white-primed basswood body and matching white-primed maple set-neck, this kit is prepped and ready for your custom finish while retaining the classic tone and feel players love. With plug-n-play no-solder electronics and elegant vintage detailing, the E239DIYWH is the perfect starting point for a truly personal instrument.

From smooth jazz tones to gritty rock drive, this kit gives you full control over the final look and sound—without unnecessary complexity.

Features

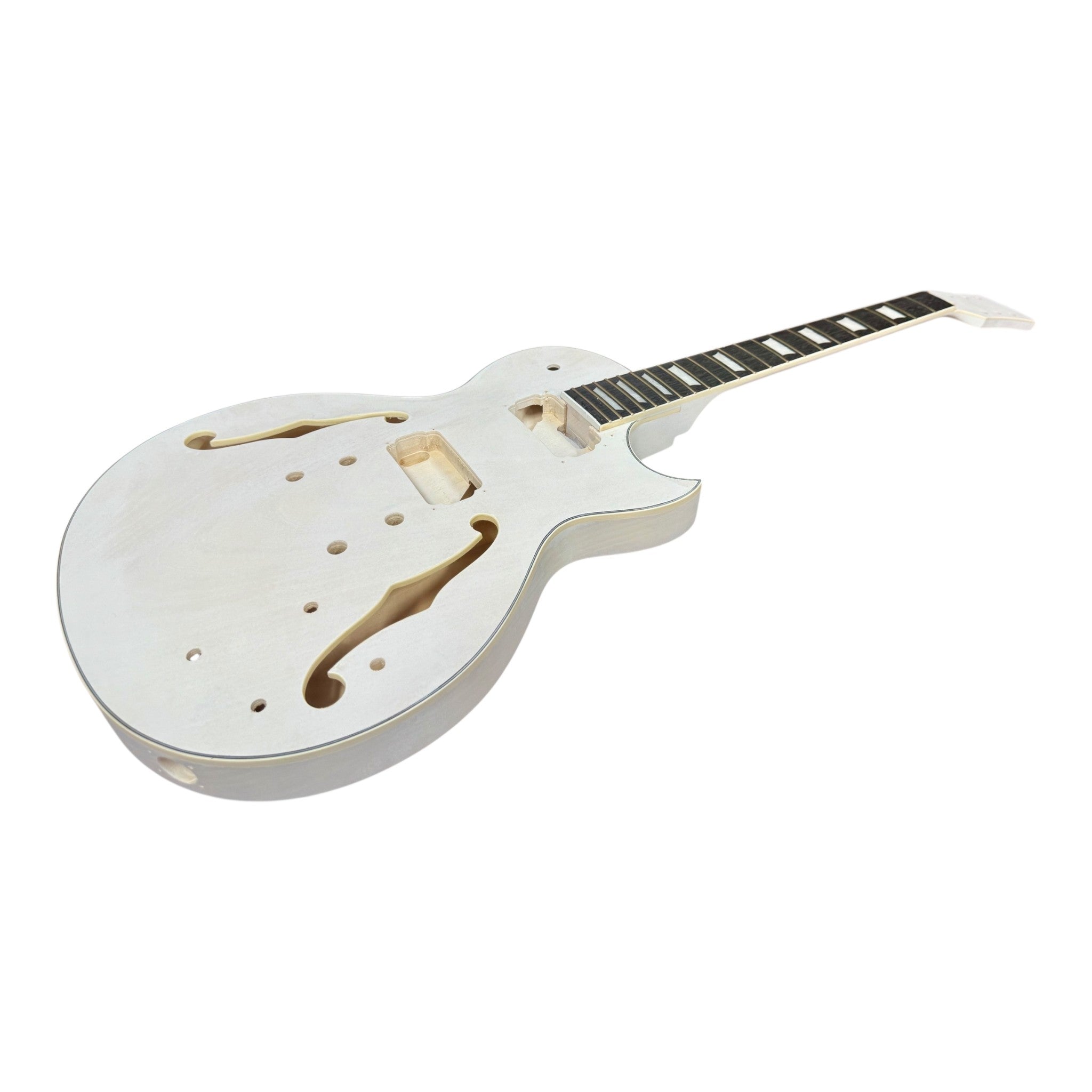

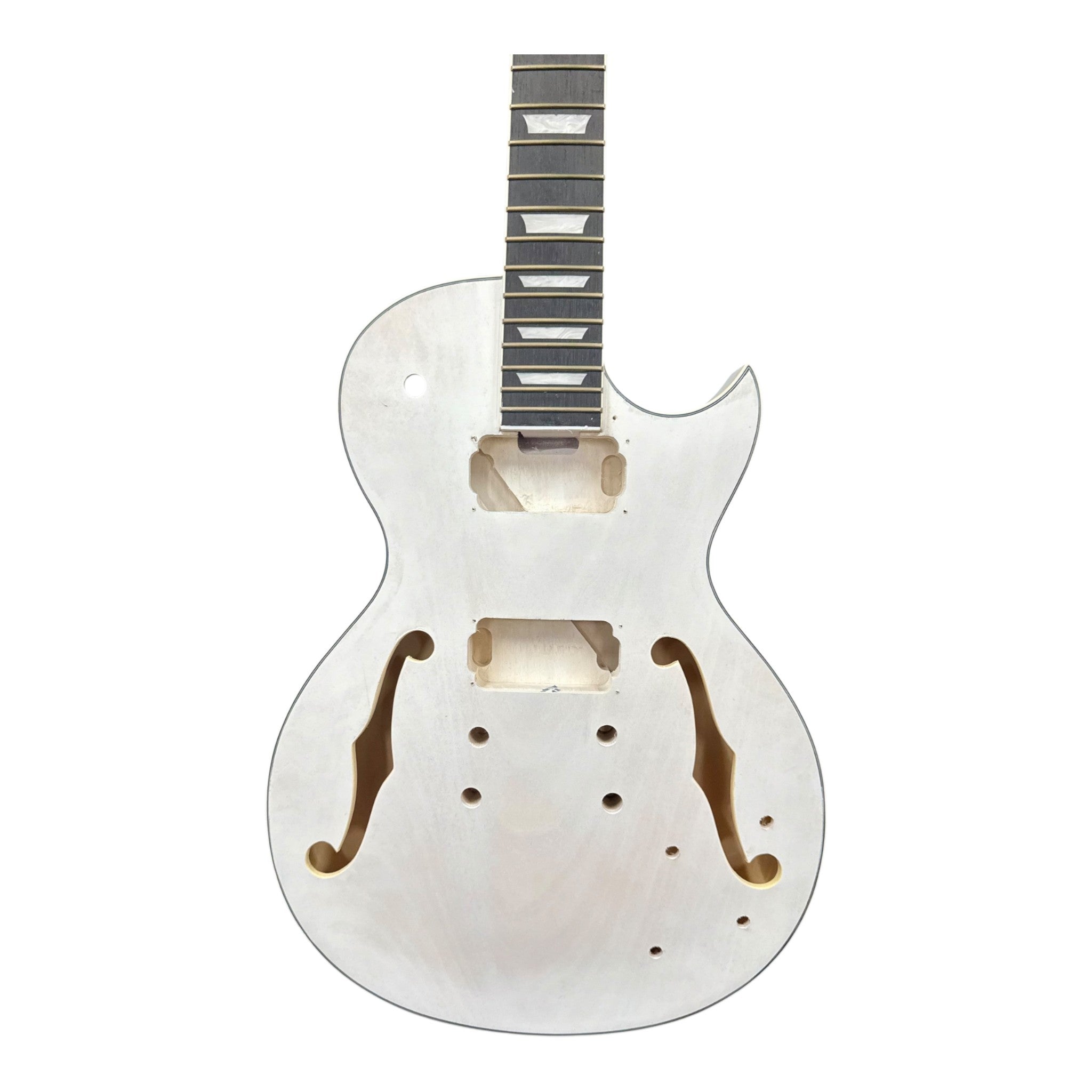

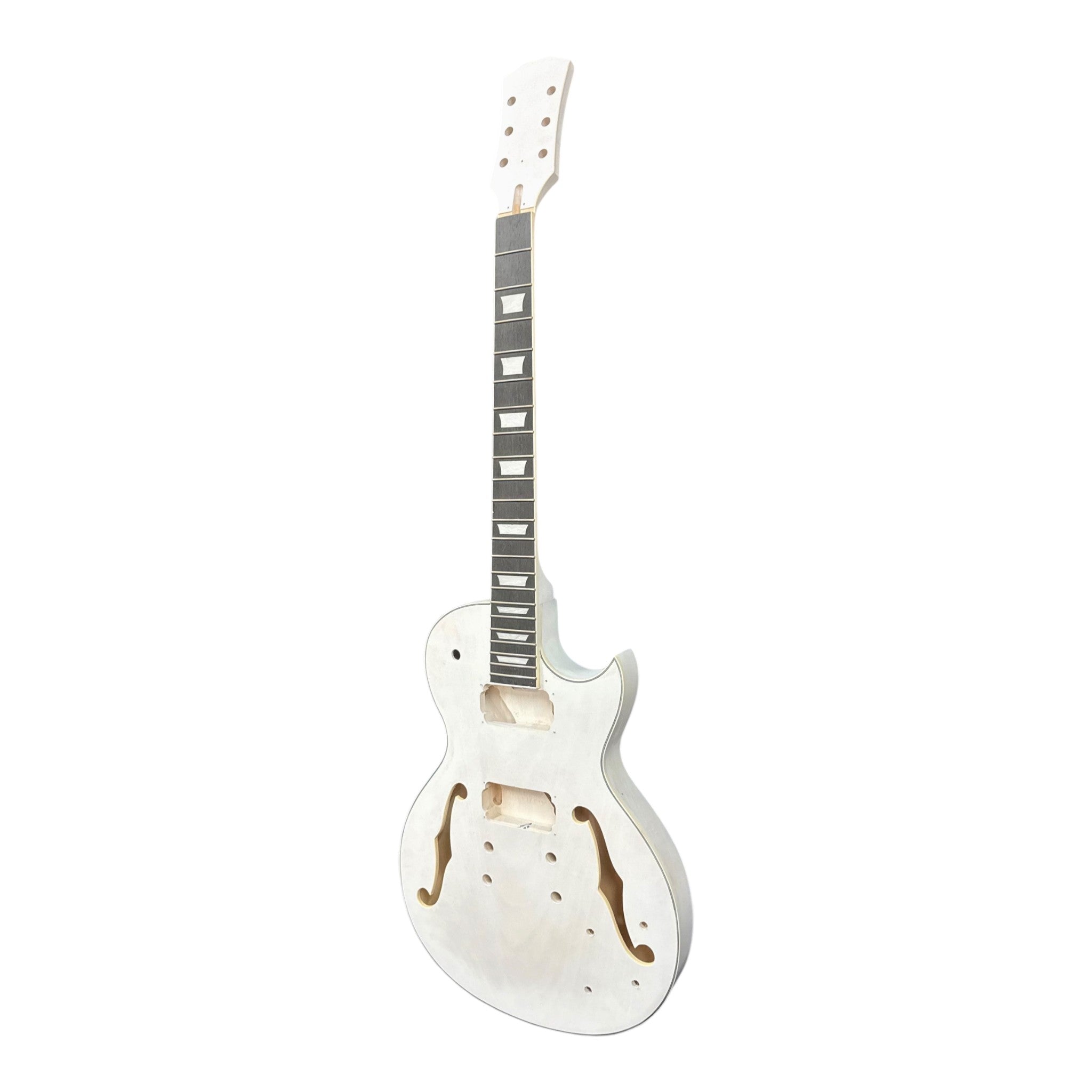

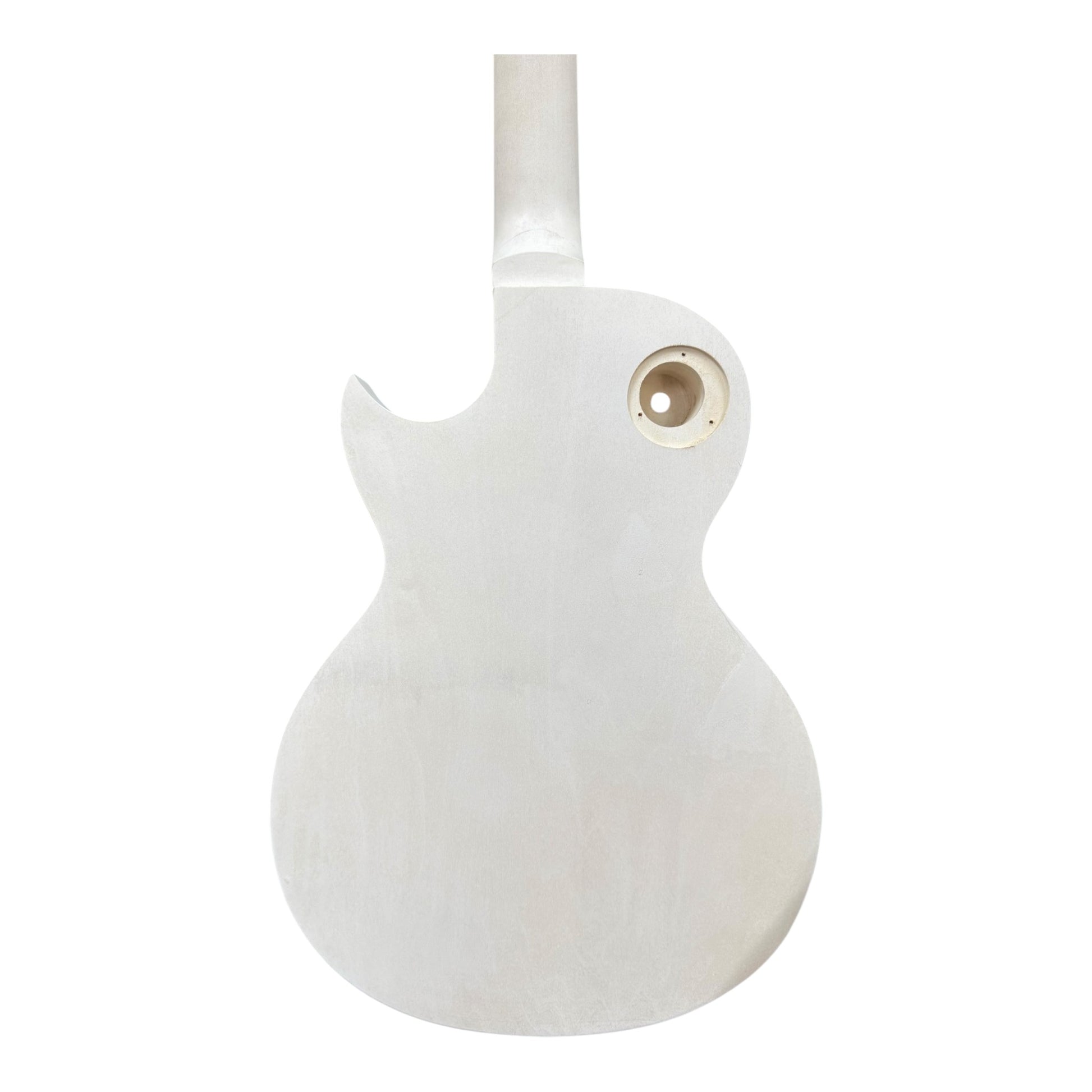

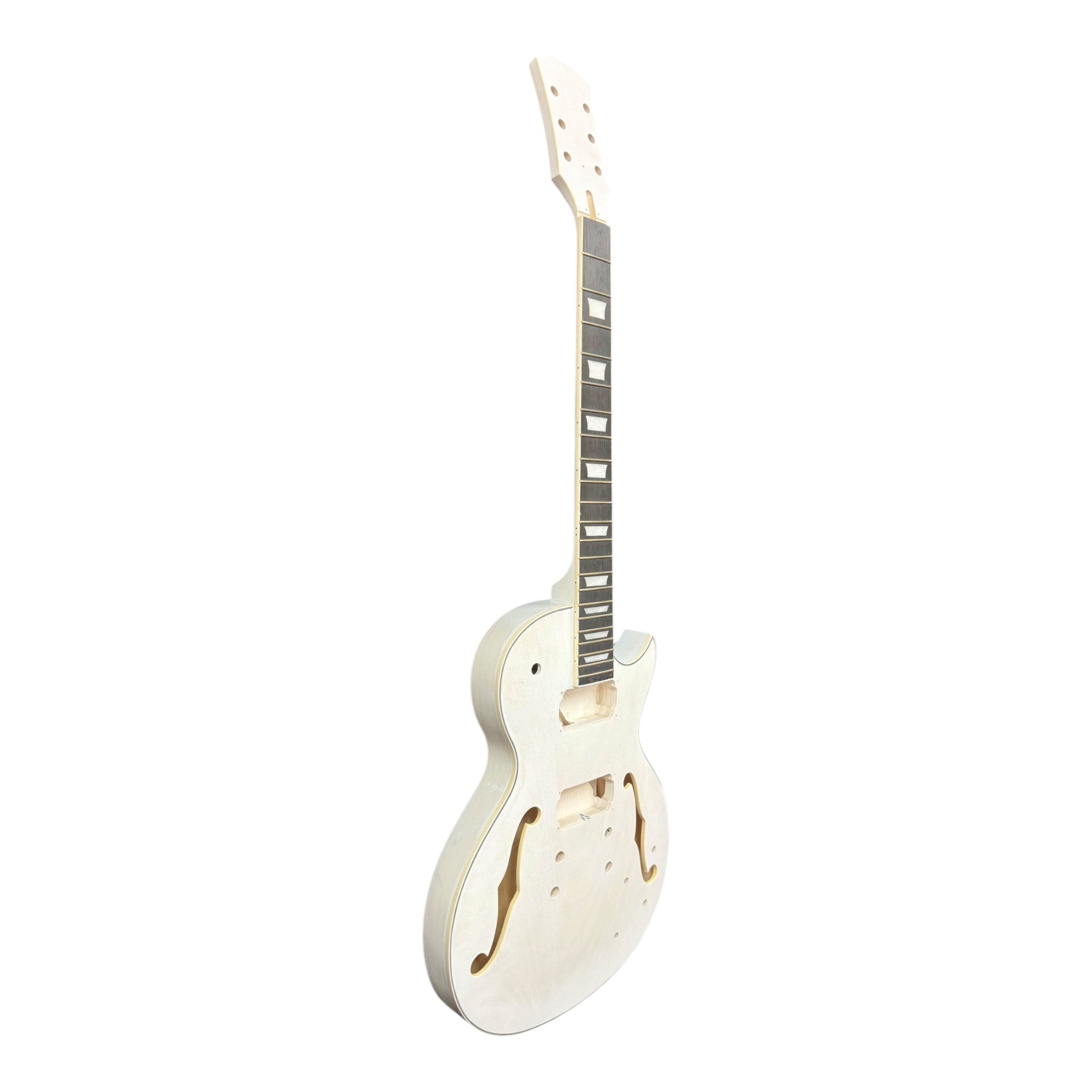

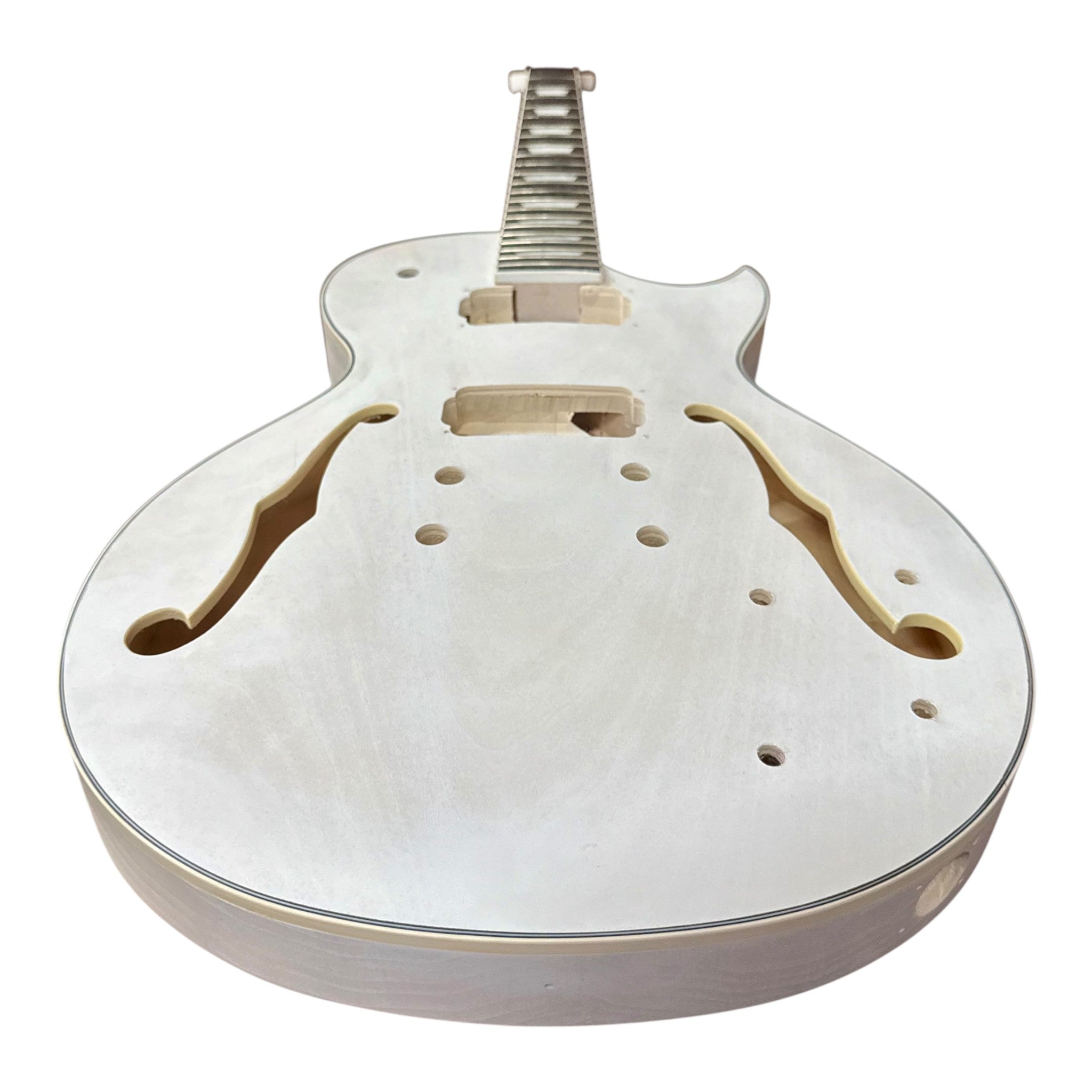

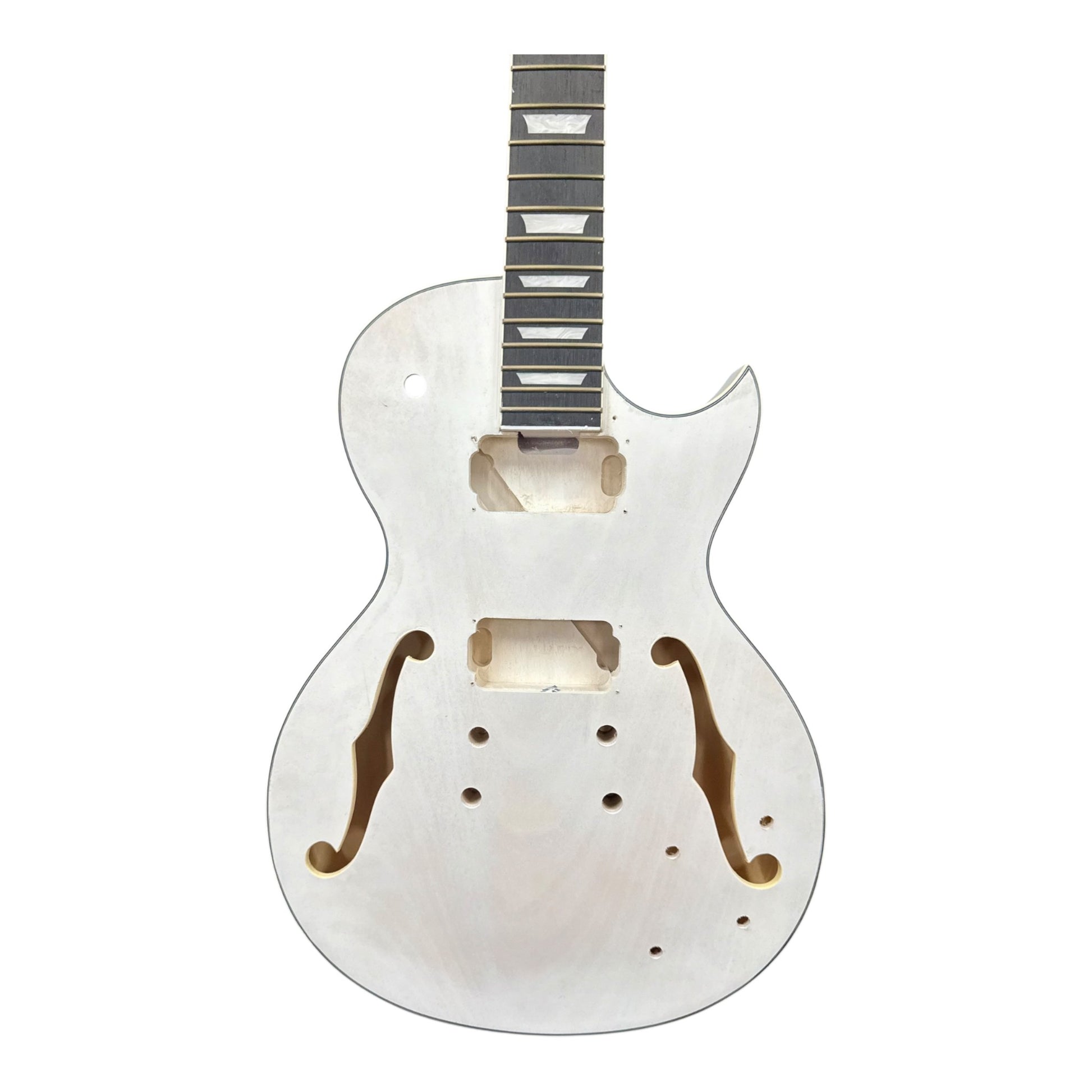

Semi-Hollow LP-Style Body

• The semi-hollow basswood construction delivers a balanced mix of warm resonance and solid-body sustain. An arched top, traditional “F” holes, and a single-cut design create a familiar classic silhouette while offering comfortable access across the fretboard. The white-primed finish provides a clean, uniform base ideal for solid colors, bursts, or detailed custom artwork.

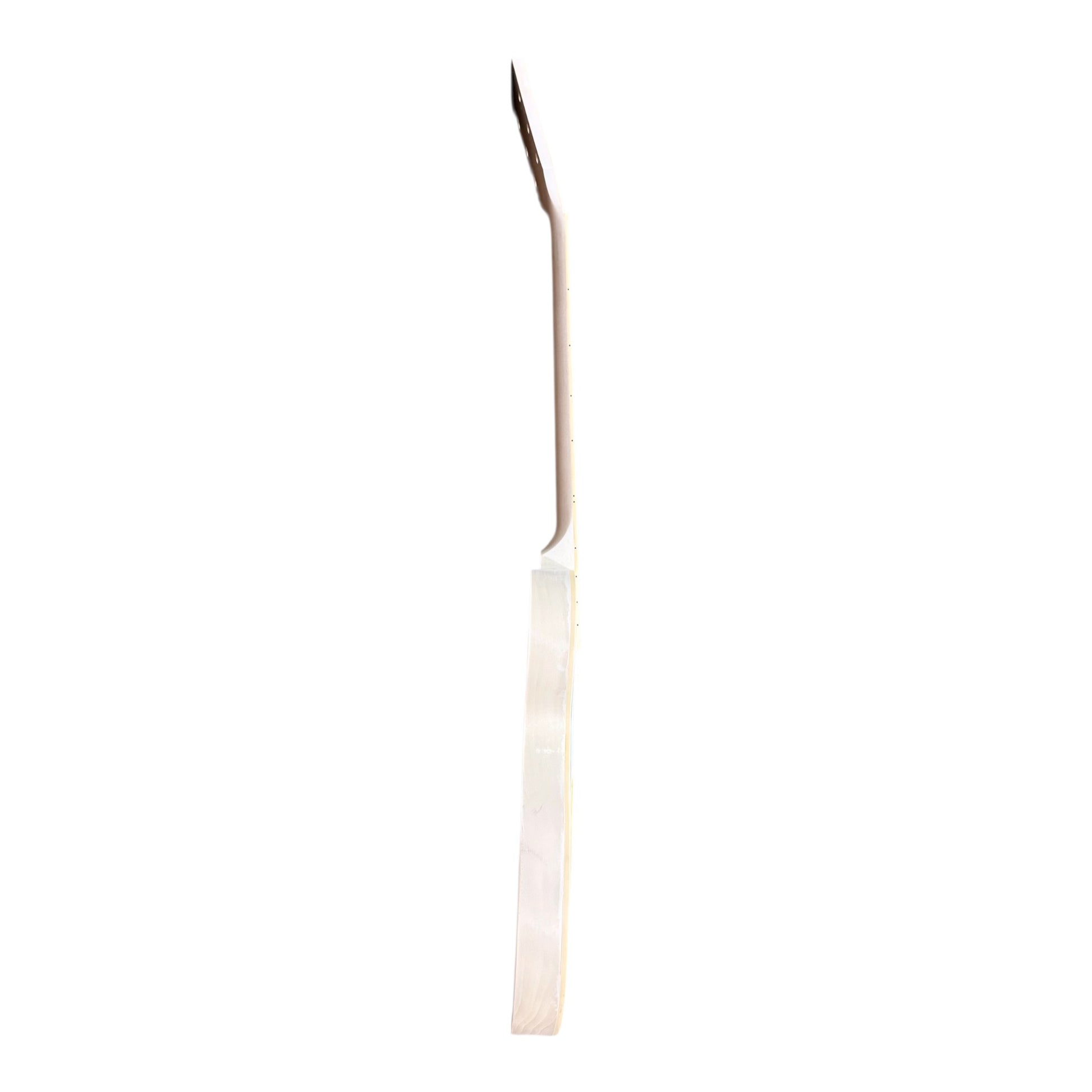

Deluxe Set-Neck Construction

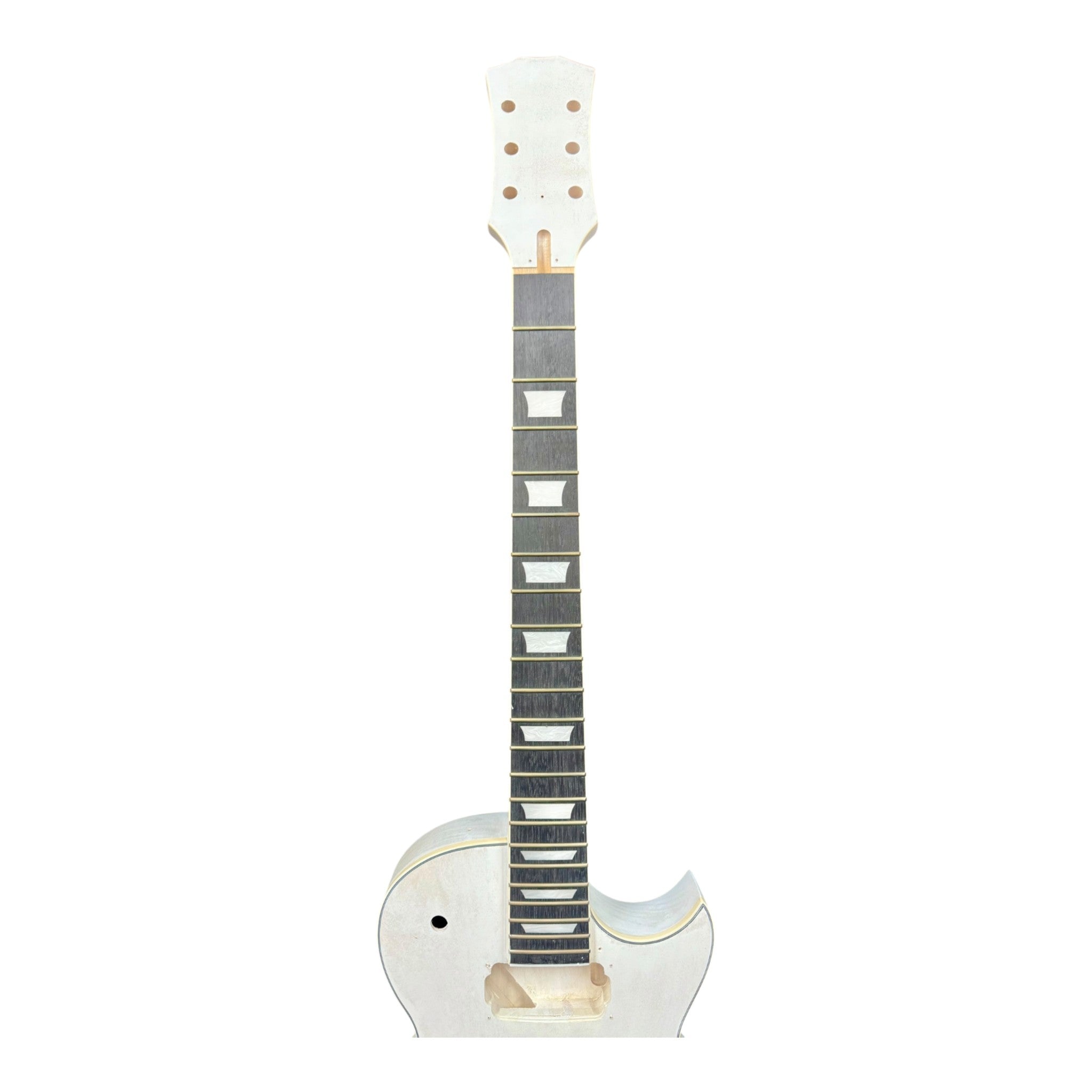

• A white-primed maple neck with a comfortable Thin-C profile is set directly into the body, enhancing sustain and overall tonal response. The purpleheart fretboard features trapezoid mother-of-pearl block inlays, combining durability with a polished, professional appearance.
  • 22 Frets
  • Ivory-colored plastic nut
  • Preinstalled 2-way adjustable truss rod with 3-ply ebony-colored cover
  • Stainless steel 6-string setup

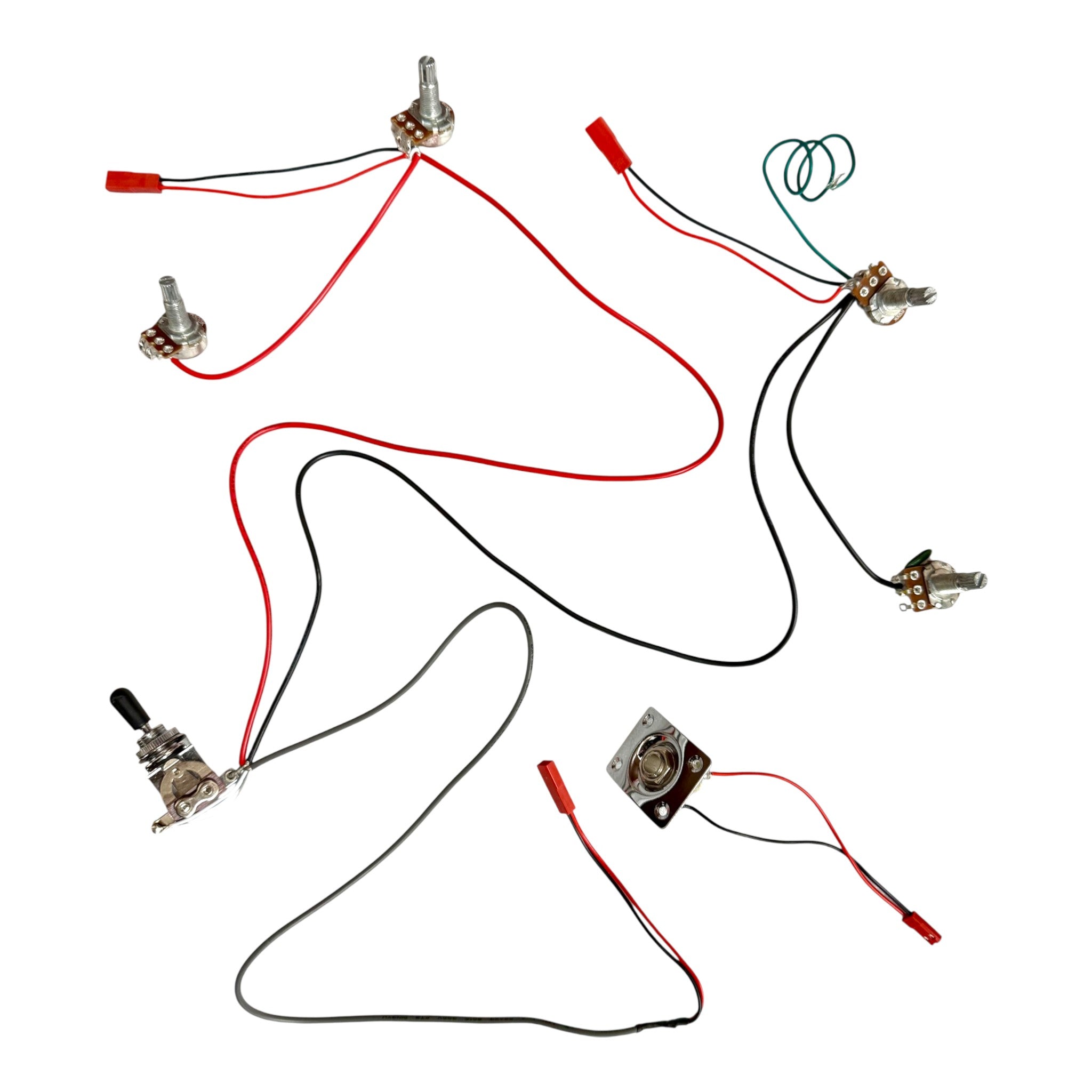

Plug-N-Play Electronics – No Soldering Required

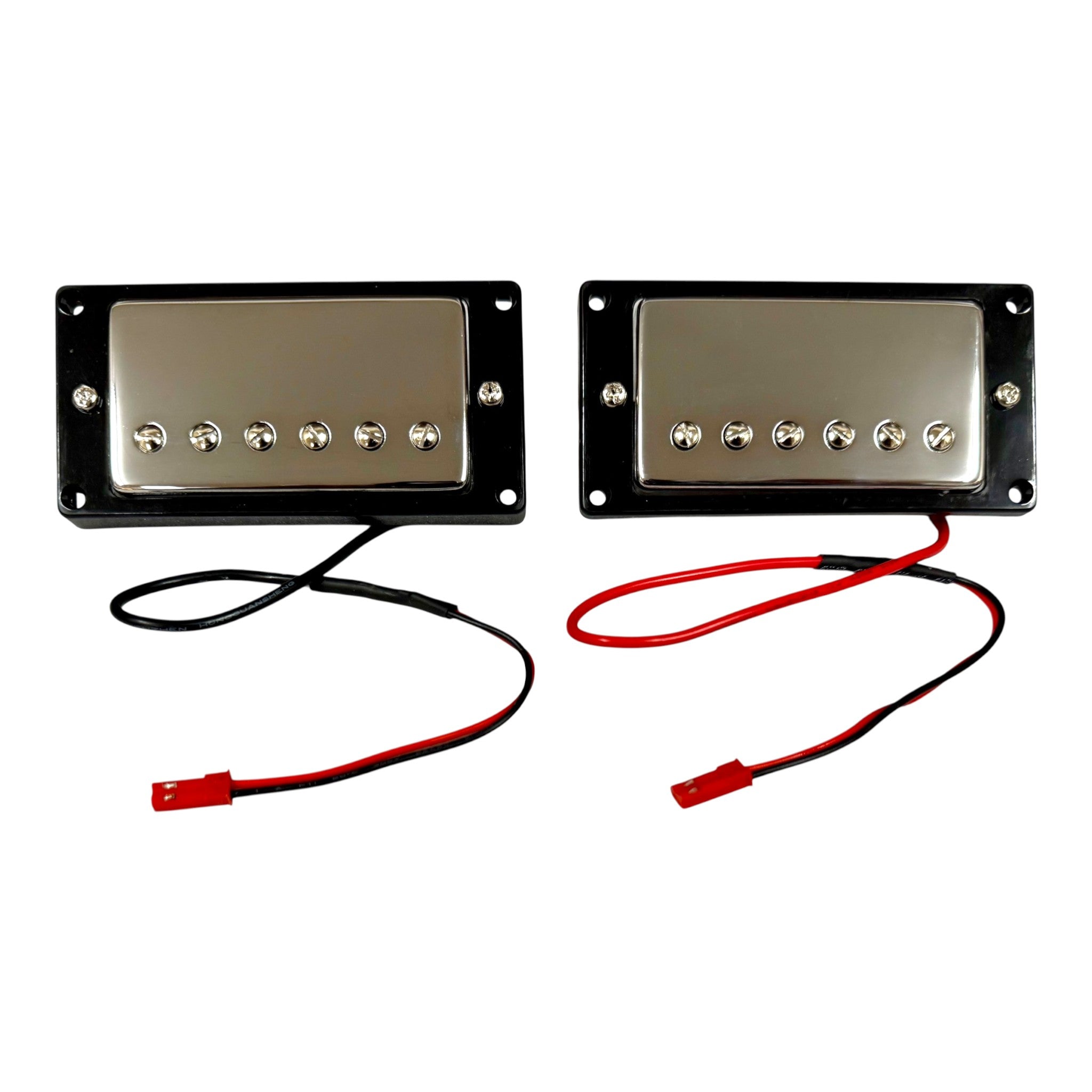

• Designed for easy assembly, the E239DIYWH comes fully pre-wired with plug-in connections—no soldering required. Dual chrome-covered ceramic humbuckers provide full-bodied lows, defined mids, and crisp highs suitable for a wide range of styles.
  • Neck Pickup: P-3002-50 (8.5K, 3.5H)
  • Bridge Pickup: P-3002-52.5 (8.8K, 3.9H)
  • Controls: Dual Volume and Tone with gold-clear speed knobs
  • 3-way toggle switch for versatile pickup selection

Pro-Level Components

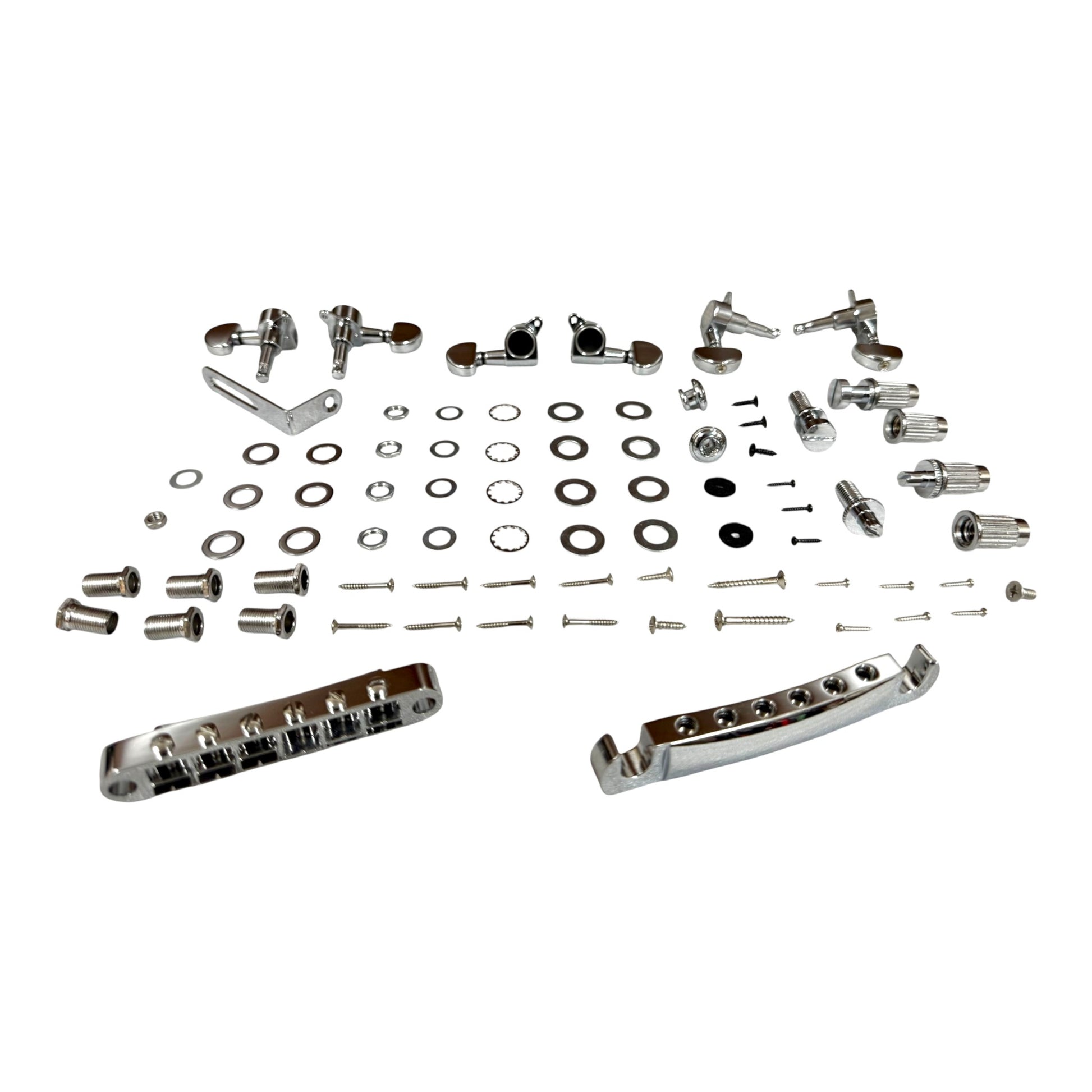

• A Tune-O-Matic bridge with Lock-Tone saddle ensures stable intonation and sustain, while sealed rotomatic tombstone tuners deliver smooth, dependable tuning. Chrome hardware throughout completes the guitar with durability and classic appeal.

Vintage Trims & Classic Appointments

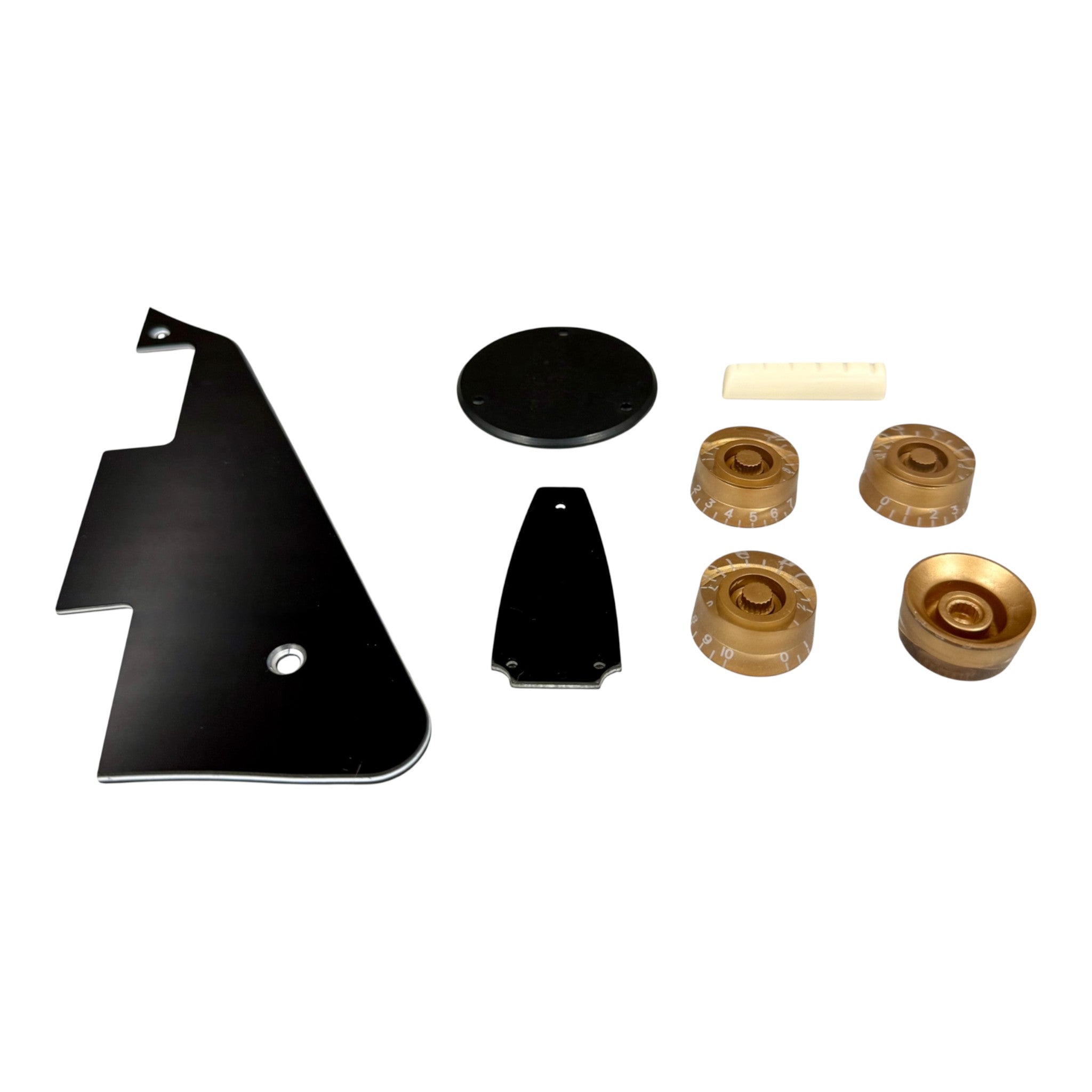

• Vintage-style 3-ply ivory pickguard inspired by early ’60s designs
• 5-ply ABS cream binding on the body for a bold, traditional outline
• Cream ABS binding on the neck and headstock for a cohesive, finished look

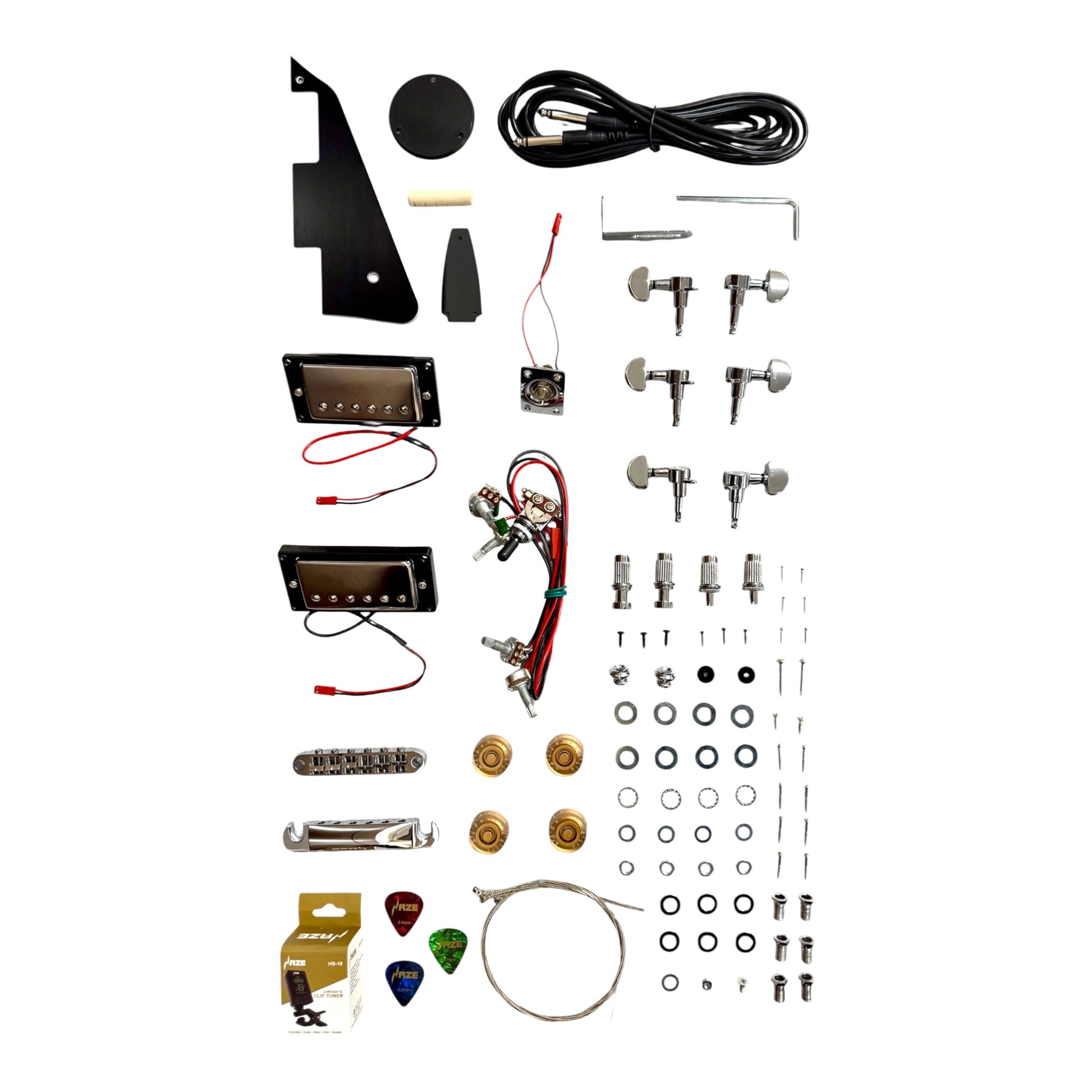

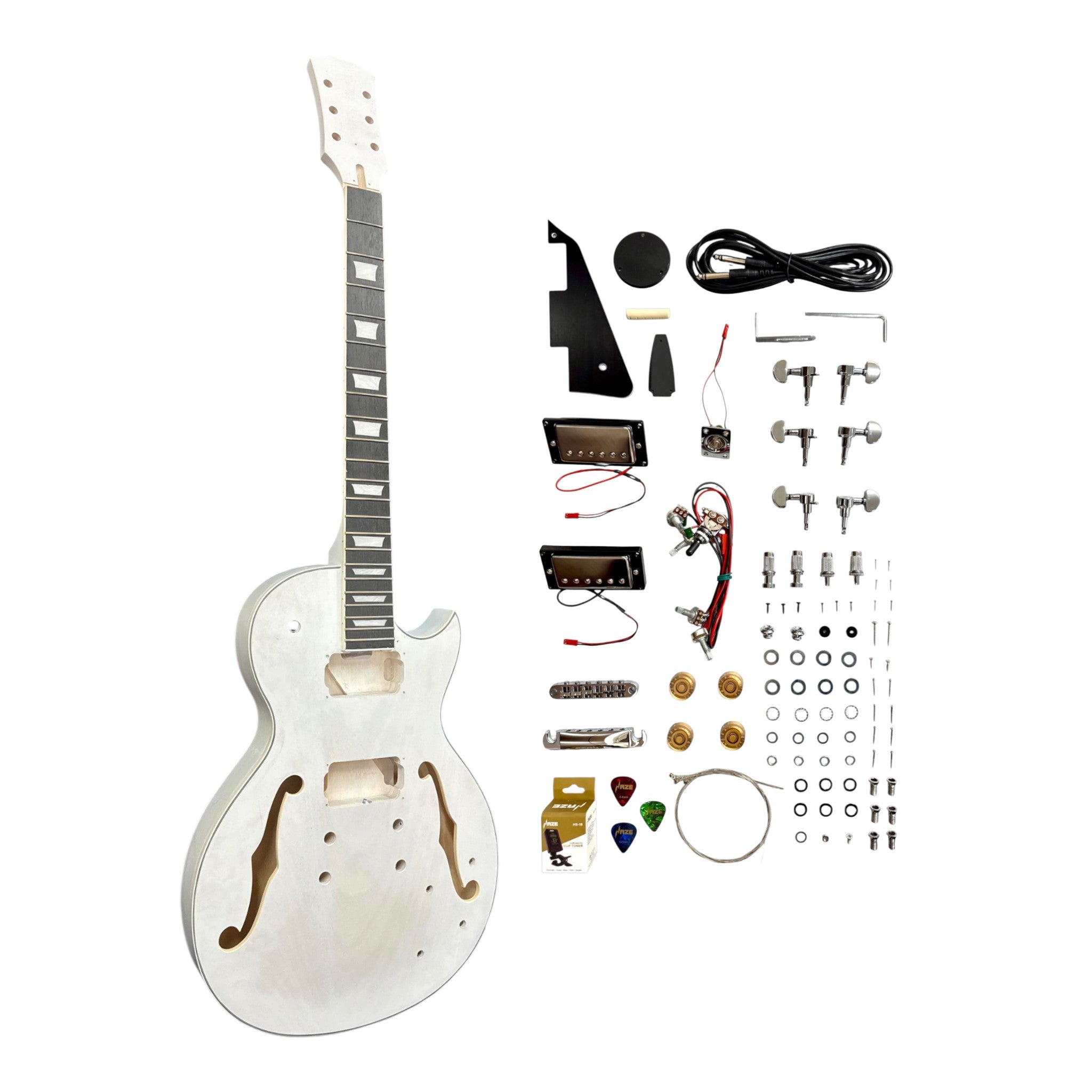

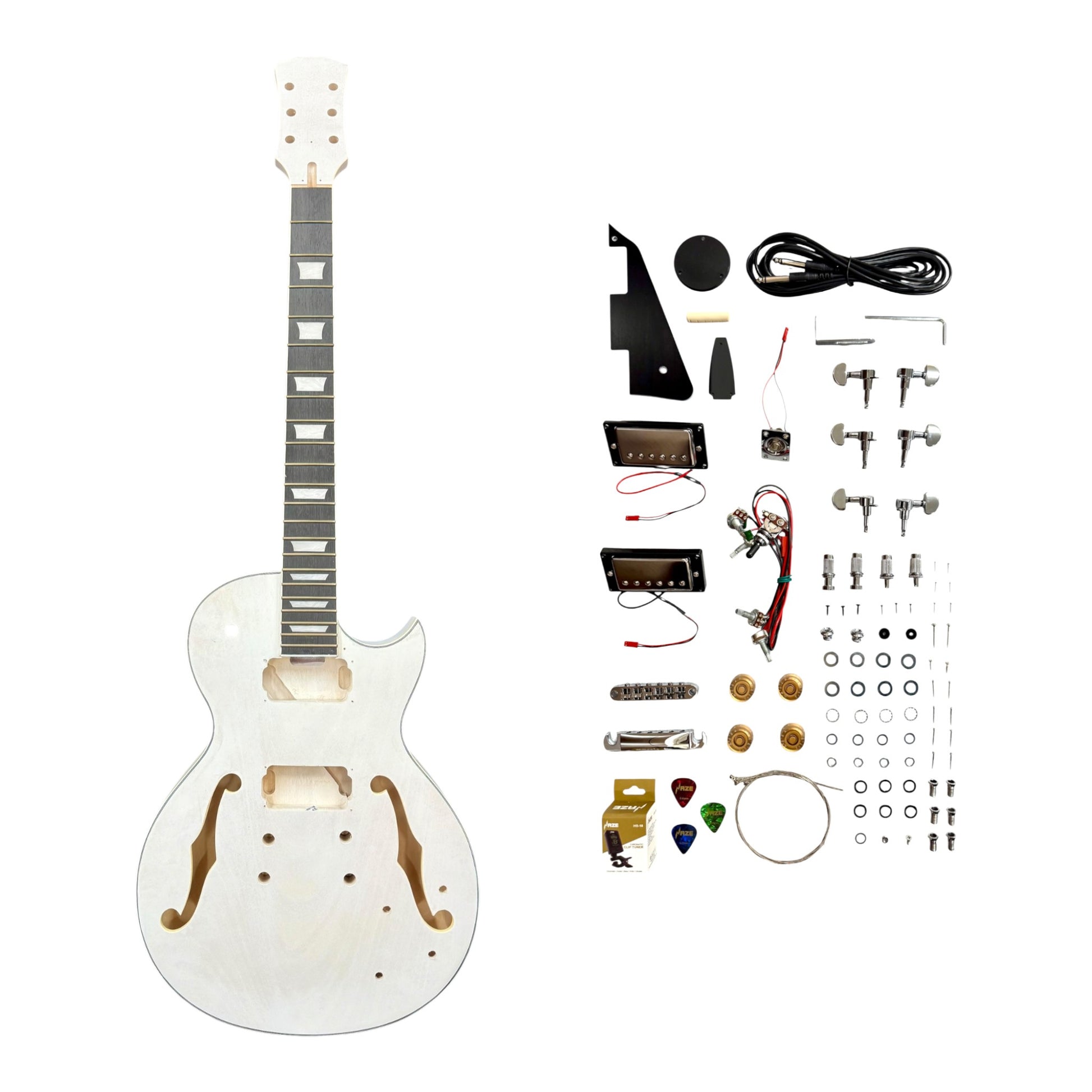

Kit Includes

• 3 Guitar Picks
• Clip-On Digital Tuner
• Instrument Cable
• Truss Rod Adjustment Key

The E239DIYWH Semi-Hollow Guitar Kit is more than a DIY project—it’s a foundation for expression. With its resonant semi-hollow design, paint-ready white-primed body and neck, and builder-friendly no-solder electronics, it’s an ideal choice for players who value tone, tradition, and creative freedom. Whether you’re chasing warm cleans or driven leads, this kit is ready to become your next signature build.

Click to Download

→ DIY Assembly Guide

→ Electronics Overview

→ Electronics Diagram

Specifications

• Model Number : E239DIYWH
• Instrument : Electric Guitar (LP style) (DIY kit)
• Body : Basswood
• Body - Design : Semi-Hollow / Arched Top / “F” Holes
• Cutaway : Single cutaway (pointed horn)
• Binding - Body : Deluxe 5-ply ABS (vintage cream colour)
• Binding - Neck/Head : Deluxe ABS (vintage cream colour)
• Fretboard : Purpleheart w/ Mother-of-Pearl trapezoid block inlays
• Neck : Maple w/ ABS vintage cream binding (Thin-C)
• Neck Joint : Set-in
• Number of Frets : 22
• Electronics Connections : Plug-n-Play connectors
• Controls - Knobs  : 2 Volume / 2 Tone (gold-clear “speed” knobs)
• Controls - Switch : 3-way toggle switch
• Pickups : H-H (Humbucker-Humbucker) Ceramic  w/ Chrome cover
• Pickups - Neck : P-3002-50 (Ferrites: 8.5K 3.5H / Dimensions: 70.5mm x 38.5mm)
• Pickups - Bridge : P-3002-52.5 (Ferrites: 8.8K 3.9H / Dimensions: 70.5mm x 38.5mm)
• Tuners : 14:1 tombstone rotomatic
• Truss Rod : 2-way adjustable w/ 3-ply cover (ebony colour)
• Nut : Plastic
• Bridge : Tune-O-Matic
• Saddle : Lock-Tone
• Strings : 6 (stainless steel)
• Hardware : Chrome
• Pickguard/Trims : 3-ply ’63 vintage-style (ebony colour)
• Finish : Pre-primed (white)
• Includes : 3 Picks, Clip-On Tuner, Instrument Cable, & Truss Rod Key

Dimensions

• Length : 1000mm (excluding endpin)
• Scale Length : 628mm
• Weight - Body/Neck : 2.5kg
• Weight - Electronics/Hardware : 0.95kg

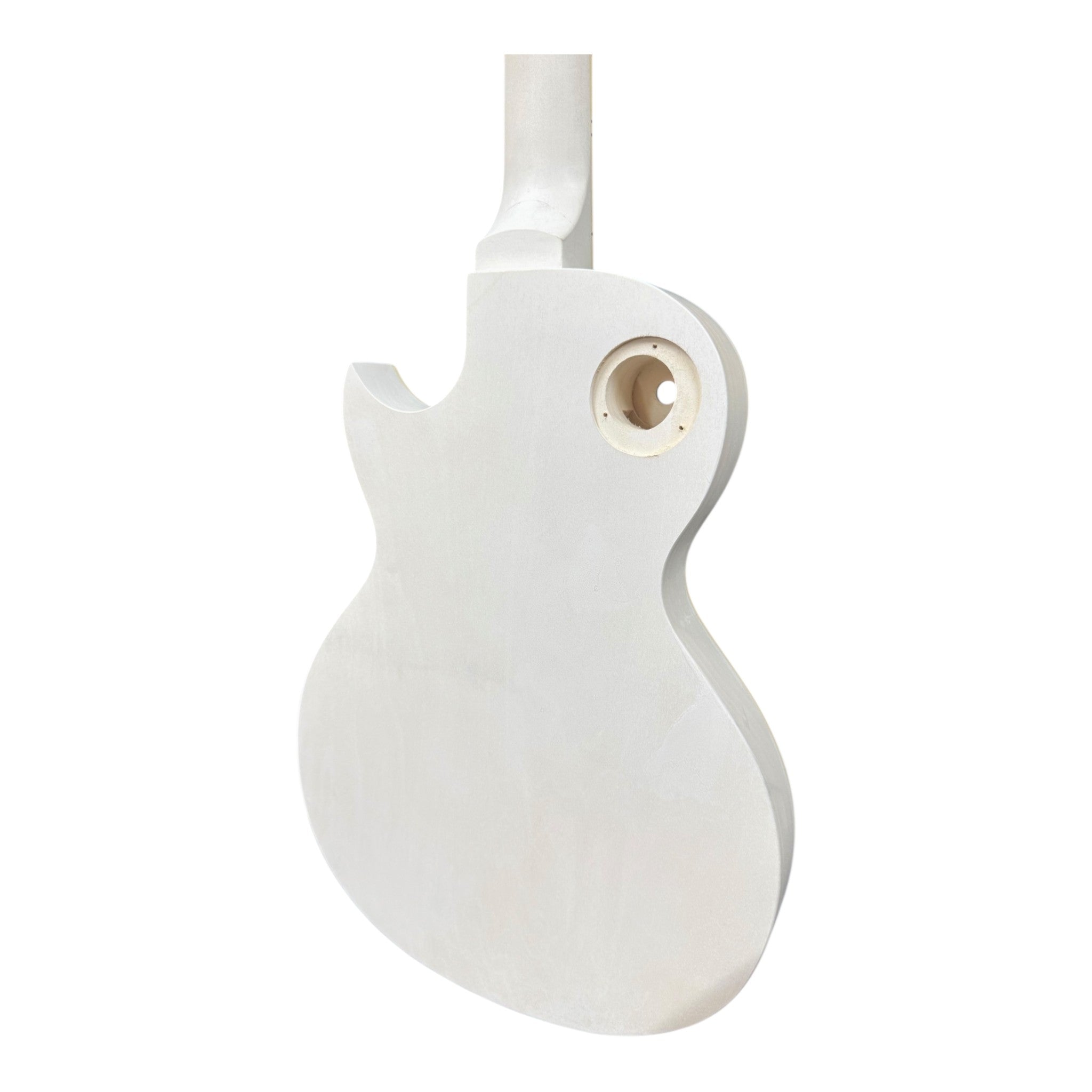

Body

• Length : 445mm
• Width - Upper Bout : 235mm
• Width - Inner Body : 185mm
• Width - Lower Bout : 330mm
• Depth : 45mm (includes top, measured on side)

Body Compartments

• Length - Pickups : 42mm
• Width - Pickups : 87mm
• Toggle Switch - Back : 36mm (56mm)
• Line Out : 23mm
• Controls : 8mm
• Switch : 12mm
• Bridge & Saddle : 12mm
• Distance - Pickup Compartments: 60mm
• Distance - Bridge Holes : 60mm
• Distance - Saddle Holes : 70mm

Neck

• Length : 550mm (flat length, measured to body)
• Length - Neck : 378mm (not including headstock)
• Length - Fretboard : 462mm
• Thickness : 23mm
• Thickness - Fretboard : 6mm
• Radius : 15 (Straight)
• Width - Nut : 43mm
• Width - 12th Fret : 53mm

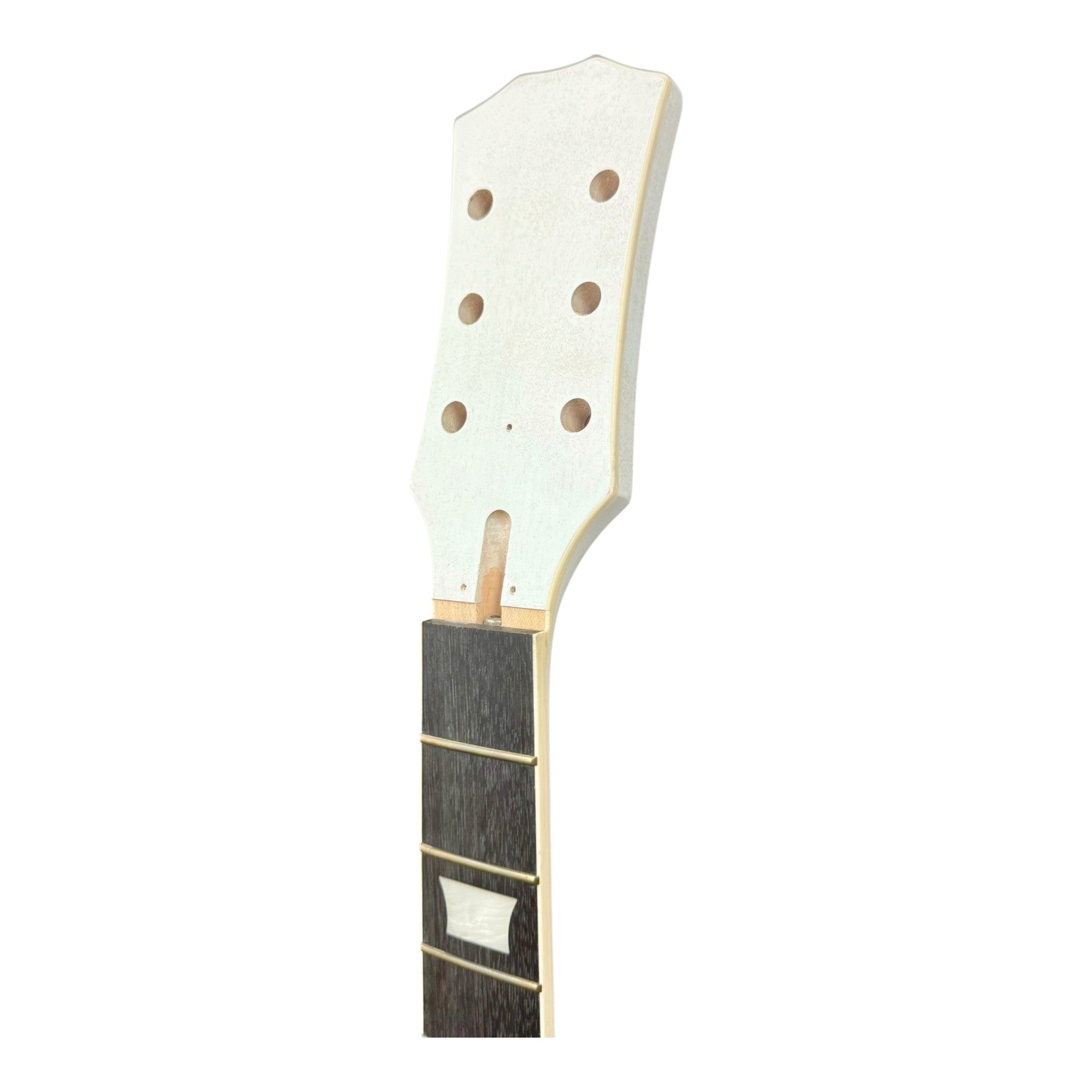

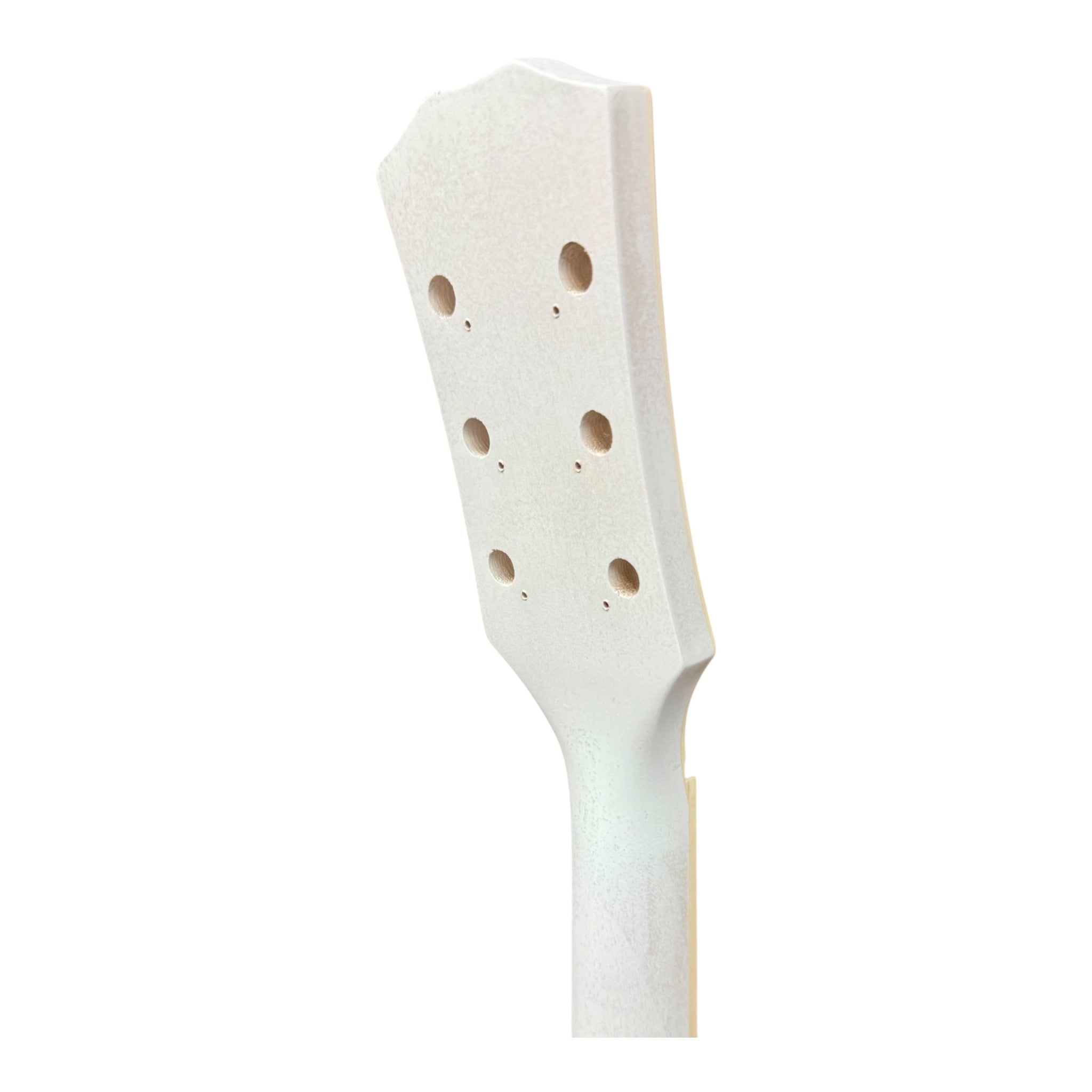

Headstock

• Length : 175mm
• Width - Upper : 80mm
• Width - Inner : 68mm
• Width - Lower : 75mm
• Thickness : 15mm
• Tuner Holes : 10mm

Nut

• Length : 43mm
• Width : 8mm
• Height : 6mm

Note: All product measurements are taken by hand and may vary slightly. Please allow for minor differences in size and dimensions.

-
