ST1012SDIY Solid Basswood Body 12-String Electric Guitar DIY Kit, No-Soldering, SSS

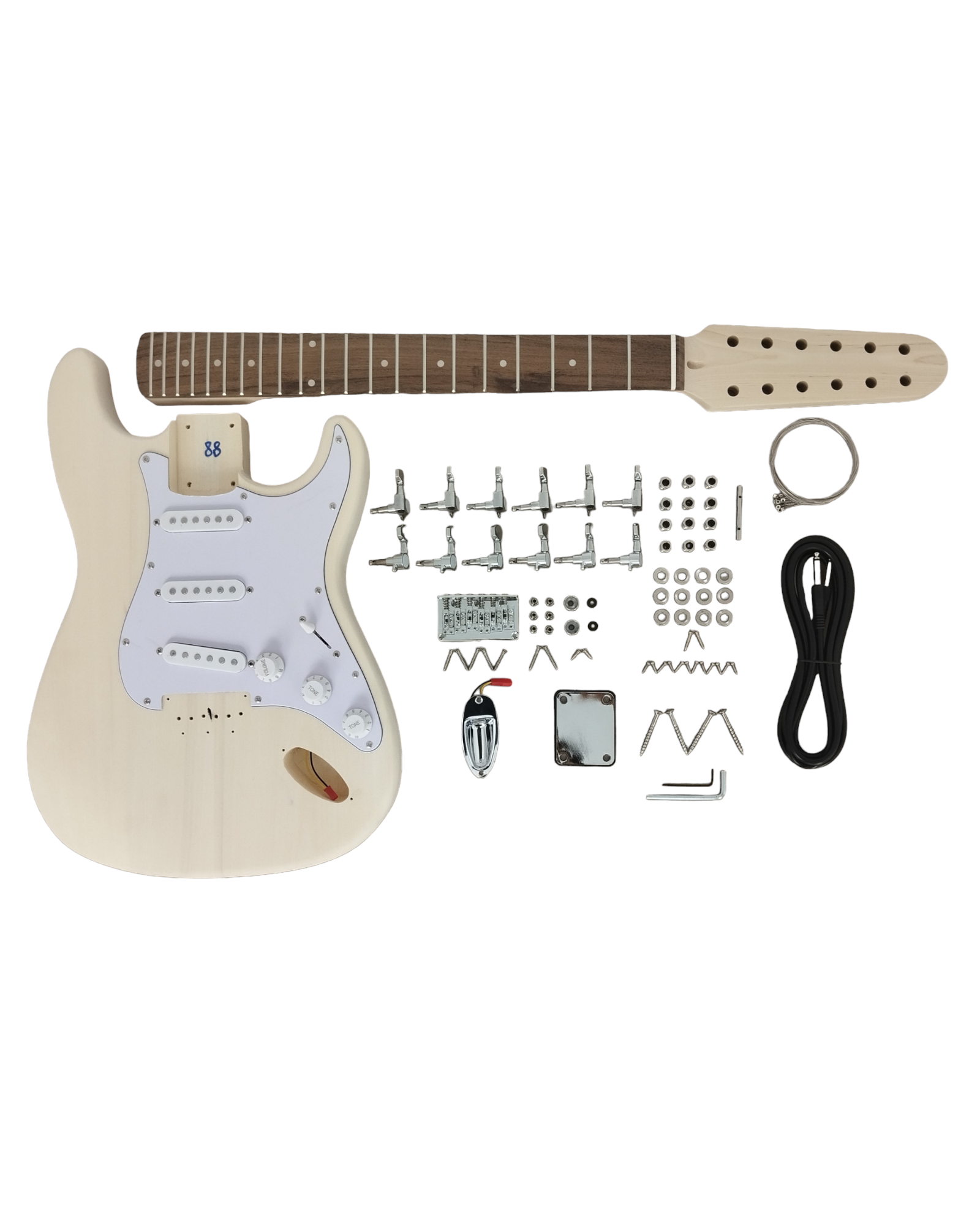

This upgraded solid basswood body 12-string electric guitar DIY kit includes everything you need for building your own custom Stratocaster style Electric Guitar.

You will need only some basic tools and finishing supplies. All challenging wood cutting and shaping is already done professionally, as well as fret levelling and dressing.

No soldering design that makes your creation smoothly.

Click to Download

→ DIY Assembly Guide

→ Electronics Overview

→ Electronics Diagram

*Please Note, Instructions and Diagrams show a different guitar body shape but are still relevant for this DIY Kit. The wiring, parts and functionality are 100% identical between kits.

Specifications

Model                            GK HSST 1910S (Solid body, 12-String)

Scale                              25.5" (648mm)

Nut Width                     1.89" (48mm)

Total Length                  40.16" (1020mm)

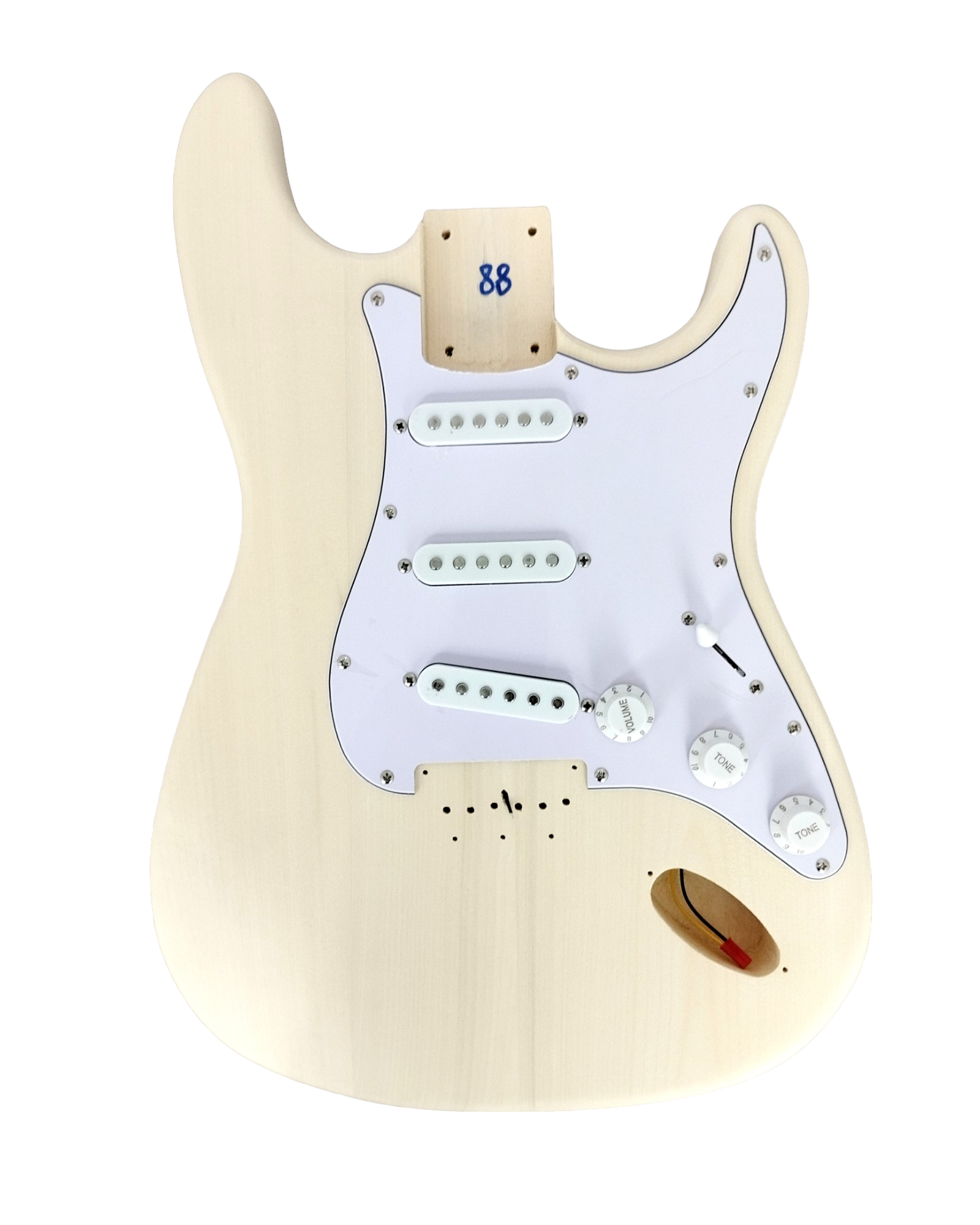

Body                             Solid basswood body, 3-Ply white loaded pickguard

Neck                             Maple, C shape, Bolt-on Connection

Neck radius                   15"

Fingerboard                  Rosewood w/Dot inlays and side markers

Truss Rod                     2-Way adjustable, accessed via head [pre-installed]

Bridge                           Chrome modern string through body style

Frets                              22

Pickups                          3 Classic single coil pickups (S-S-S), loaded on pickguard

Controls                         1 Volume, 2 Tone, 5-way selector, White knobs, loaded on white pickguard

Connections                   All wiring has no-solder Plug-n-Play connectors, Completely no soldering needed.

Tuners                            Chrome Die-Cast + screws + ferrules, 6L 6R

End Pins                         x2 Chrome strap pins + felts pads + screws

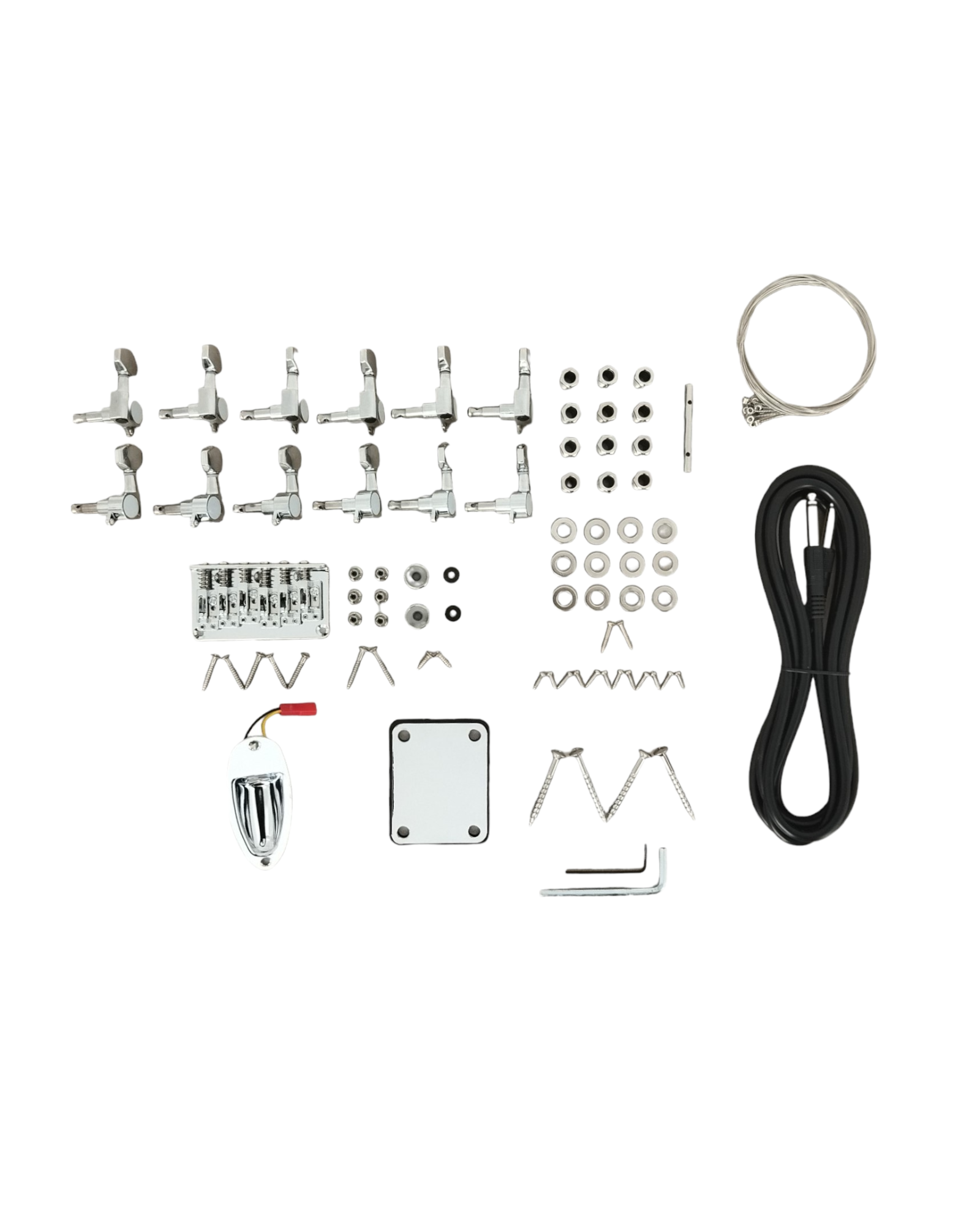

Included                        1 set of strings, Lead, Truss rod key

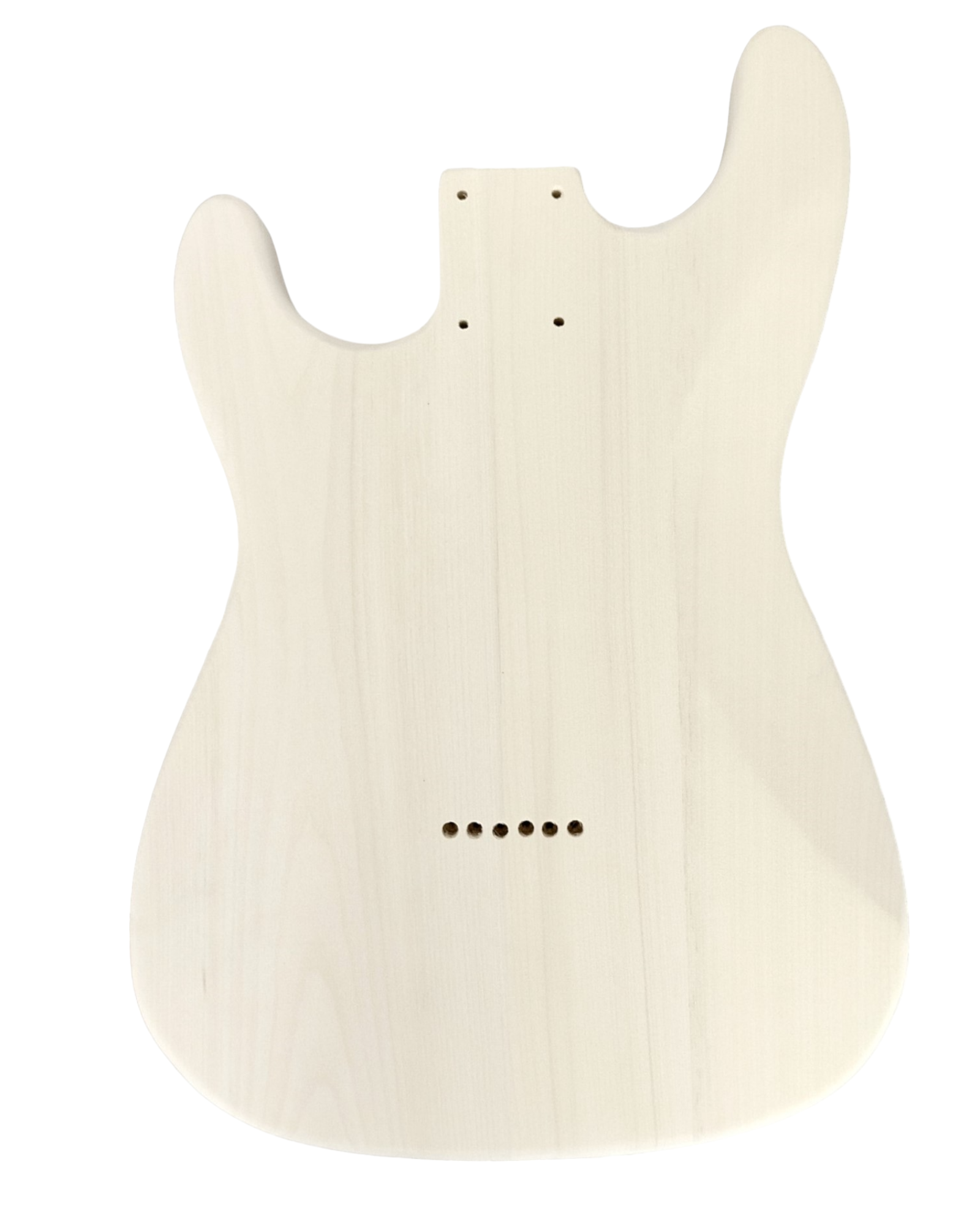

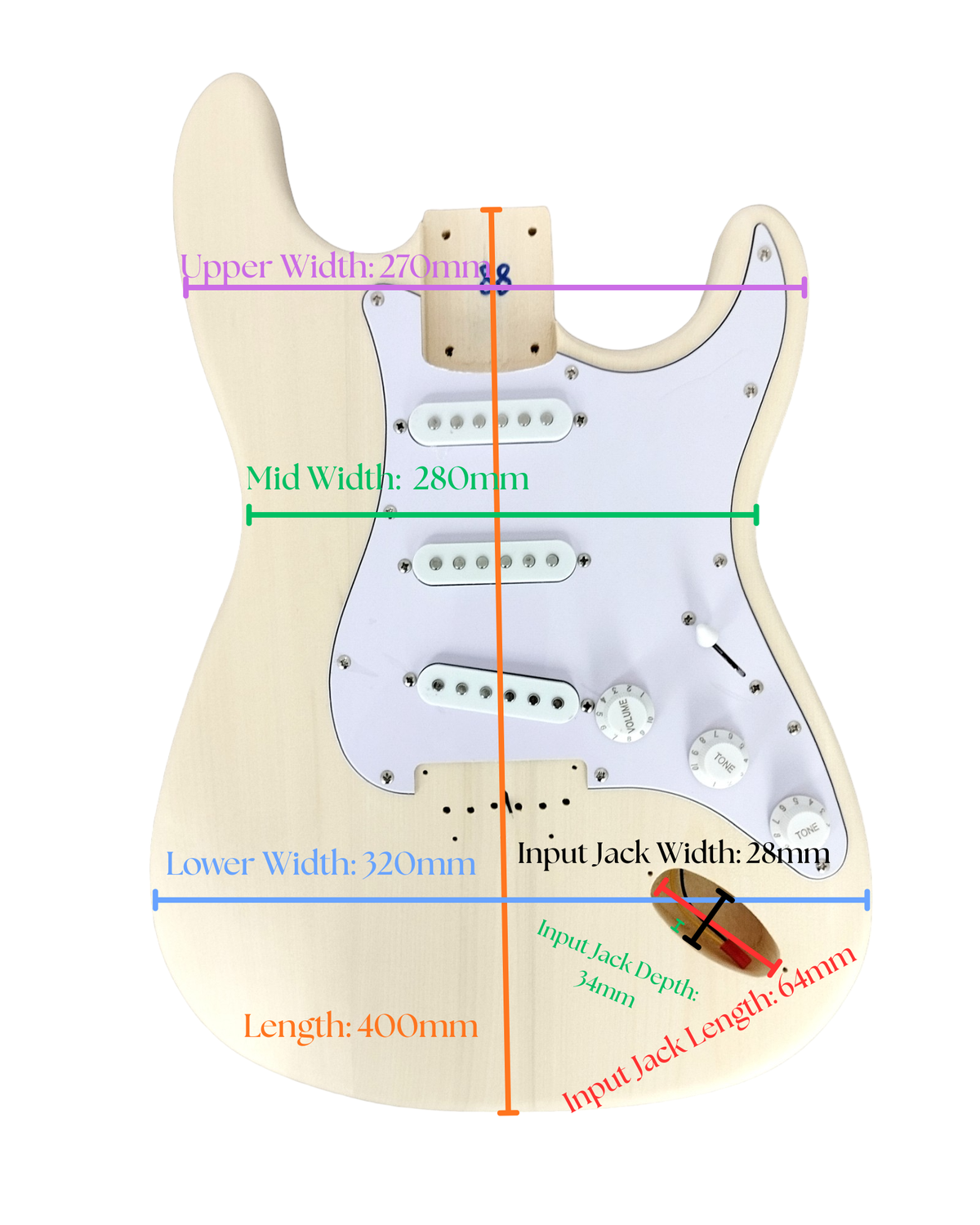

Body

• Length : 400mm
• Width - Upper Bout : 270mm
• Width - Inner Body : 280mm
• Width - Lower Bout : 320mm
• Depth : 420mm / 440mm (including Scratch Plate, measured on side)

Body Compartments

• Neck Pocket - Length: 76mm (curved, not including pickup compartment)
• Neck Pocket - Width: 58mm
• Neck Pocket - Depth: 18mm / 20mm (including Scratch Plate)
• Input Jack Compartment - Length: 64mm
• Input Jack Compartment - Width: 28mm
• Input Jack Compartment - Depth: 34mm

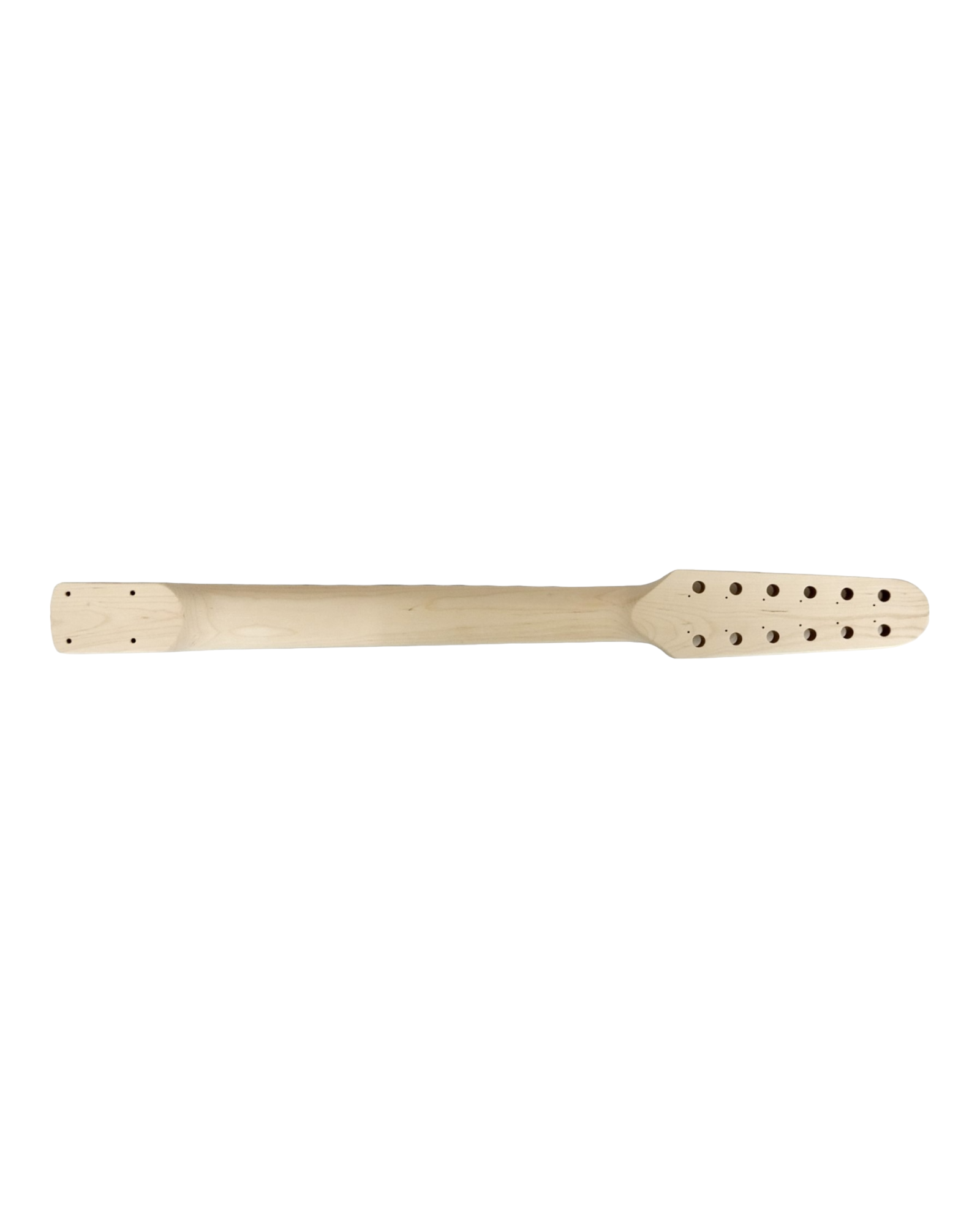

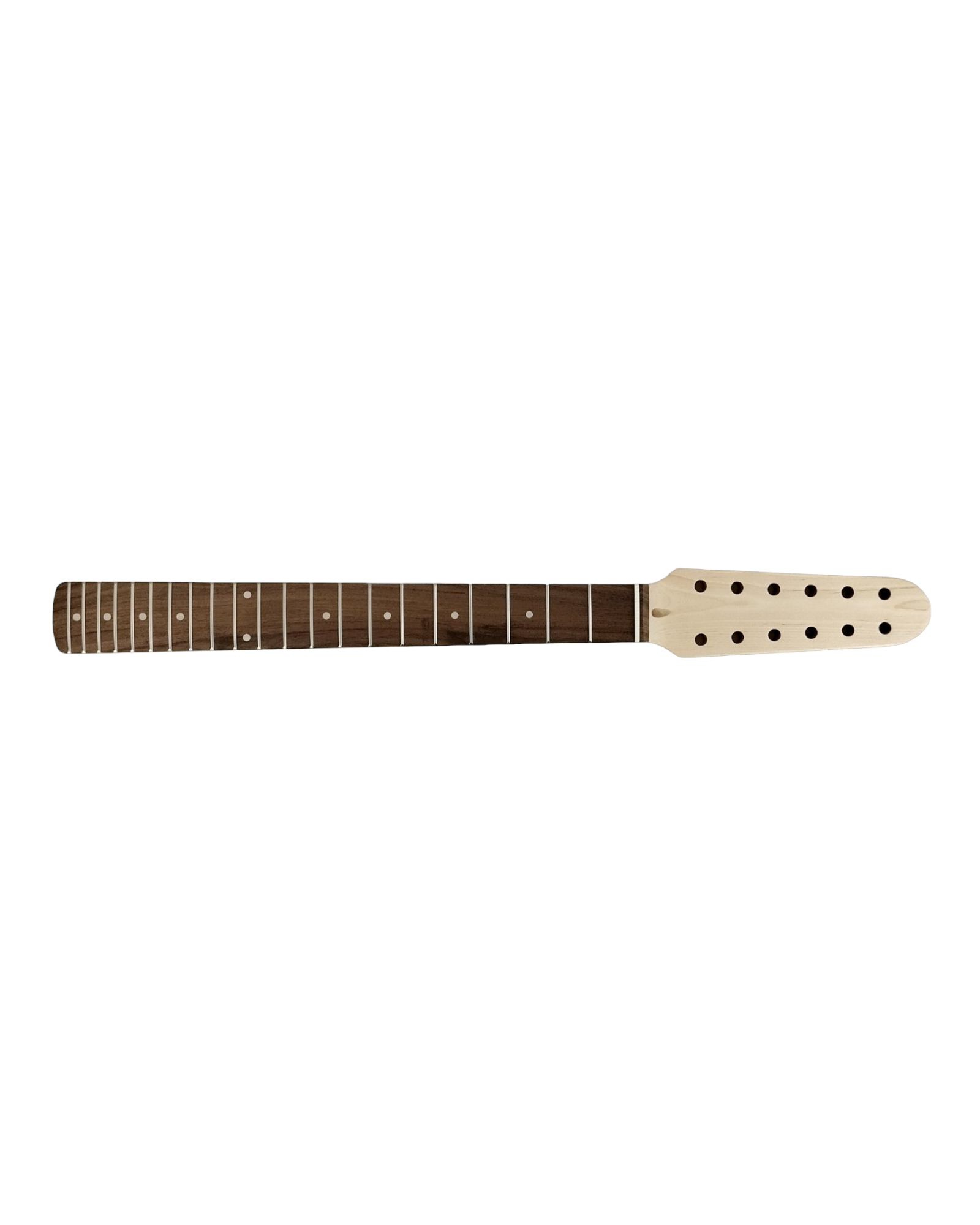

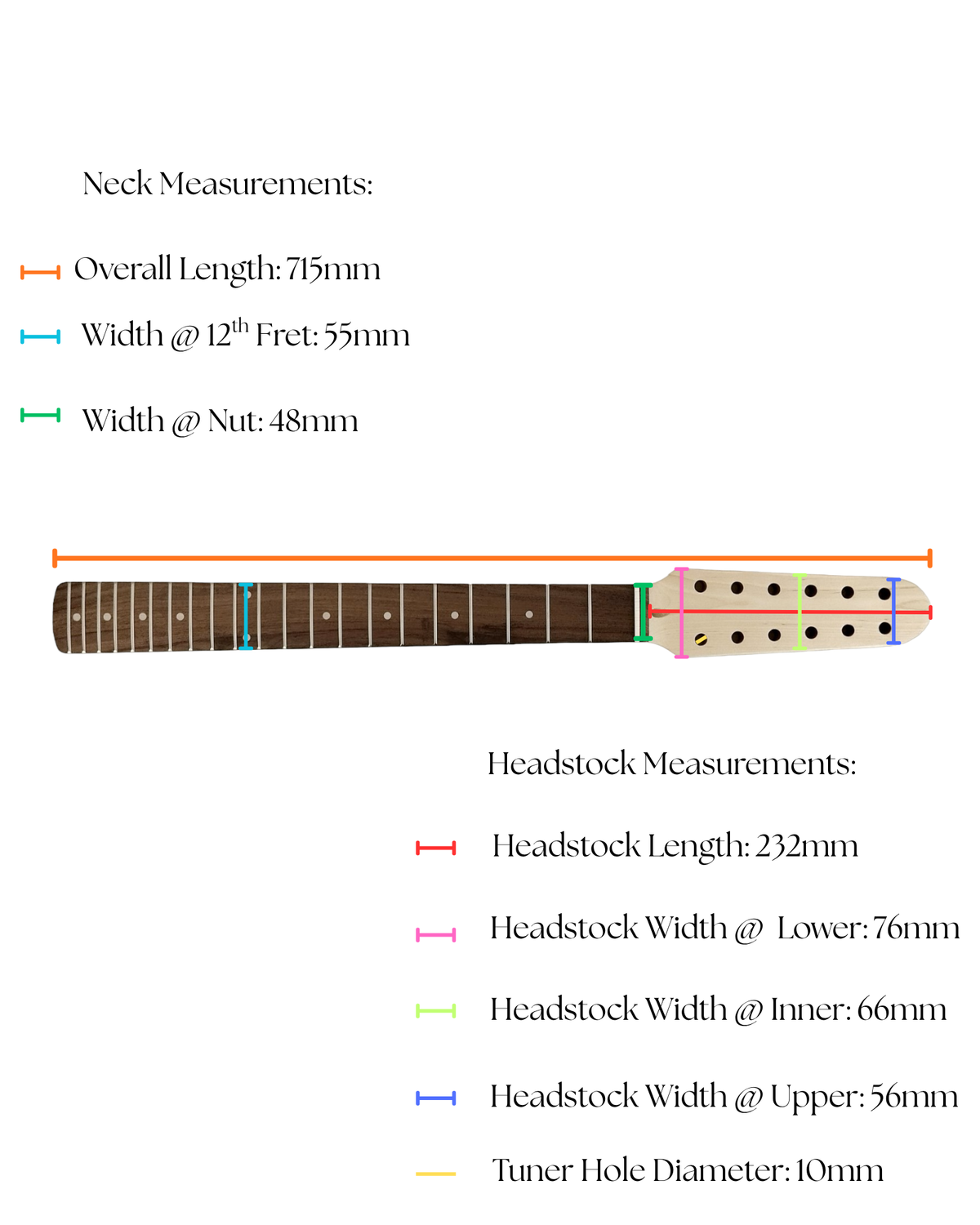

Neck

• Overall Length: 715mm
• Radius: 12 (Straight)
• Width - Nut: 48mm
• Width - 12th Fret: 55mm
• Width - End: 58mm

Headstock

• Length: 232mm
• Width - Upper: 56mm
• Width - Inner: 66mm
• Width - Lower : 76mm
• Thickness : 15mm
• Tuner Holes : 10mm

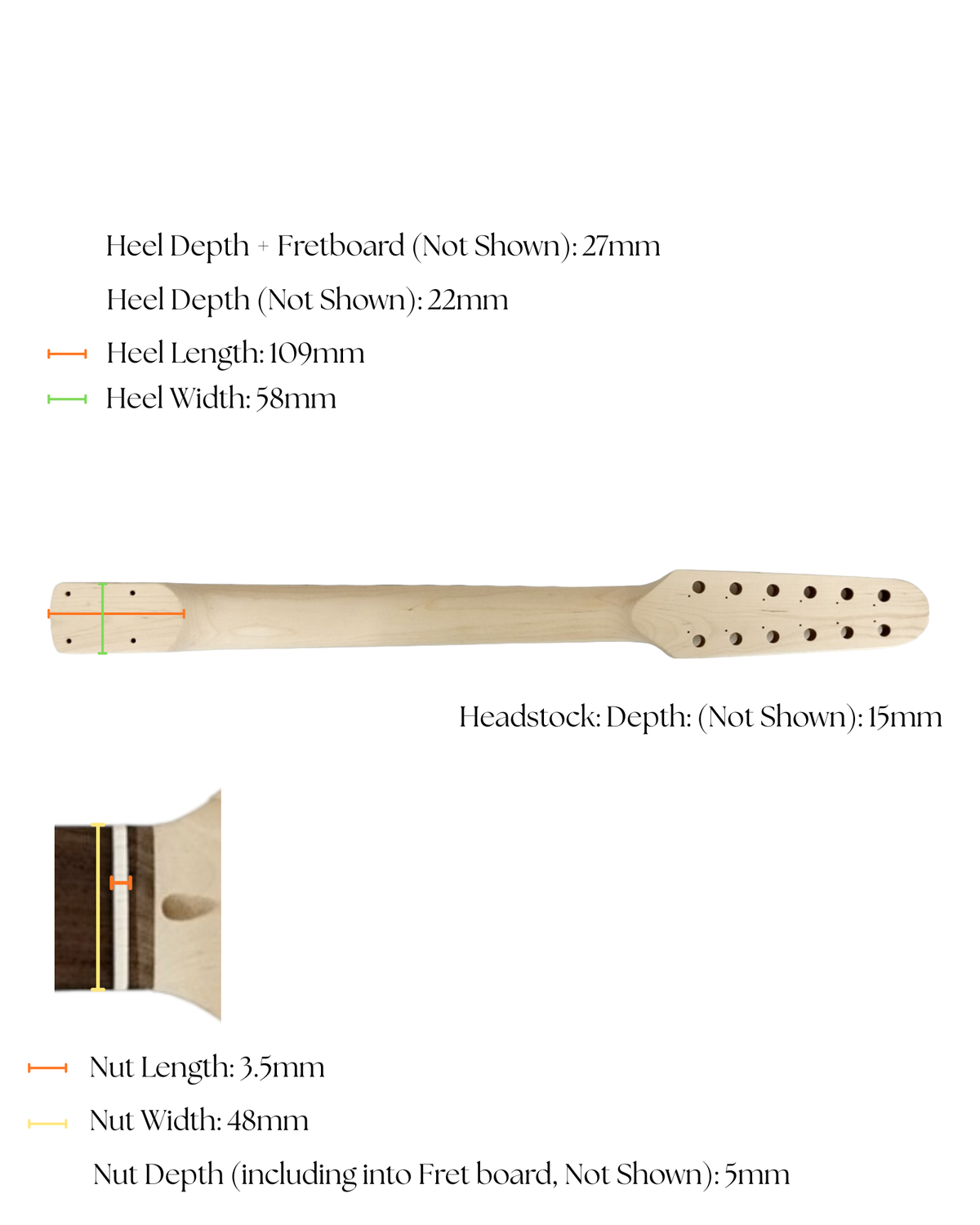

Nut

• Length: 3.5mm
• Width: 48mm
• Height: 5mm

Heel

• Length: 109mm
• Width: 58mm
• Depth: 22mm / 27mm (including fretboard)

Note: All product measurements are taken by hand and may vary slightly. Please allow for minor differences in size and dimensions.
