The WAH-II Multimode Wah is a multifunctional pedal designed to elevate your sound with its dual WAH-WAH and VOLUME functions. Featuring a WAH-WAH sound Q value knob, this pedal allows you to transform your sound from compact and sharp to mellow and wide. With six WAH-WAH frequency ranges, you can select different centre frequencies to achieve diverse tones that cater to various music styles.

In VOLUME Control Mode, the minimum volume control knob lets you fine-tune your volume settings. Adjust the knob to obtain the desired volume level while fully pressing the pedal, making it ideal for dynamic performance adjustments.

Features

RM Shielded Inductance: Specially designed for WAH-WAH sound, ensuring outstanding tone.

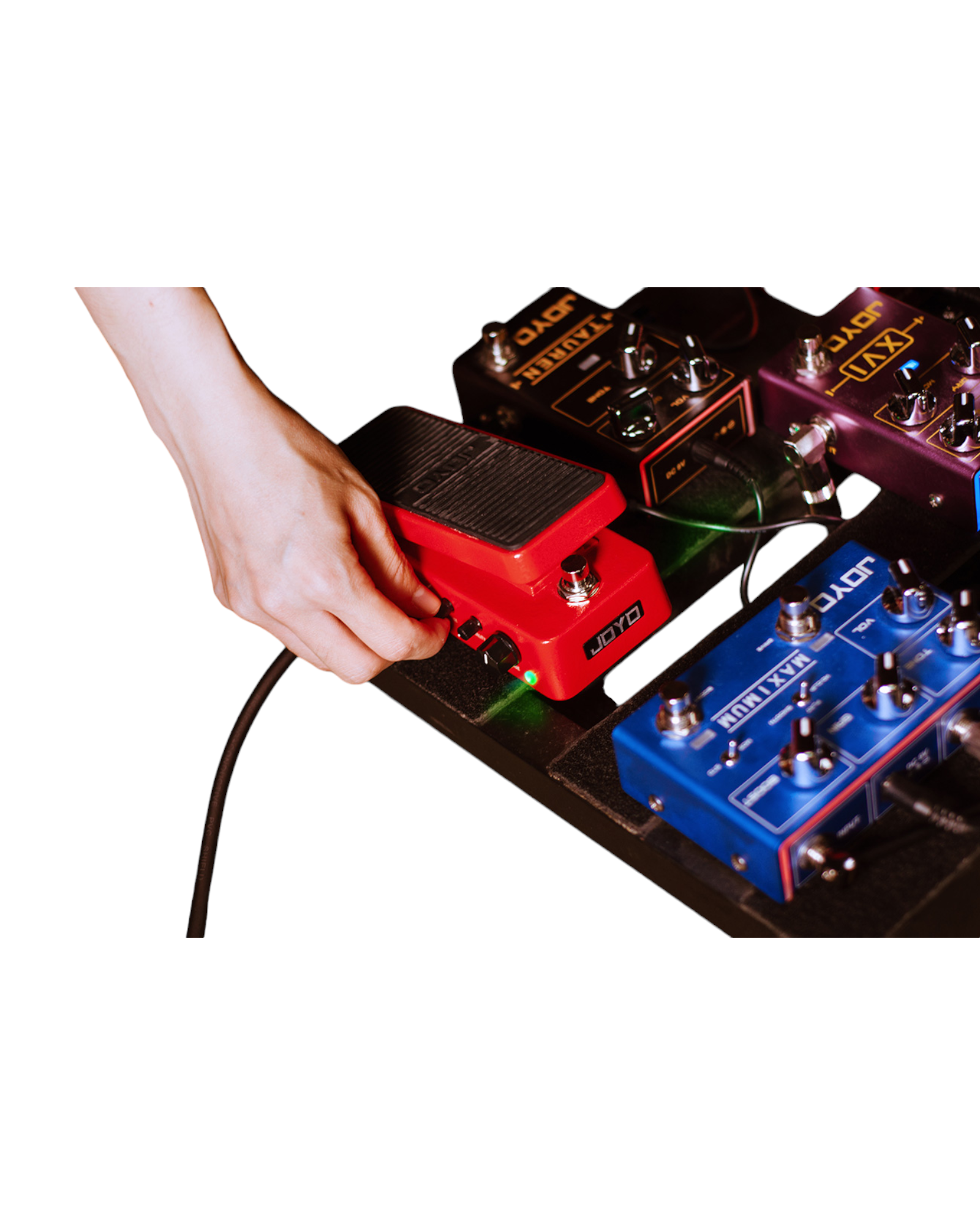

Compact and Portable: Takes up minimal space on your pedal board, lightweight for easy transportation.

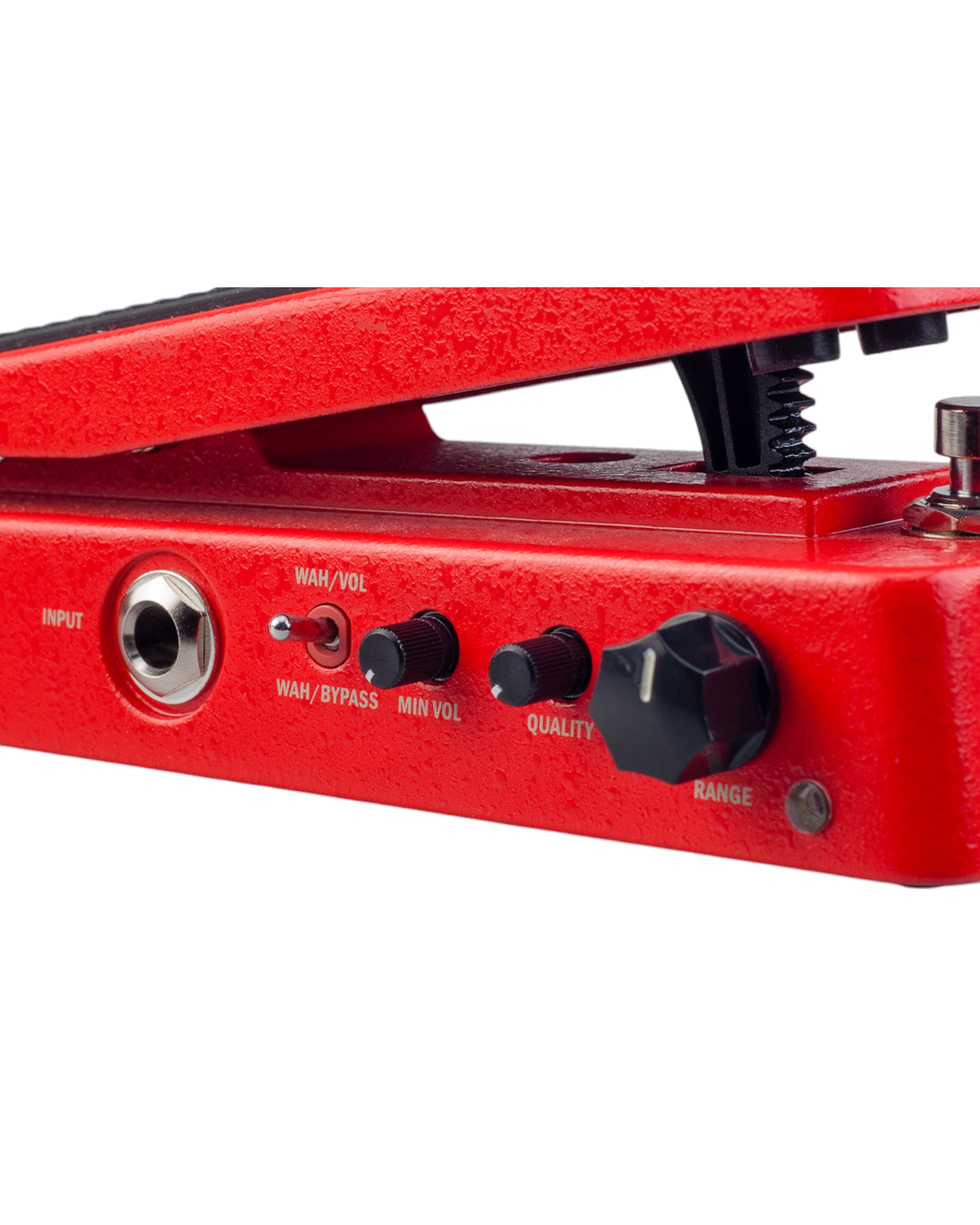

User-Friendly Operation: Equipped with WAH-WAH/VOLUME and WAH-WAH/BYPASS toggle switches and a minimum volume control knob.

WAH-WAH Sound Q Value Knob: Adjusts the sound from sharp to mellow.

6 WAH-WAH Frequency Ranges: Choose from six frequency ranges to match your music style.

Dual Functionality: Offers both WAH-WAH and VOLUME functions.

Bright LED Indicators: LEDs on both sides clearly show the pedal’s working status.

True Bypass (WAH-WAH Mode Only): Maintains signal integrity when the WAH-WAH function is not in use.

Active Volume Control Circuit: Ensures minimal signal loss and maintains tone integrity.

Ergonomic Design: Features skidproof rubber cushion for enhanced durability and comfortable use.

Whether you're looking for precise control or diverse tonal options, the WAH-II Multimode Wah pedal offers versatility and reliability in a compact design.

Specifications

Power voltage: DC 9V (centre negative) (Not Included)

Supply current: 18mA

Input: 6.35mm (1/4in) Mono

Output Jack: 6.35mm (1/4in) Mono

Input Impedance: 2.2MΩ

Output Impedance: 100Ω

Dimensions: 160mm (6.3in) * 63mm (2.5in) + 12mm (0.5in) * 55mm (2.2in) (incl. knob)

Weight: 440g / 0.97lbs

Package Includes

1 x Joyo WAHII Pedal

-
