HSST1910GN1W-Thin

The HAZE guitar neck is designed to be used as a replacement or as a DIY project for guitar enthusiasts. However, it's important to note that the neck specifications may have a slight variance of +/- 1 or 2mm. Therefore, it's essential to check the measurements of your guitar body and hardware to ensure a proper fit. If you are using this neck with a non-HAZE body or hardware, you may need to make slight modifications to achieve the right fit.

Features:

Neck:                               Maple

Fretboard:                      Rosewood

Nut:                                 White (pre-installed)

Weight:                           600g

Radius:                             12in

Frets:                                21

Truss Rod:                        2 way

Inlays & Side Marker:   White Dot

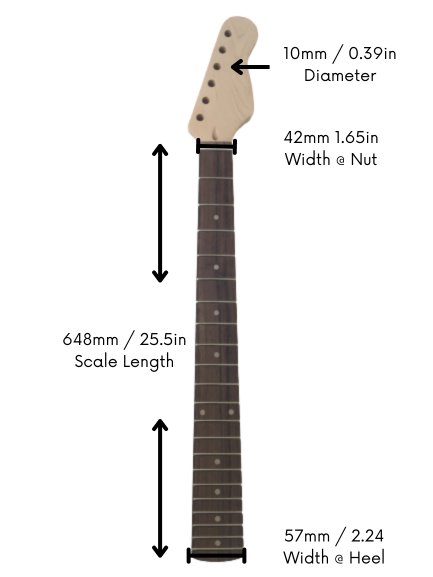

Scale Length:                  648mm / 25.5in

Nut Width:                      3mm / 0.11in

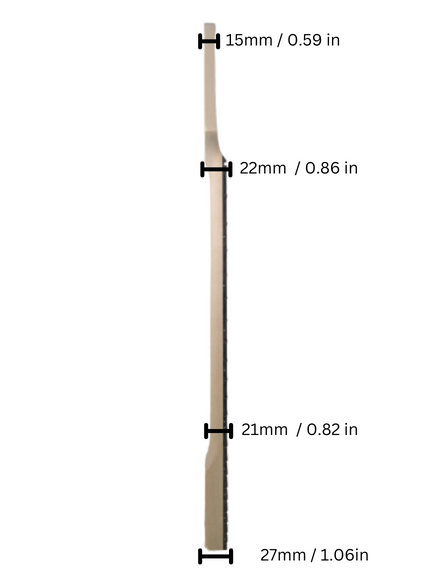

Thickness at Head:         15.5mm

Thickness at Nut:           27mm / 1.06in

Thickness at 12th Fret:   21mm / 0.8in

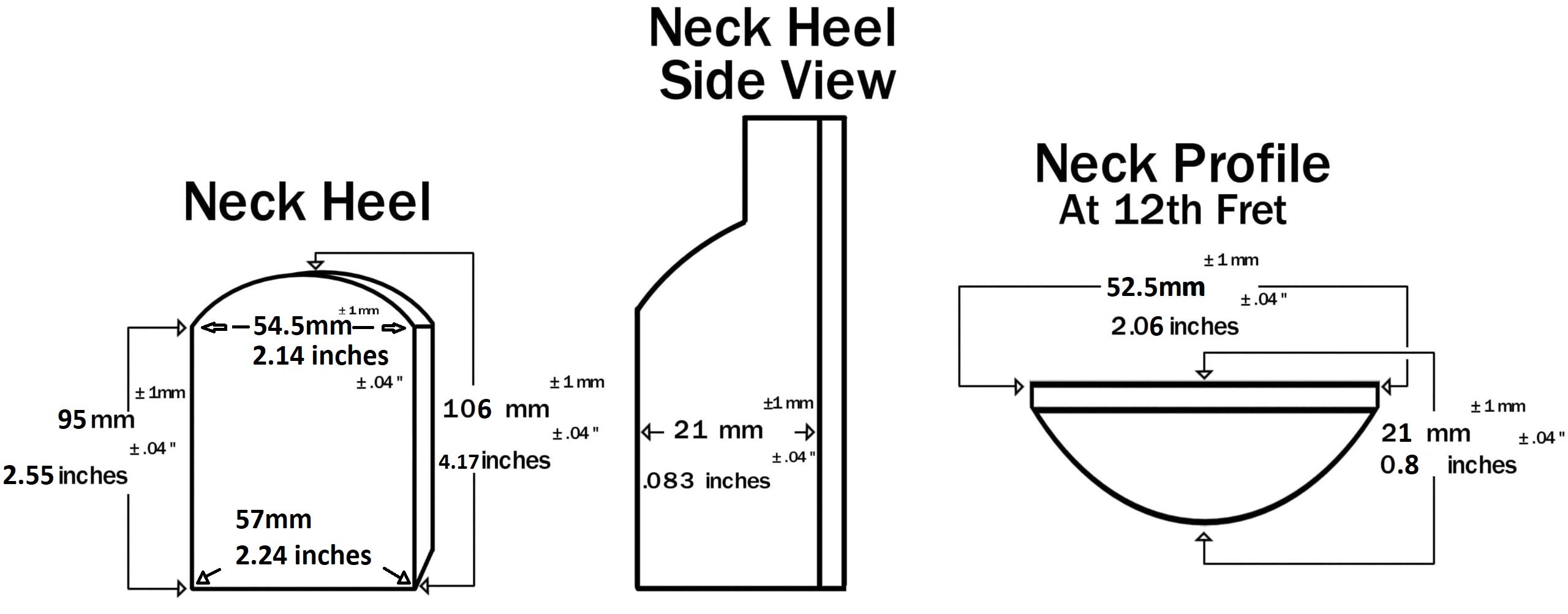

Width at 12th Fret:         52.5mm / 2.06in

Length of Heel:               105mm

Width of Heel:                57mm

Depth of Heel:                28mm (including Fretboard)

Width of Tuner Hole:    10mm

Length from Nut to Heel: 478mm / 18.81in

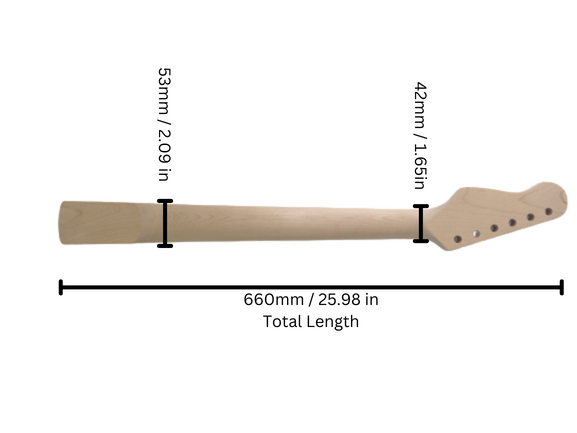

Total Length                    660mm
