Unlock exceptional audio and video quality with the Simplefly SF2402, a cutting-edge audio-video interface designed to enhance your recording and playback experience. Featuring 24-bit/192kHz audio conversion and 4K HDMI output, this interface is perfect for musicians, content creators, and mobile studios. Whether you're recording, live streaming, or producing high-quality sound for karaoke and other performances, the SF2402 delivers professional-grade performance in a compact design.

Features

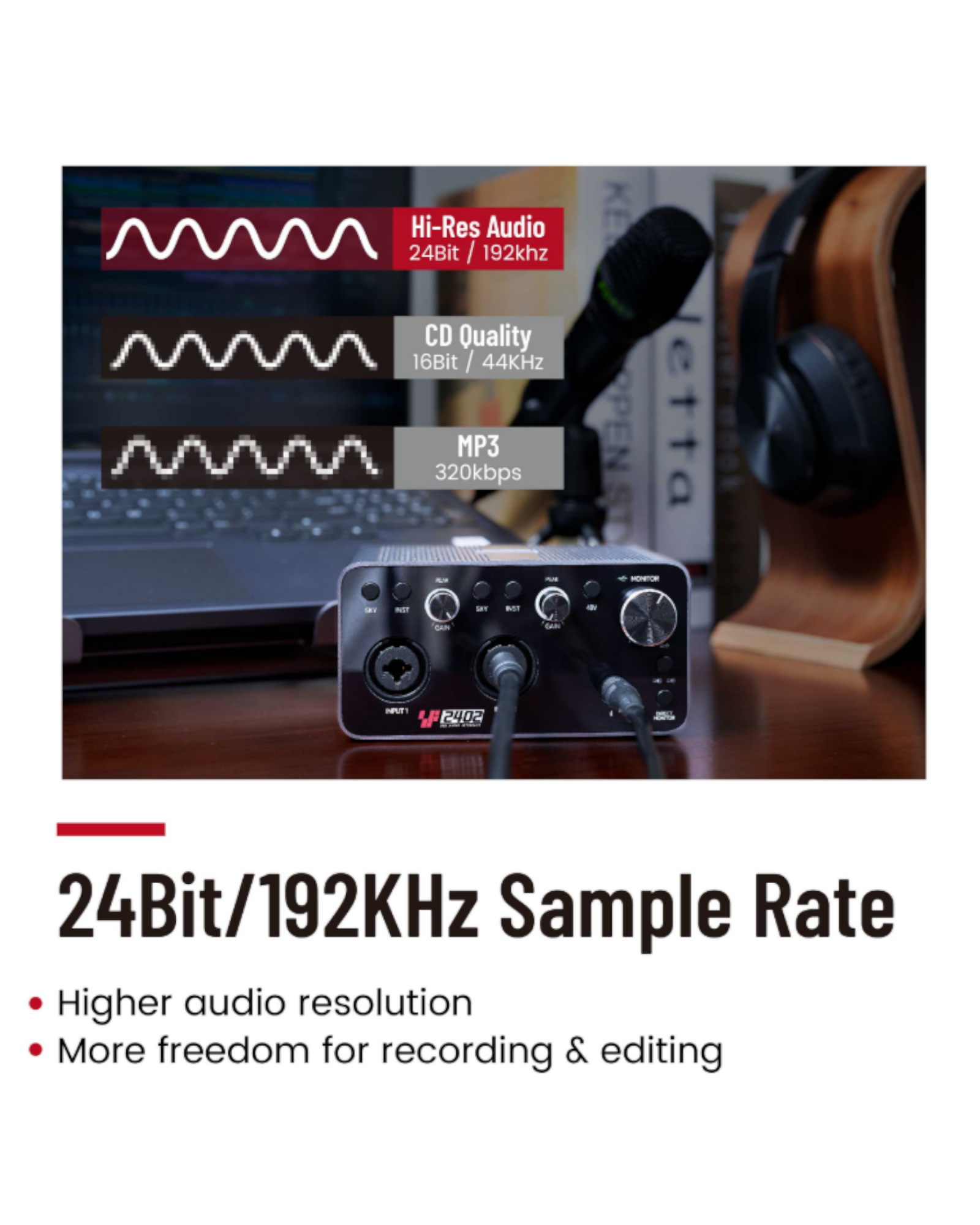

High-Quality Audio Conversion: Experience pristine 24-bit/192kHz stereo audio recording and playback. With a dynamic range of 110dB and a signal-to-noise ratio near 100dB, the SF2402 ensures that your recordings capture every detail with exceptional clarity.

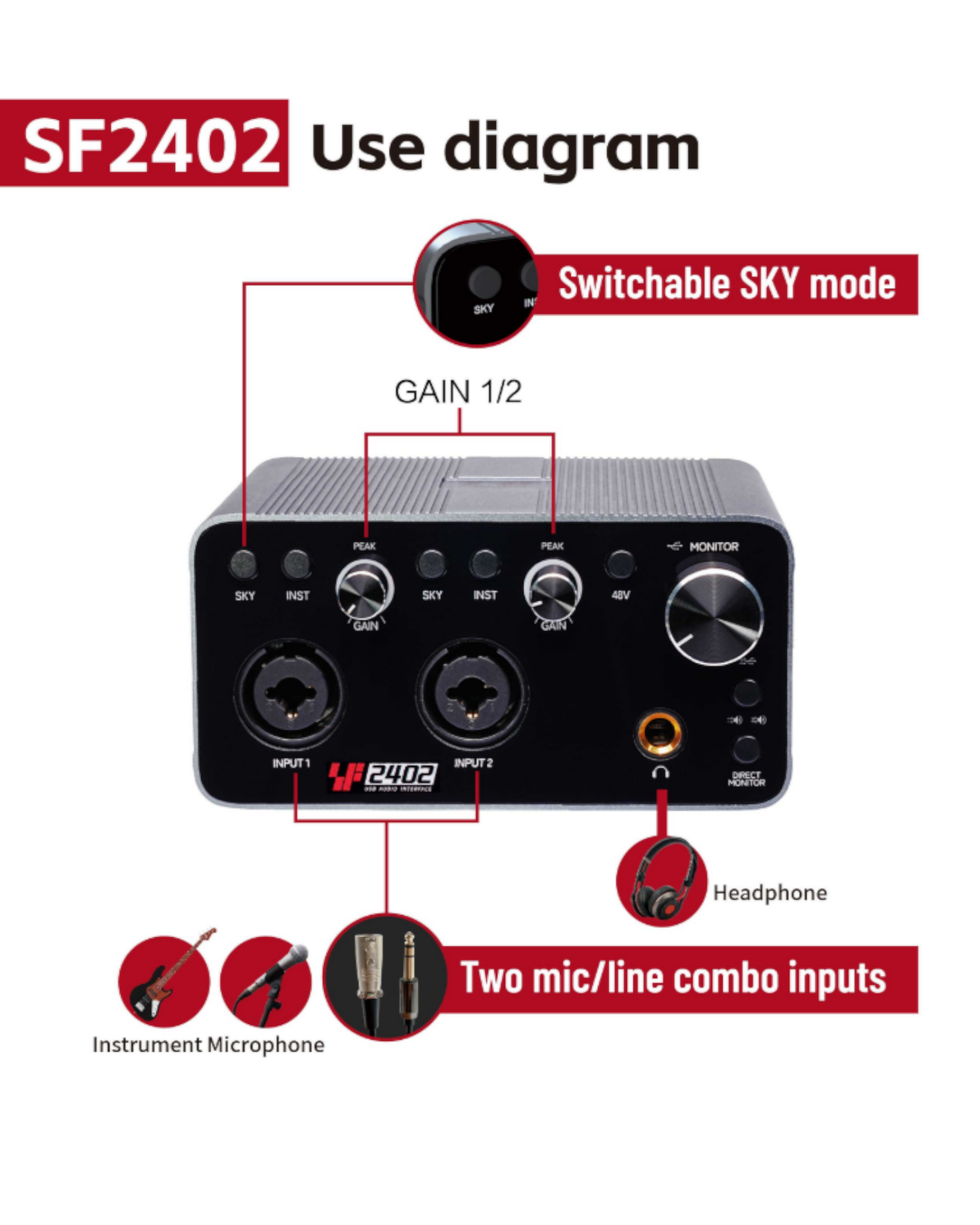

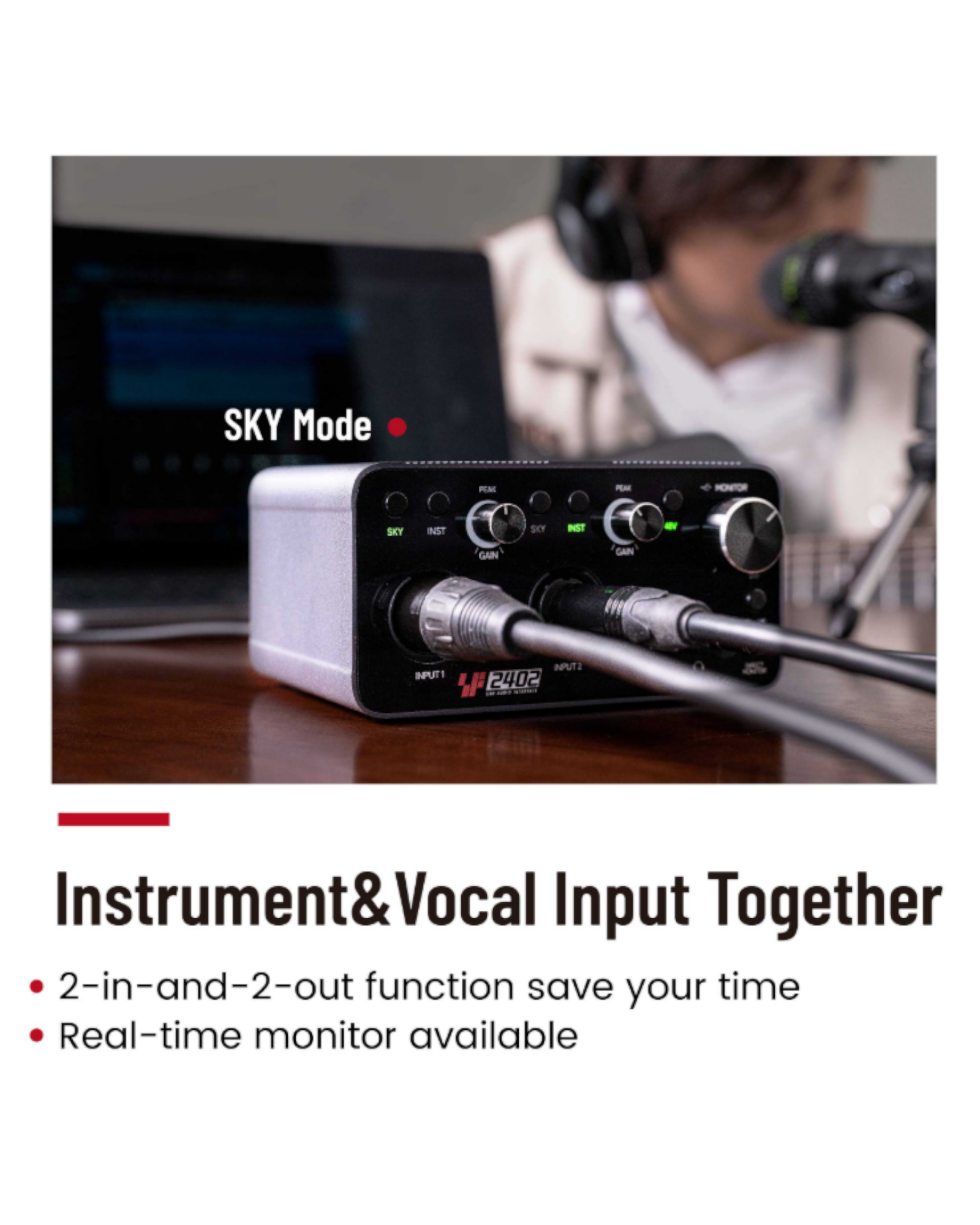

Dual Inputs for Versatile Recording: Equipped with 6.35mm TRS and XLR composite inputs, the SF2402 allows you to connect microphones, instruments, or balanced audio inputs. Record in stereo by using both input channels simultaneously, with independent gain controls for each channel to maintain balanced levels.

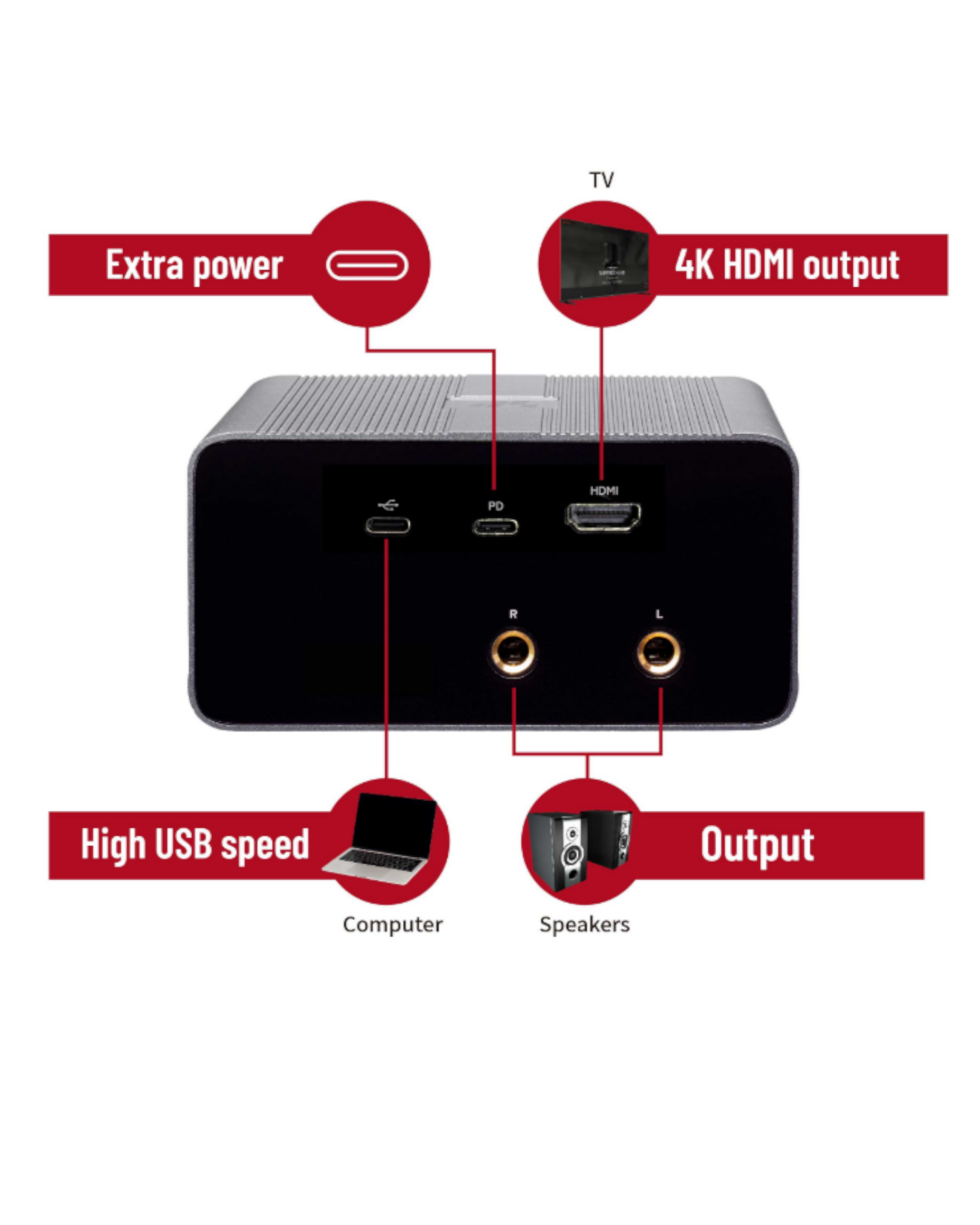

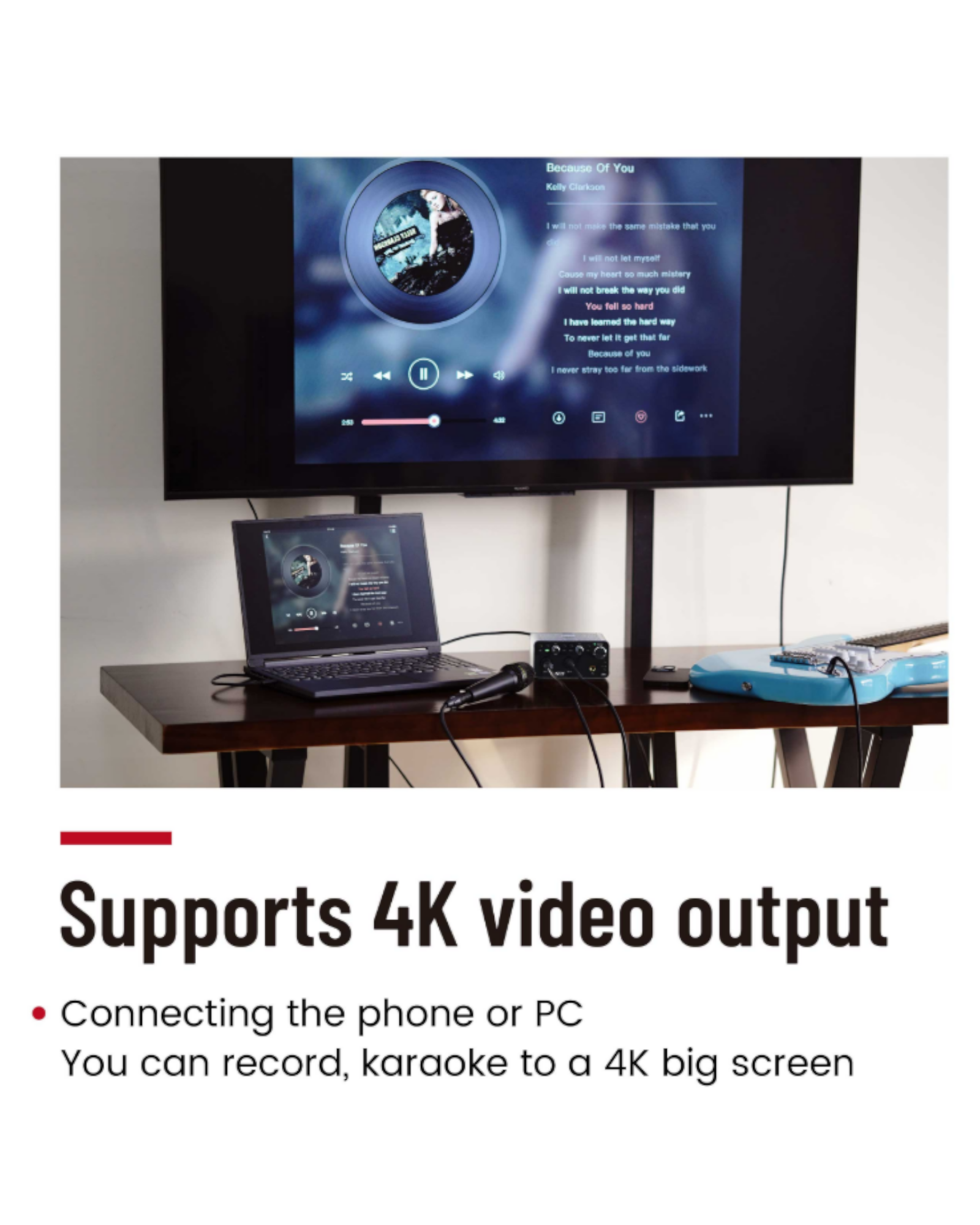

4K HDMI Video Output: The SF2402 integrates a powerful USB sound card with HDMI conversion, allowing you to connect your device to a 4K display at 60Hz. Record and stream karaoke or other performances while projecting to a big screen, creating an immersive audio-visual experience.

Simultaneous Audio and Video Output: Enjoy real-time audio recording with the added benefit of 4K video output. Perfect for live performances, streaming, and video content creation where both high-quality sound and visuals are crucial.

Sky Mode for Enhanced Clarity: Activate Sky mode to add an extra layer of clarity to your vocal and instrument recordings, ensuring crisp and clear audio capture.

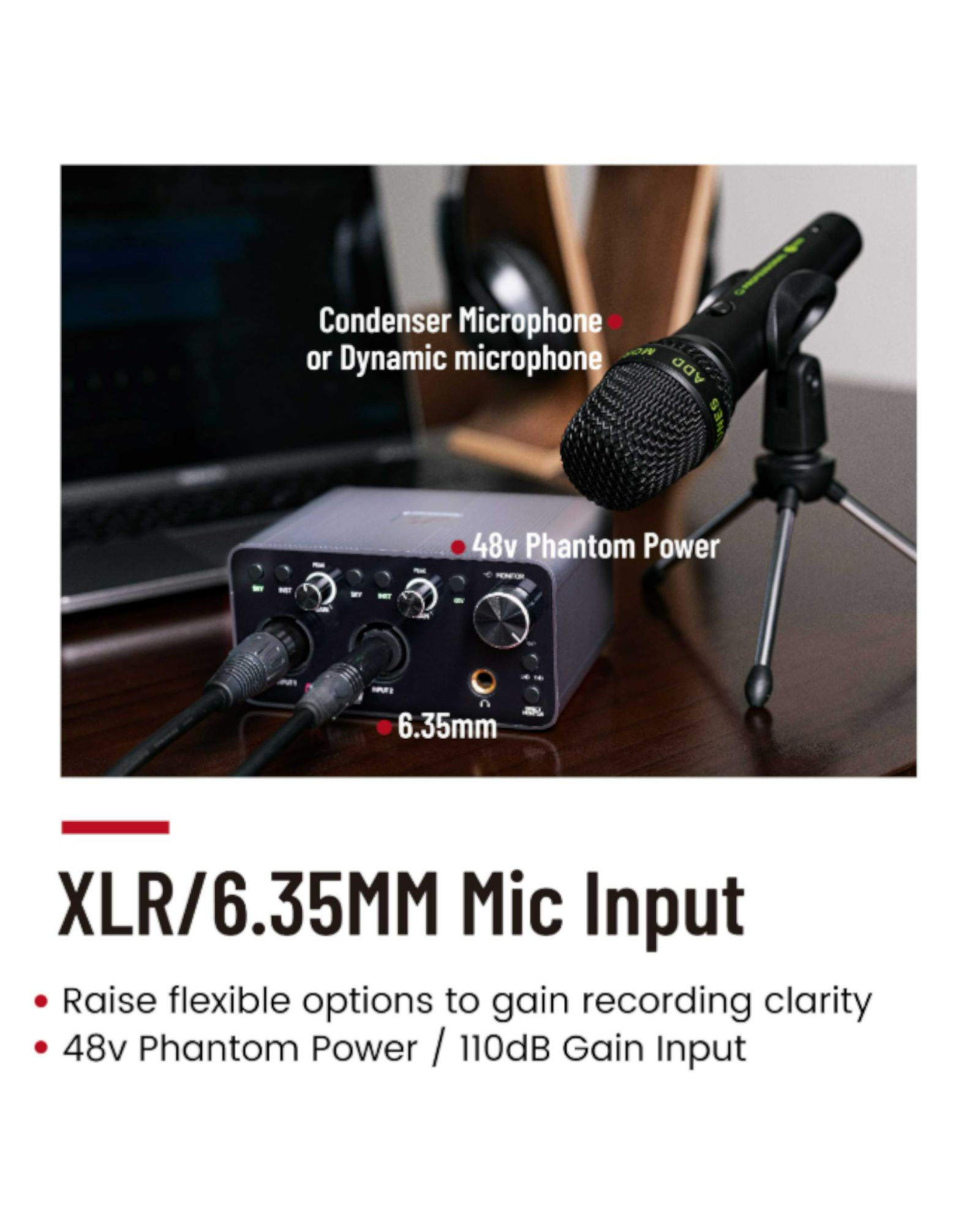

Phantom Power for Condenser Mics: The built-in 48V phantom power supply enables you to use condenser microphones, giving you a true studio experience for professional-level recordings.

Low Latency & Clean Playback: With optimized preamp gain and near-zero latency, the SF2402 ensures that your recordings are authentic and that your playback remains clear and dynamic with its low-noise balanced outputs.

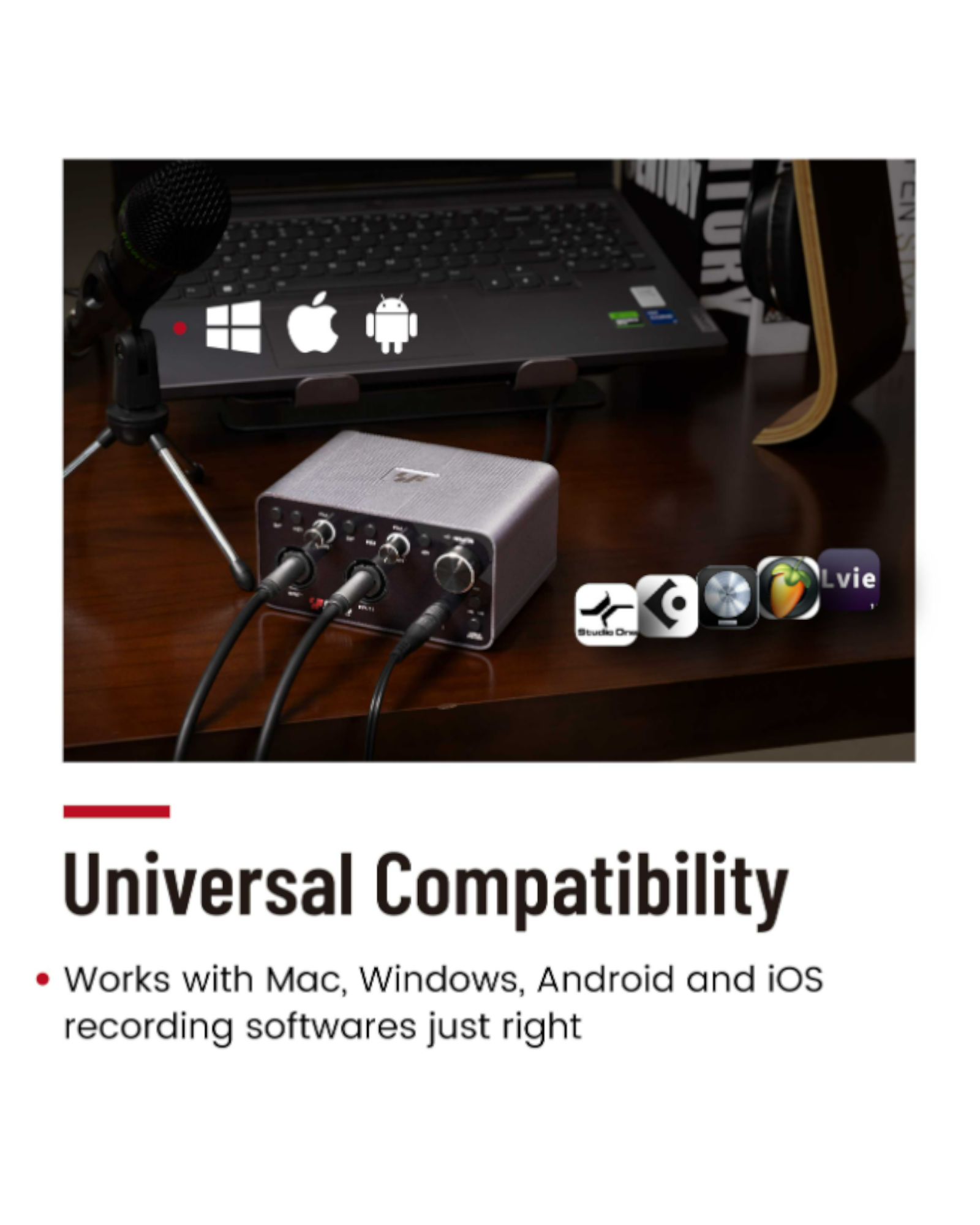

Broad System Compatibility: The SF2402 is compatible with Mac, Windows, Android, and iOS devices, supporting a wide range of audio recording software and apps, making it the perfect choice for musicians, podcasters, and content creators on various platforms.

The Simplefly SF2402 is perfect for those seeking a compact, high-performance interface that blends superior audio recording with 4K video output and real-time streaming capabilities. Whether you're working in a small studio or on the go, it’s an ideal solution for creating professional-level audio and video content.

Specifications

Model: SF2402

Line Inputs：2 (6.35mm & XLR)

Line Outputs：2 (6.35mm)

Headphone Output: 1 (6.35mm)

Video Output: 1 (HDMI)

Video Resolution: 4K / 60Hz

Synchronous Input/Output: 2 / 2

Power: USB 2.0 Type-C DC 5V

Sampling Rate: 24bit / 192kHz

Phantom Power: 48V (shared by both input channels)

Gain Input: 110dB

Clock Source: Built-in low jitter active crystal oscillator

Supported Sample Rates: 44.1kHz / 48kHz / 88.2kHz / 96kHz / 176.4kHz / 192kHz

Supported Systems: Mac / Windows / Android / IOS

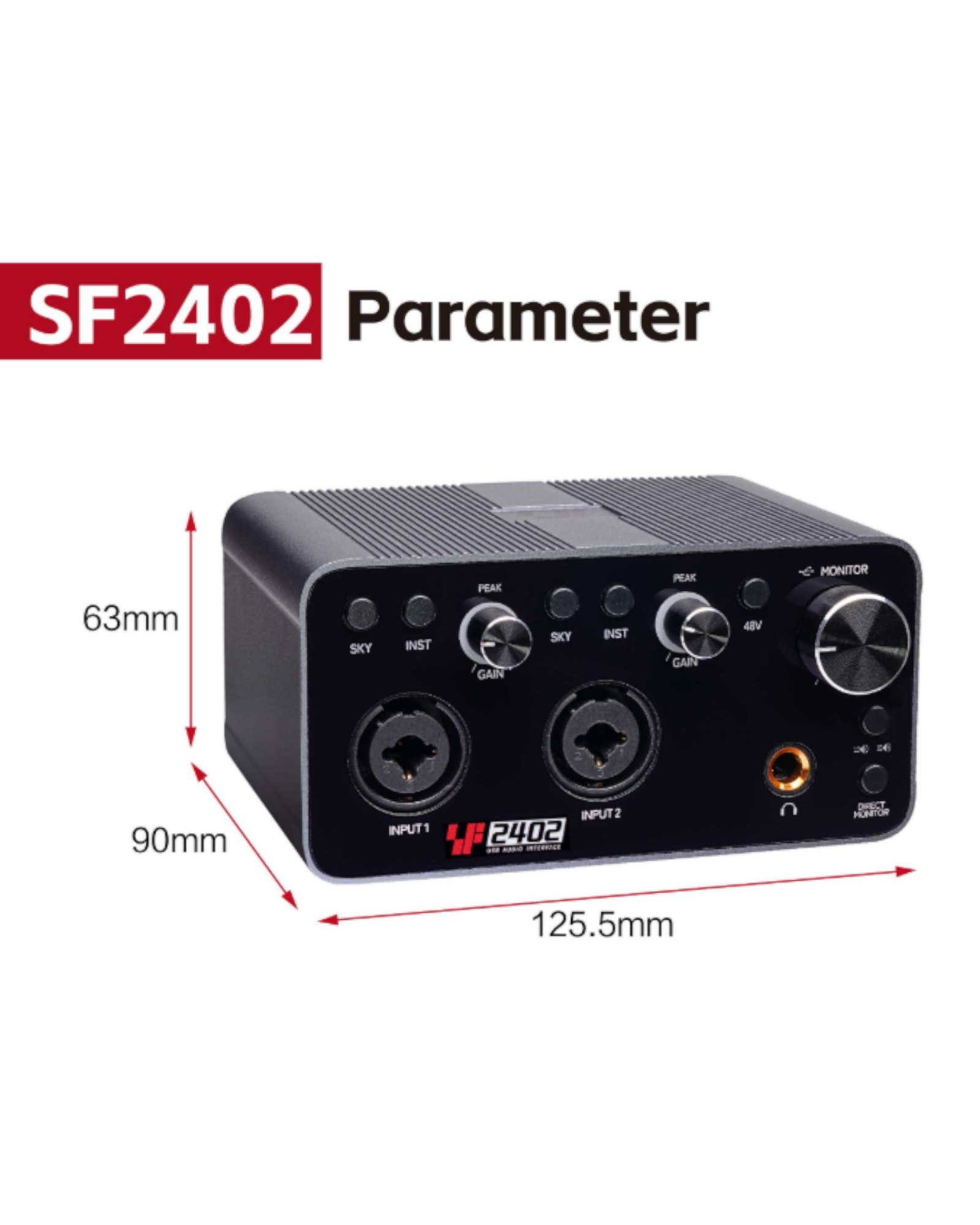

Dimensions: 125.5mm * 90mm * 63mm

Weight: 370g

Microphone Input

Dynamic Range: 110dB (A-weighted)

Frequency Response: 20Hz-20kHz <0.5dB

THD+N: <0.0012%

Equivalent Input Noise: -128dB (A-weighted)

Gain Range: -0.8 ~56dB

Input Impedance: 3kΩ

Instrument Input

Dynamic Range: 110dB (A-weighted)

Frequency Response: 20Hz-20kHz <0.5dB

THD+N: <0.03%

Maximum Input Level: +12.5dBu at minimum gain

Gain Range: -5 ~52dB

Input Impedance: 1MΩ

Line In

Dynamic Range: 110dB (A-weighted)

Frequency Response: 20Hz-20kHz <0.5dB

THD+N: <0.002%

Maximum Input Level: +22dBu at minimum gain

Gain Range: -14 ~43dB

Input Impedance: 6kΩ

Line Out 1 & 2 (Balanced)

Dynamic Range: 105dB (A-weighted)

Maximum Output Level: +15.5dBu (balanced output)

THD+N (1+2): <0.002%

Output Impedance: 420Ω

Monitor Output

Dynamic Range: 104dB (A-weighted)

Maximum Output Level: 3.8dBu

THD+N (1+2): <0.002%

Output Impedance: <1Ω

Package Includes

1 x Simplefly SF2402 Audio Interface

1 x 3.5mm Socket to 6.35mm Male Jack Adaptor

1 x USB-C Cable

1 x User Manual

-
