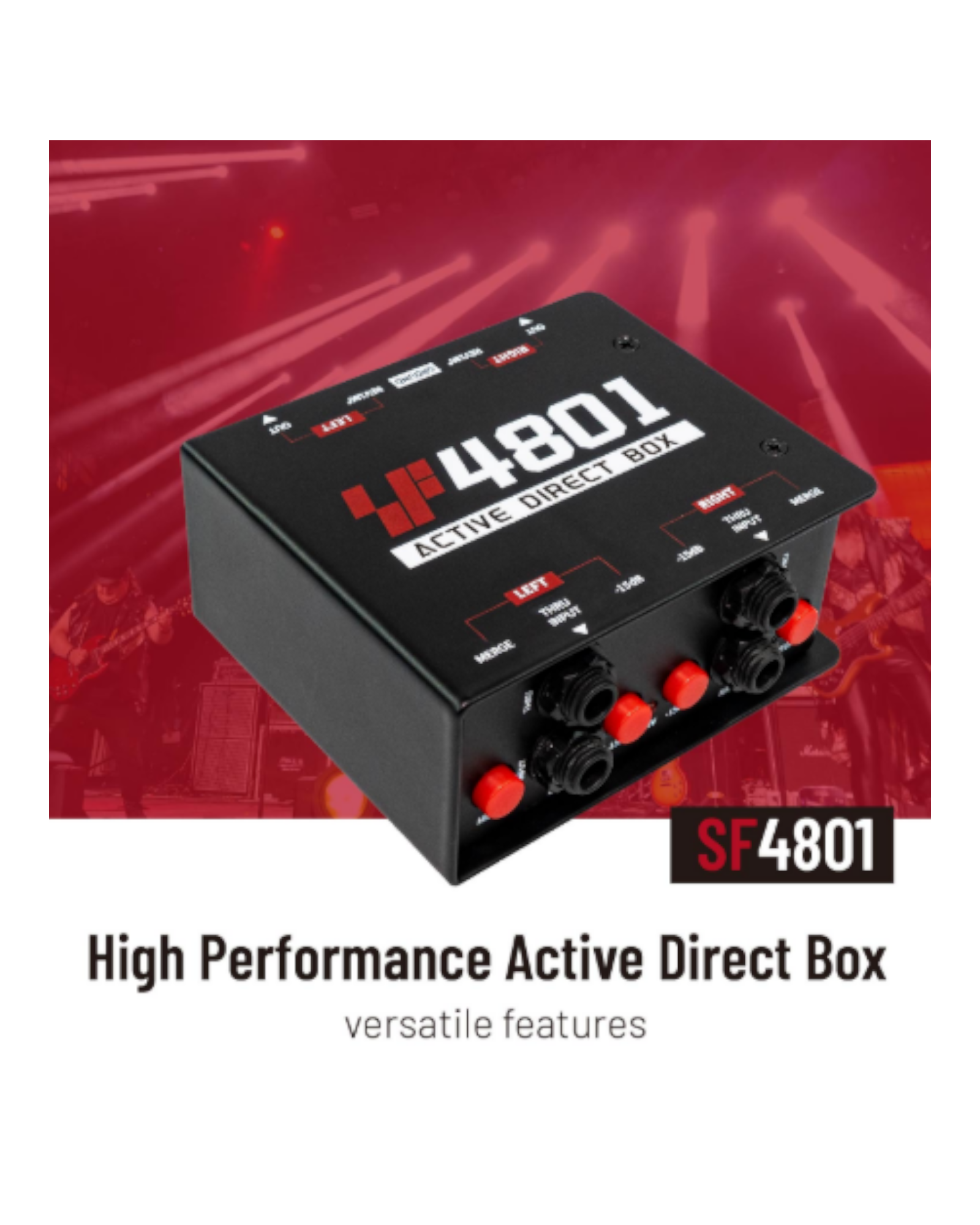

Simplefly Active Dual-Channel 48V Phantom Powered 6.35mm to XLR Recording Signal Direct Injection DI Box w/ REV180° & Ground Lift Switch - SF4801
Simplefly Active Dual-Channel 48V Phantom Powered 6.35mm to XLR Recording Signal Direct Injection DI Box w/ REV180° & Ground Lift Switch - SF4801
Low stock
Couldn't load pickup availability
The Simplefly SF4801 Active Direct Injection (DI) Box is the ideal solution for musicians and audio engineers who need a reliable, high-performance device to convert high-impedance, unbalanced signals from instruments like guitar, bass guitar, and keyboards into low-impedance, balanced XLR outputs. Perfect for live performances and studio recording, this compact, versatile DI box offers exceptional signal clarity and minimizes noise during transmission.
Features
Active Direct Injection: Converts unbalanced 6.35mm (1/4") instrument signals to balanced XLR for better sound quality.

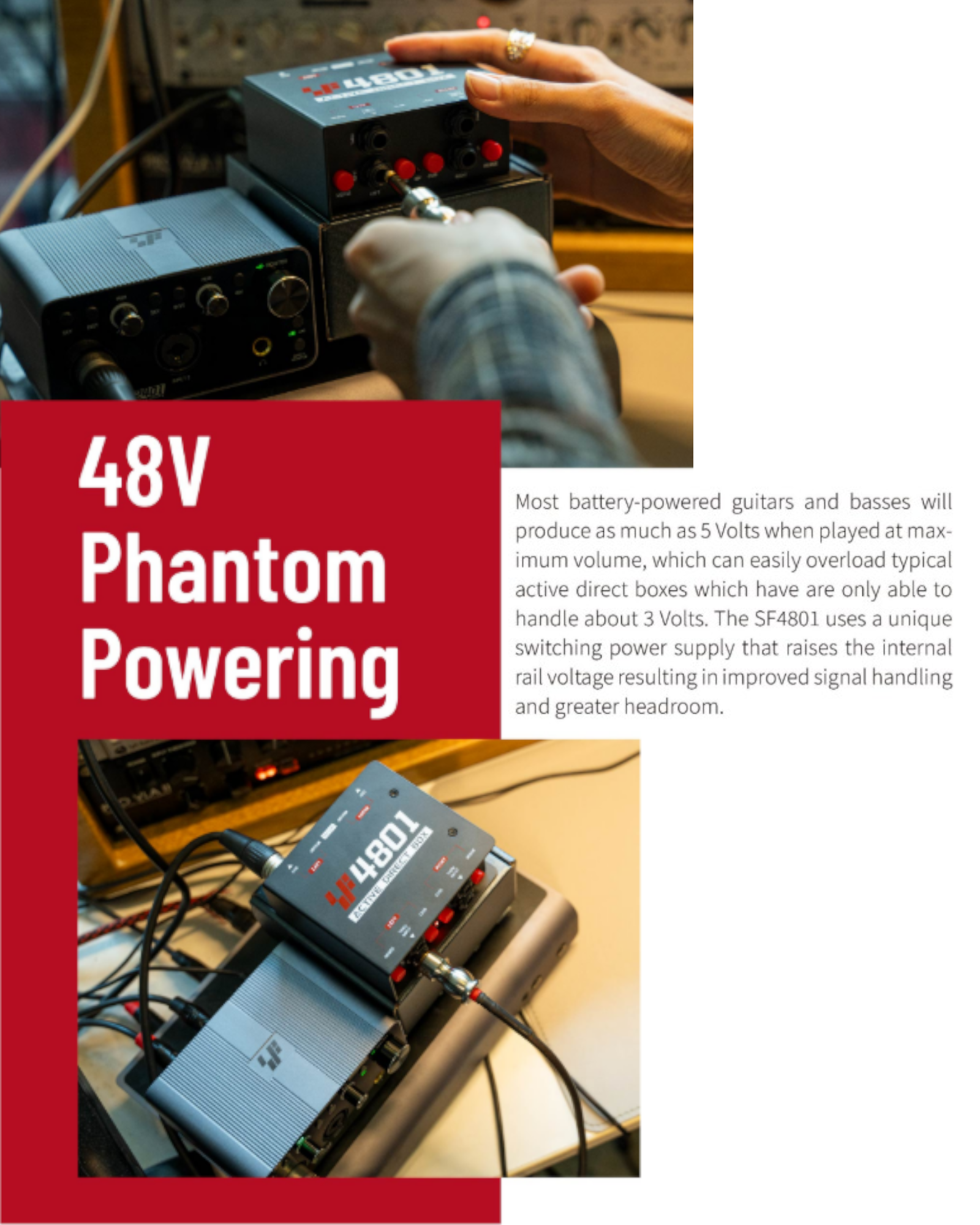

48V Phantom Powered: Operates via standard 48V phantom power, no external power supply needed.
Ground Lift Switch: Helps eliminate hum and noise caused by ground loops for cleaner sound.

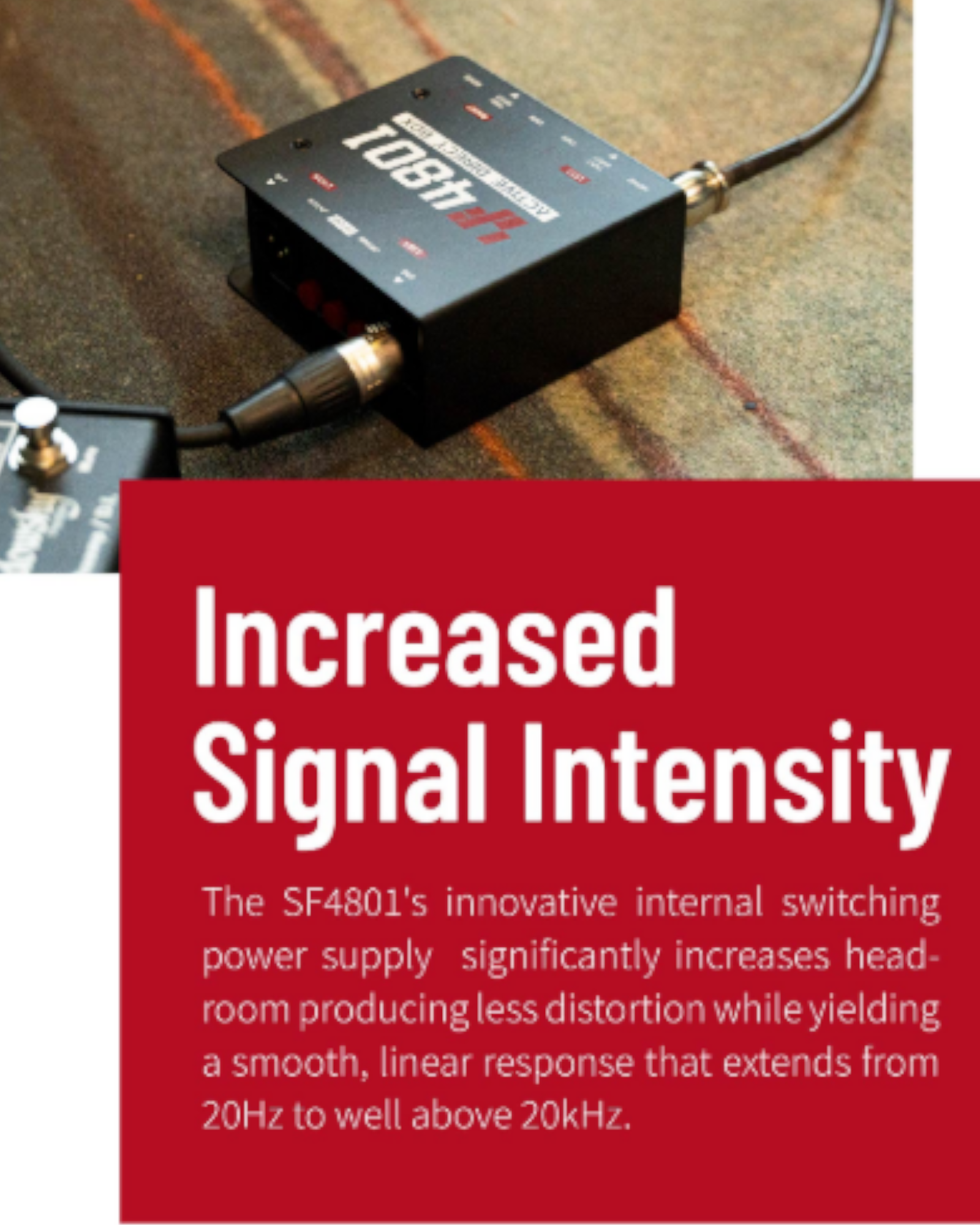

High Headroom: The innovative internal switching power supply increases headroom and improves signal handling, reducing distortion and allowing a smooth, linear frequency response from 20Hz to 20kHz.
Dual-Channel Design: Delivers rich functionality and consistent performance for a variety of audio sources, including instruments, keyboards, and other audio devices.
Low Noise & High SNR: With a noise level of 24uVrms and signal-to-noise ratio (SNR) of 102dB, this DI box provides clear and accurate sound.

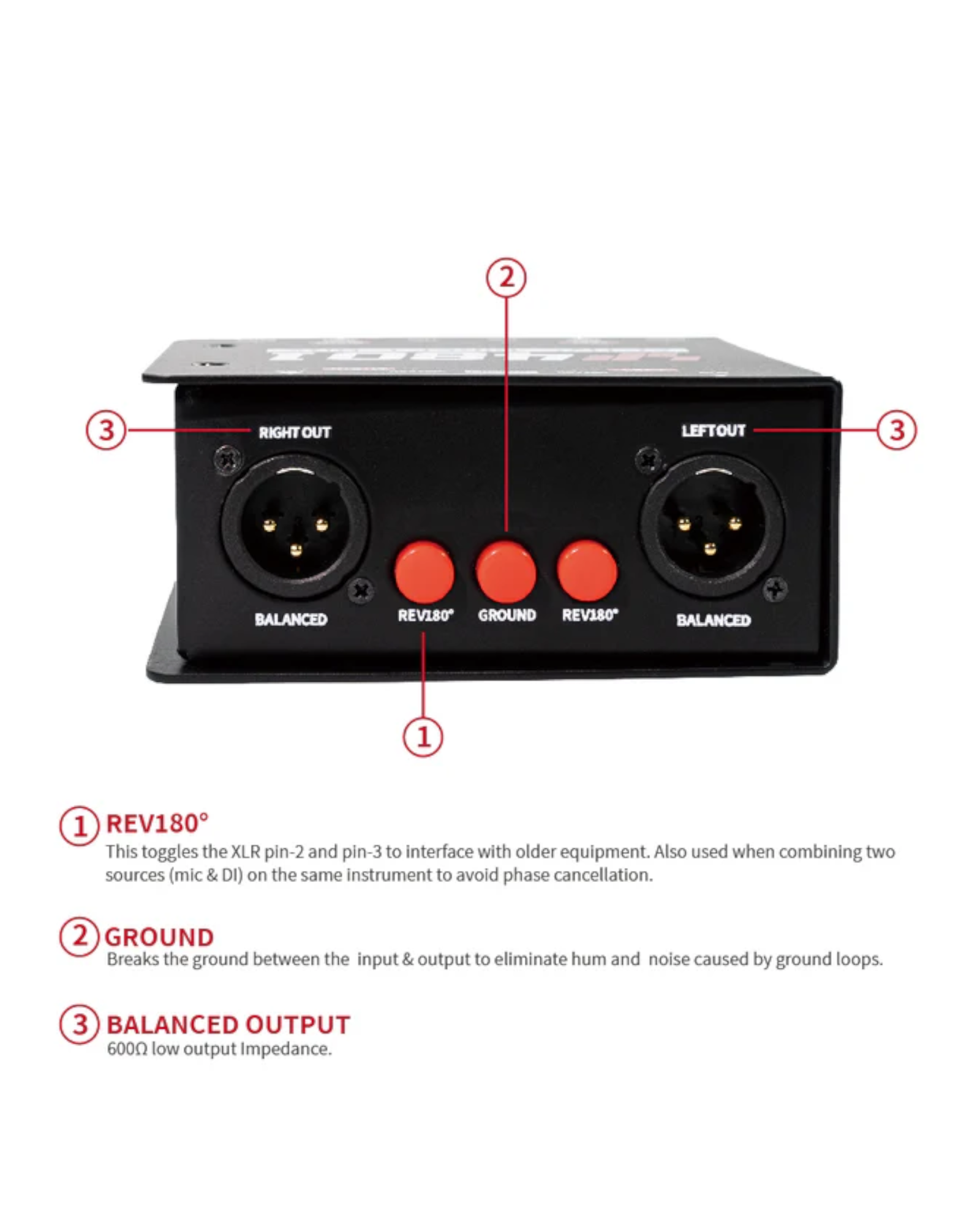

REV180° Switch: Reverses pins 2 and 3 of the XLR connector, making it perfect for connecting to older equipment or merging microphone and instrument sources into a single input to avoid phase cancellation.
Perfect for musicians and sound engineers who need high-quality signal conversion with minimal distortion and noise, the SF4801 is your go-to solution for professional audio performance.
Specifications
Model: SF4801
Noise: 24uVrms
SNR: 102dB
Distortion: 0.0055%
Harmonic Distortion: < 0.013% (@1.8Vrms, 1kHZ)
Frequency Response: 20Hz ~ 20kHz (-3dB)
Maximum Input Level: +7dBu
Input Impedance: 220KΩ
Ouput Impedance: 600Ω
Input Connection: 6.35mm (mono)
Output Connection: XLR (balanced)
Power: 48V Phantom Power
Dimensions: 105mm * 96mm * 46mm
Weight: 480g
Package Includes
1x Simplefly SF4801 Active DI Box
1 x User Manual
-
