Haze

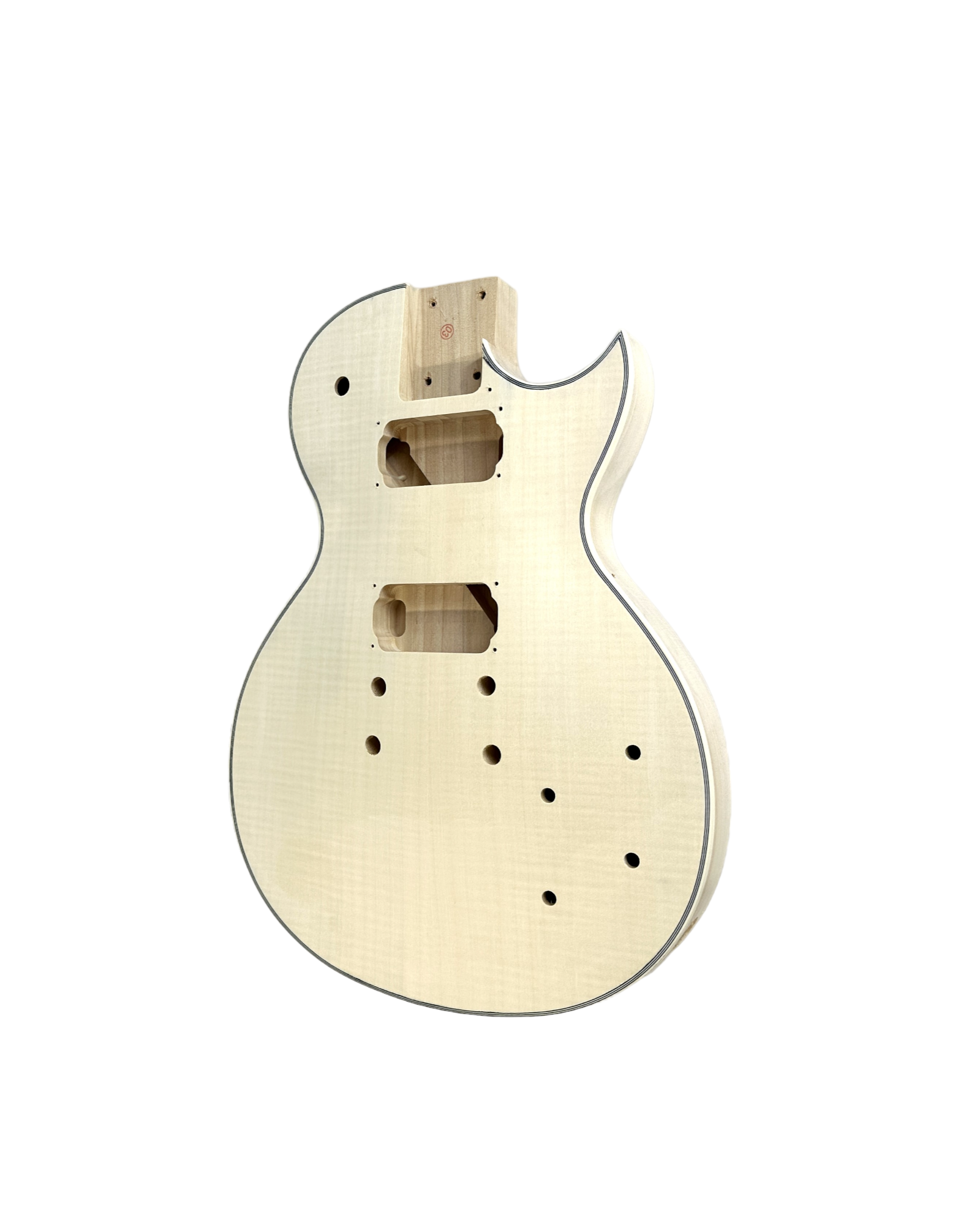

E238PBDIY Solid Body Electric Guitar DIY Kit, No-Soldering, Flame Maple Veneer

E238PBDIY Solid Body Electric Guitar DIY Kit, No-Soldering, Flame Maple Veneer

6 total reviews

Regular price $199.00 AUD
Regular price $250.00 AUD Sale price $199.00 AUD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Haze Solid Body Electric Guitar DIY, No-Soldering, Flame Maple Veneer E-238DIY PB

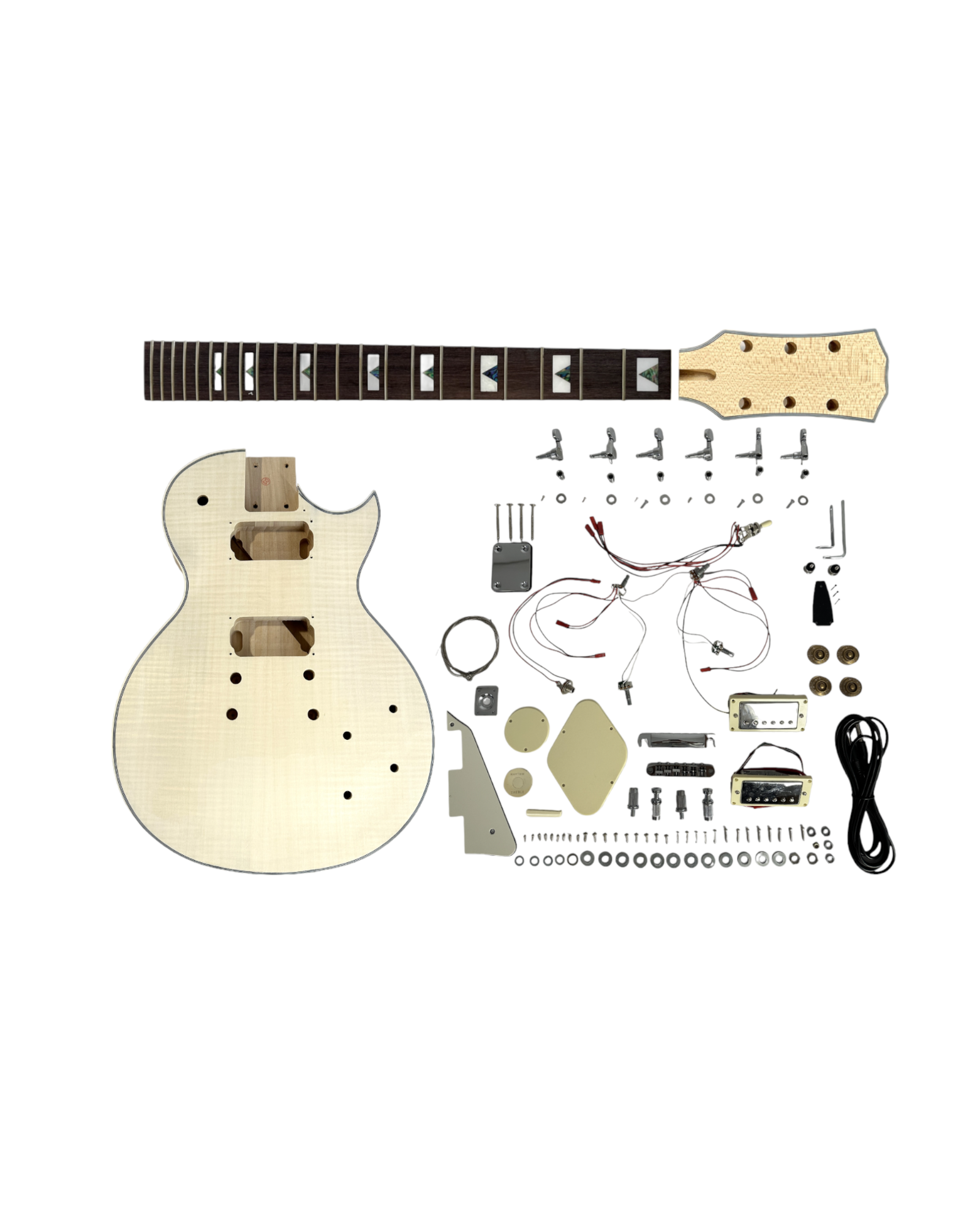

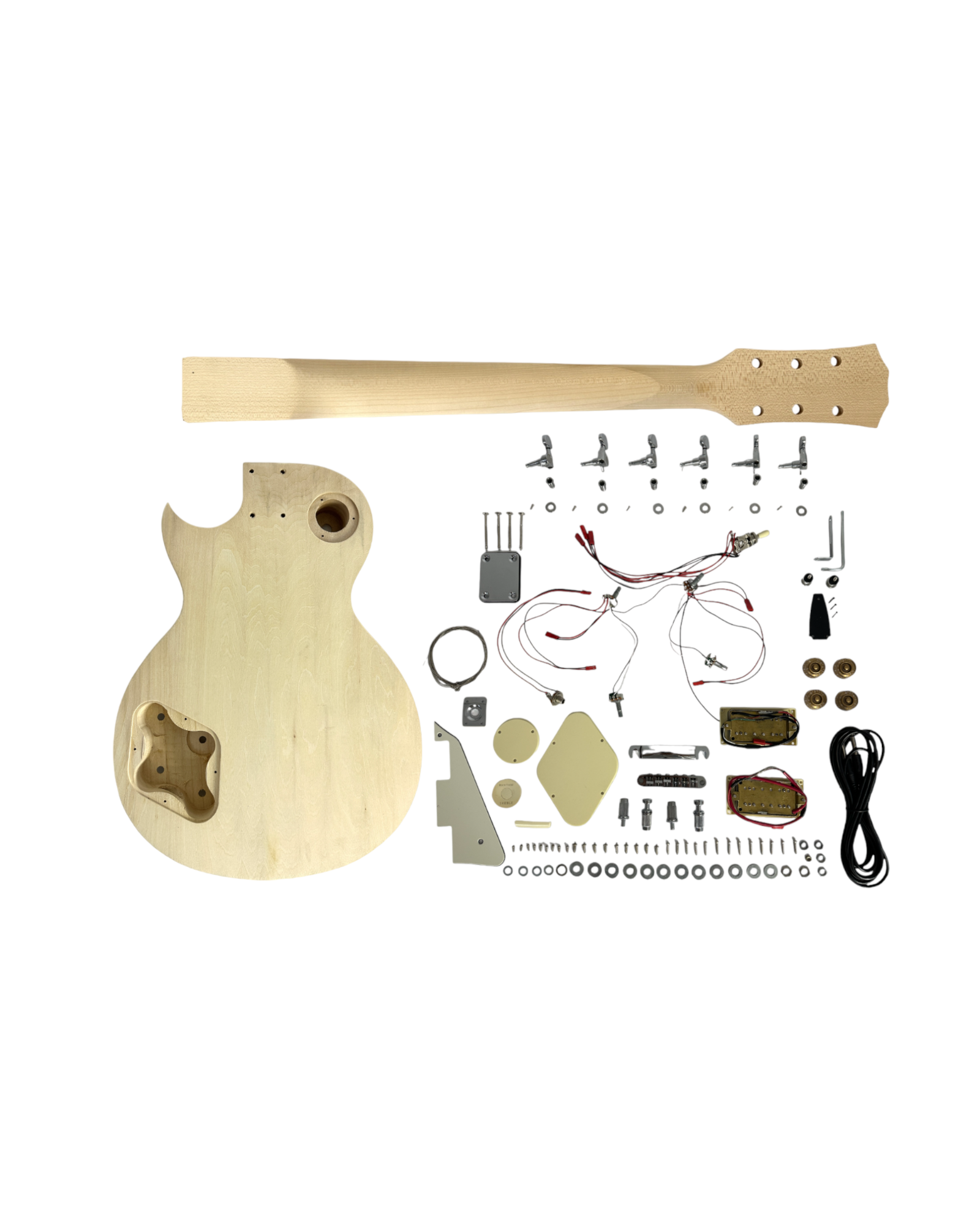

This electric guitar DIY kit includes everything you need for building your own custom Electric Guitar. You will need only some basic tools and finishing supplies.

All challenging wood cutting and shaping is already done professionally, as well as fret levelling and dressing. No soldering design that makes your creation smoothly.


Specifications:

Model                            E-238DIY PB

Scale                              24.72” (628mm)

Nut Width                     1.65” (42mm)

Total Length                 39” (990mm) [not including end-pin]

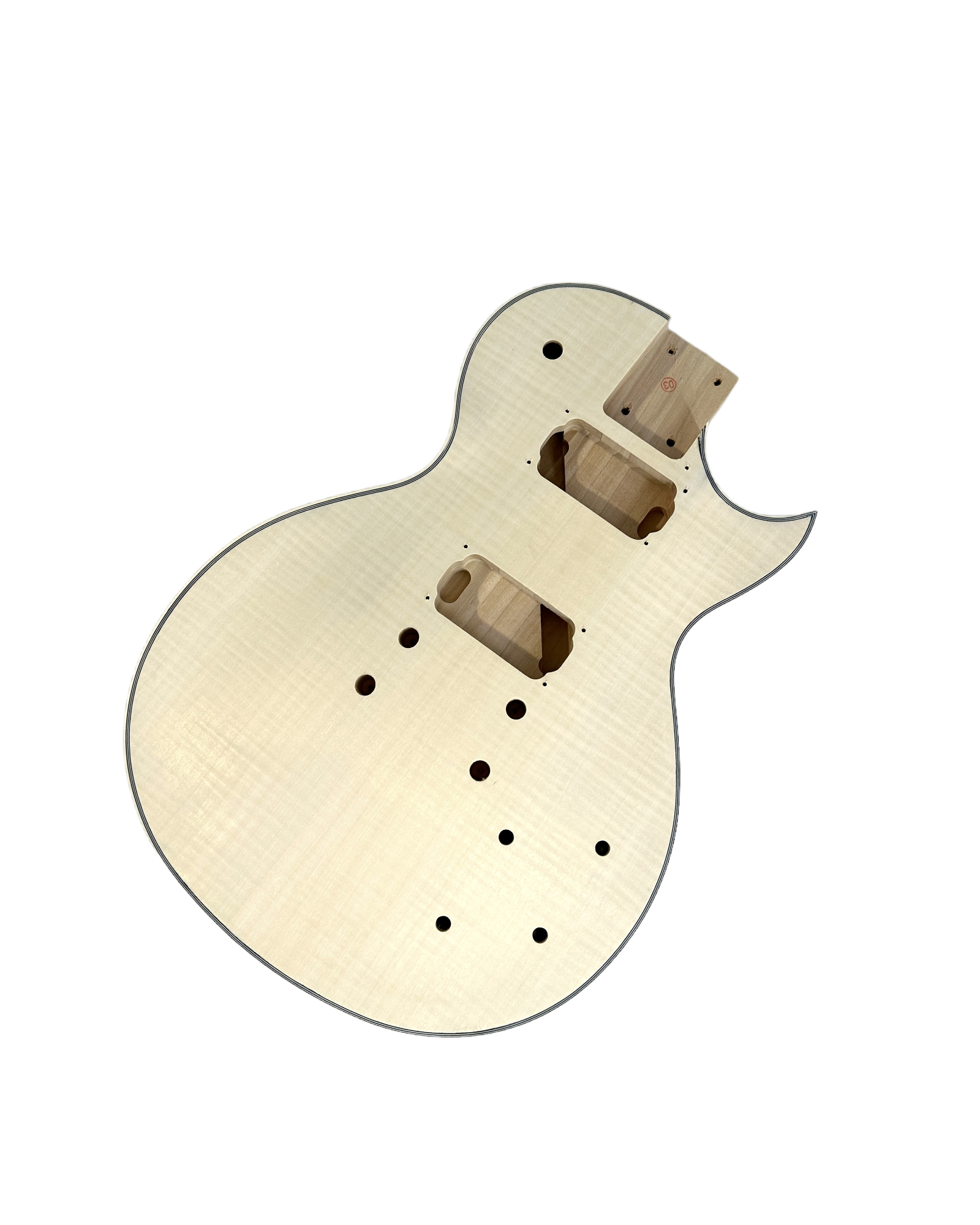

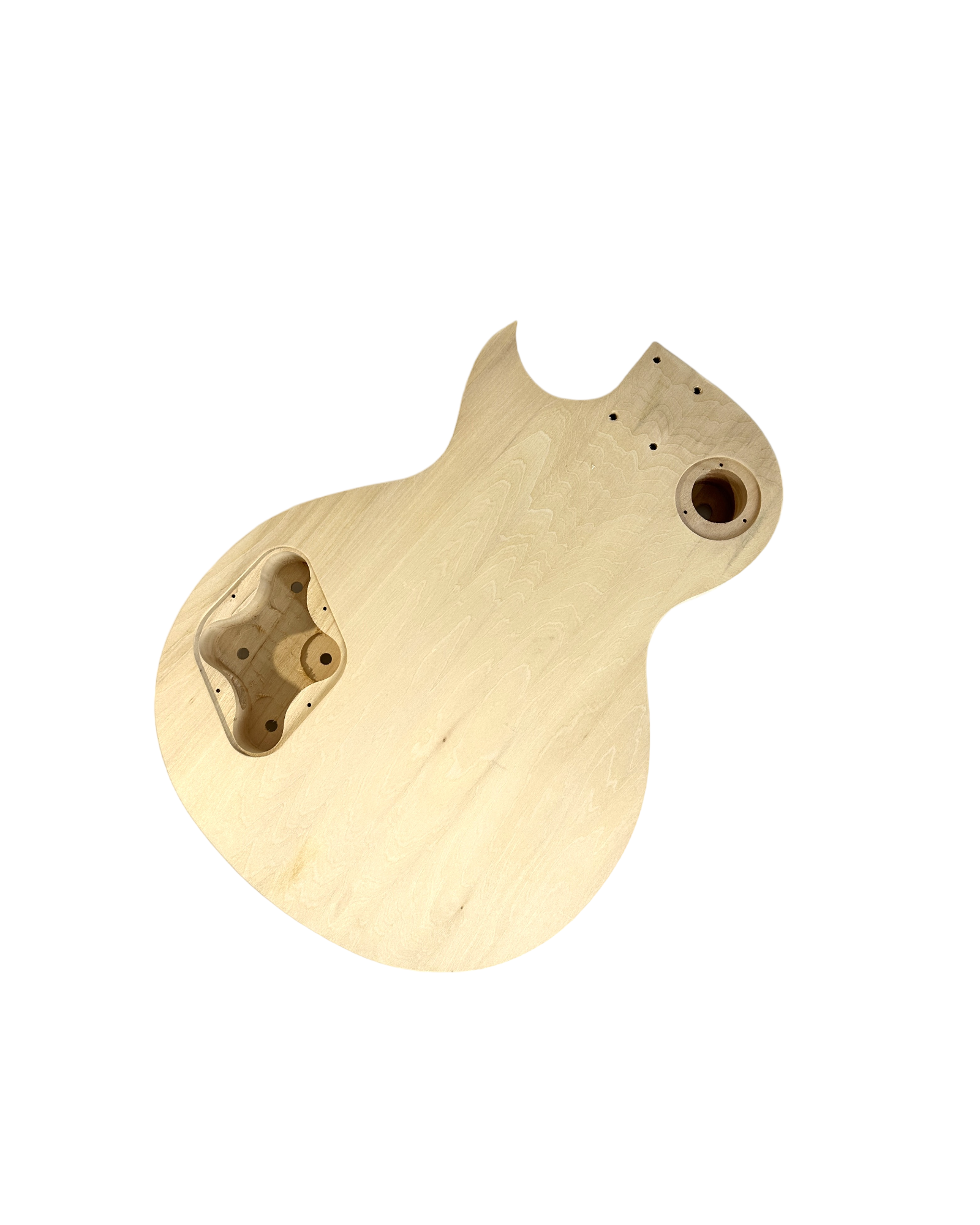

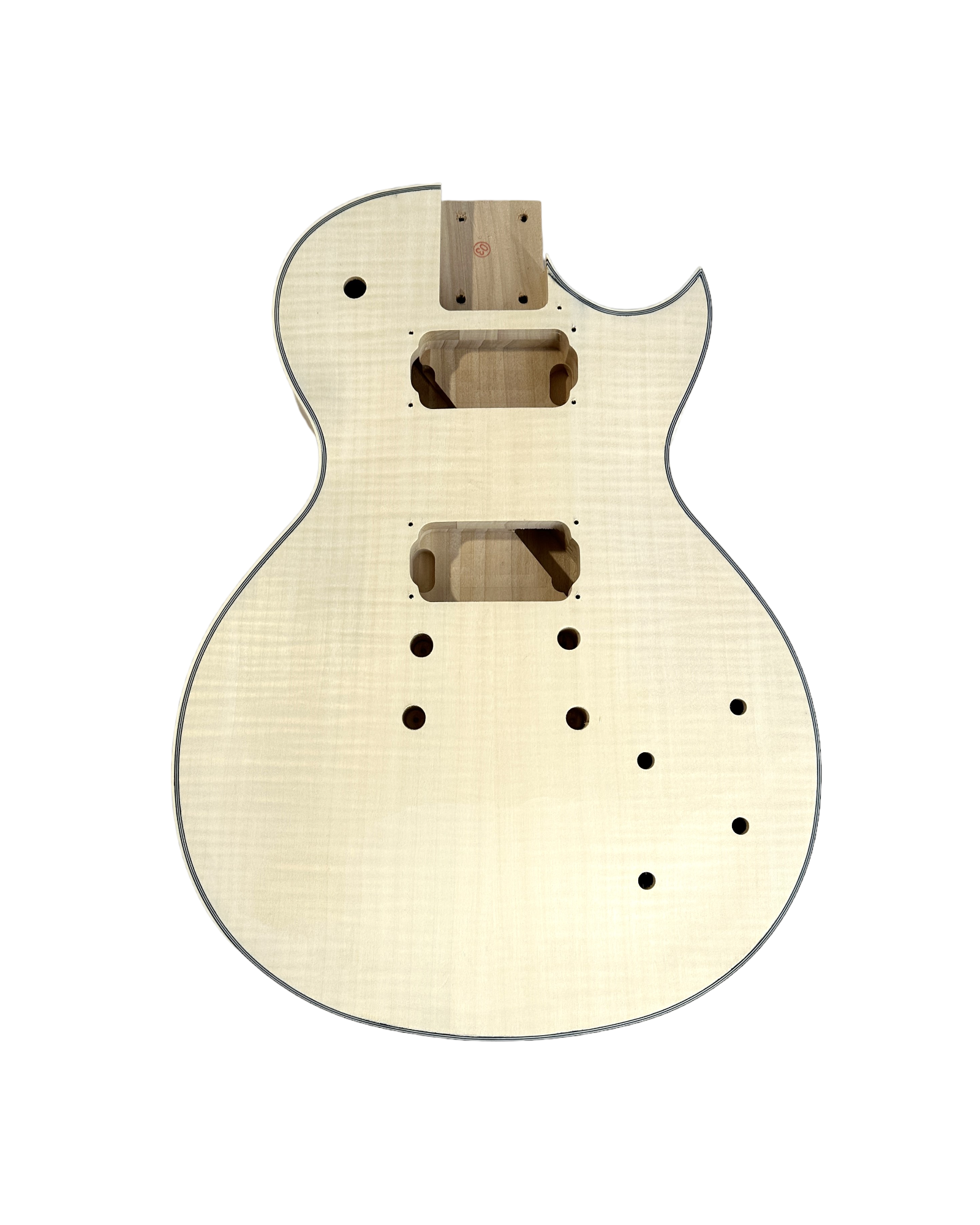

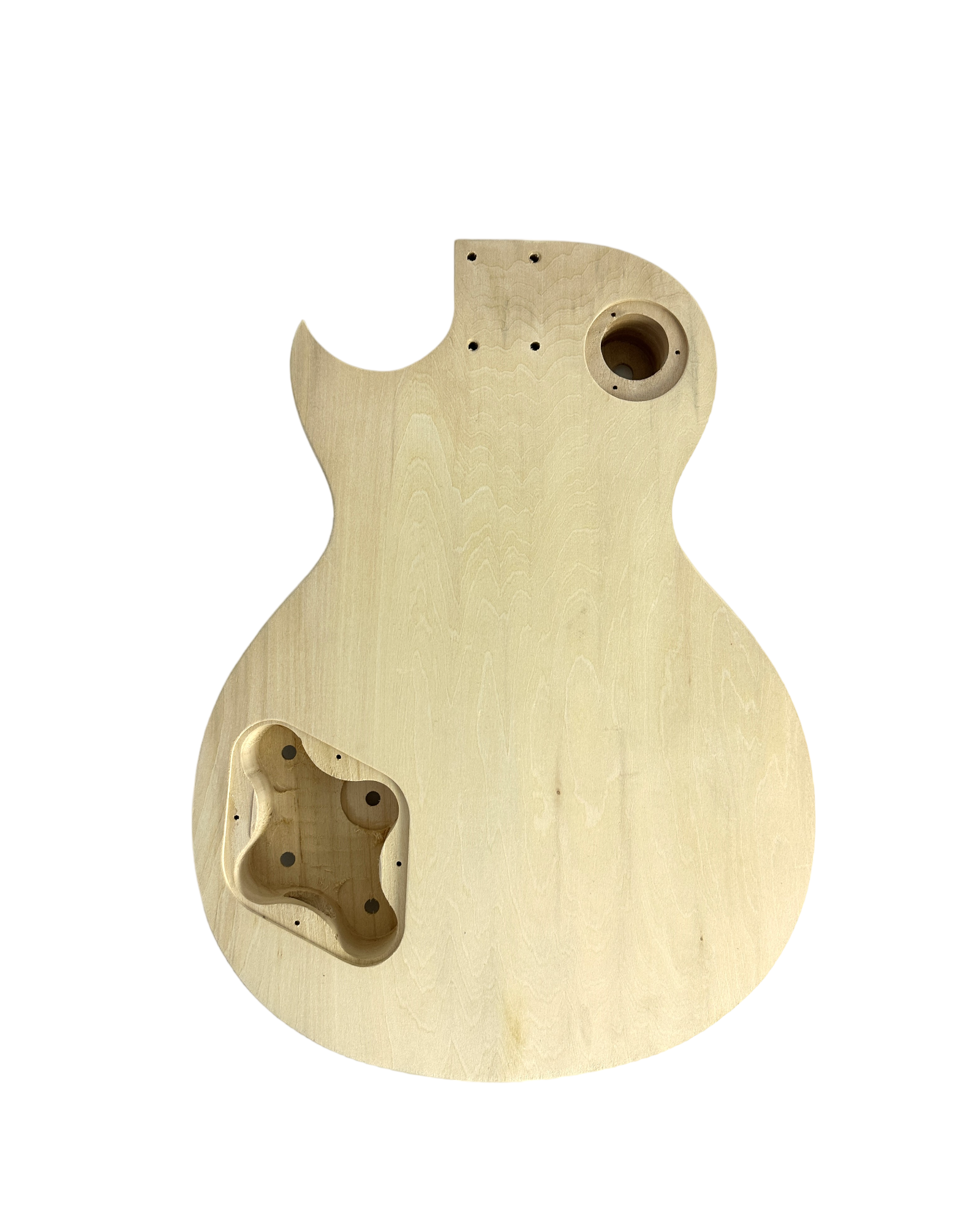

Body                             Solid arched basswood w/Flame Maple Veneer

Binding                         Deluxe 5-ply ABS Cream

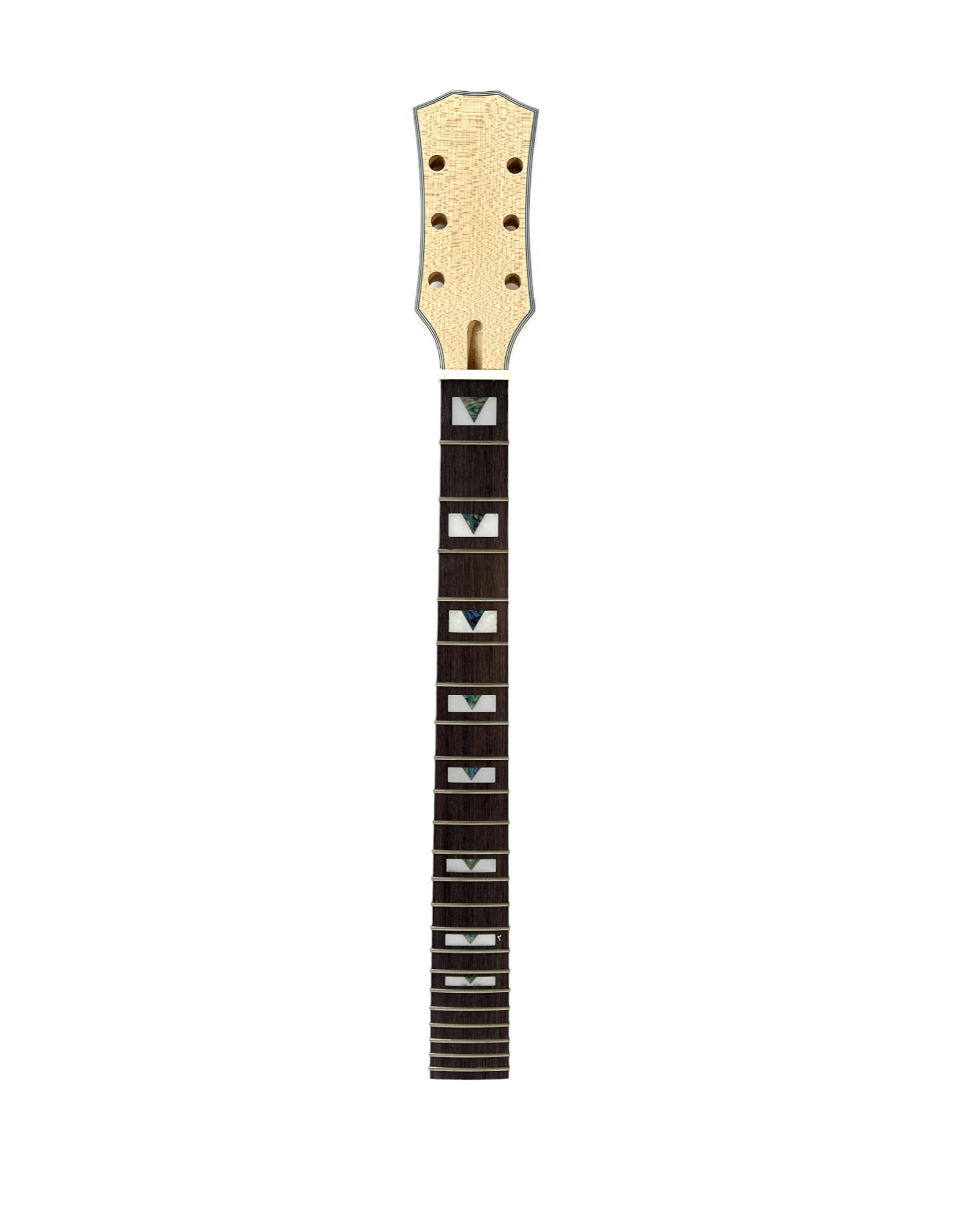

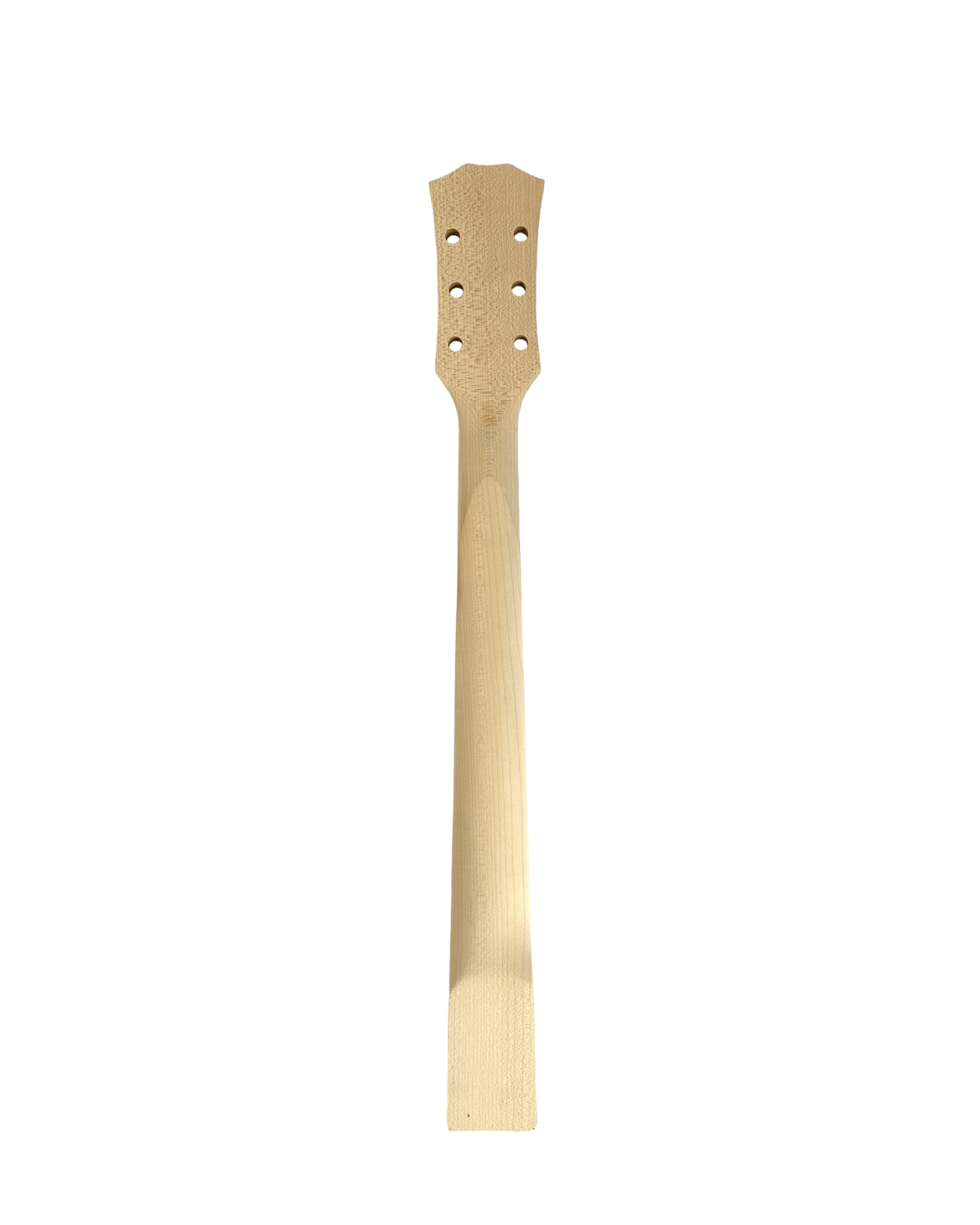

Neck                             Maple, C shape, Bolt-on Connection w/cream bound headstock

Neck radius                   15"

Fingerboard                  Purpleheart wood w/Custom abalone & mother-of-pearl block inlays

Truss Rod                      2-Way adjustable, accessed via head [pre-installed]

Bridge                           Chrome Tune-O-Matic + Lok-Tone Stop Tail

Frets                              22

Pickups                          2 classic Alnico V Humbuckers, chrome cover,  cream rim

Controls                         2 Volume, 2 Tone, 3-way selector, clear/amber speed knobs

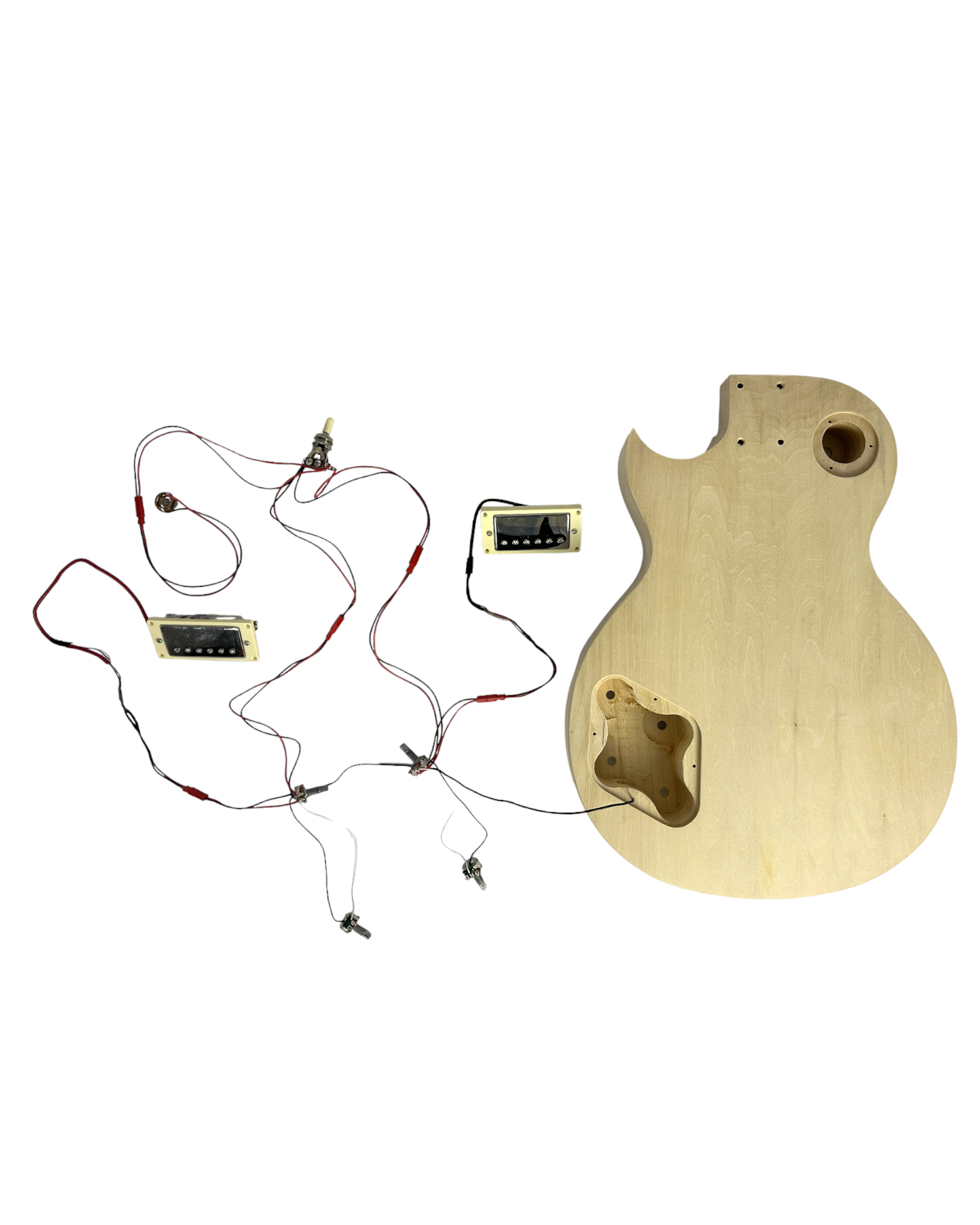

Connections                   All wiring has no-solder Plug-n-Play connectors, Completely no soldering needed.

Tuners                            Chrome 14:1 tombstone rotomatic+ all screws, ferrules, etc.

Trim                               Cream pickup rings & 3-ply pickguard, cover plates, switch knob

End Pins                         x2 Chrome pins + felts pads + screws

** Assembly instruction is included.


We're a genuine AUS based company offering quality items at prices far cheaper than the high street.

Every item is carefully packaged to ensure safe shipment to you.

Enjoy your visit!

View full details

Customer Reviews

Based on 6 reviews
83%
(5)
0%
(0)
0%
(0)
0%
(0)
17%
(1)
A
Ashley Hayward
Do not bother It is garbage

I got this model for the flame top and it was garbage. First thing is first, when I got it out of the box it had small dents and scratches. I thought that’s ok I can sand them out. The next thing was after I sanded it down and started staining the top there was so much glue on it from the binding that I had to sand it a bit more. I then found that the maple top was so thin that just one pass over with a sander sanded a small amount of the maple off. So I thought stuff it I’ll sand the maple top off which was not hard as how thin it was. Then found that at the back where the controls go they had routed it out to much on one and there was a crack in the top. There was all so cracks all in the binding and the head stock on the neck had cracked. I would like my money back the hard thing is half this stuff I didn’t find until I started to sand. The only good thing was the electrics worked well

J
Jeffrey James Hollis
E238PBDIY Solid Body Electric Guitar DIY Kit, No-Soldering, Flame Maple Veneer

nice neck

L
Luke Mcloughlin
E238PBDIY Solid Body Electric Guitar DIY Kit, No-Soldering, Flame Maple Veneer

I’m happy Thankyou

J
Jyian Tanaka
E238PBDIY Solid Body Electric Guitar DIY Kit, No-Soldering, Flame Maple Veneer

Arrived today exactly what I ordered thank you

A
Andrew martin
E238PBDIY Solid Body Electric Guitar DIY Kit, No-Soldering, Flame Maple Veneer

I tem arrived quickly, Seller gets back to questions. Goods arived in good condition.
