HSTL19120GN1W

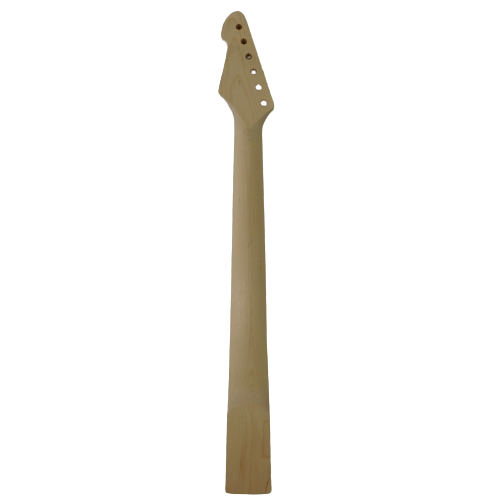

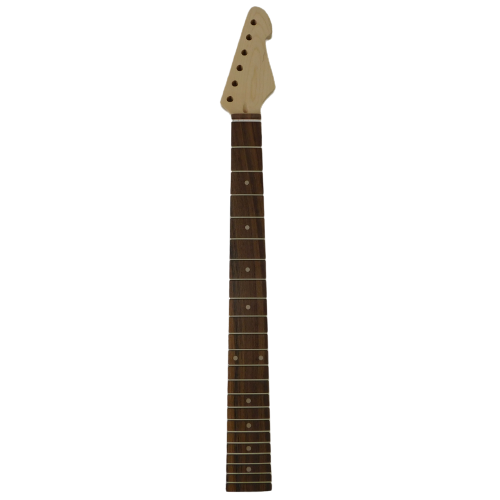

The HAZE guitar neck is perfect for use as a replacement part or for DIY projects by guitar enthusiasts. Please note that the neck specifications may vary slightly by +/- 1 or 2mm. It's essential to check the measurements of your guitar body and hardware to ensure a proper fit. If you're using this neck with non-HAZE body or hardware, minor modifications may be needed for the right fit.

Features:

• Neck: Maple
• Fretboard: Rosewood
• Nut: White (pre-installed)
• Weight: 600g
• Radius: 12in
• Frets: 22 (Width: 2.5mm)
• Truss Rod: 2-way
• Inlays & Side Marker: White Dot

Measurements:

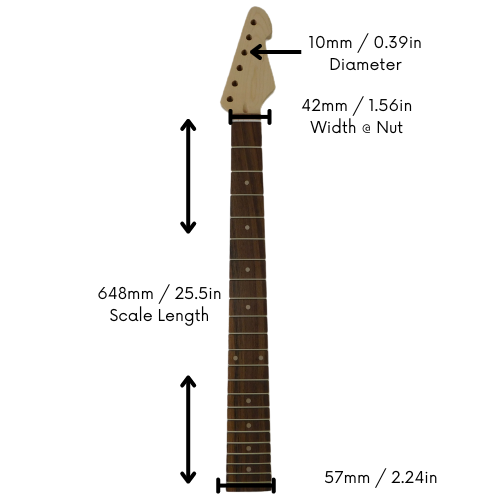

• Scale Length: 648mm / 25.5in

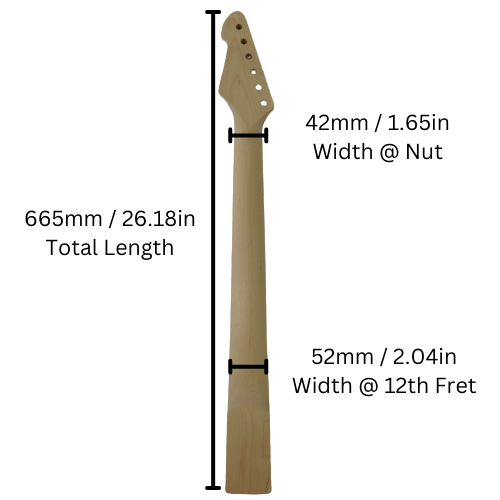

• Nut Width: 3mm / 1.65in

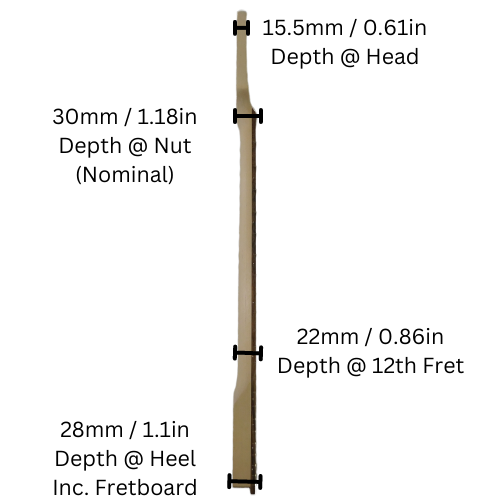

• Thickness at Head: 15.5mm / 0.610in
• Thickness at Nut: 30mm / 1.18in

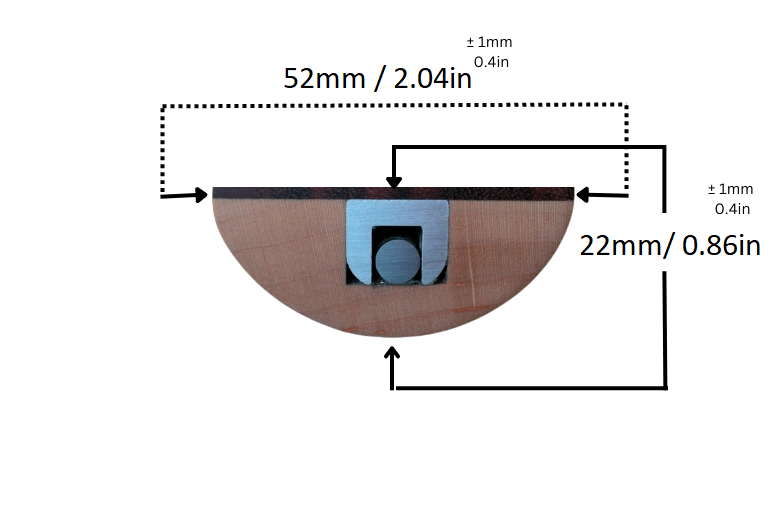

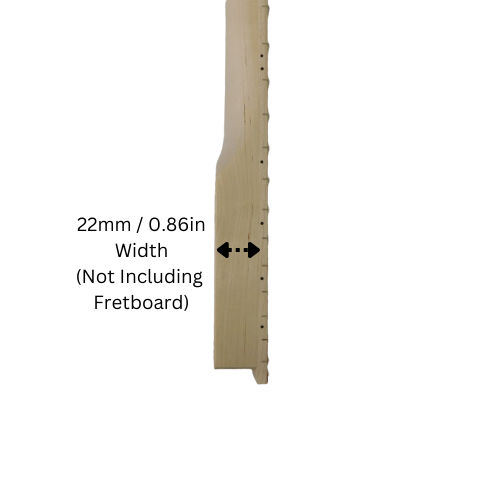

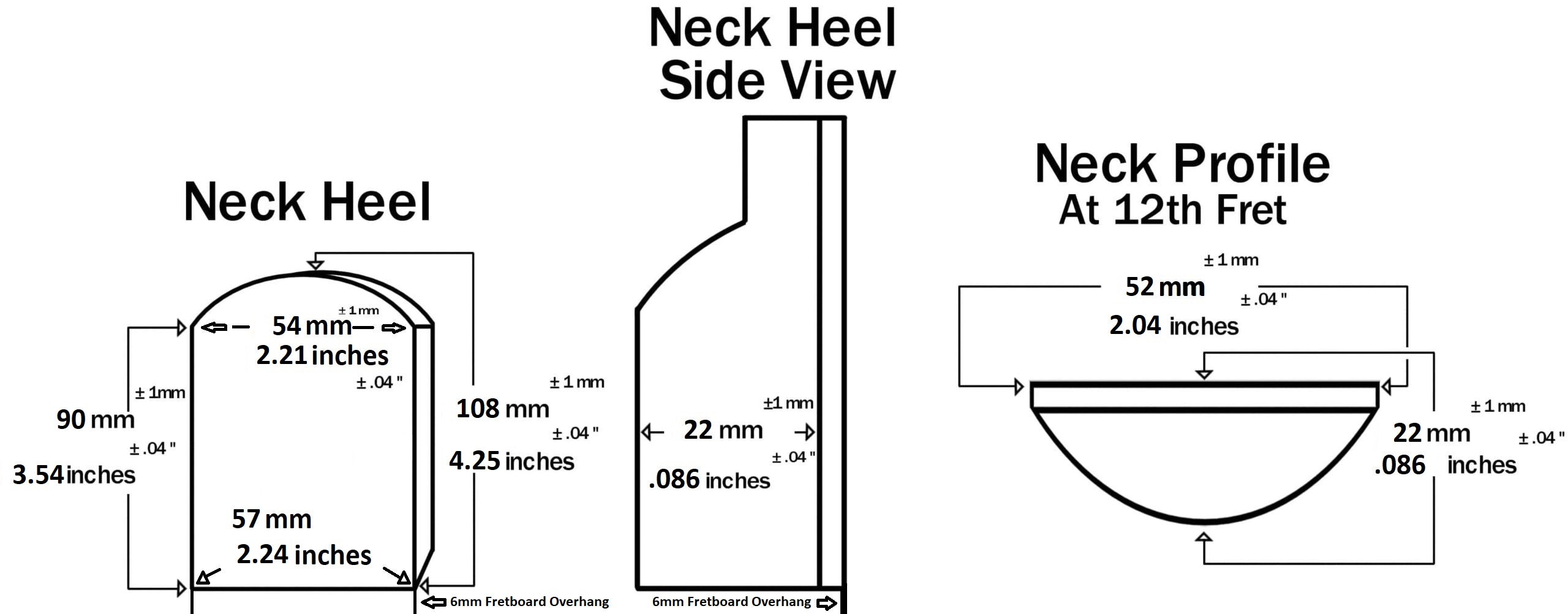

• Thickness at 12th Fret: 22mm / 0.86in
• Width at 12th Fret: 52mm / 2.04in

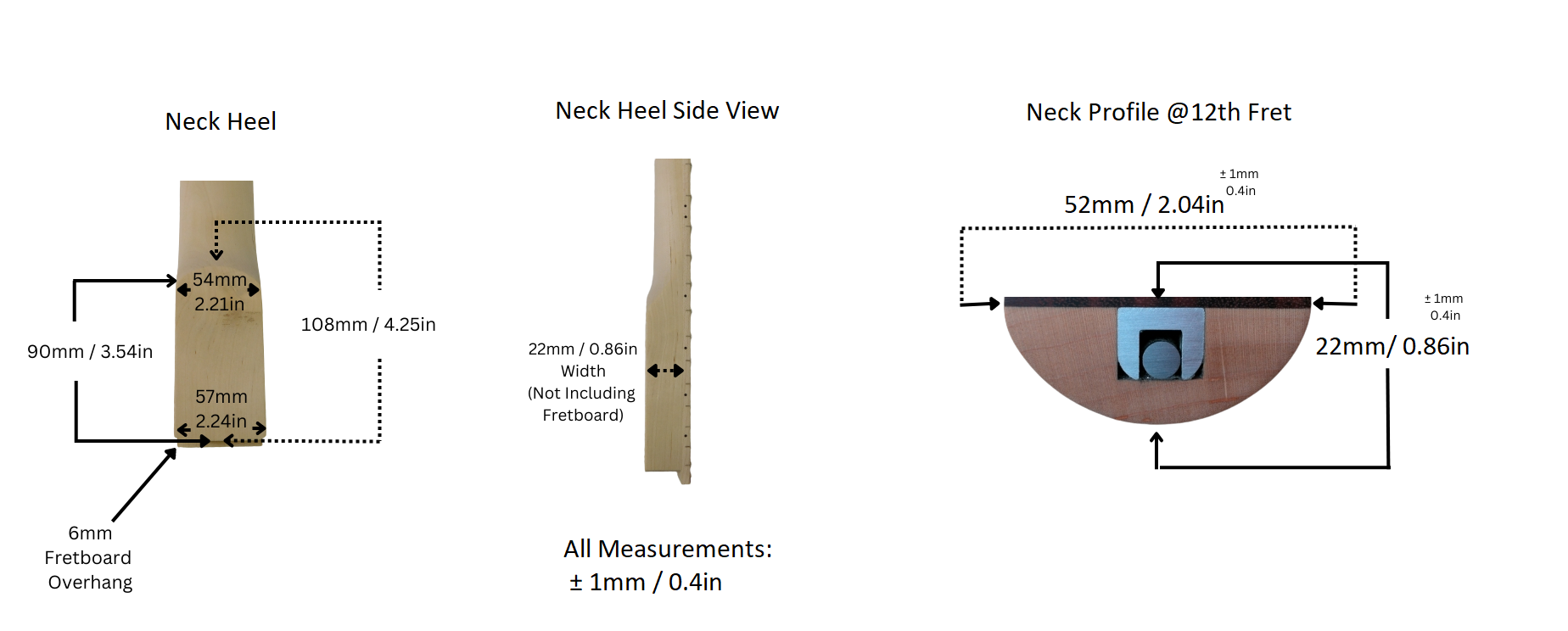

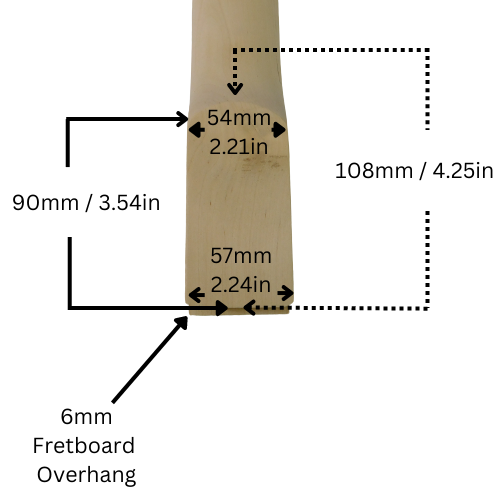

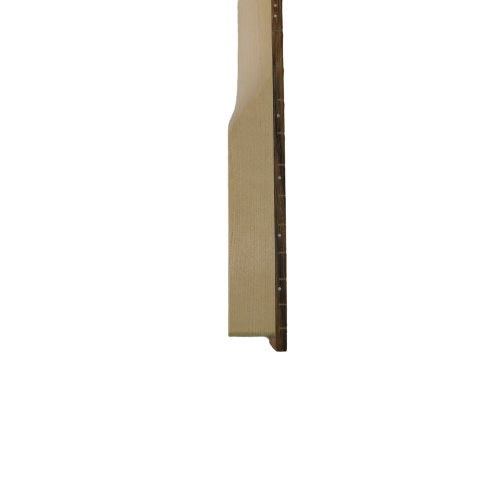

• Length of Heel: 108mm / 4.88in (Fretboard overhang: 6mm)
• Width of Heel: 57mm / 2.24in
• Depth of Heel: 28mm / 1.1in (including Fretboard)
• Width of Tuner Hole: 10mm / 0.39in
• Length from Nut to Heel of Fretboard: 477mm / 18.77in
• Length from Nut to Heel of Neck: 470mm / 18.50in
• Total Length: 665mm / 26.18in
