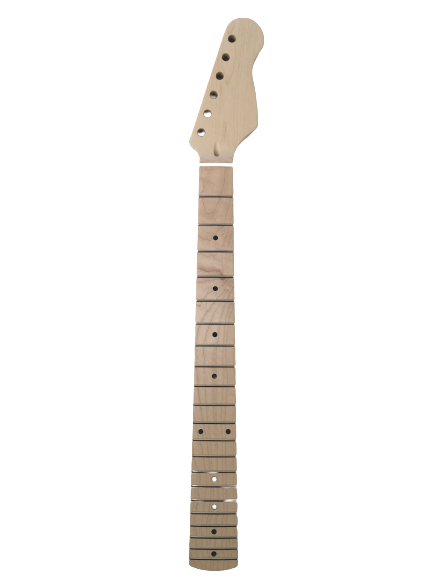

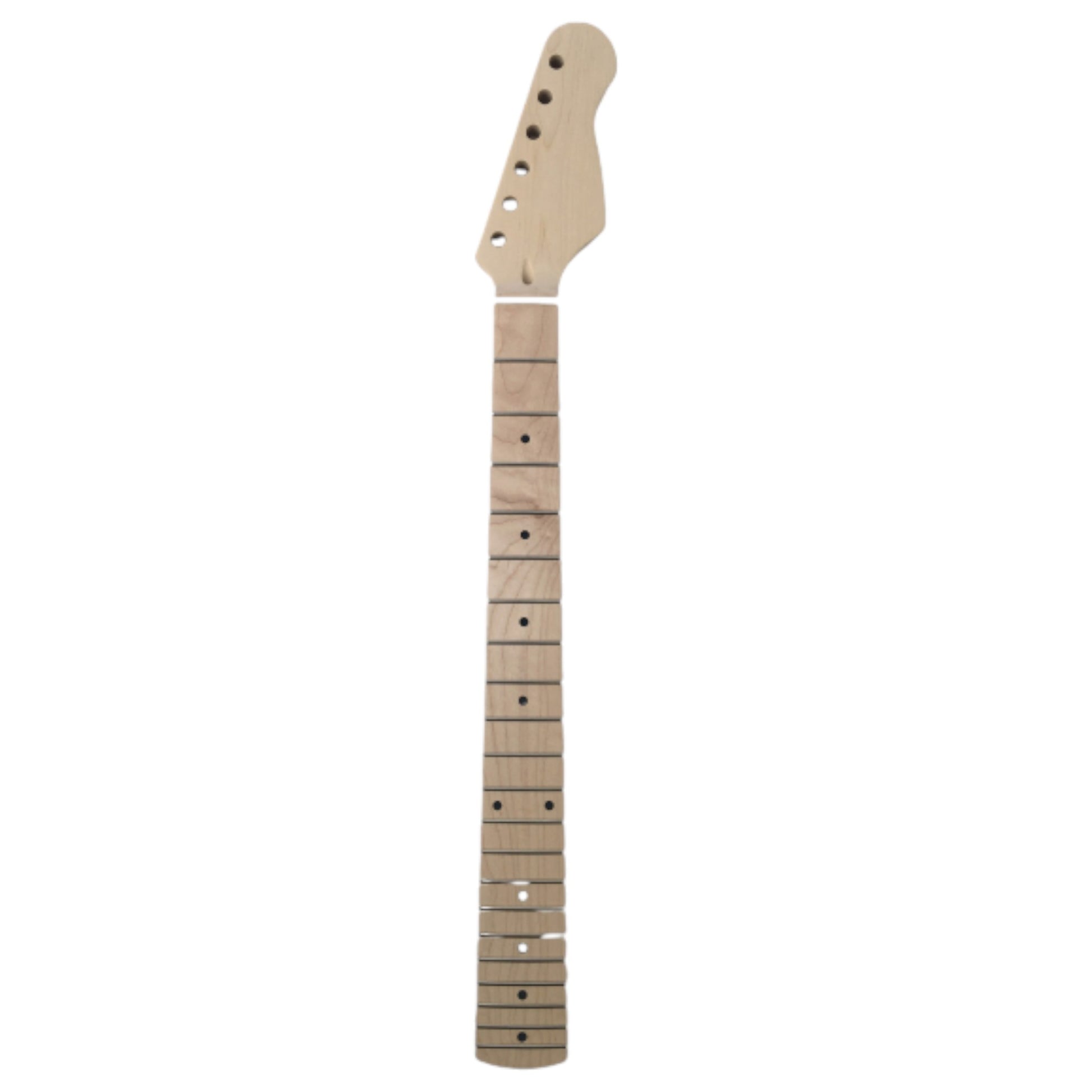

Haze HSST1910GN1B DIY Guitar Neck

Haze HSST1910GN1B DIY Guitar Neck

Regular price $98.00 AUD
Regular price Sale price $98.00 AUD
Sale Sold out

In stock


The HAZE guitar neck is designed to be used as a replacement or as a DIY project for guitar enthusiasts. However, it's important to note that the neck specifications may have a slight variance of +/- 1 or 2mm. Therefore, it's essential to check the measurements of your guitar body and hardware to ensure a proper fit. If you are using this neck with a non-HAZE body or hardware, you may need to make slight modifications to achieve the right fit.


Neck:                             Maple
Fretboard:                     Maple
Nut:                               White (pre-installed)
Weight:                          600g
Radius:                           12in
Frets:                              21 (Width: 2.5mm)
Truss Rod:                      2 way
Inlays & Side Marker:    Black Dot

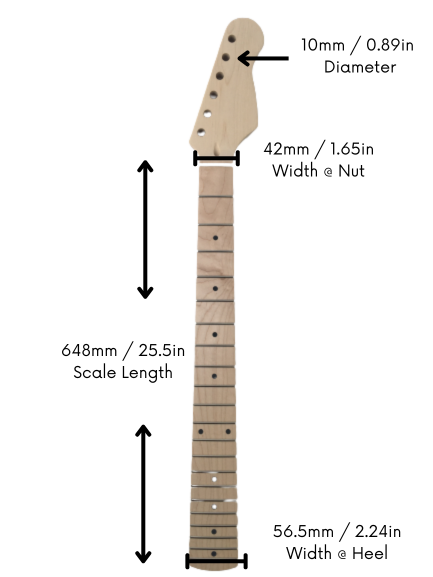

Scale Length:                 648mm / 25.5in

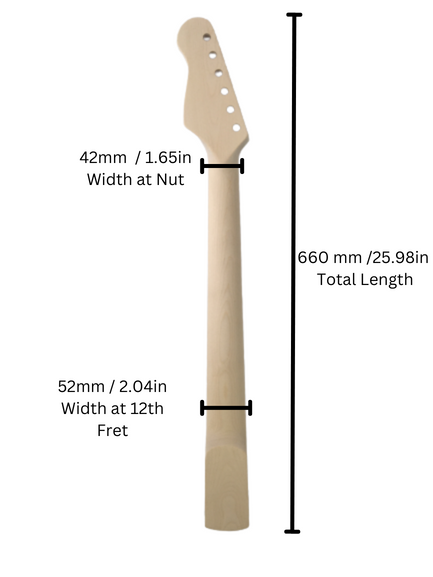

Nut Width:                     3mm / 1.65in

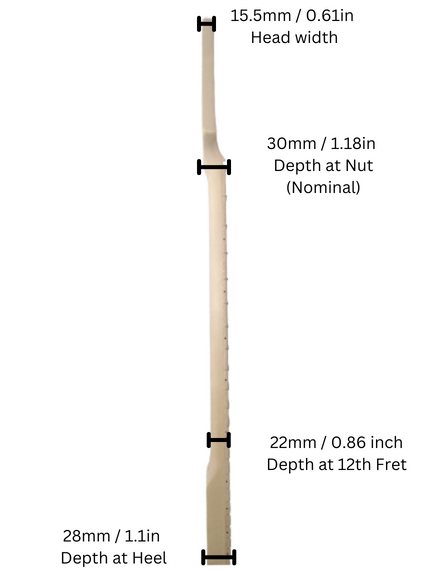

Thickness at Head:         15.5mm / 0.610in
Thickness at Nut:           29.5mm / 1.16in

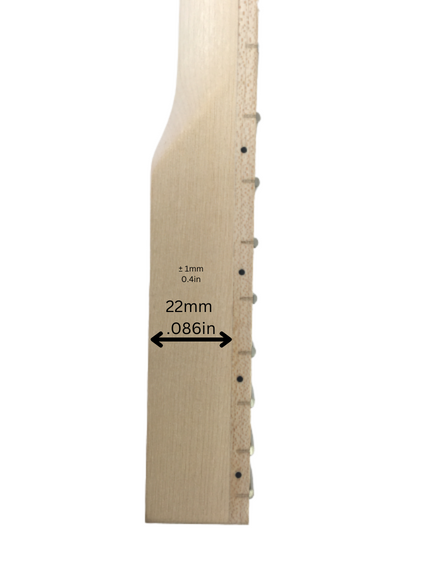

Thickness at 12th Fret:   22mm / 0.86in
Width at 12th Fret:         52mm / 2.04in

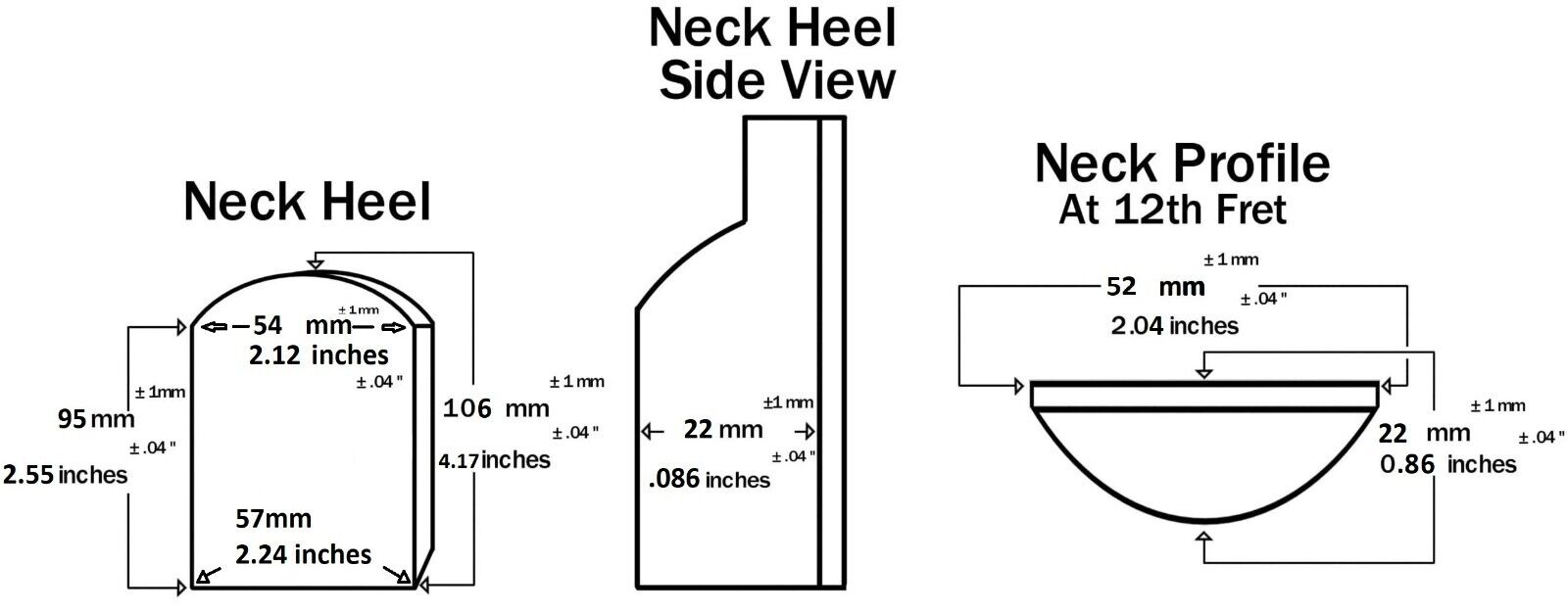

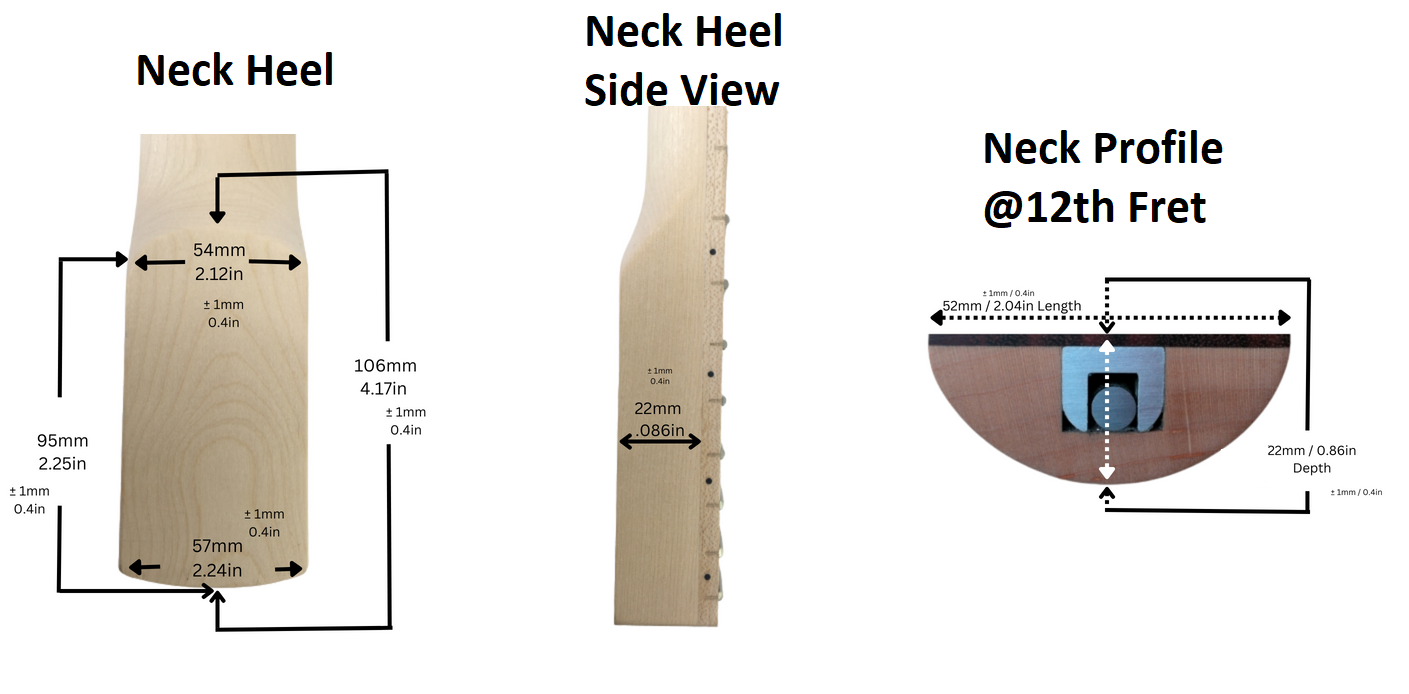

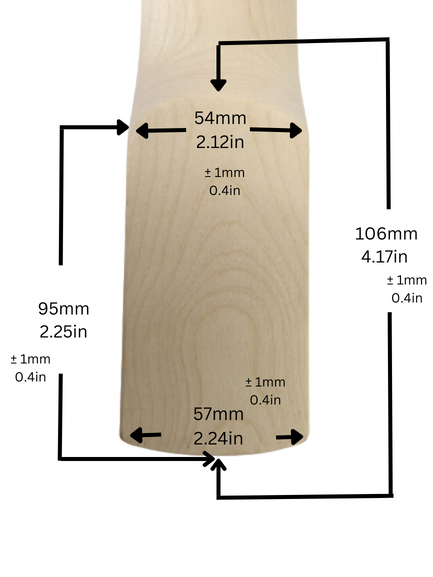

Length of Heel:              106mm / 4.17in
Width of Heel:                56.5mm /2.24in
Depth of Heel:                28mm / 1.1in(including Fretboard)
Width of Tuner Hole:     10mm / 0.39in
Length from Nut to Heel: 467mm/ 18.38in
Total Length                   660mm / 25.98in
