HSPB 1910GNS1W

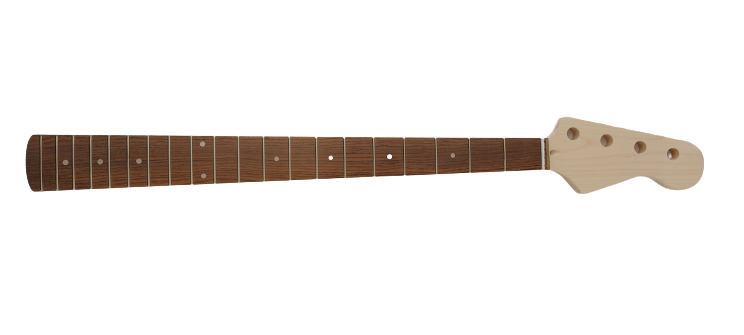

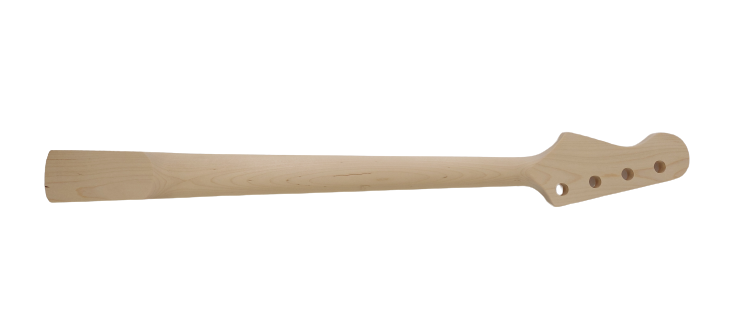

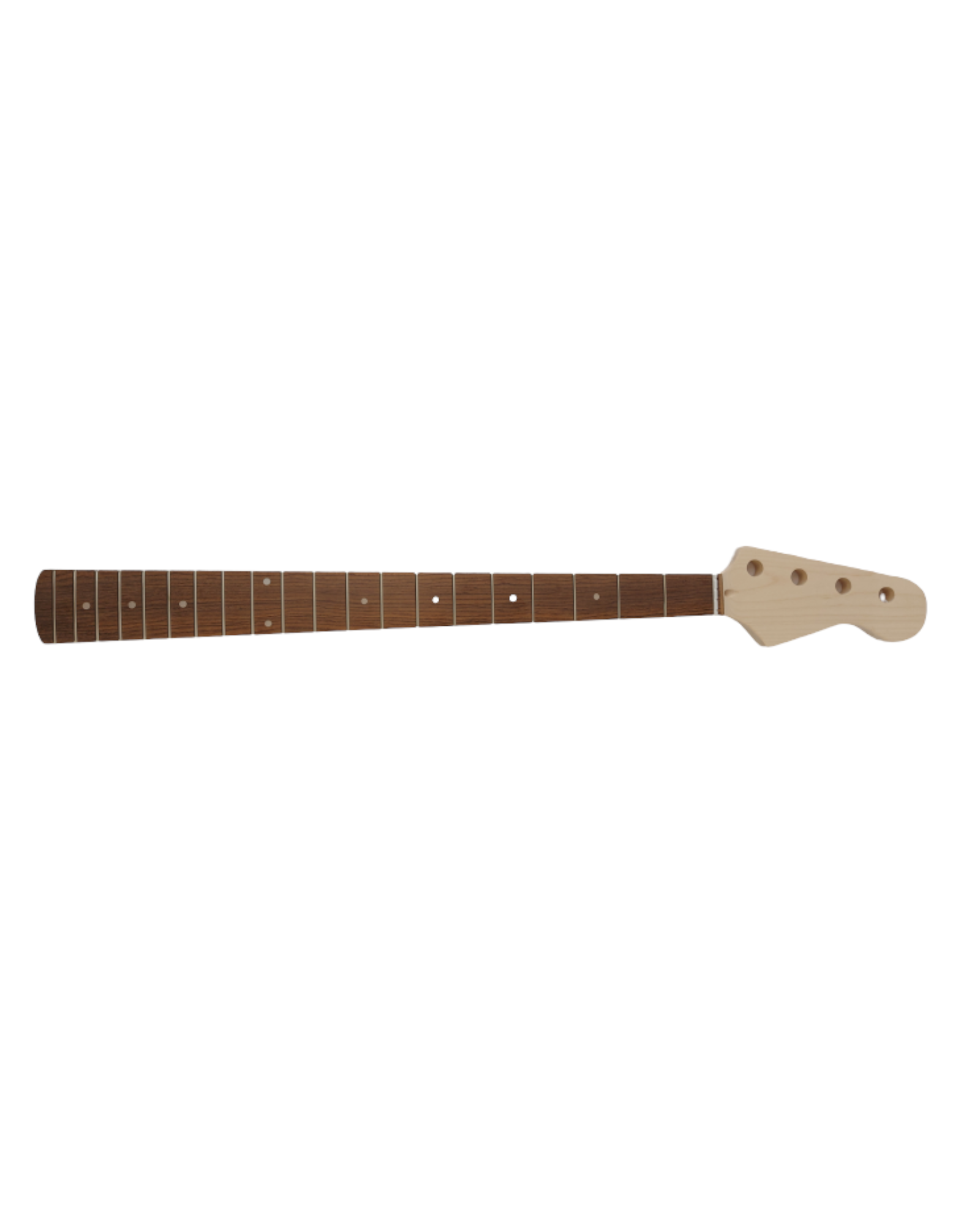

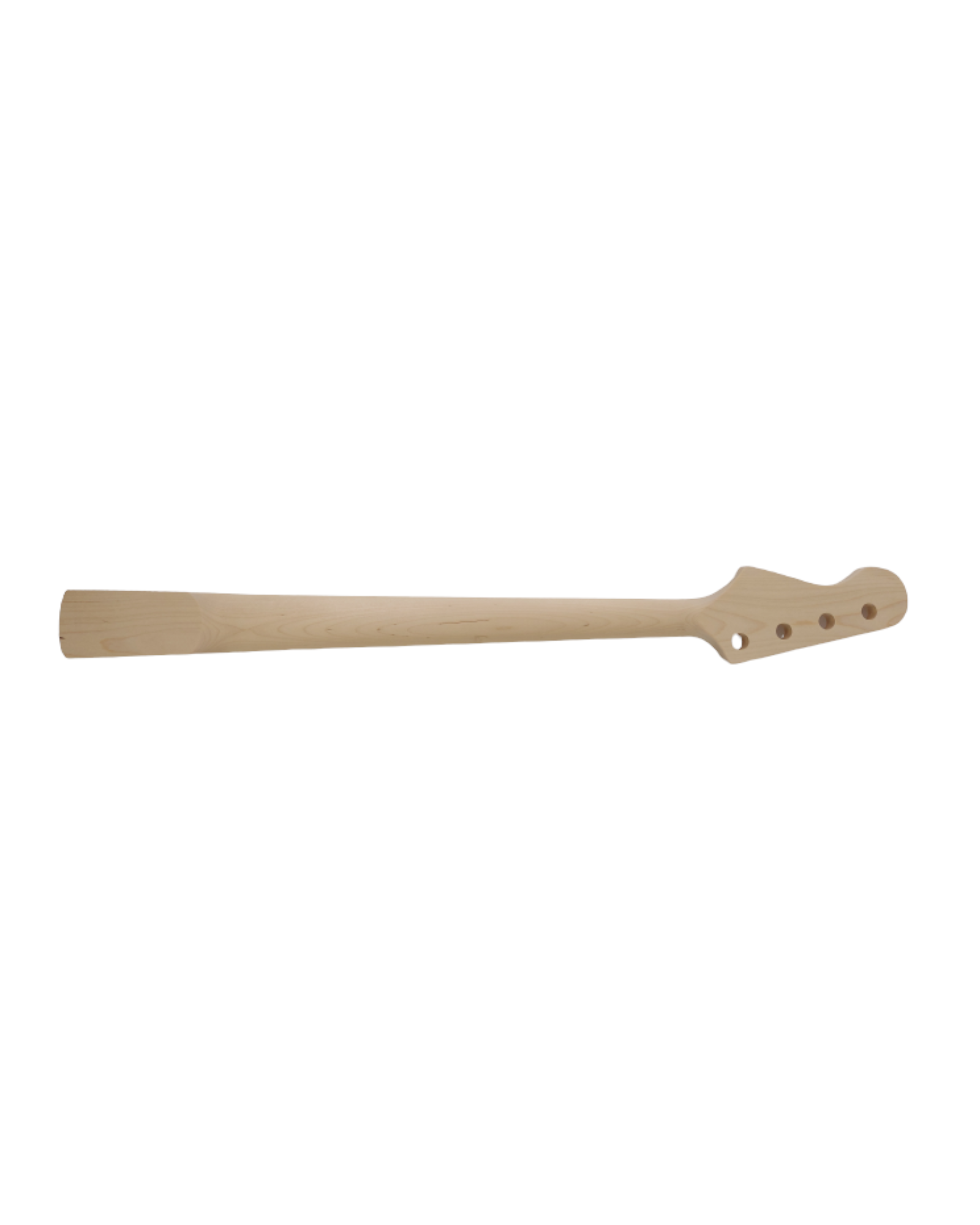

The HAZE guitar neck is designed to be used as a replacement or as a DIY project for guitar enthusiasts. However, it's important to note that the neck specifications may have a slight variance of +/- 1 or 2mm. Therefore, it's essential to check the measurements of your guitar body and hardware to ensure a proper fit. If you are using this neck with a non-HAZE body or hardware, you may need to make slight modifications to achieve the right fit.

Features:

Neck:                               Maple

Fretboard:                      Rosewood

Nut:                                 White (pre-installed)

Weight:                           600g

Radius:                             12in

Frets:                                20 (Width: 2.5mm)

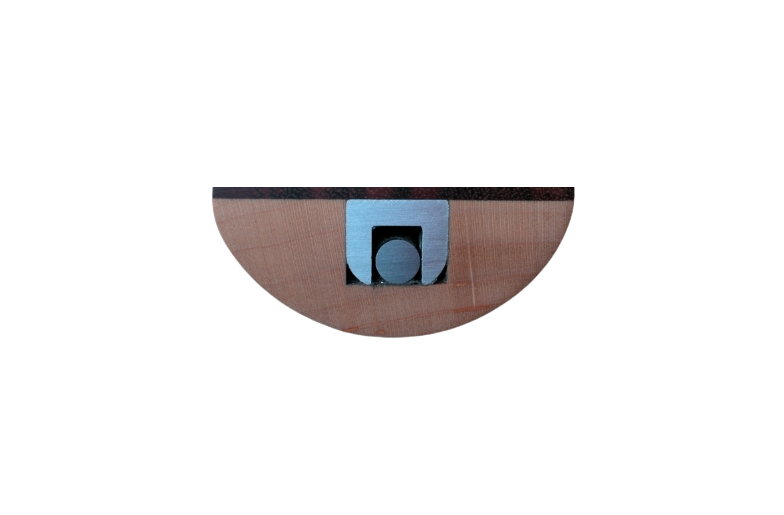

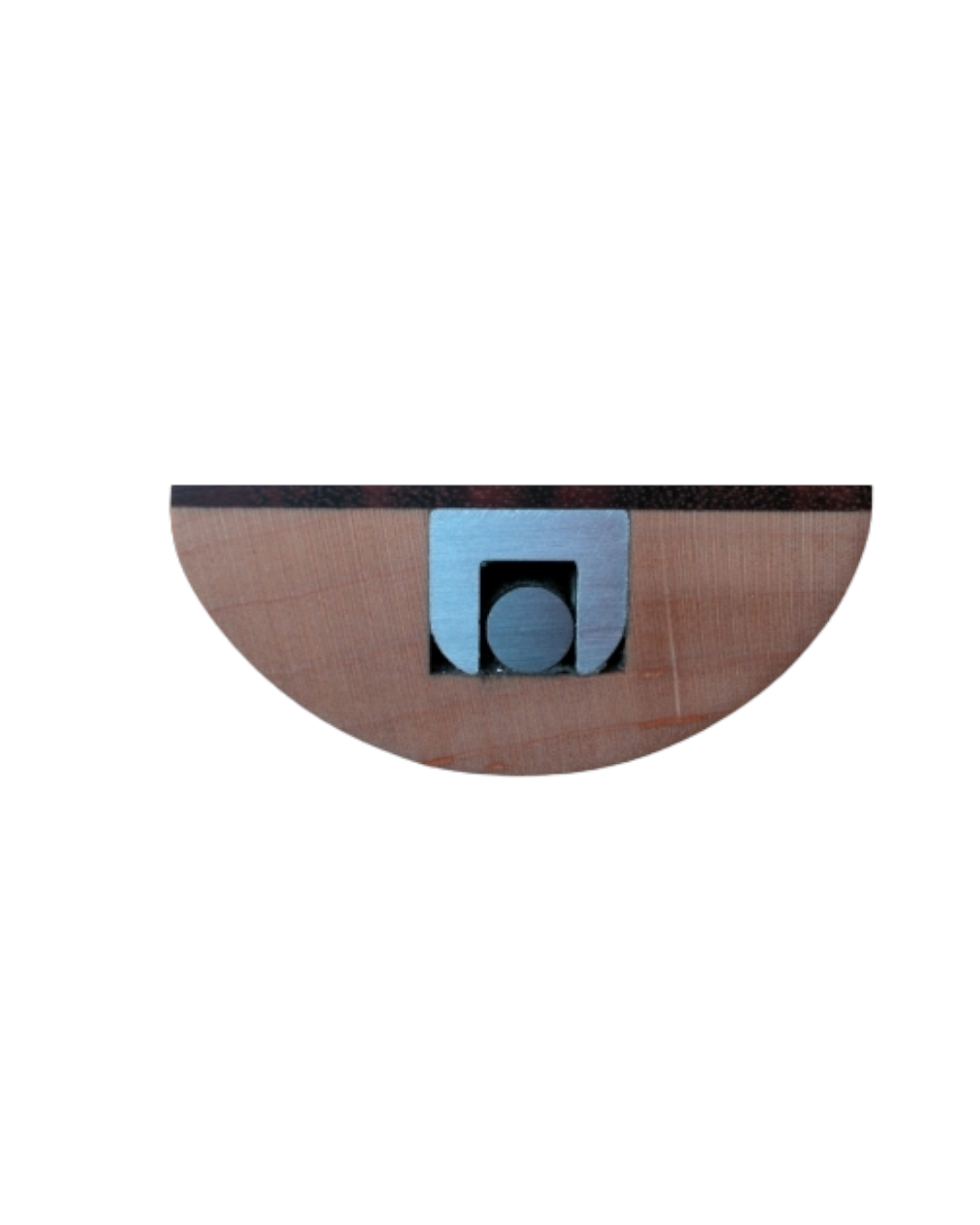

Truss Rod:                        2 way

Inlays & Side Marker:   Standard Dot

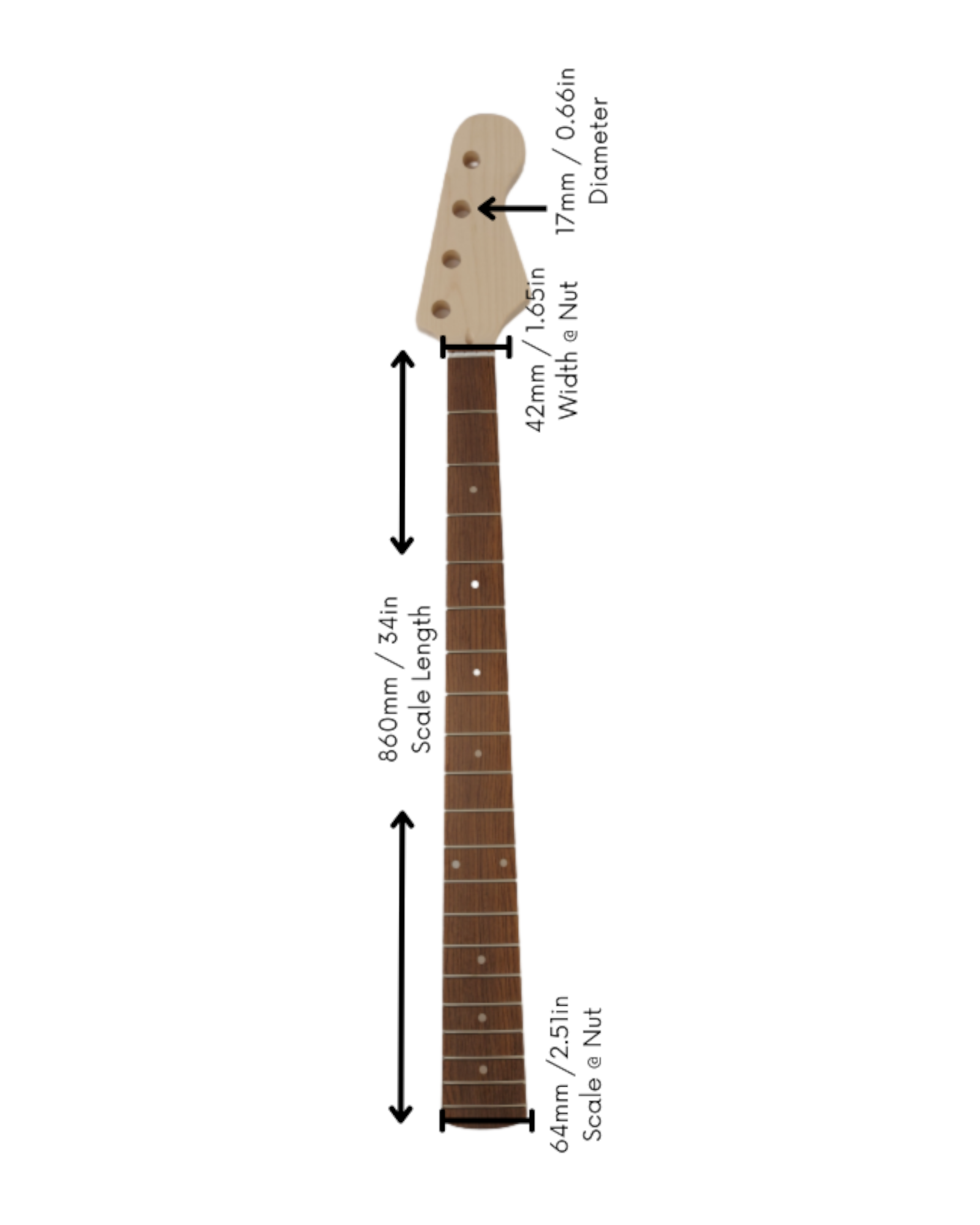

Scale Length:                  860mm / 34" inch

Nut Width:                      3mm / 1.65in

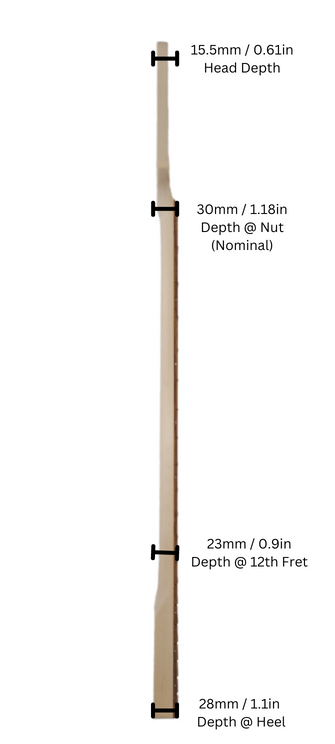

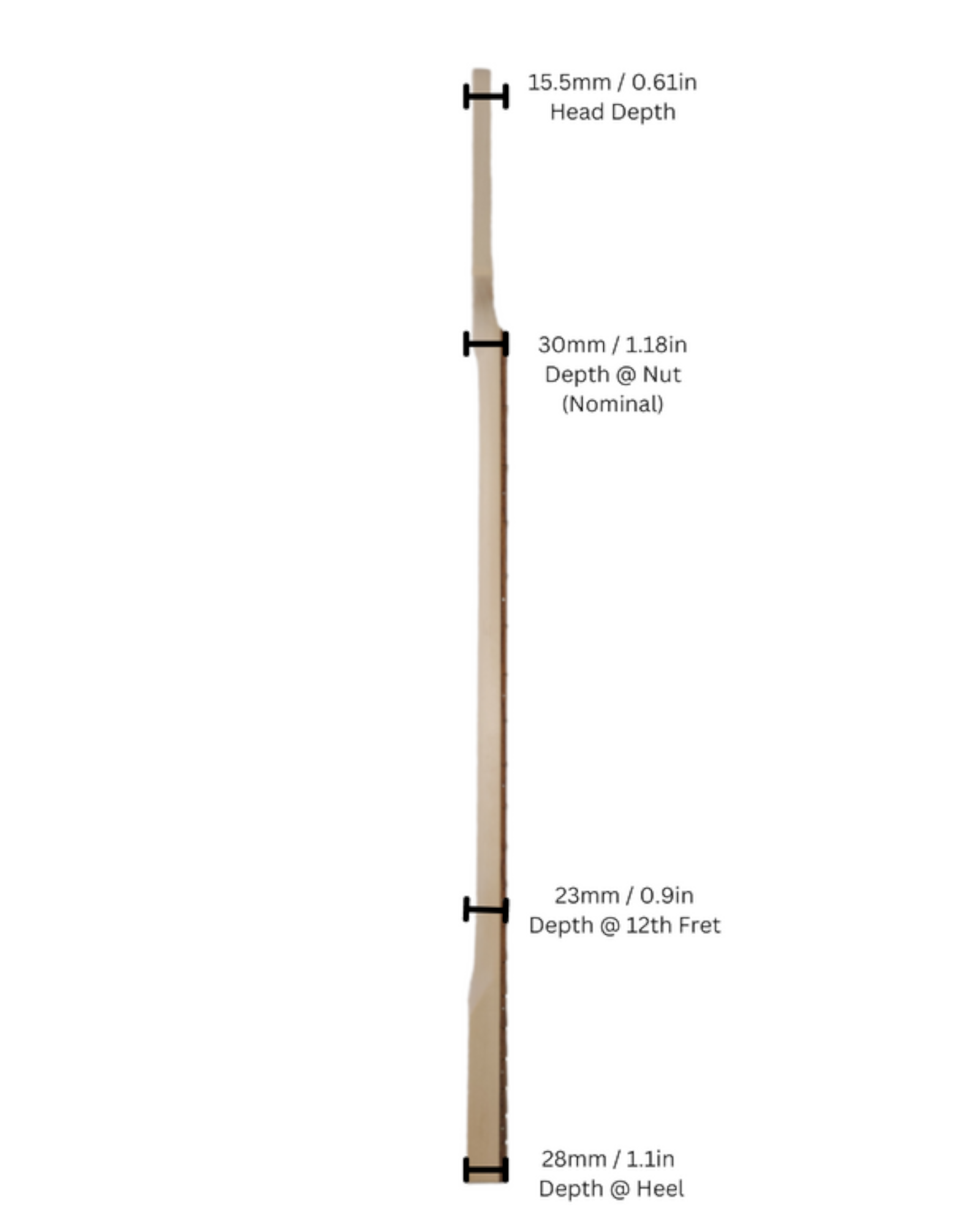

Thickness at Head:         15.5mm / 0.610in

Thickness at Nut:           30mm / 1.18in

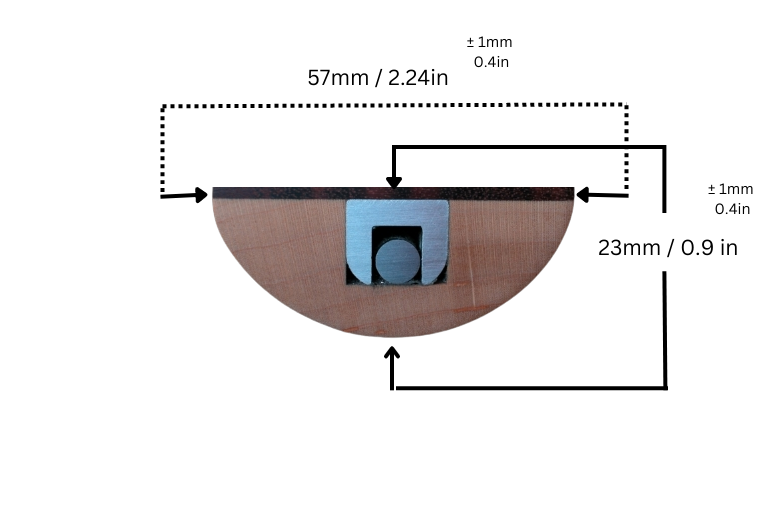

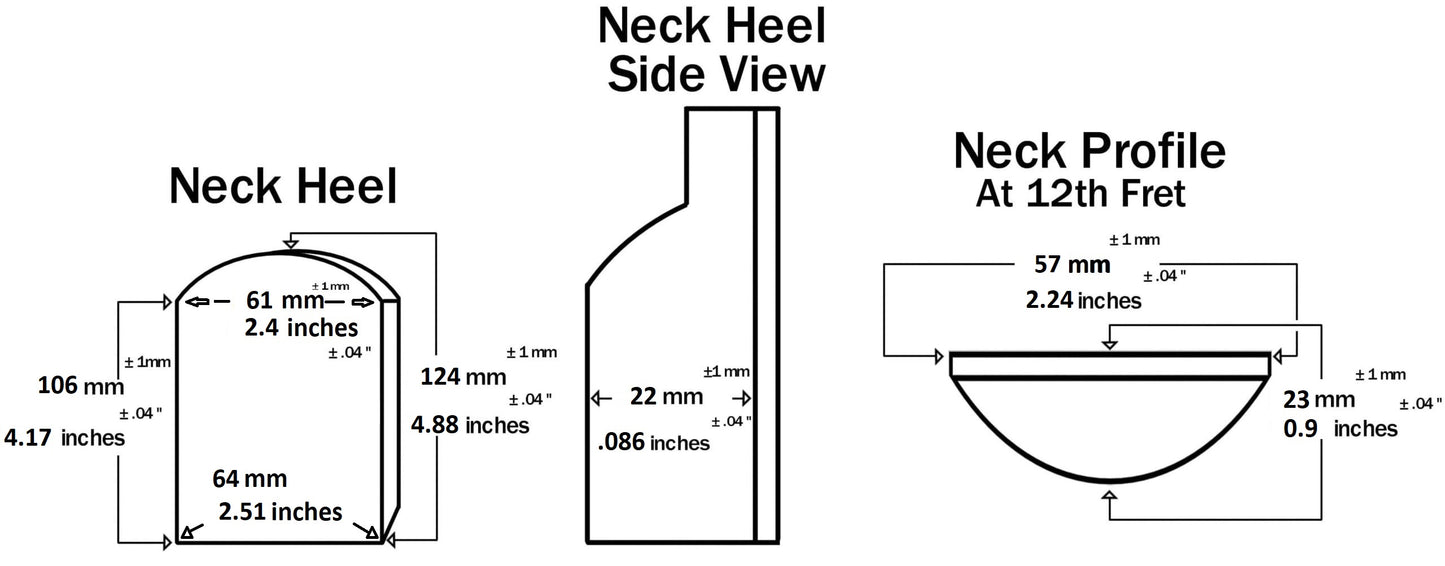

Thickness at 12th Fret:   23mm / 0.9in

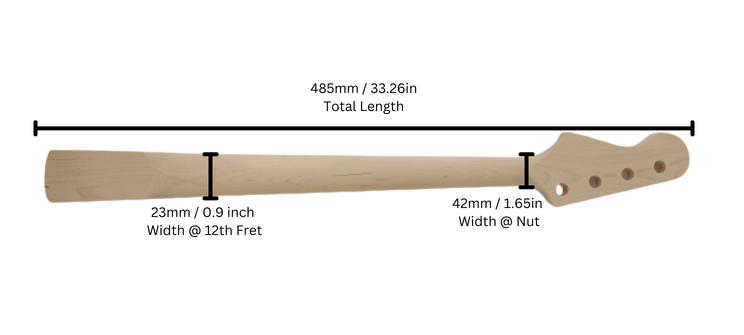

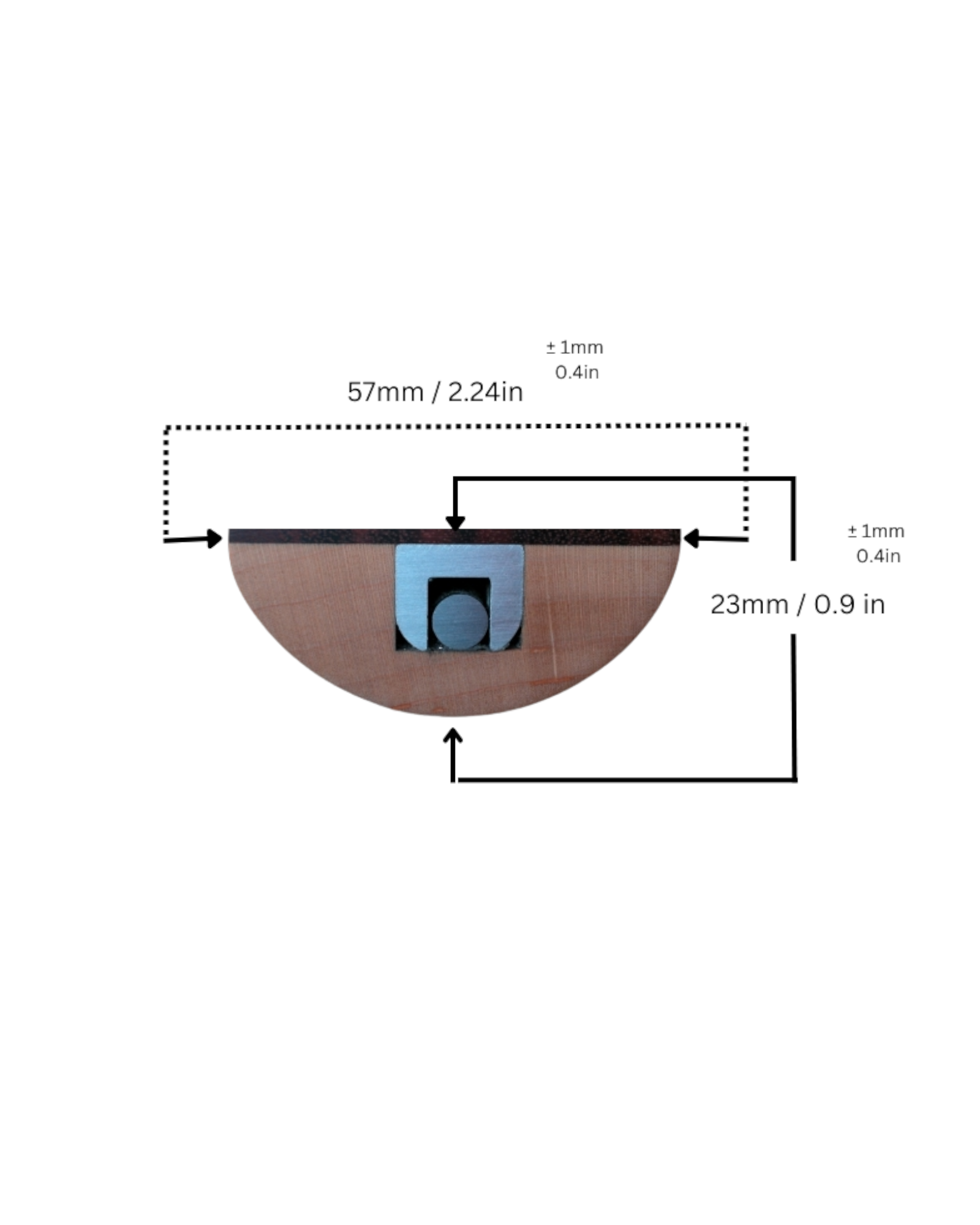

Width at 12th Fret:         57mm / 2.24in

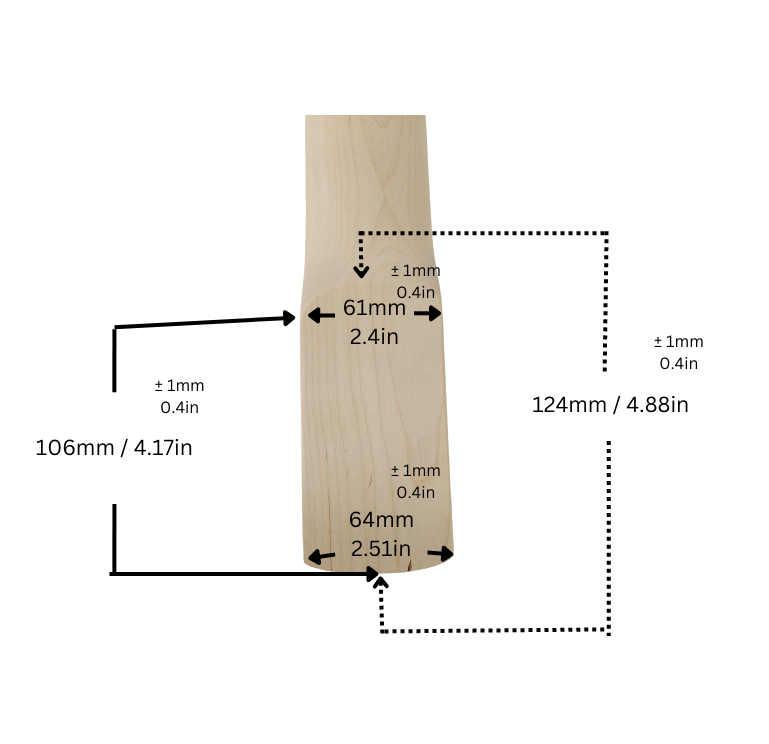

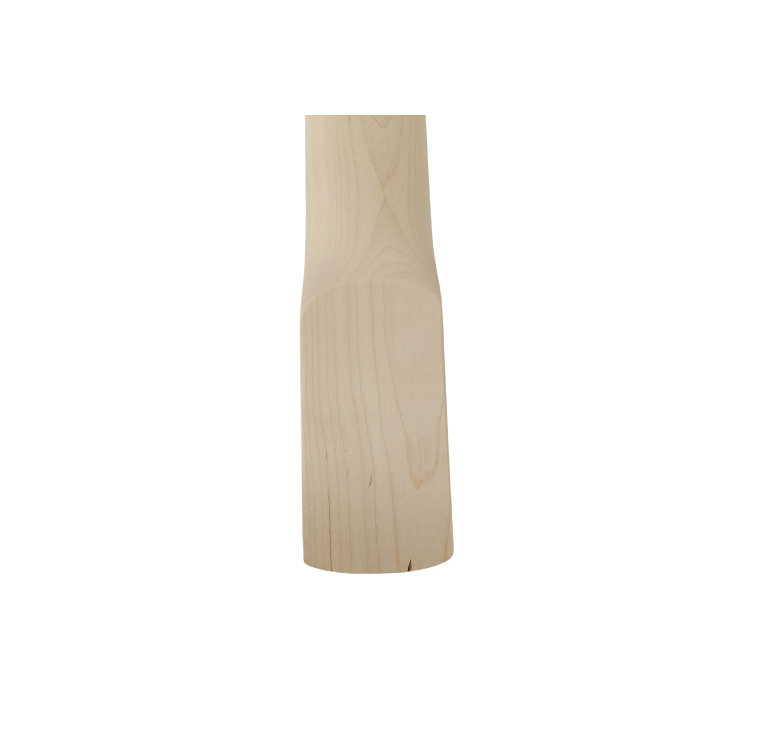

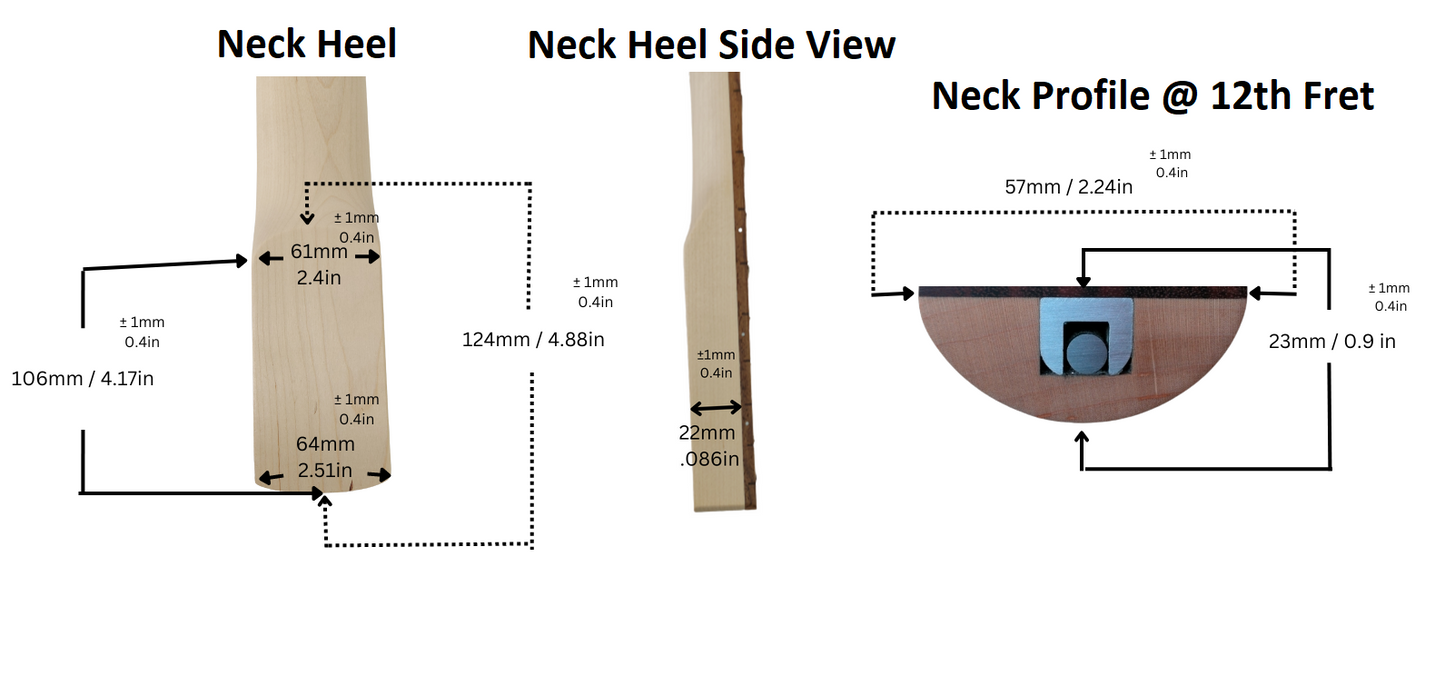

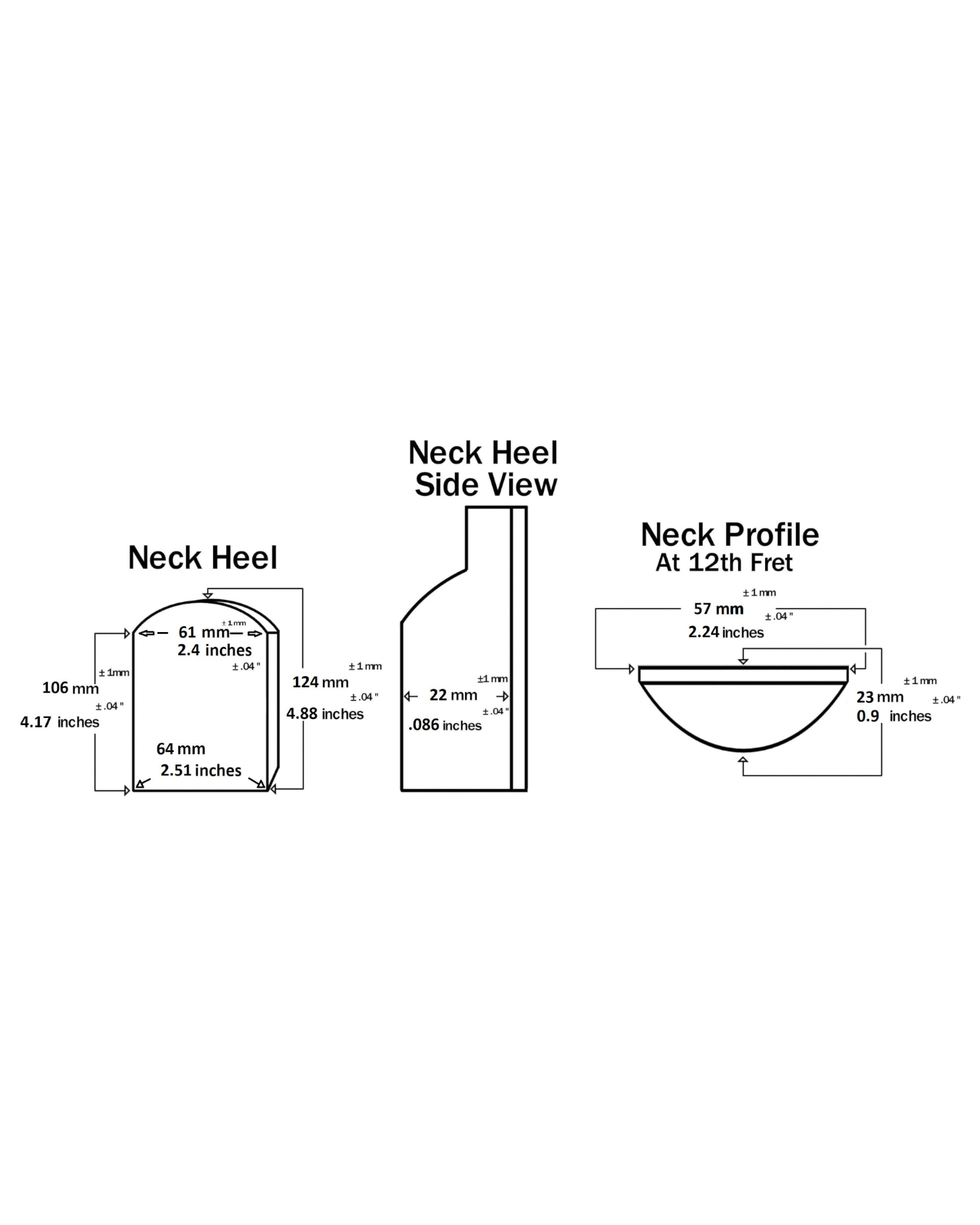

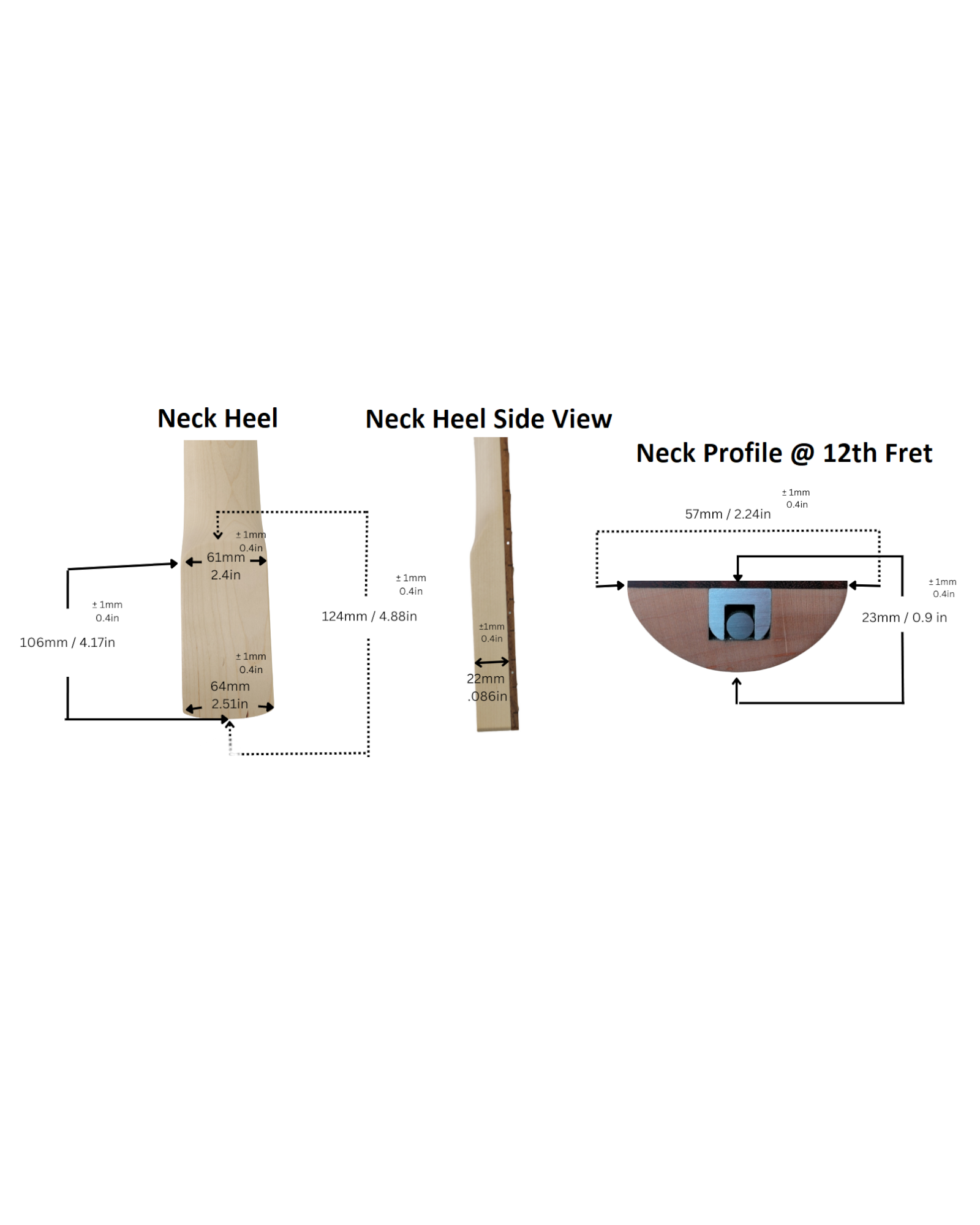

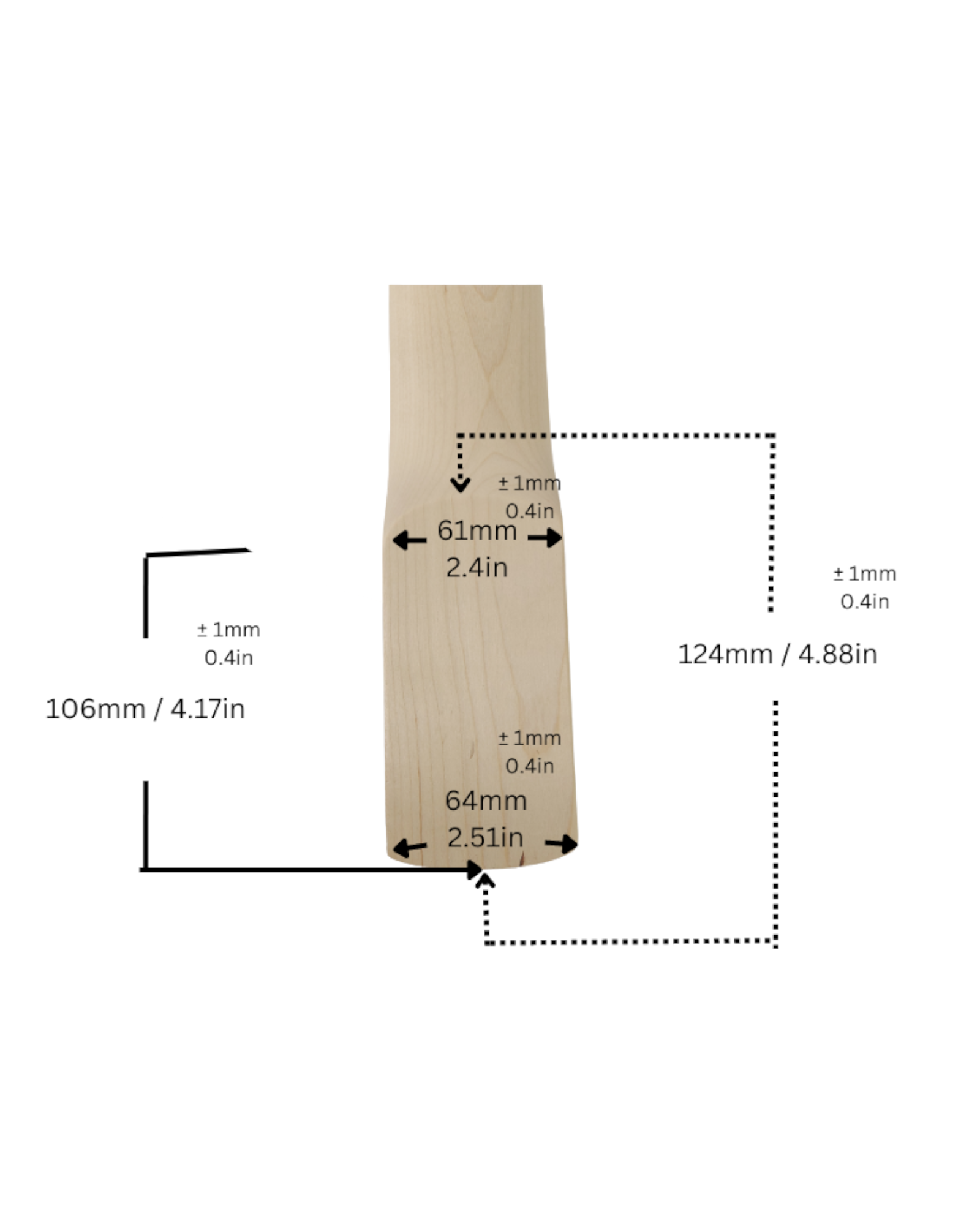

Length of Heel:               124mm / 4.88in

Width of Heel:                64mm /2.51in

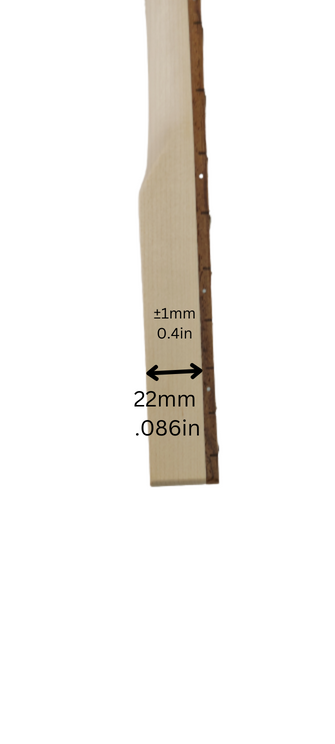

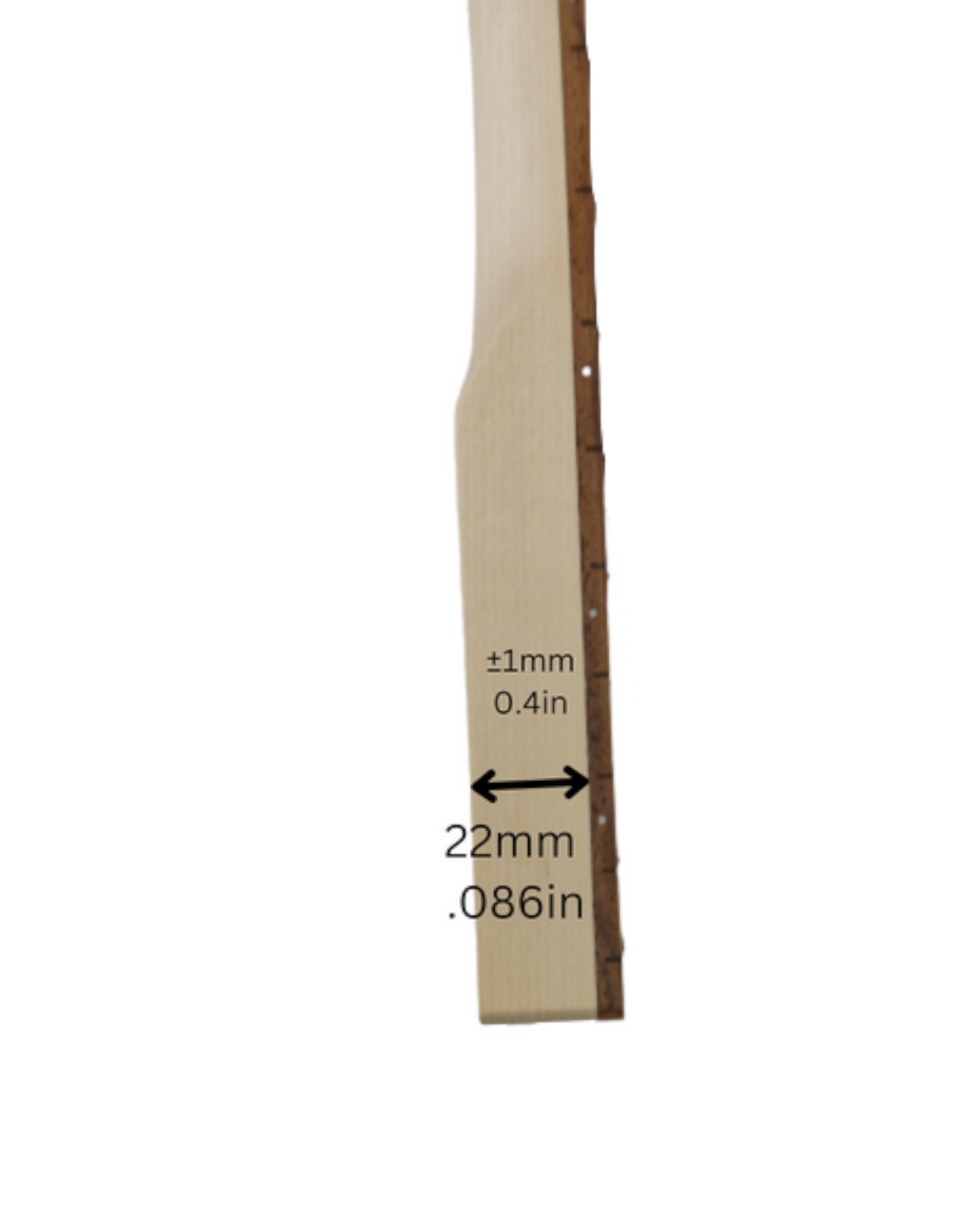

Depth of Heel:                28mm / 1.1in (including Fretboard)

Width of Tuner Hole:    17mm / 0.66in

Length from Nut to Heel: 607mm / 23.89in

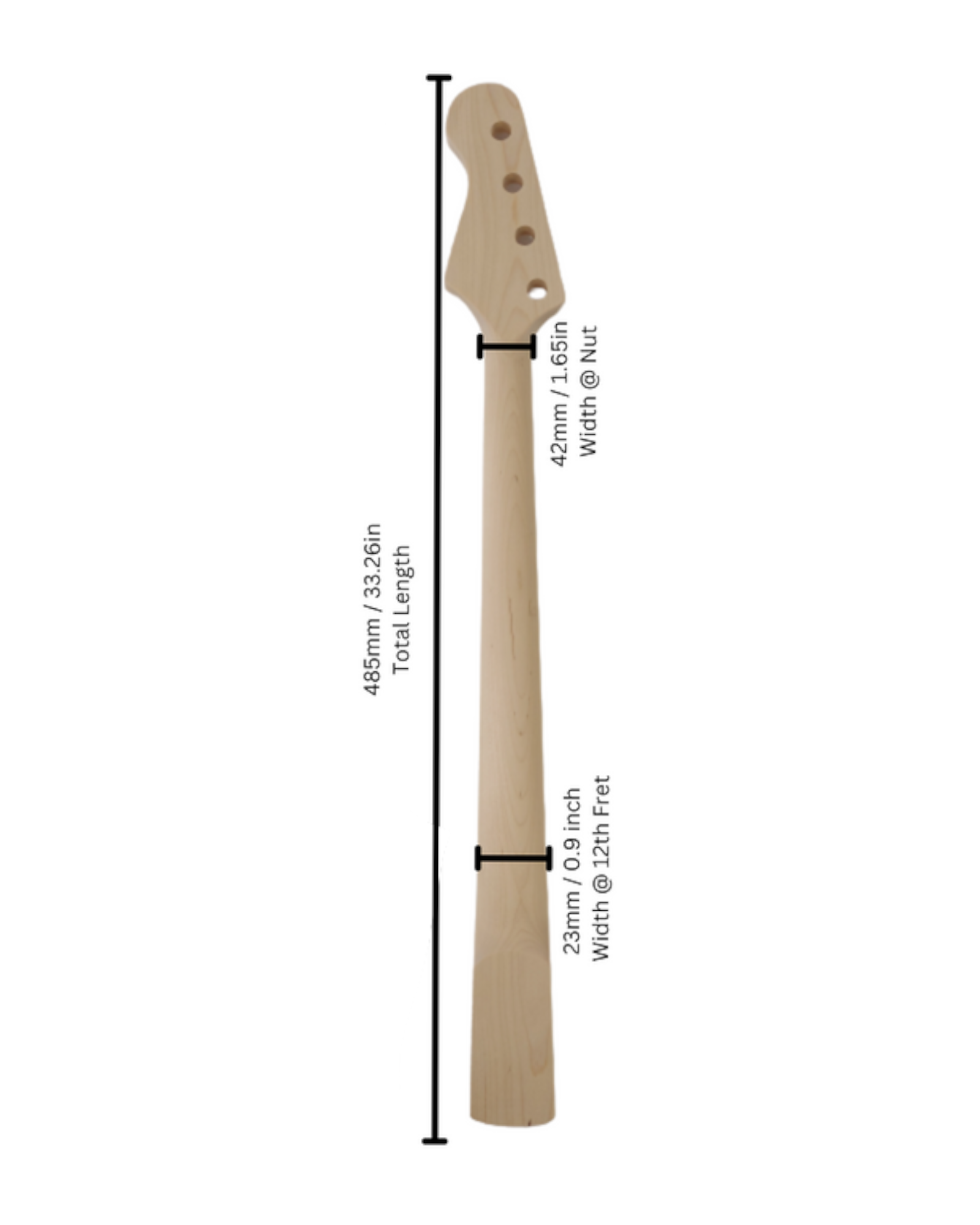

Total Length                    845mm / 33.26in
