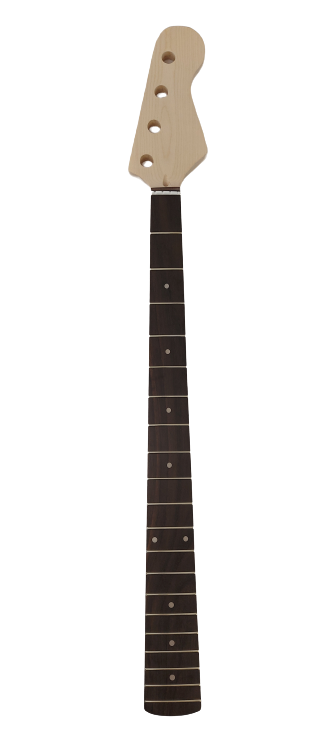

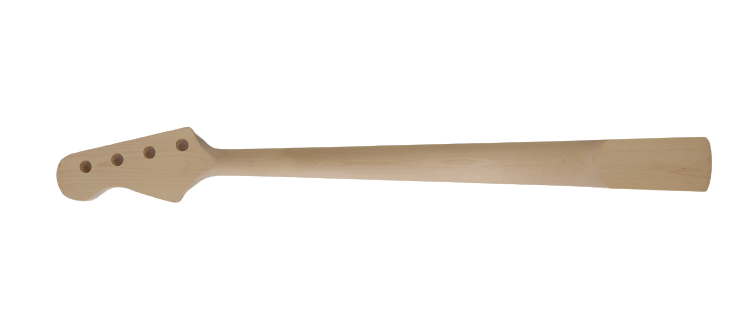

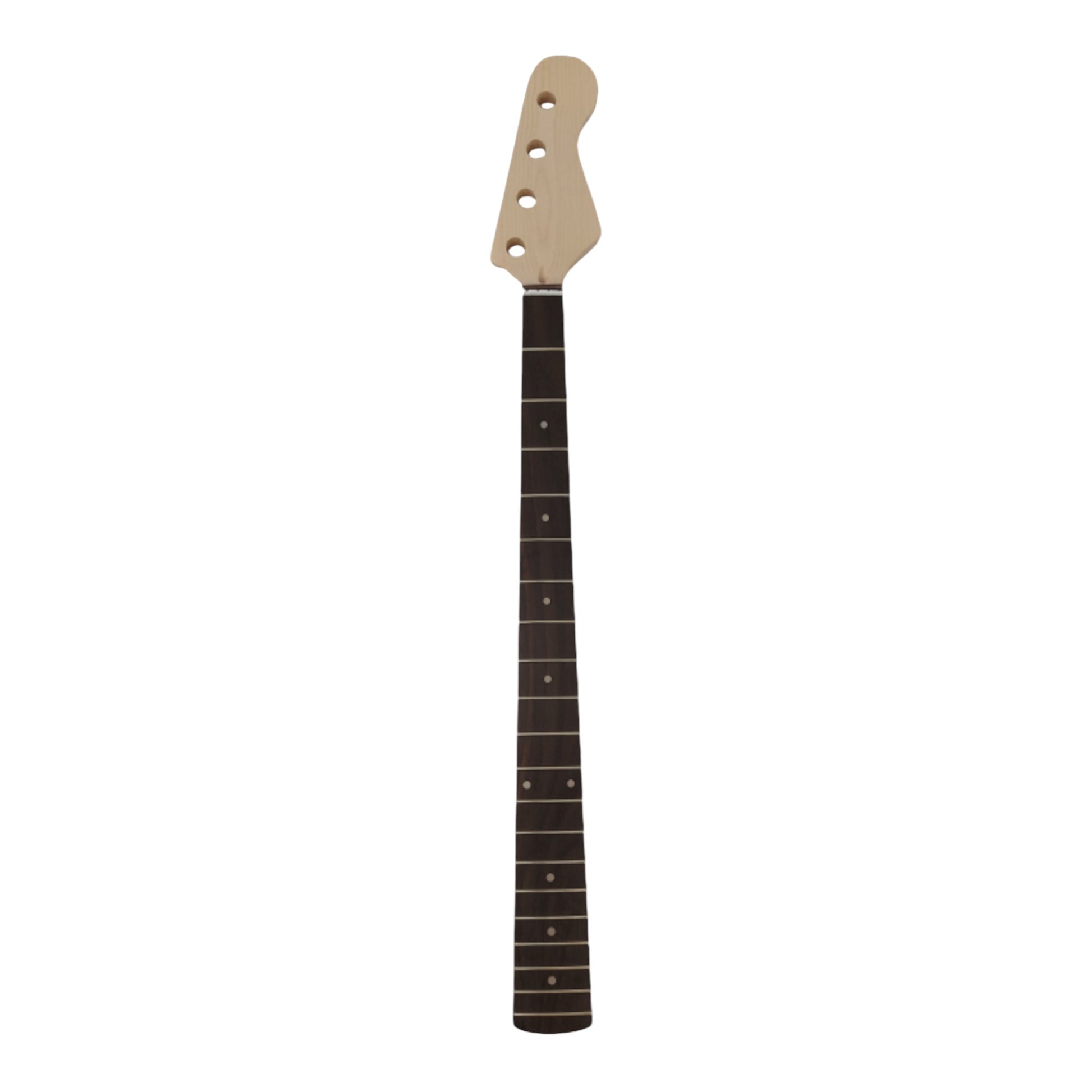

HAZE HJB580GN1W Replacement Guitar Neck – Maple & Rosewood, 34"

Looking for a replacement neck or working on your own guitar project? The HAZE HJB580GN1W is a great option for guitar repairs, replacements and DIY builds.

It features a maple neck, rosewood fretboard, 20 frets and a 2-way truss rod, with a 34" scale length.

Features

• Model: HJB580GN1W
• Neck: Maple
• Fretboard: Rosewood
• Nut: White, pre-installed
• Frets: 20, 2.5mm wide
• Radius: 12"

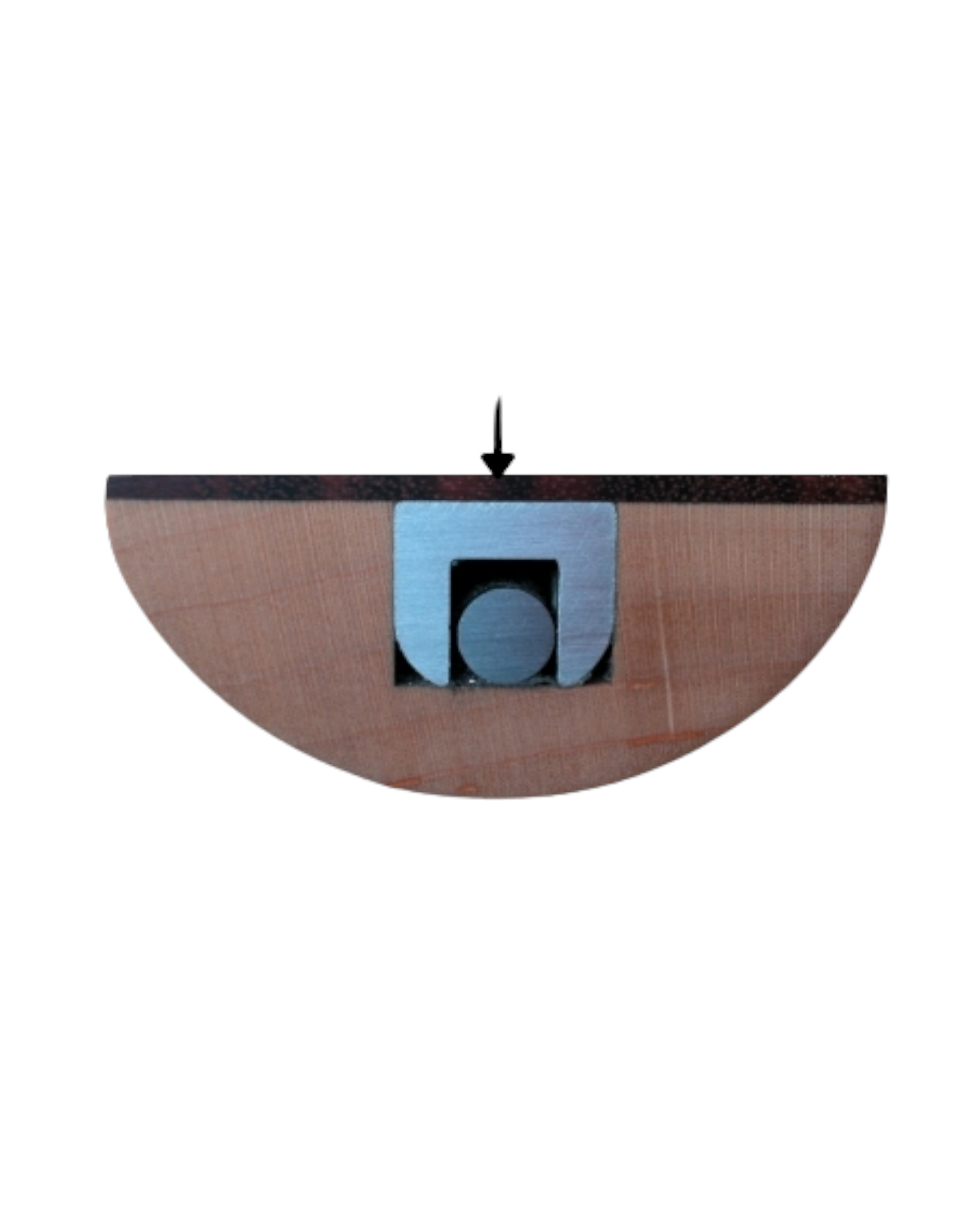

• Truss Rod: 2-way adjustable
• Inlays & Side Markers: White dots

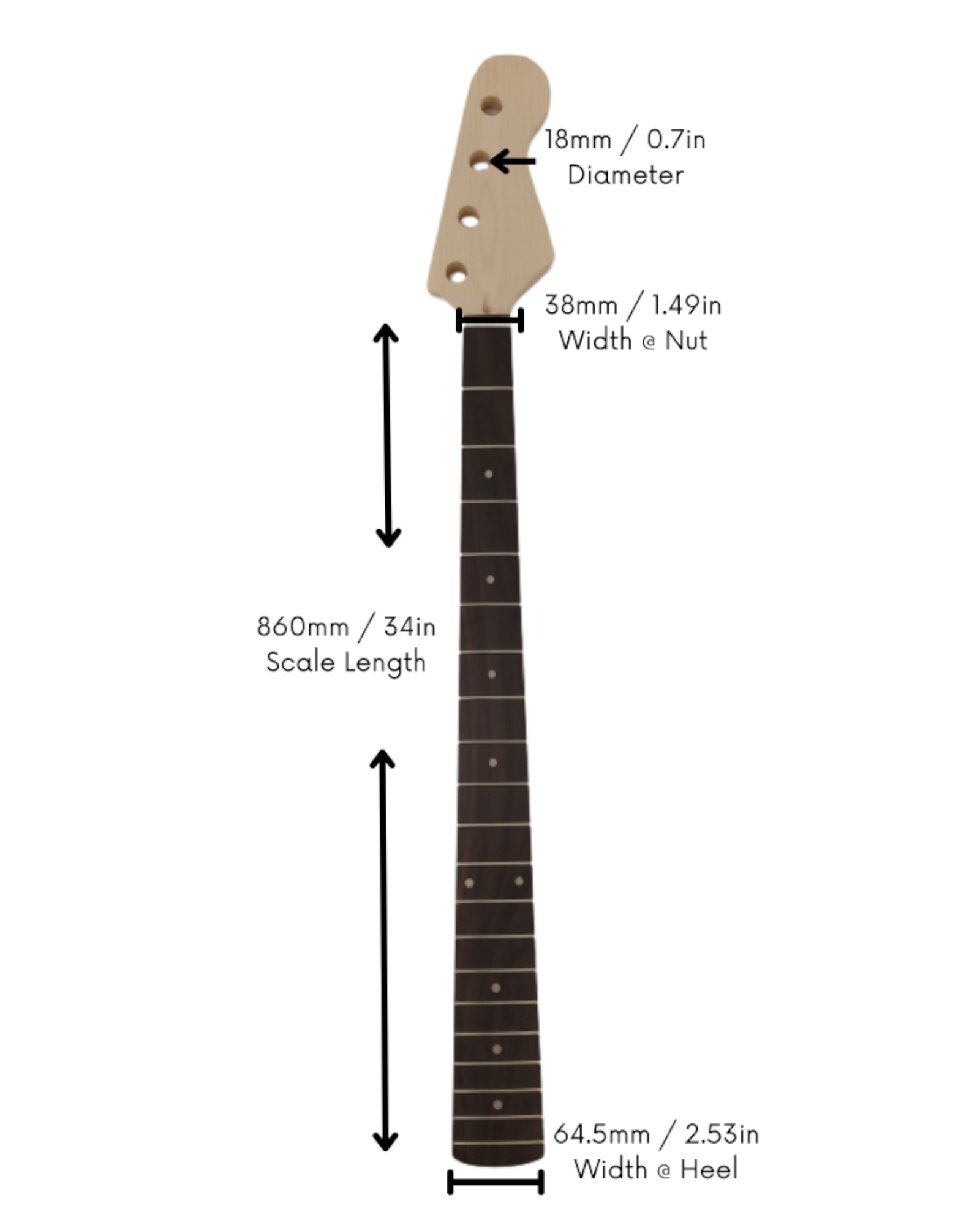

• Scale Length: 860mm / 34"
• Weight: Approx. 600g
• Tuner Hole Width: 18mm / 0.7"

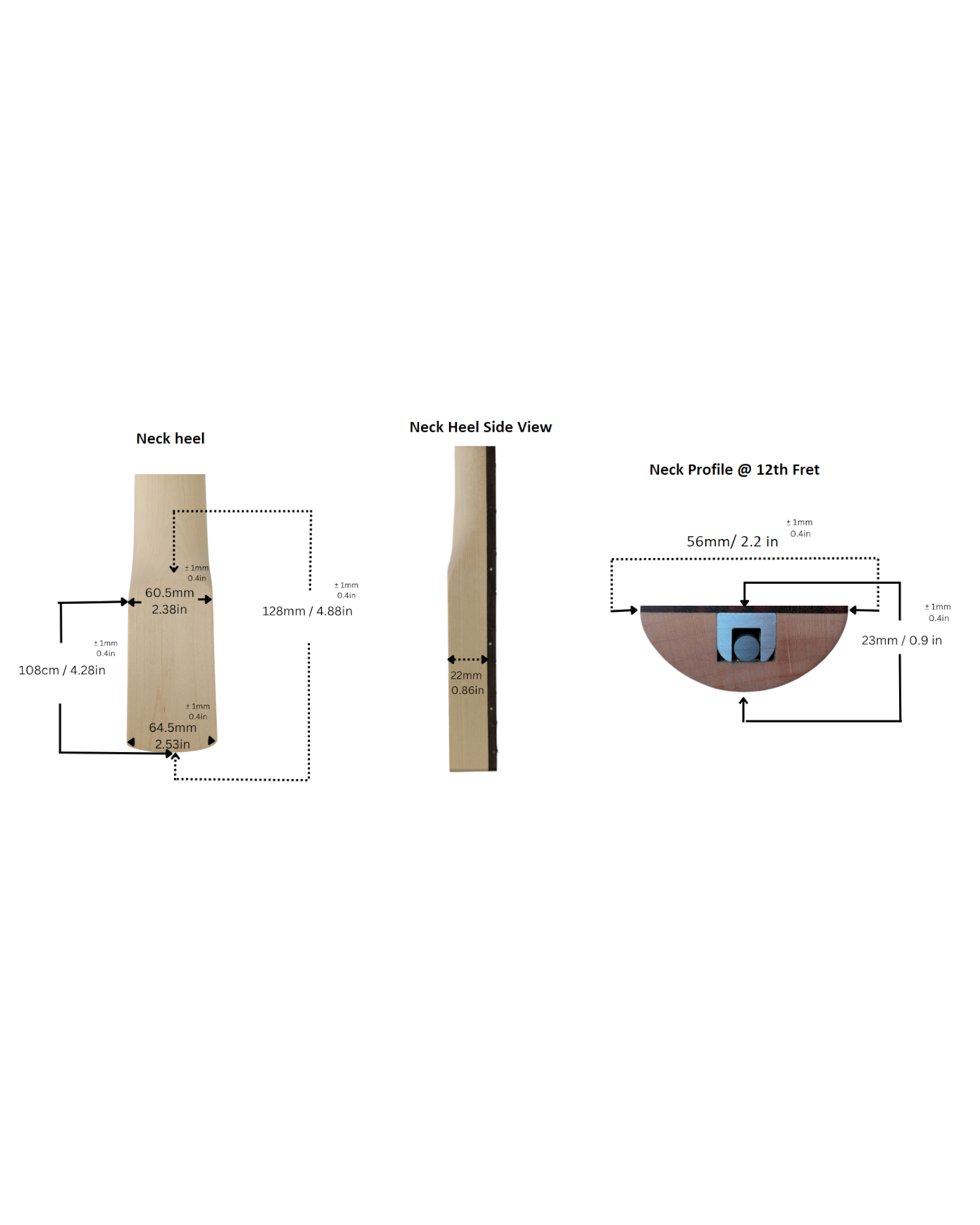

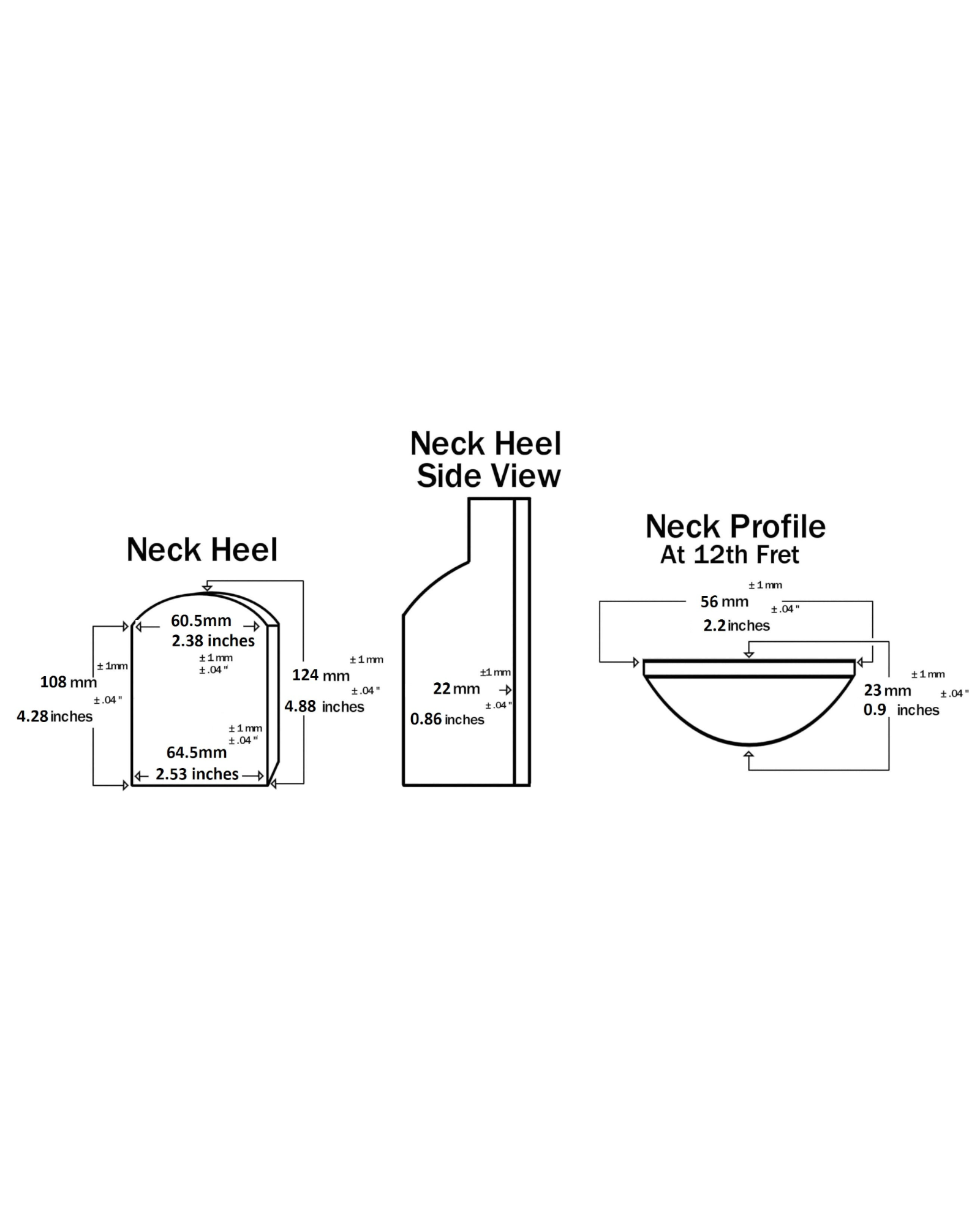

• Measurements
• Nut Width: 42mm / 1.65"

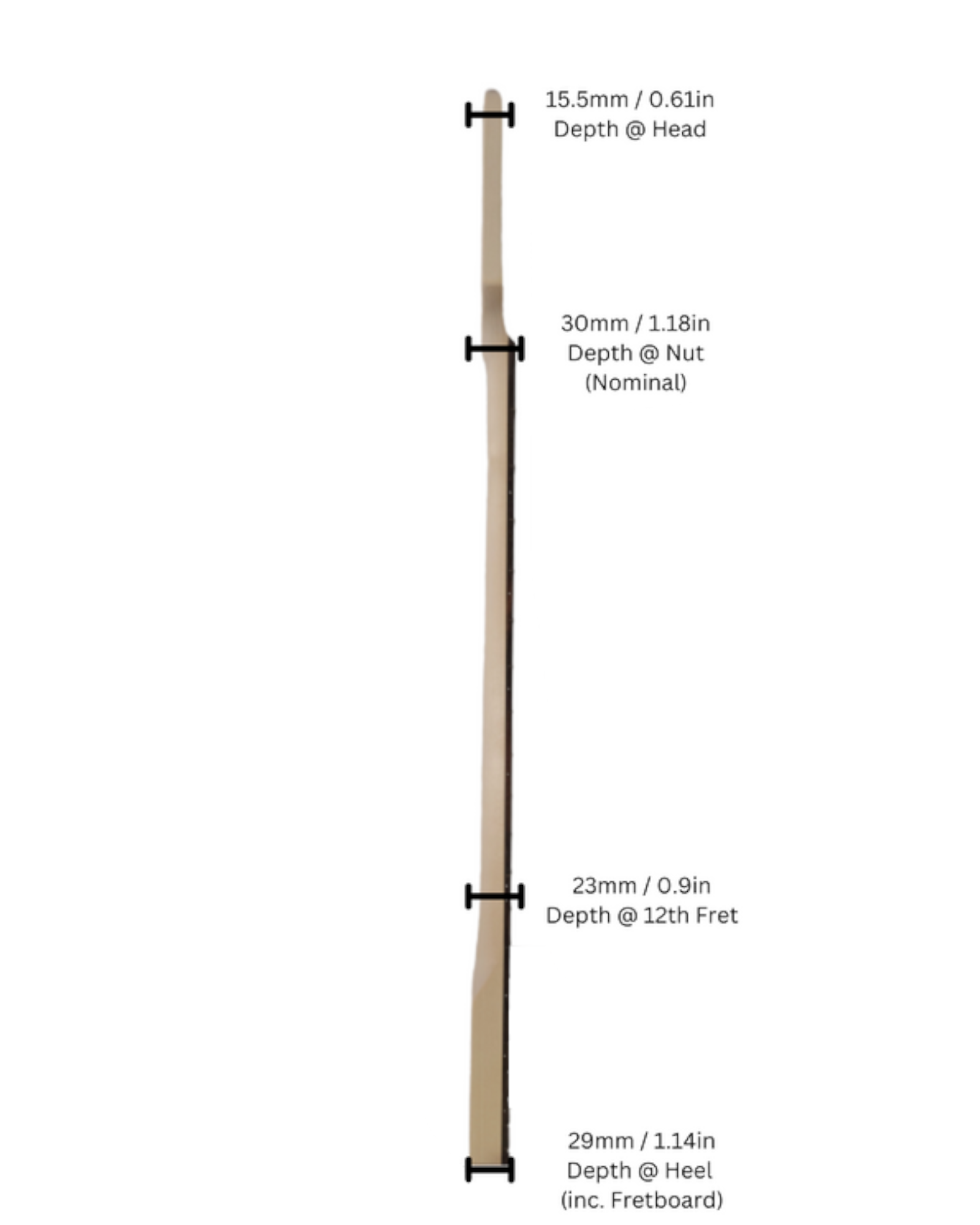

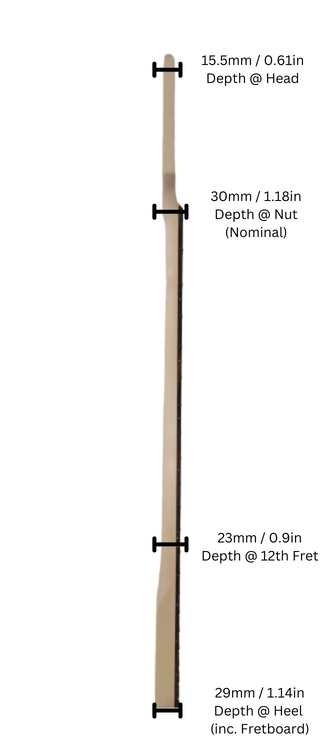

• Thickness at Head: 15.5mm / 0.61"
• Thickness at Nut: 30mm / 1.18"

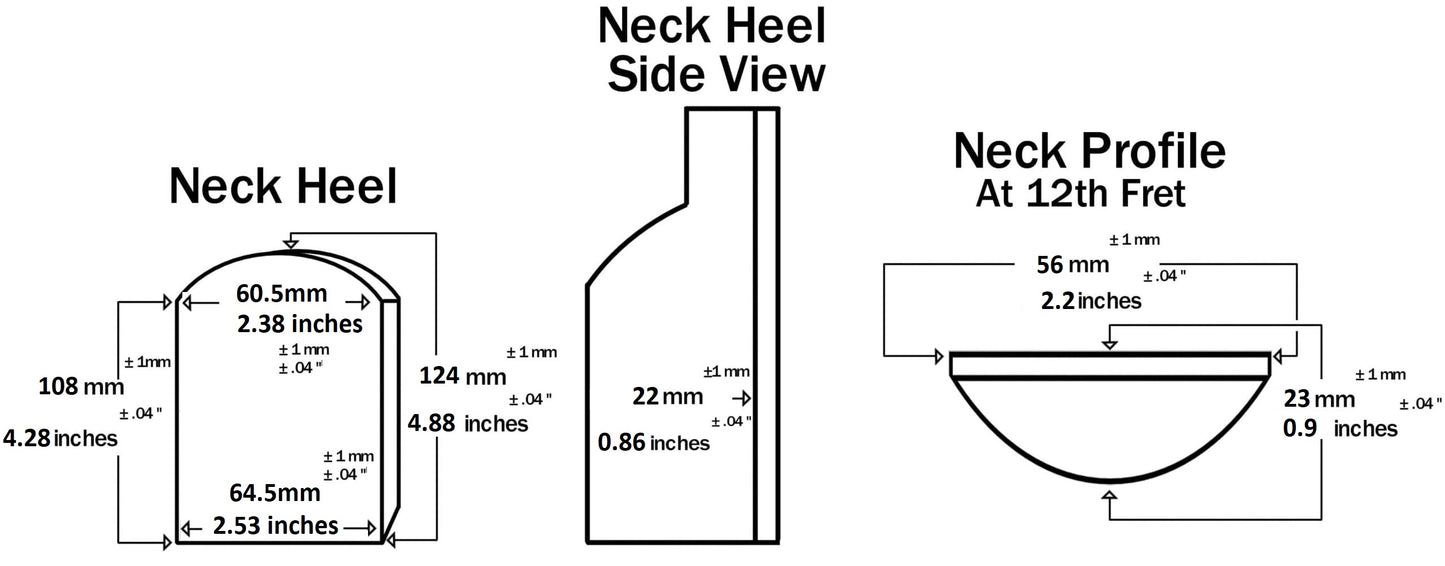

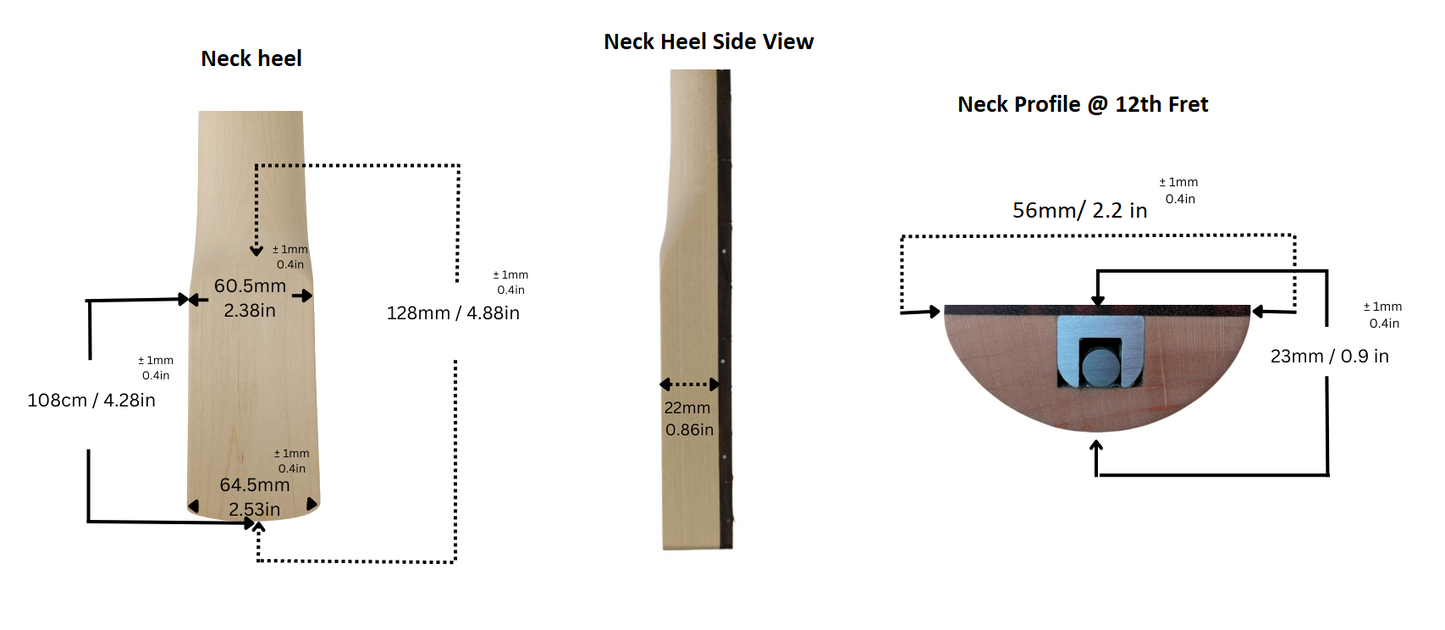

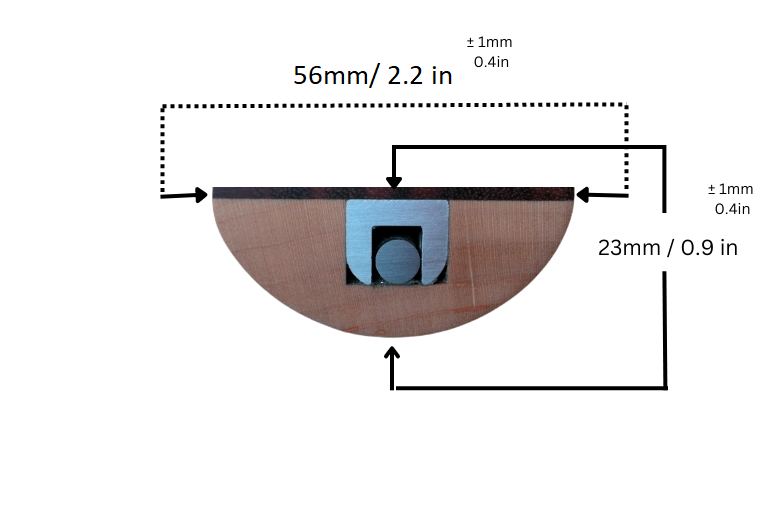

• Thickness at 12th Fret: 23mm / 0.9"
• Width at 12th Fret: 56mm / 2.2"

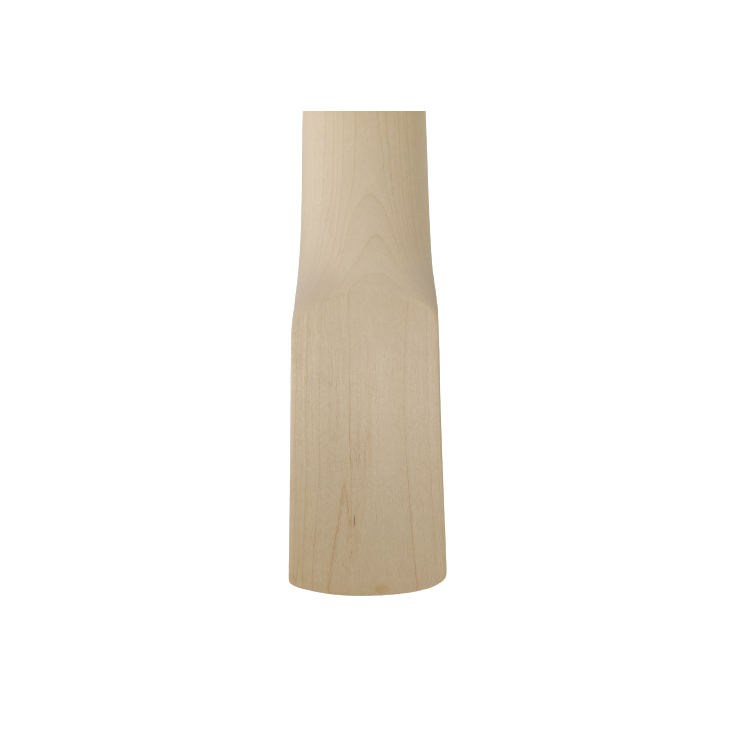

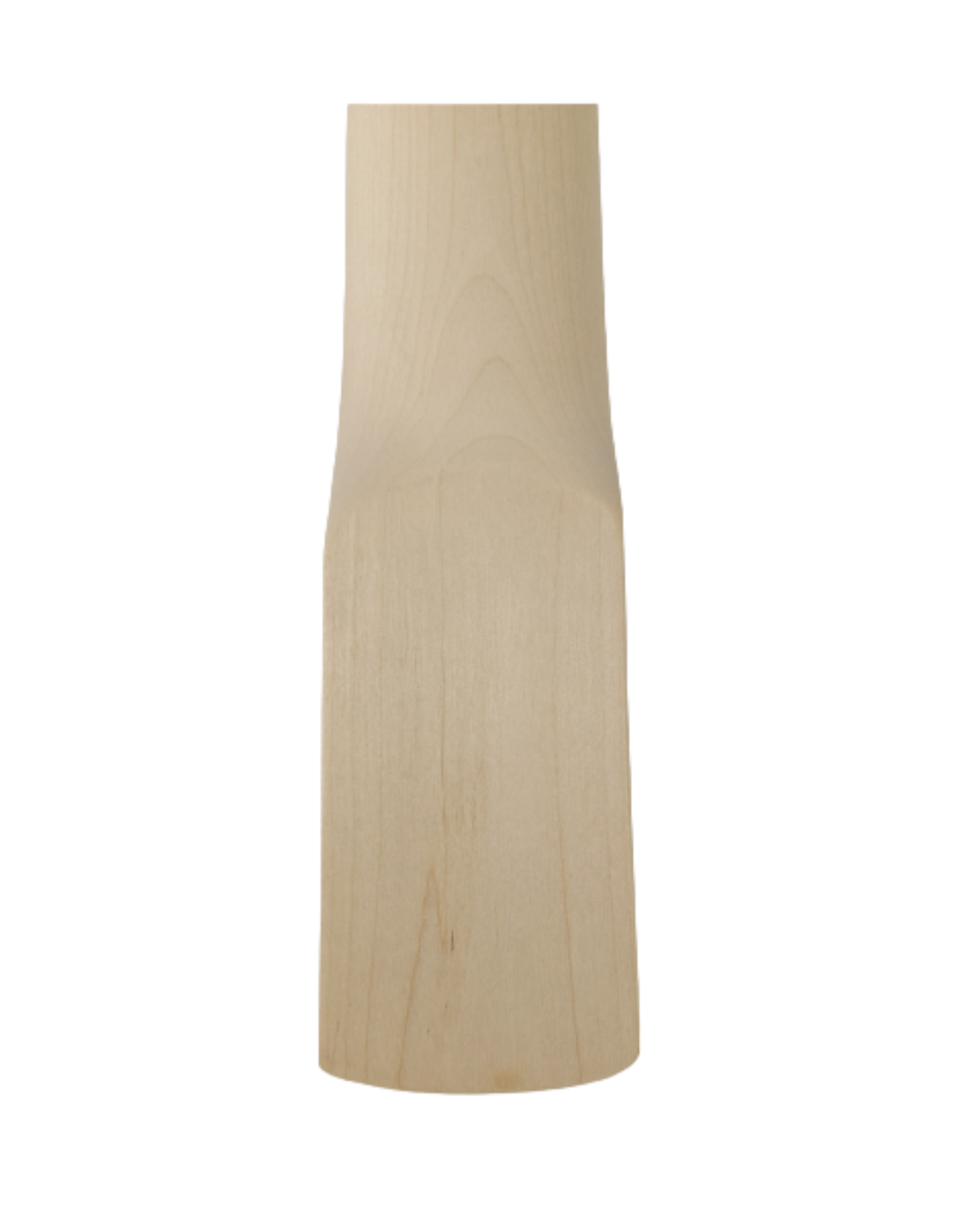

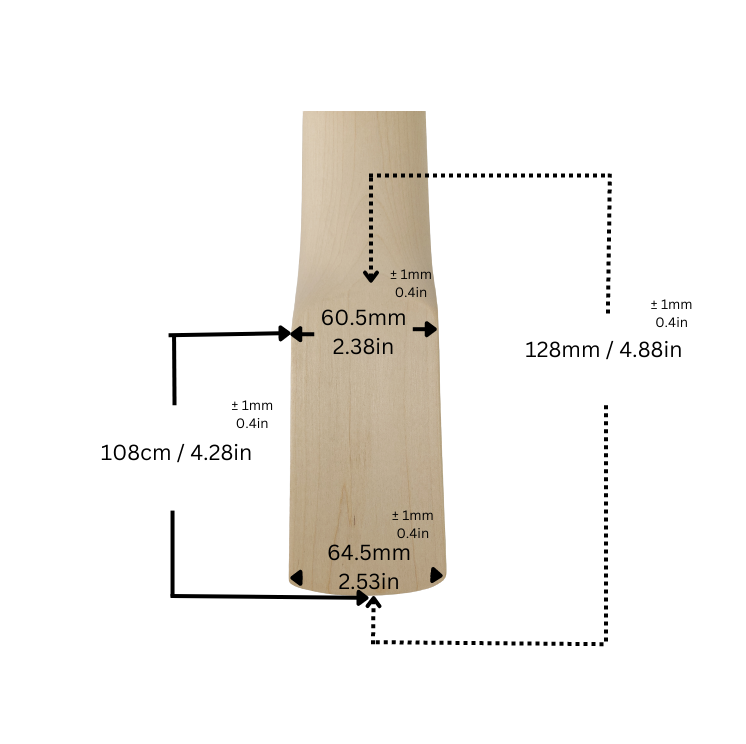

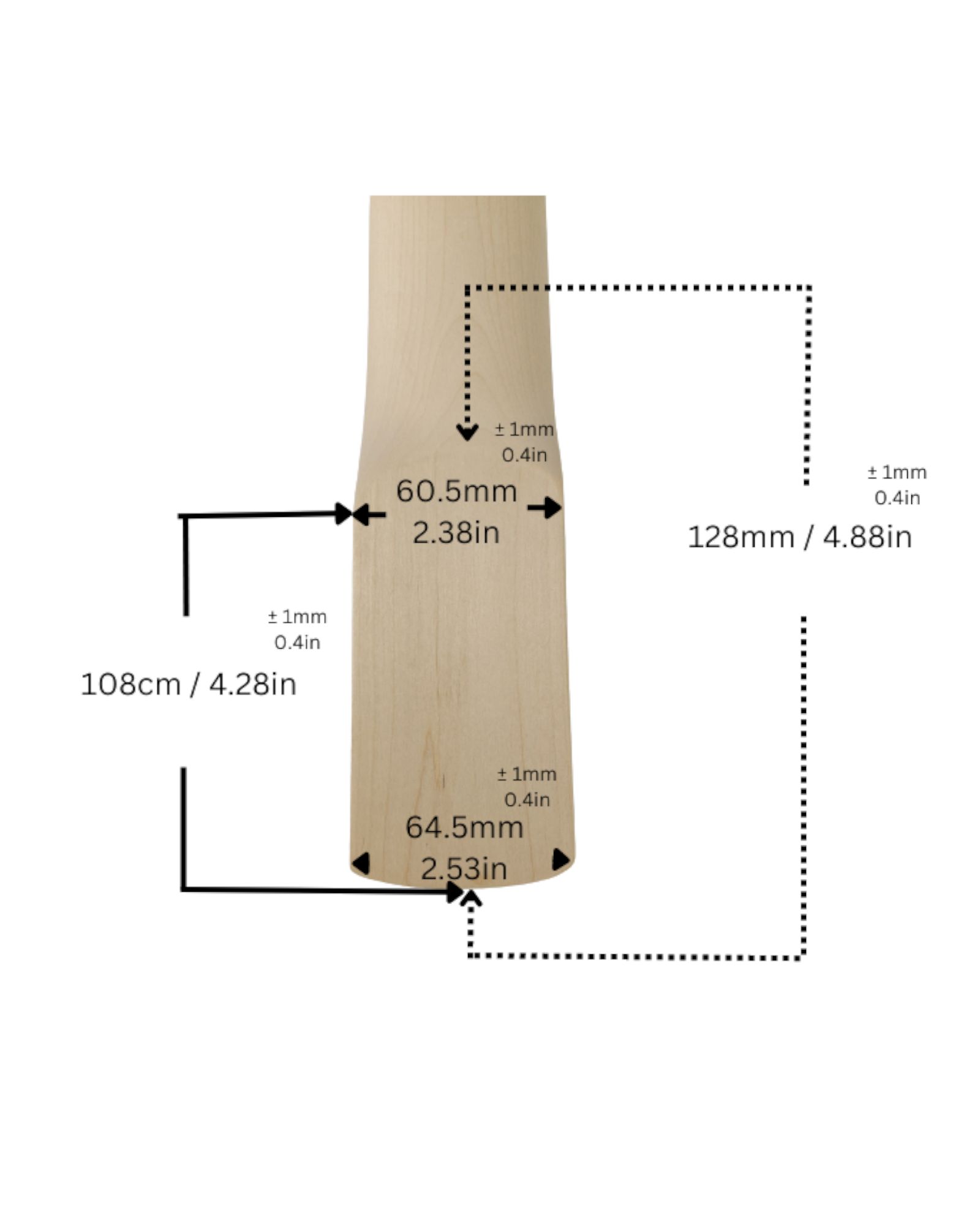

• Heel Length: 124mm / 4.88"
• Heel Width: 64.5mm / 2.53"

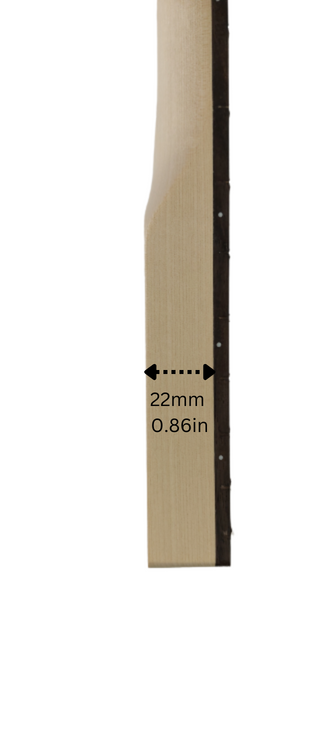

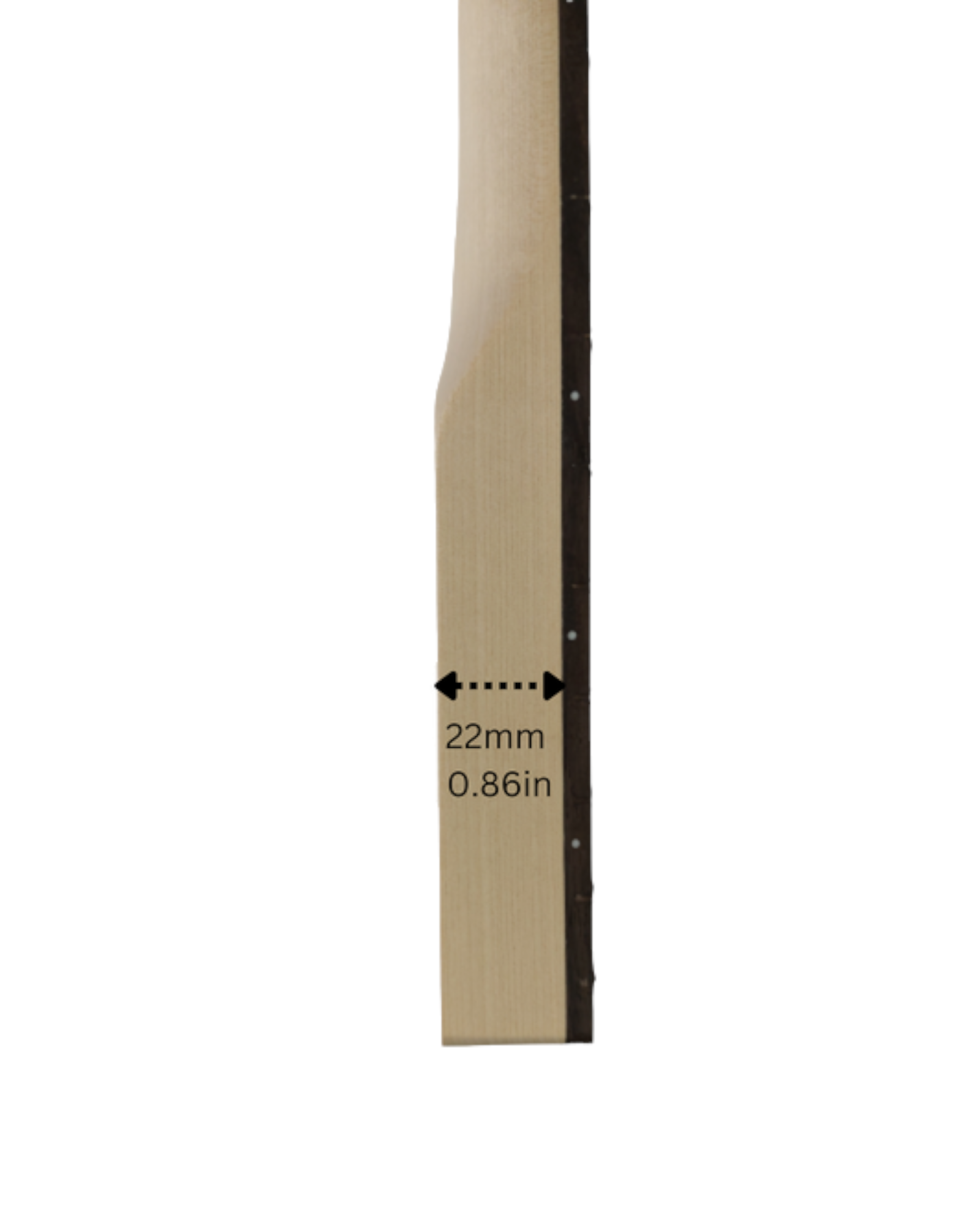

• Heel Depth: 29mm / 1.14" (including fretboard)
• Nut to Heel: 607mm / 23.89"

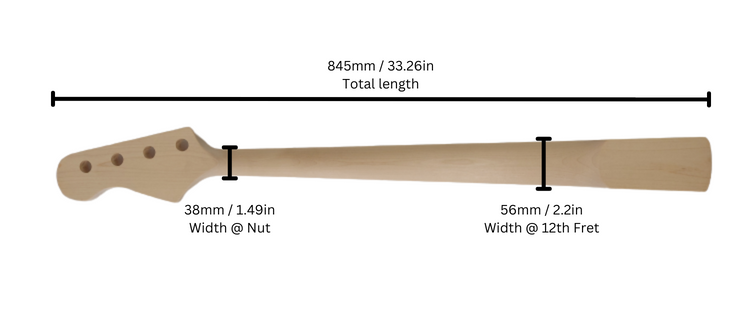

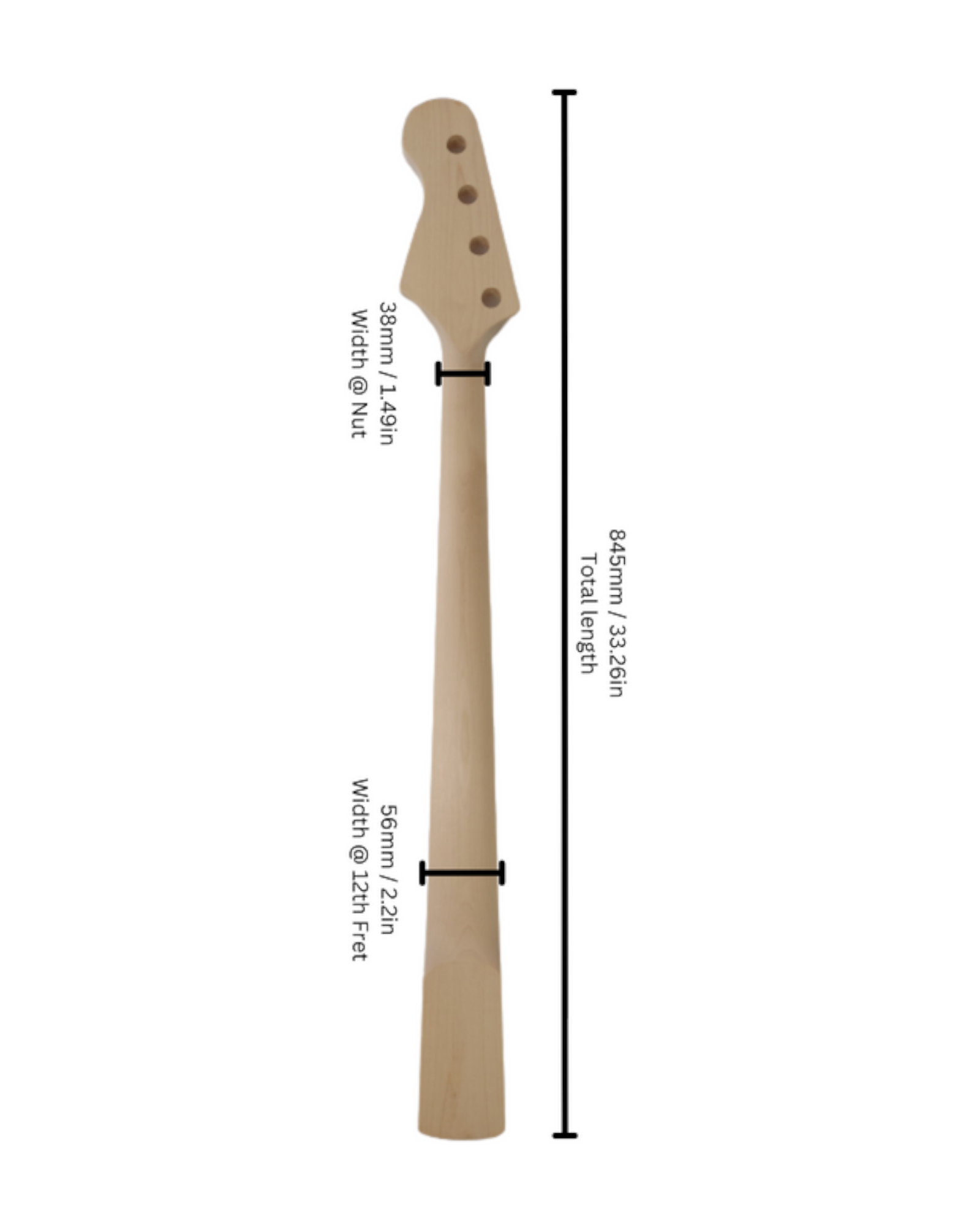

• Total Length: 845mm / 33.26"

Please Check Before Ordering

This neck is designed as a replacement/DIY neck, so please check your guitar body and hardware measurements before ordering to make sure it will fit your project.

There may be a small measurement variation of around ±1–2mm.

If you are fitting the neck to a non-HAZE guitar body or using different hardware, some adjustment or minor modification may be needed for the best fit.

Please compare the measurements carefully before purchasing.
