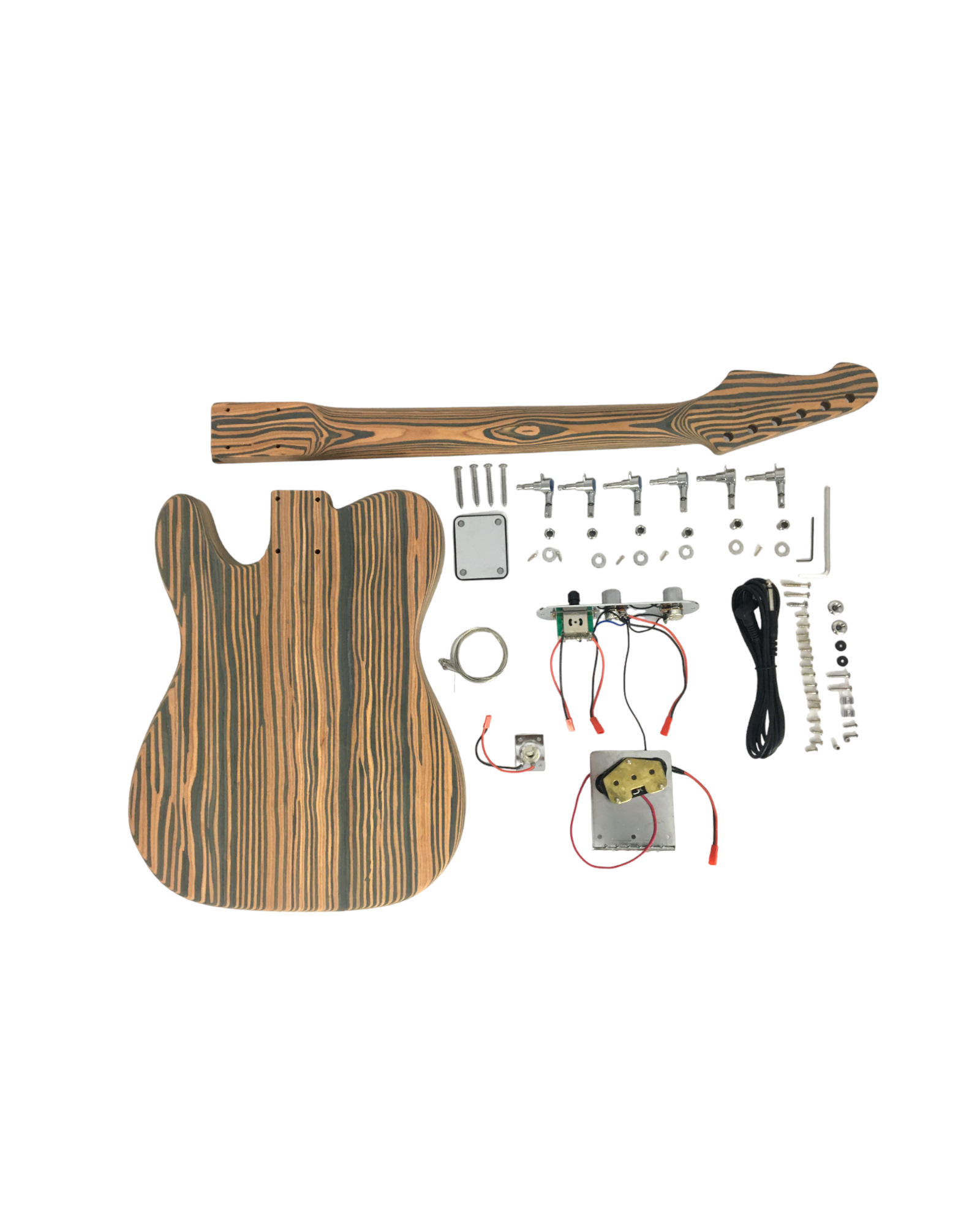

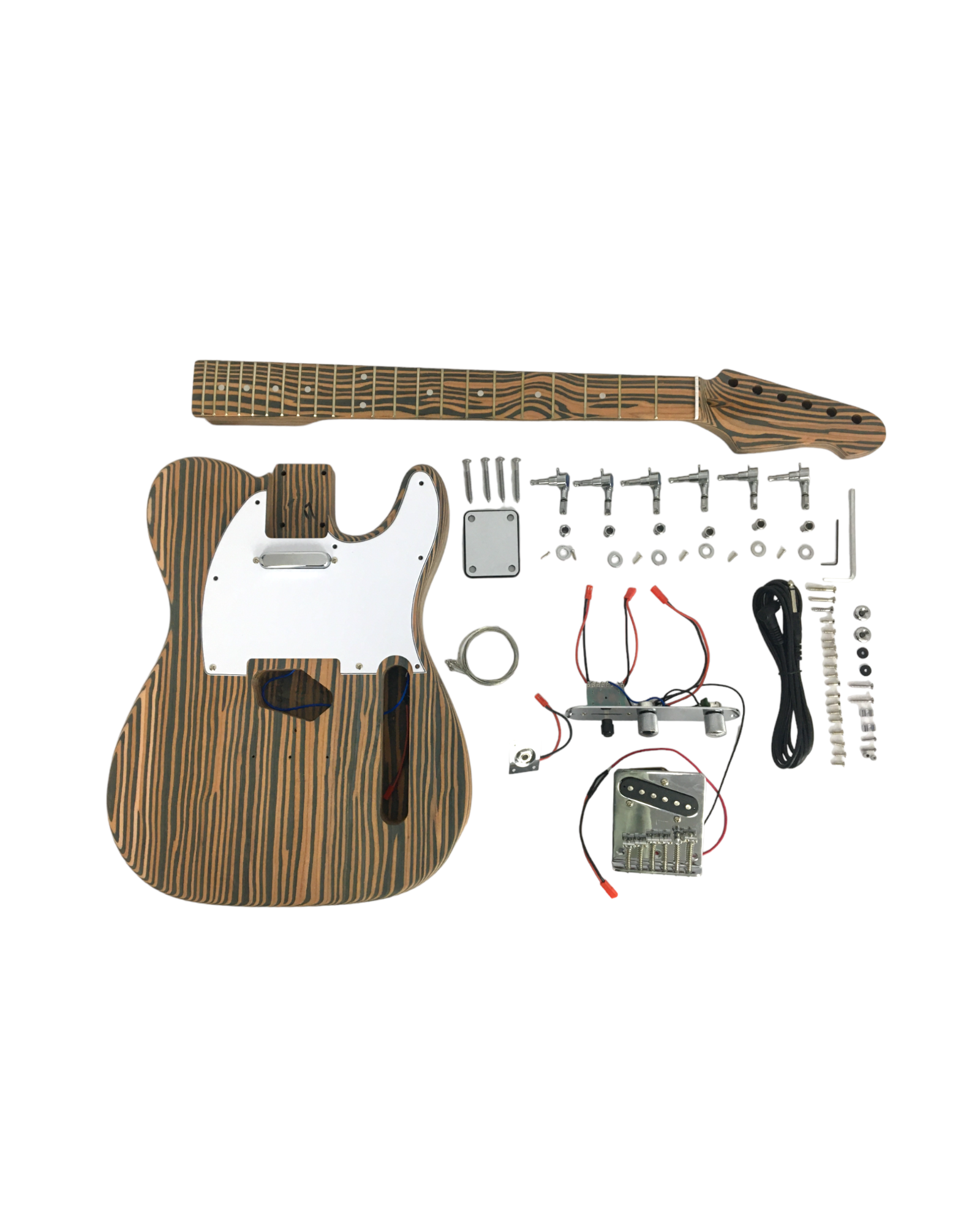

The E500TLDIY Technical Zebra Wood Body + Neck, No-Soldering Electric Guitar DIY Kit is a guitar kit that allows you to build your own electric guitar without the need for any soldering. The kit includes all the necessary components to assemble the guitar, including the body and neck made from Zebrawood, hardware, pickups, and a wiring harness.

The body and neck of the guitar are made from Zebrawood, which is a type of hardwood known for its distinctive striped appearance. Zebrawood is a dense and durable wood that produces a bright, clear tone with good sustain.

The kit also includes high-quality hardware such as tuners, a bridge, and a tailpiece, which are all finished in chrome. The pickups are also included in the kit and are designed to produce a warm, full-bodied tone.

One of the unique features of this DIY kit is that it doesn't require any soldering. The wiring harness is pre-wired and includes quick-connect terminals, allowing you to easily connect the pickups, volume and tone controls, and output jack without the need for any soldering.

Overall, the HDE500TLDIY Technical Zebra Wood Body + Neck, No-Soldering Electric Guitar DIY Kit is a great option for anyone looking to build their own electric guitar without the need for any special tools or experience with soldering.

Click to Download

→ DIY Assembly Guide

→ Electronics Diagram

Features

• Body

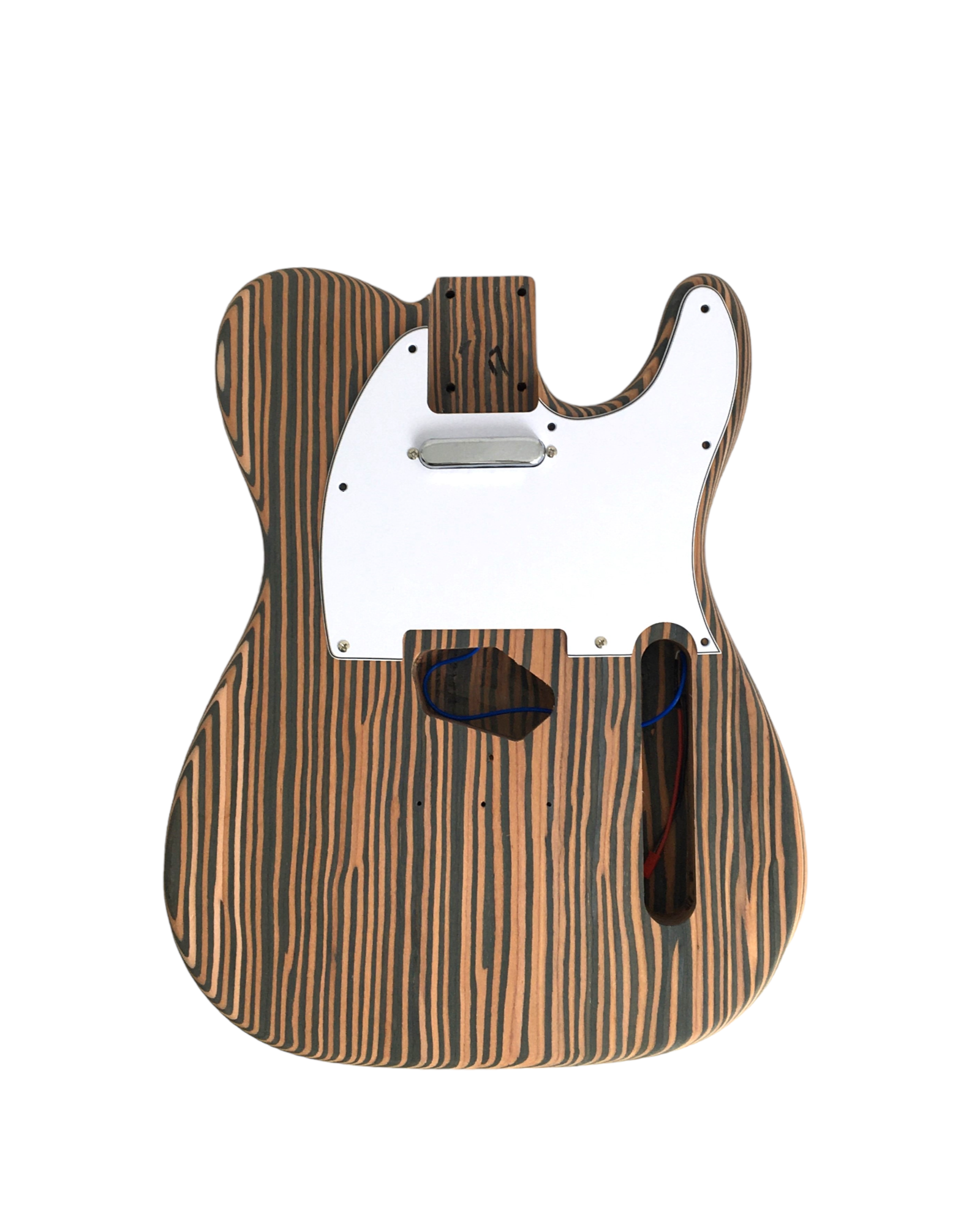

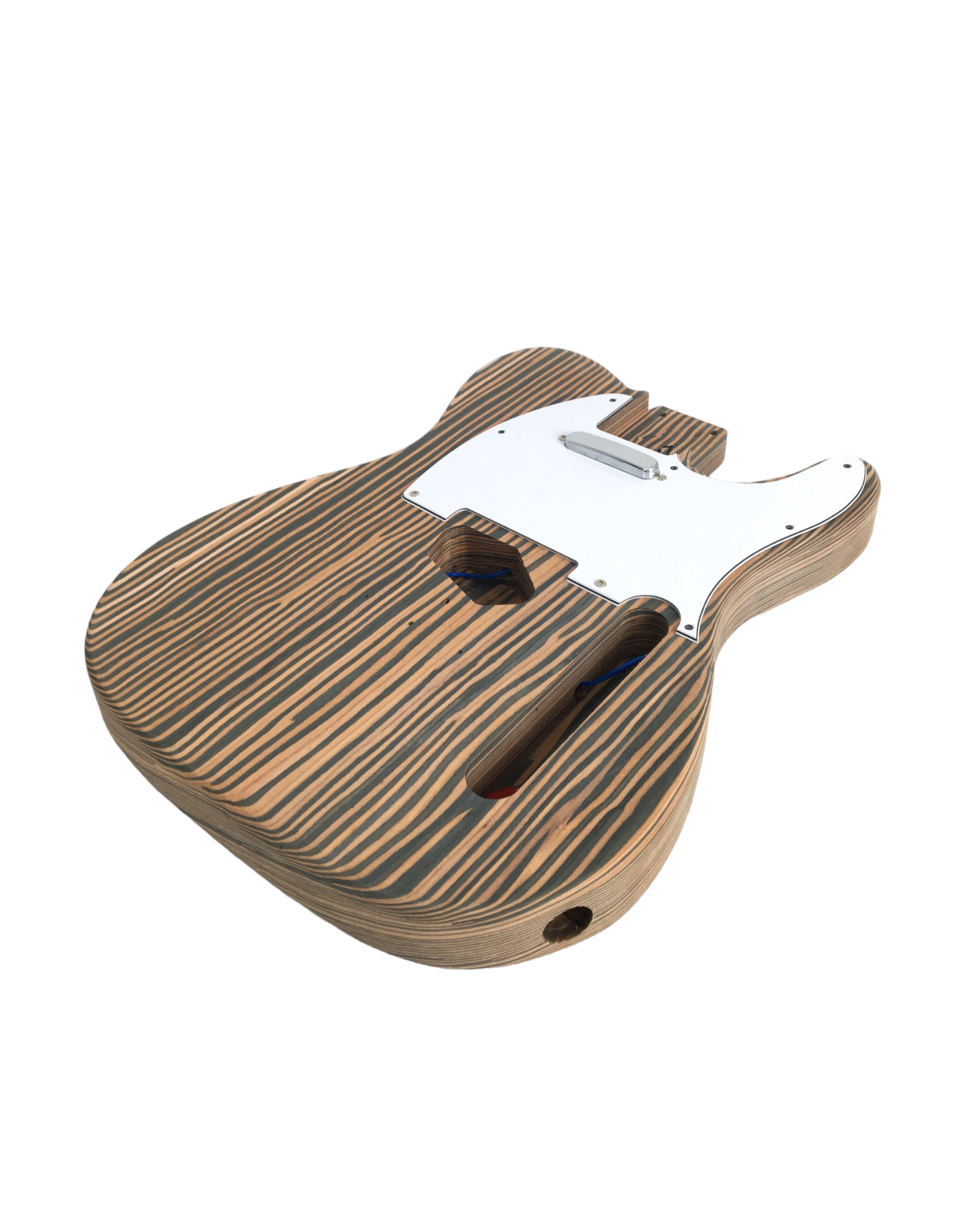

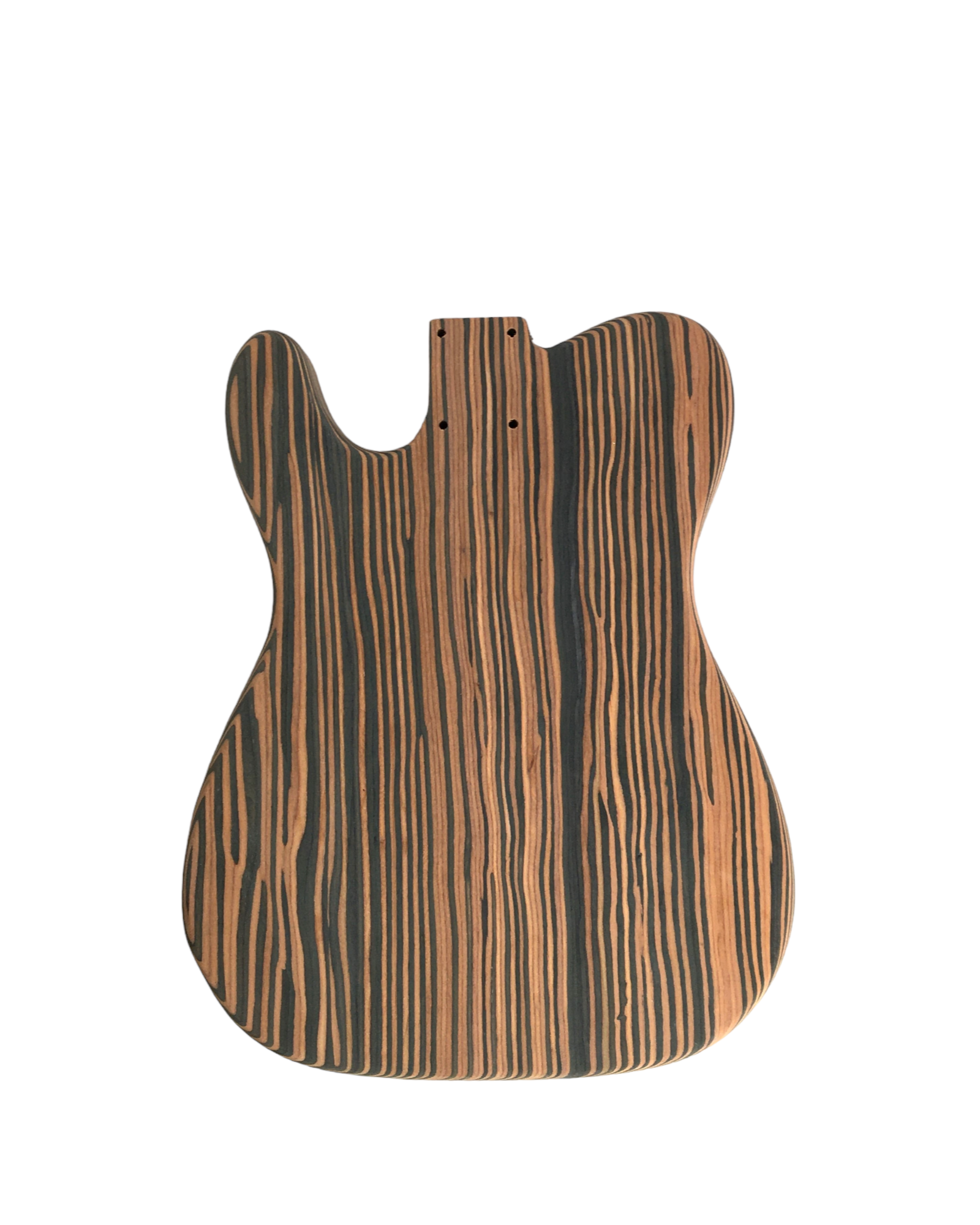

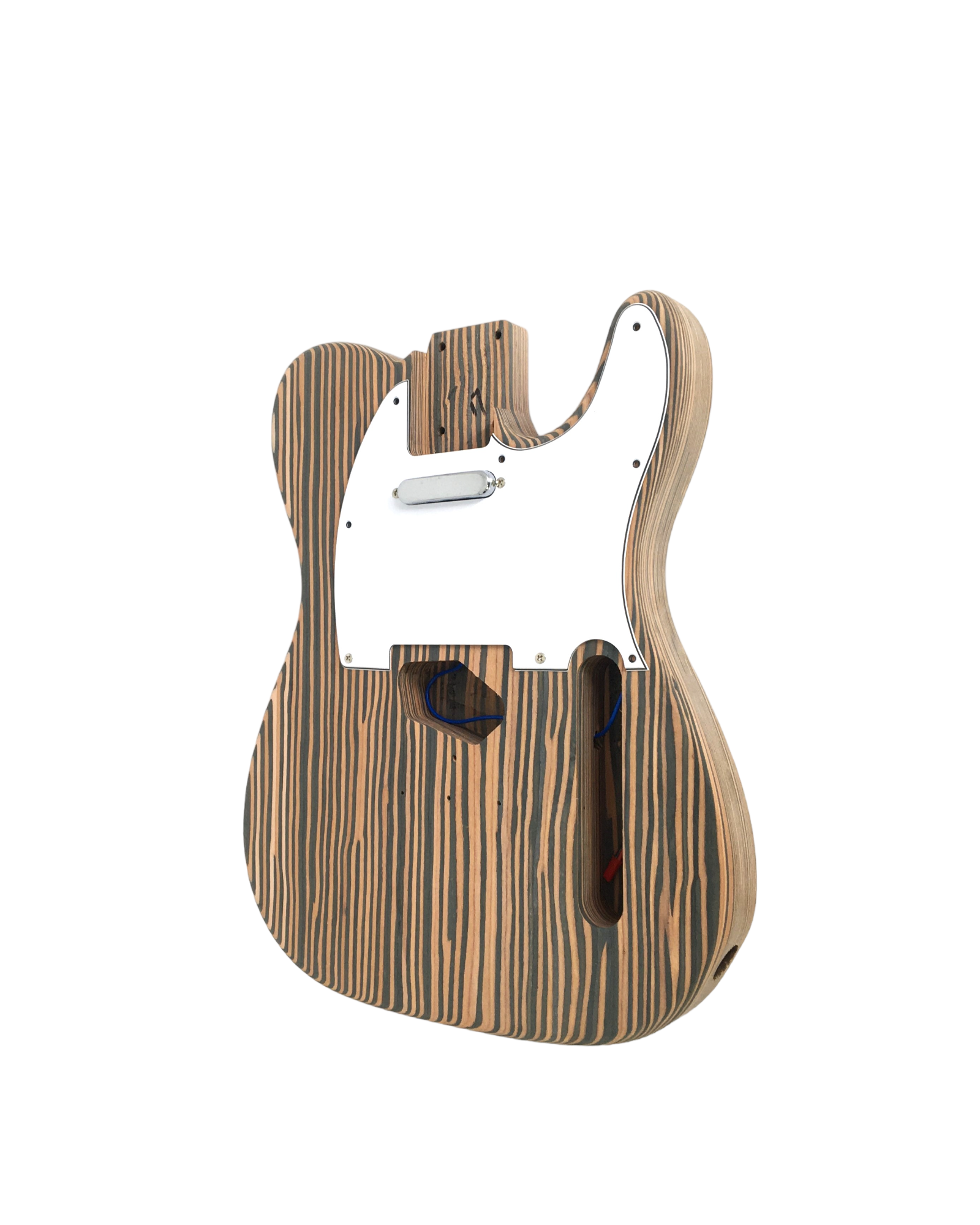

  • 1 Piece Solid Technical Zebra Wood body (**Bakelite), with Zebra pattern.
  • Deluxe 3-ply white Pickguard
  • 2 P-1001 Vintage single-coil pickups (SS)
  • 1 Volume, 1 Tone, 3-Way Selector, Chrome knurled knobs (prefitted), Mounted on chrome control plate
  • Chrome vintage bridge, adjustable
  • Complete no-soldering design for all wire connection, plug-n-play design
  • 2 Chrome end pins + felts pads + screws
  • Body weight approximate 2.55kg
• Neck

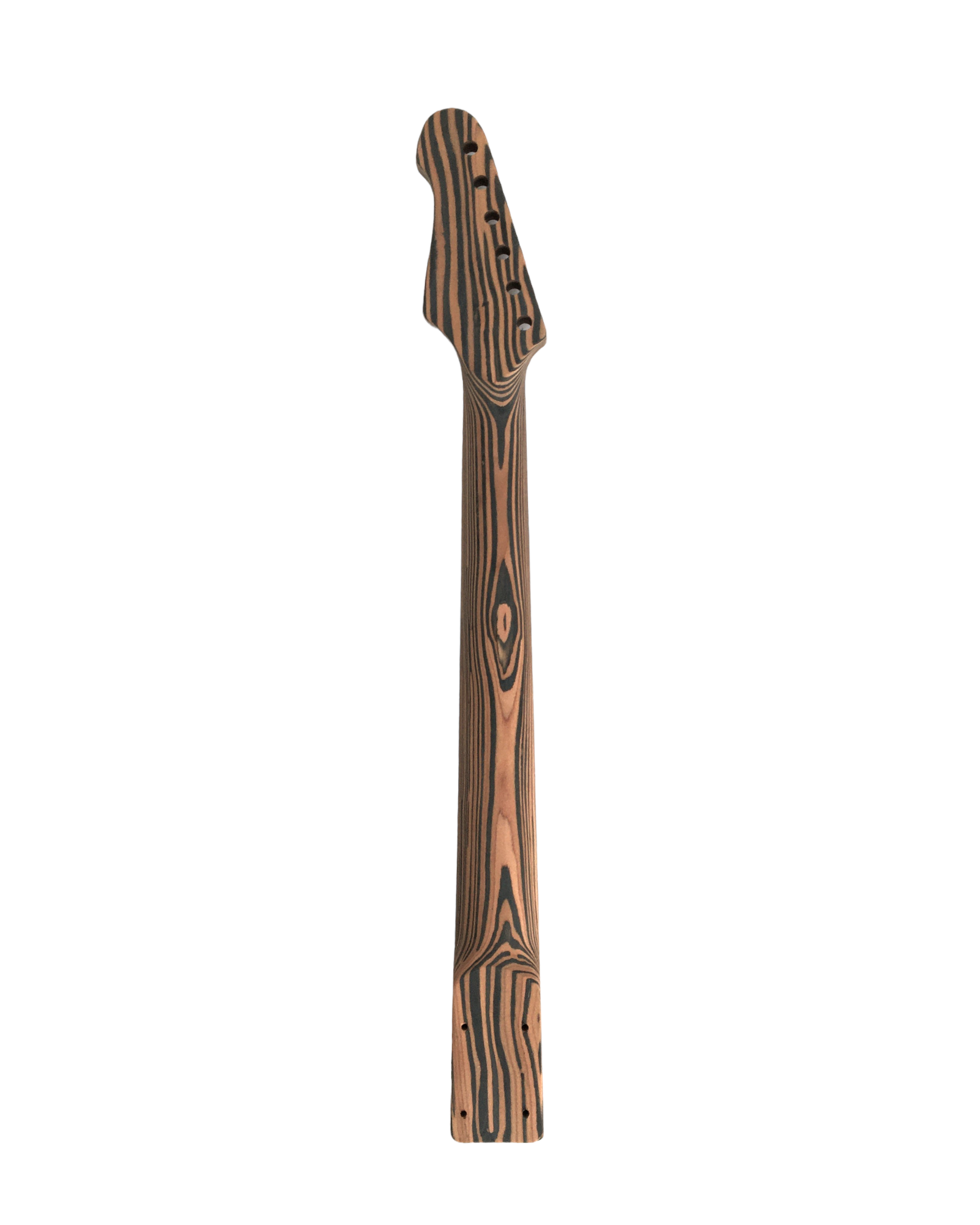

  • Technical Zebra Wood Neck, C profile, Bolt-on
  • Adjustable Truss Rod

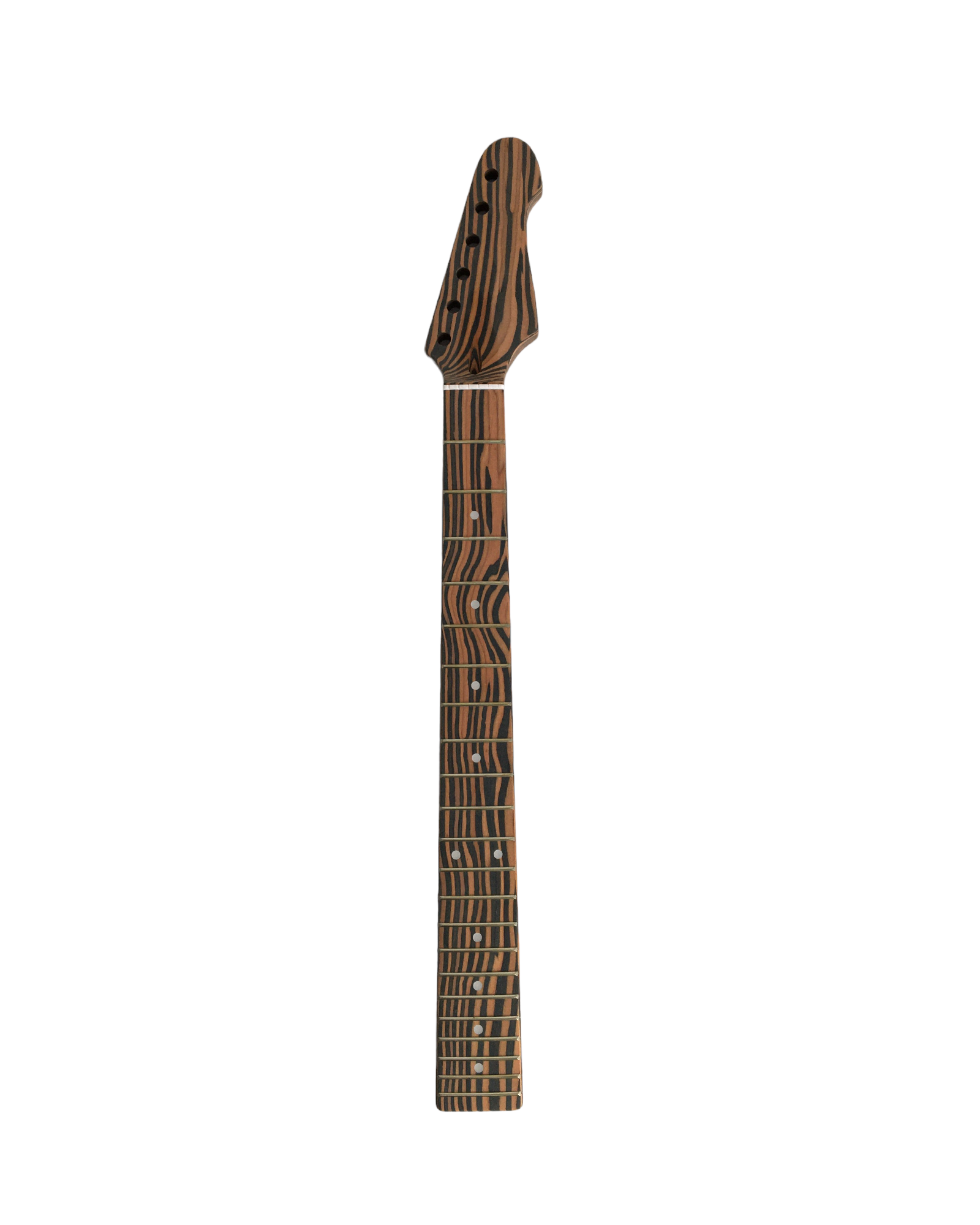

  • Technical Zebra Wood Fretboard w/Dot inlays and side markers
  • 22 Frets
  • Chrome Die-Cast + Screws + Ferrules
  • Neck weight approximate 0.55kg
• Dimensions
  • Width at Nut: 42mm
  • Scale Length: 648mm
  • Body Depth: 42mm / 44mm with Pickguard
  • Guitar Overall Weight: 4.15kg
  • Included: Truss rod key, 1/4" lead, Set of string
