Build It. Play It. Make It Yours.

Unleash your inner luthier with the E575DIY Electric Guitar DIY Kit – a premium, ready-to-build set featuring an GS-style double-cutaway design, high-quality components, and a no-soldering, plug-n-play electronics system. Whether you're a first-time builder or a seasoned modder, this kit offers an unmatched DIY experience without compromising on tone, style, or playability.

Features

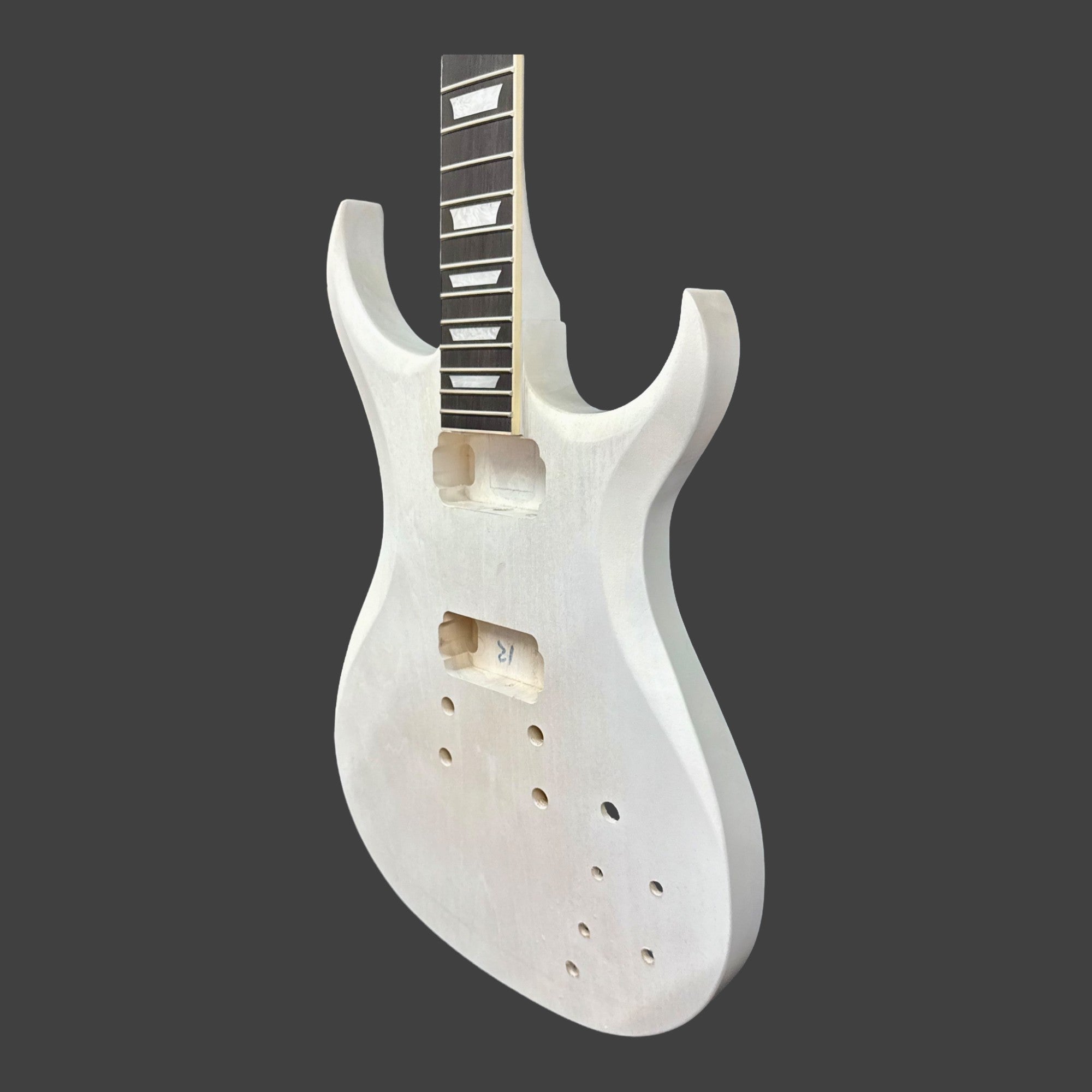

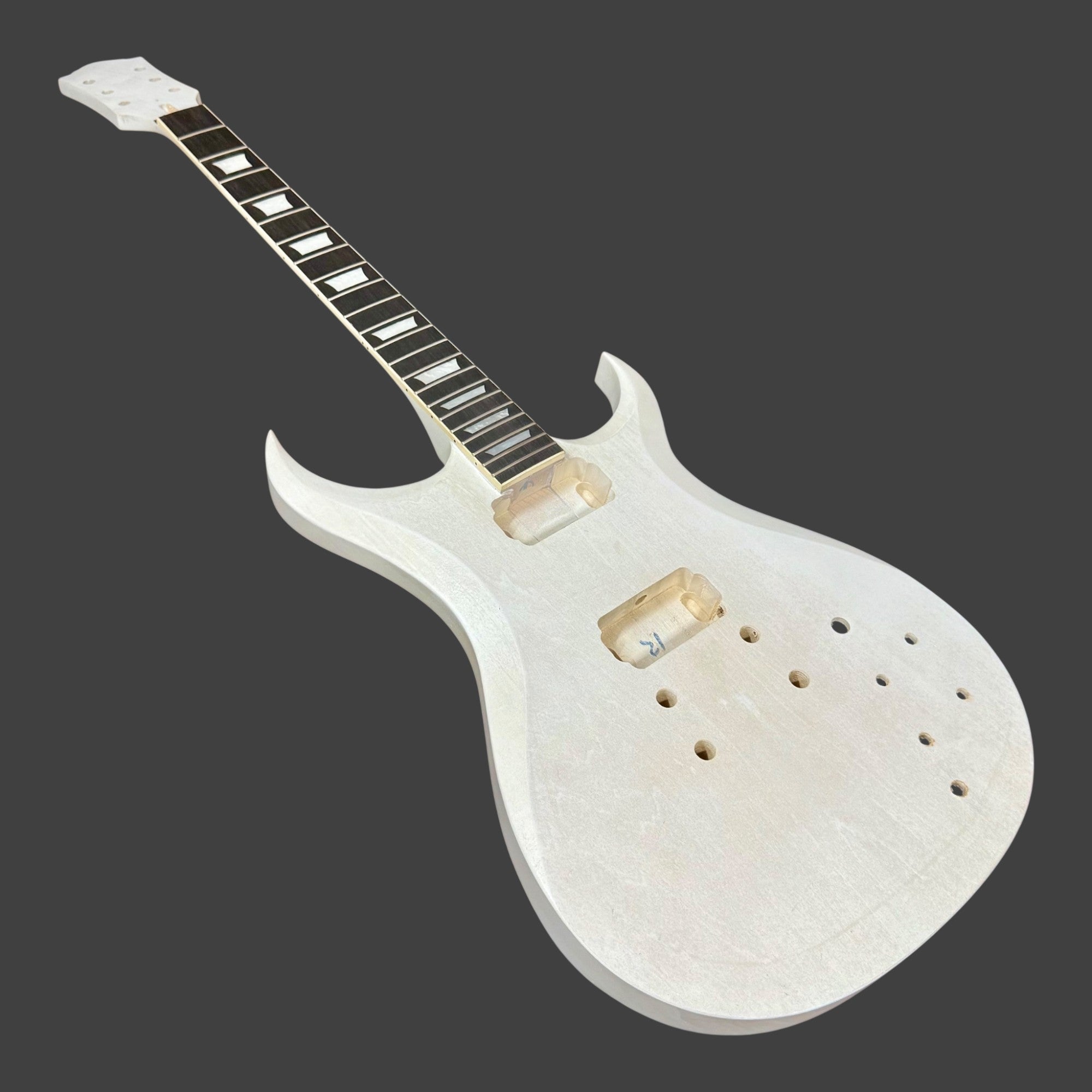

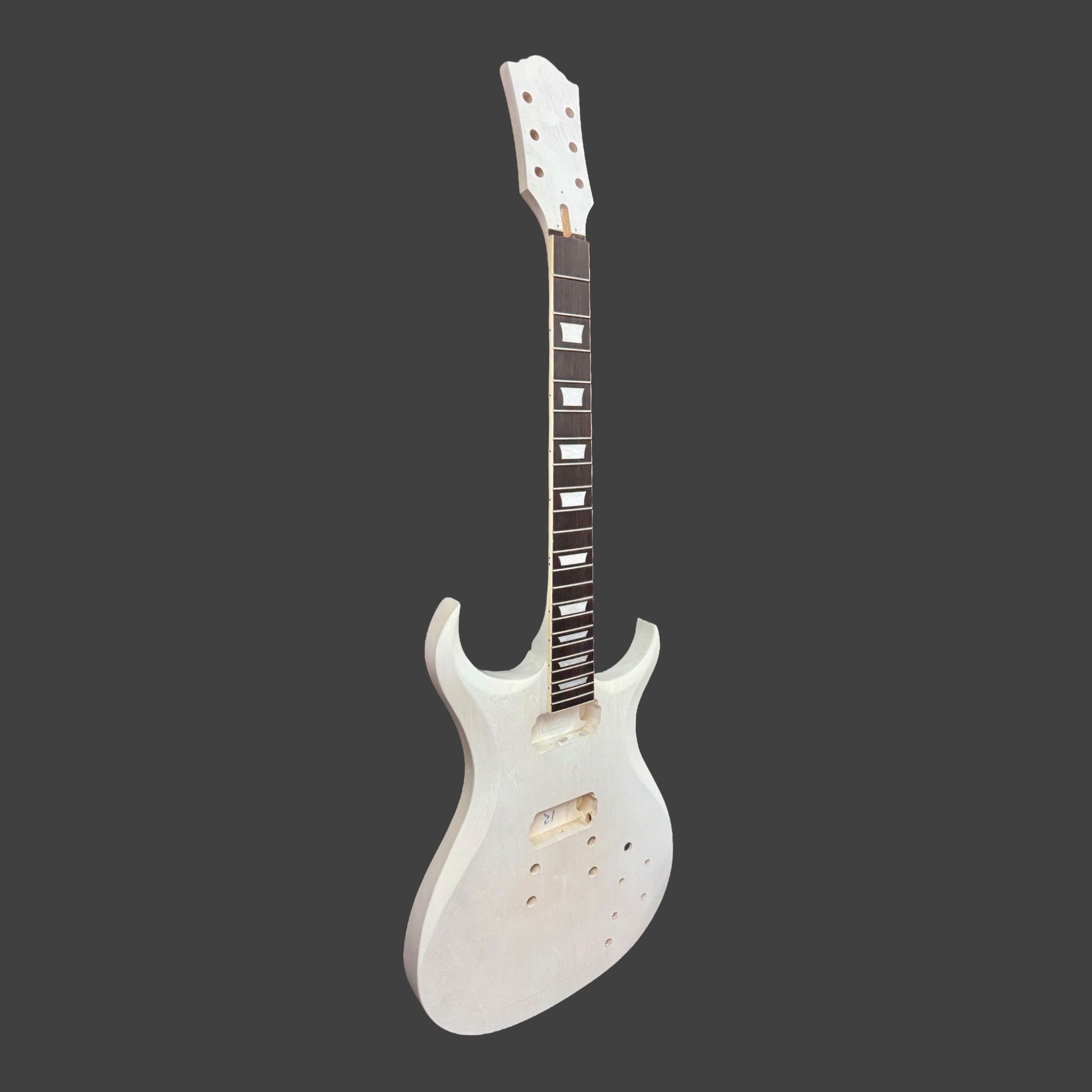

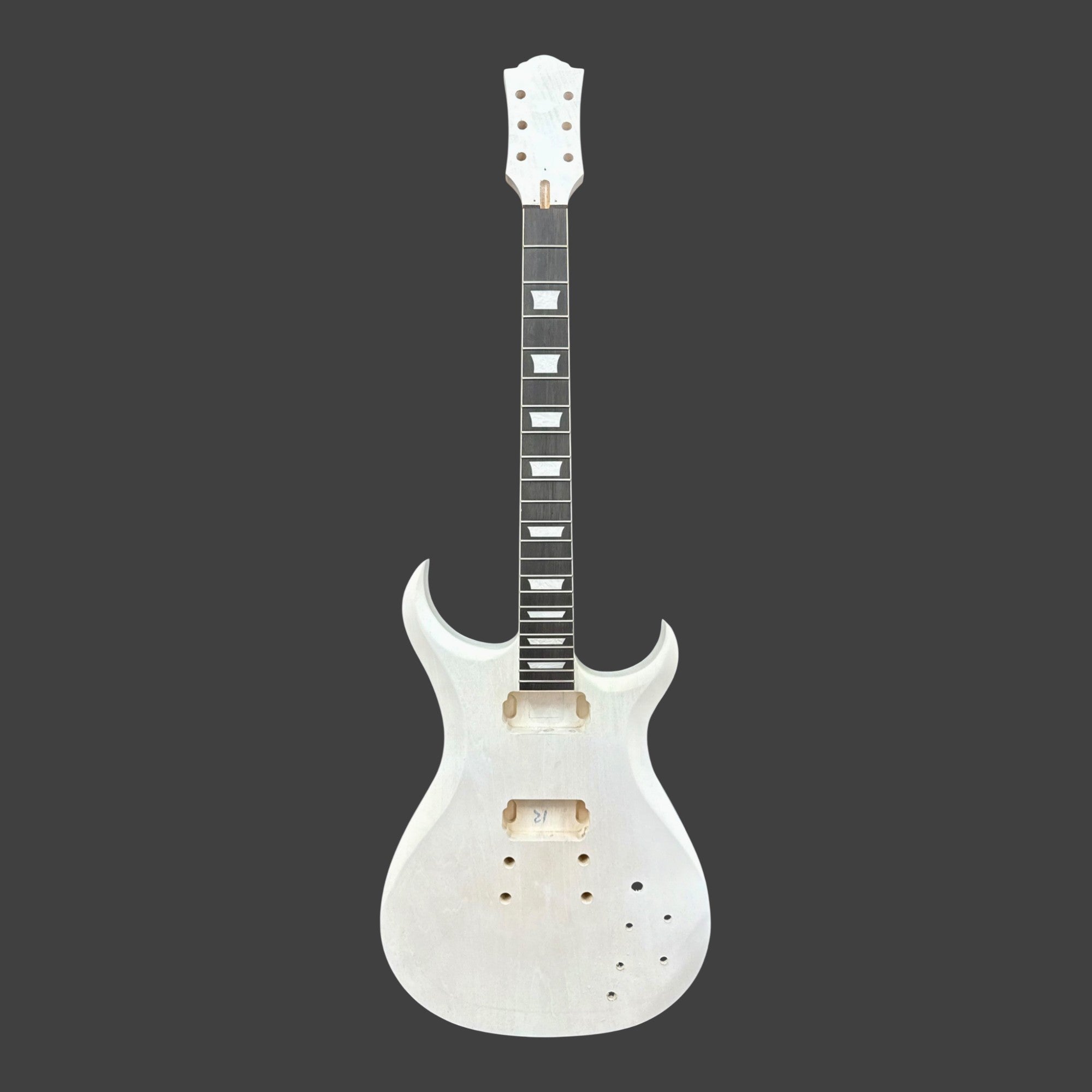

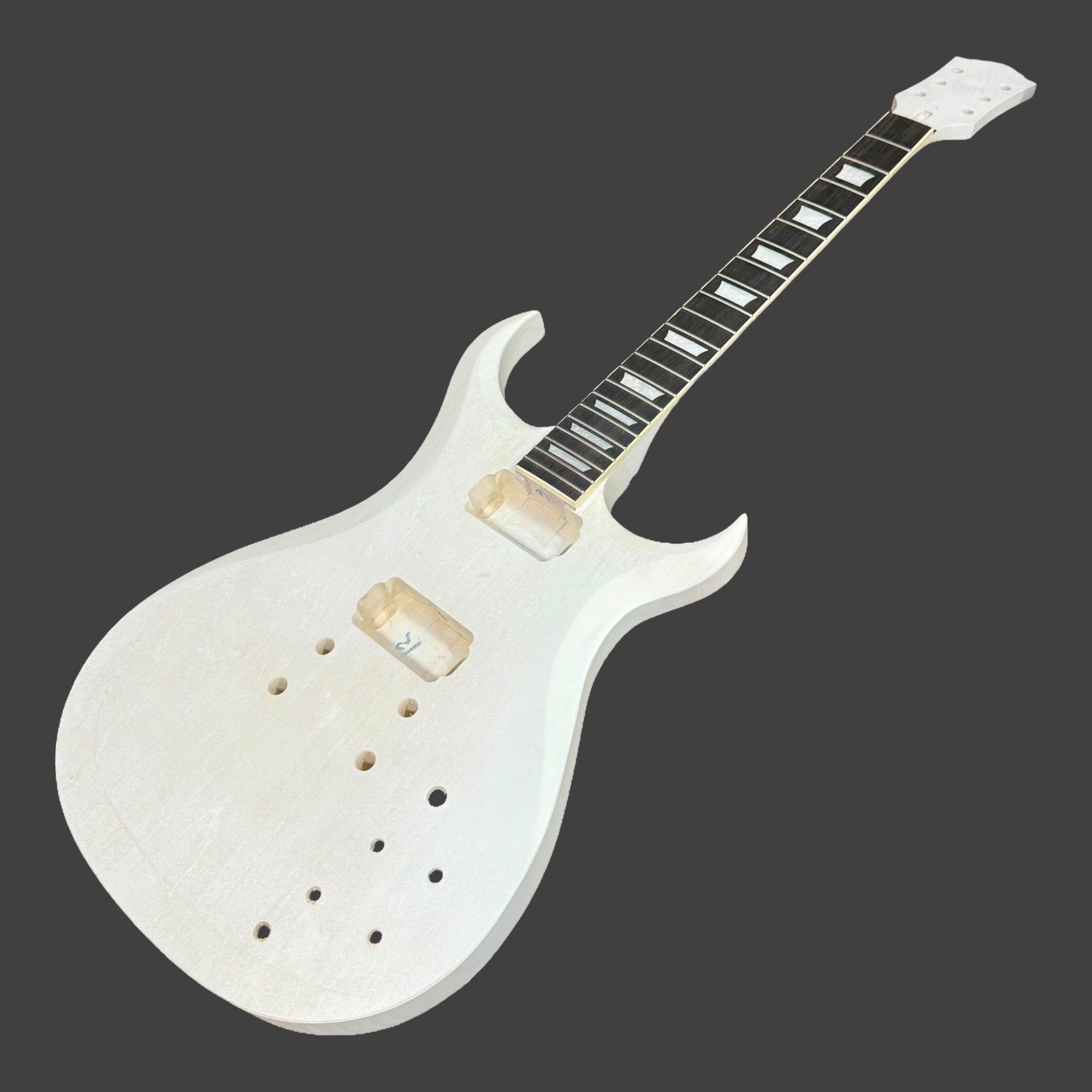

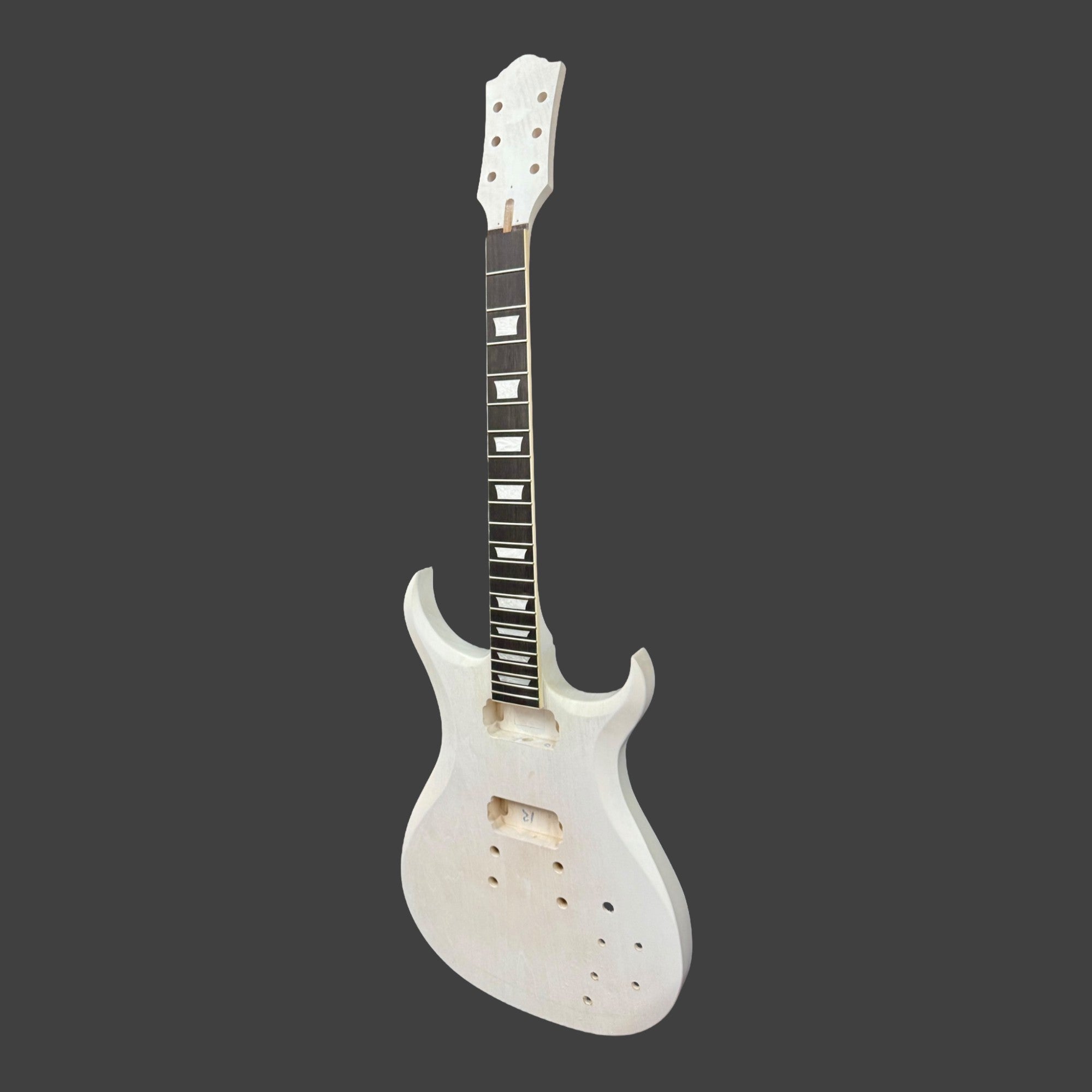

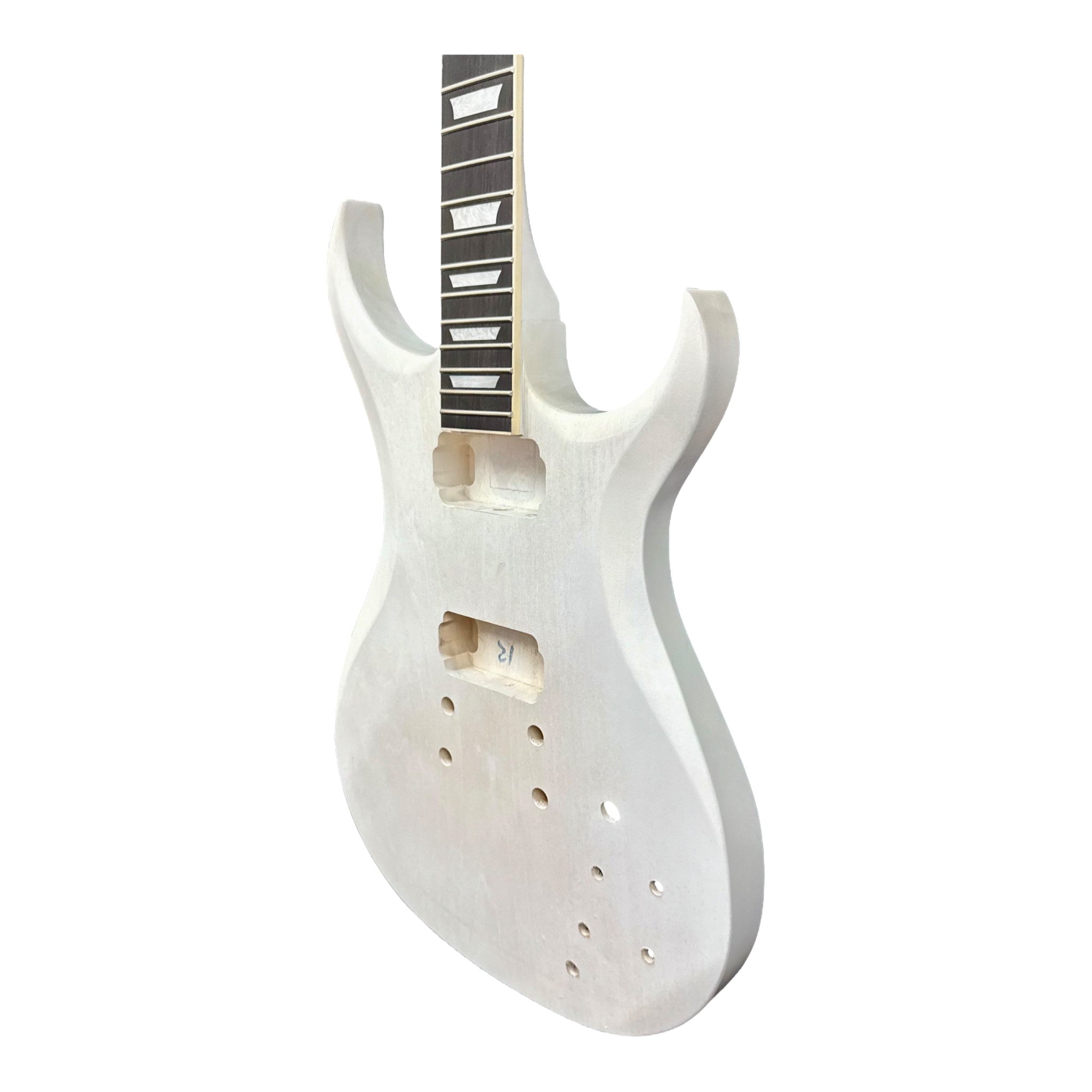

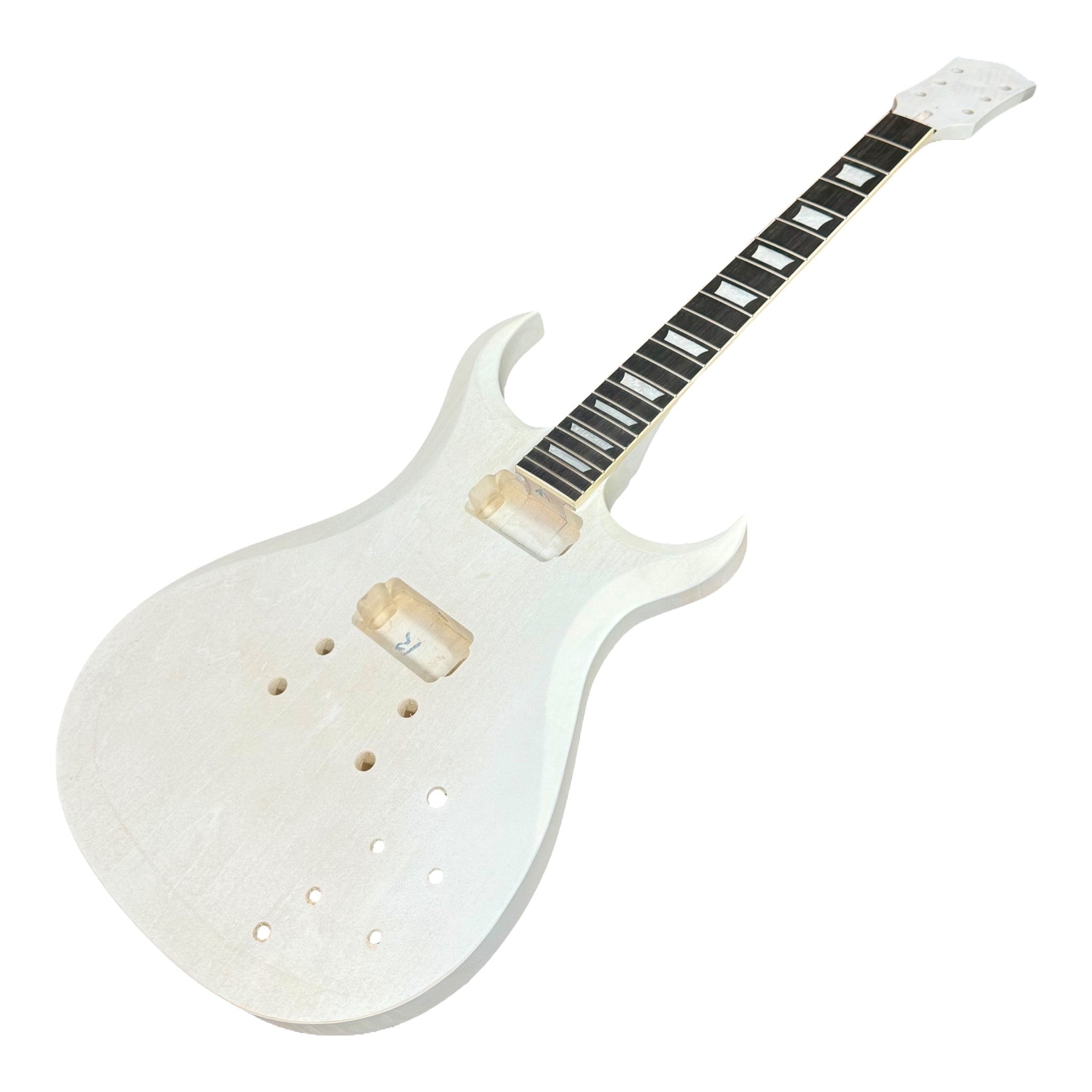

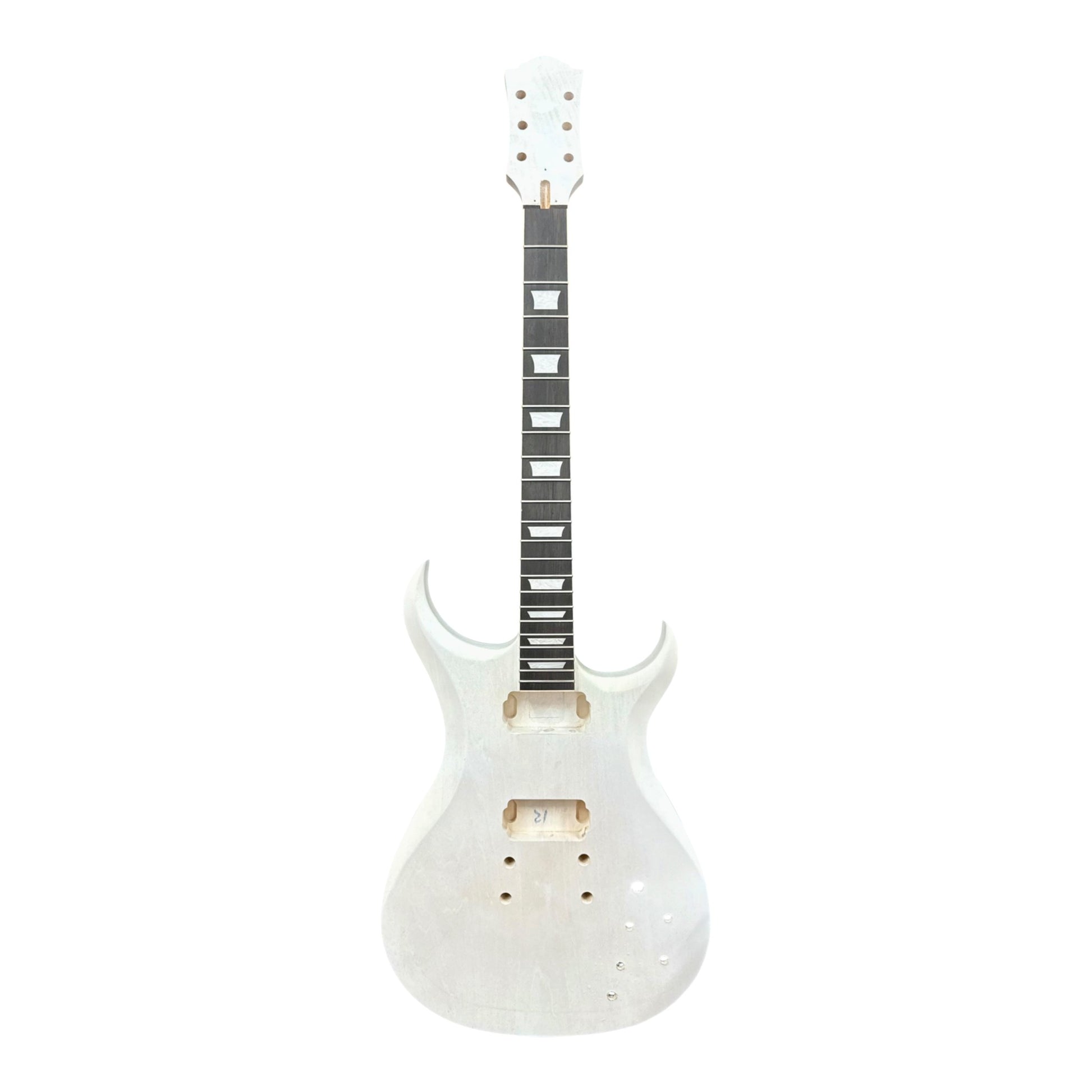

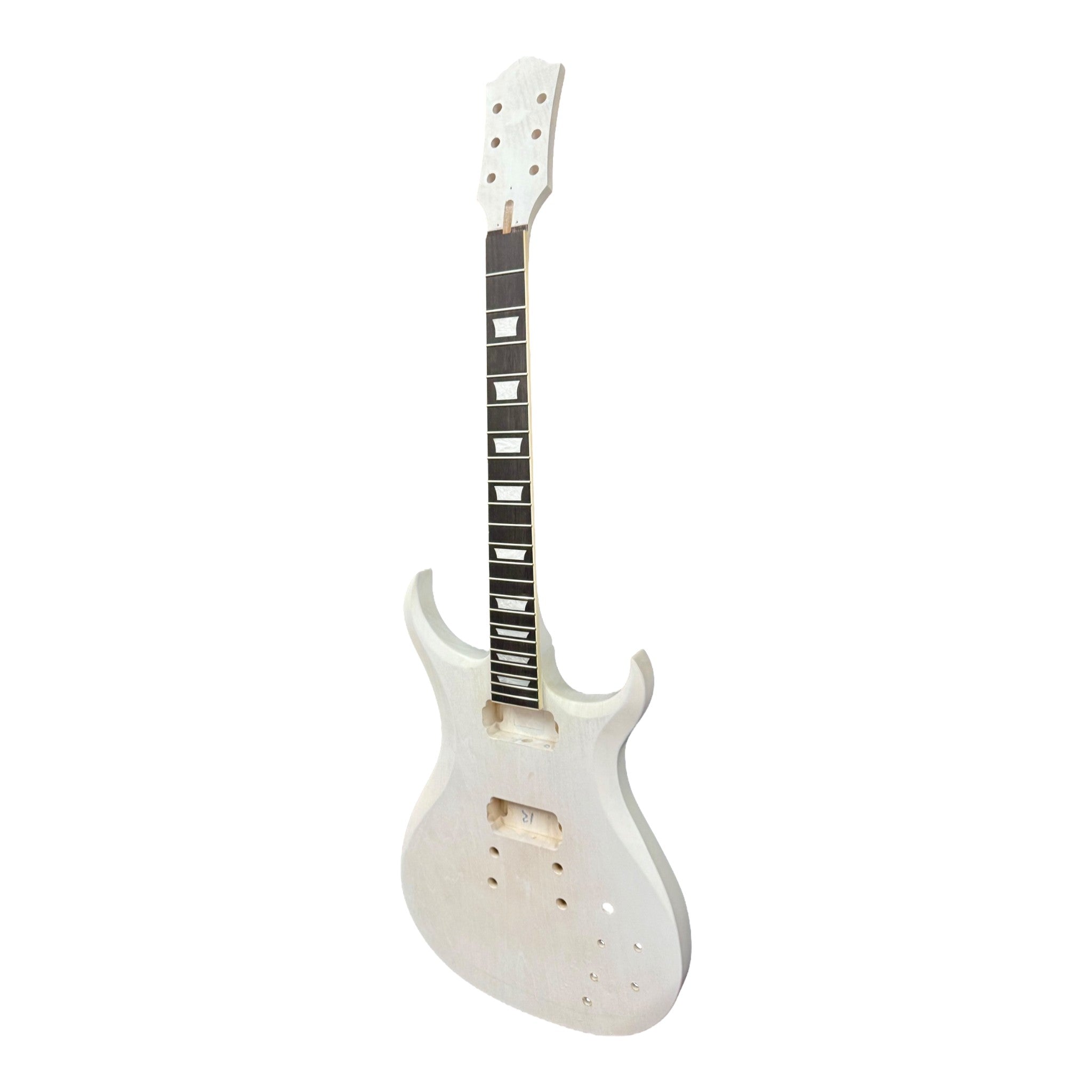

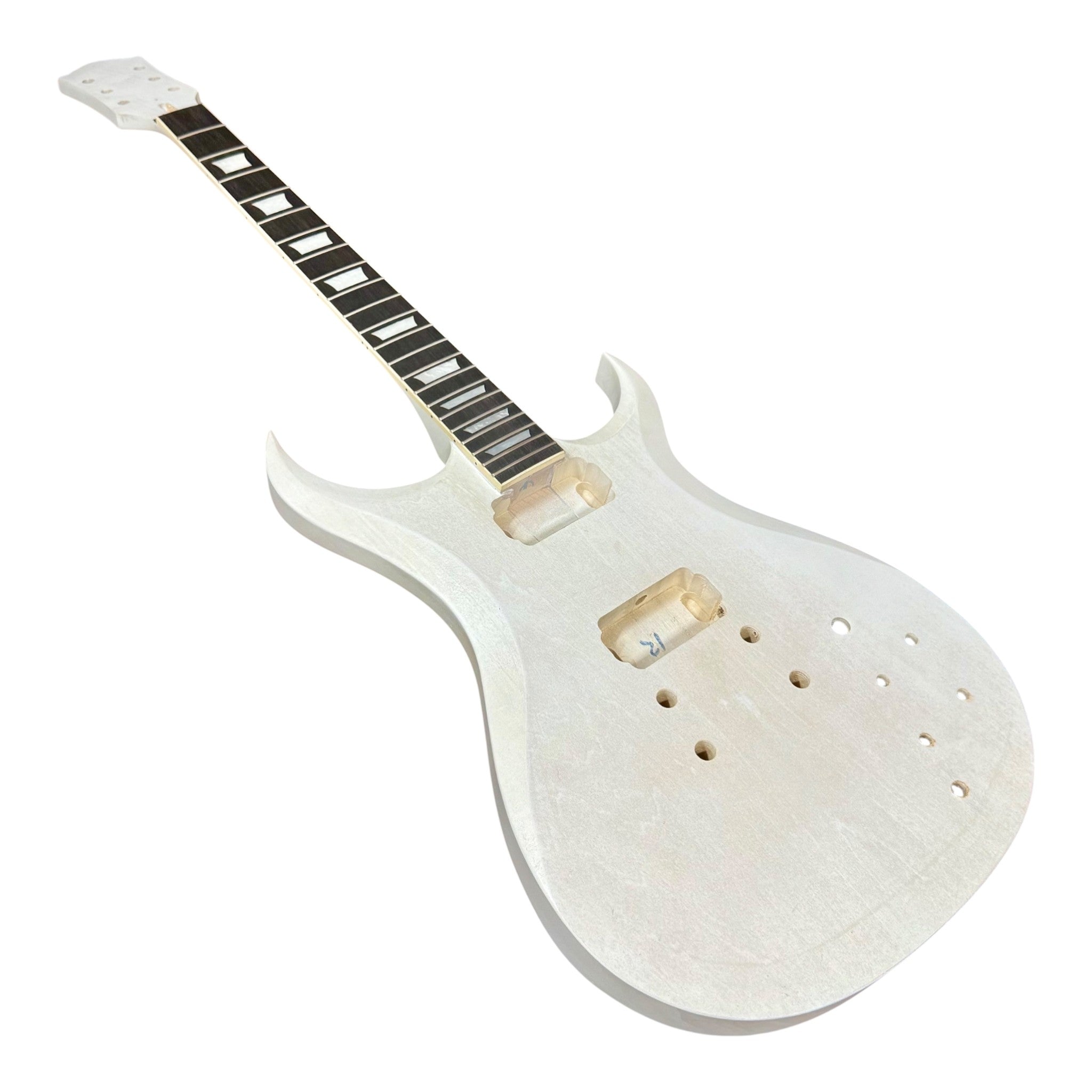

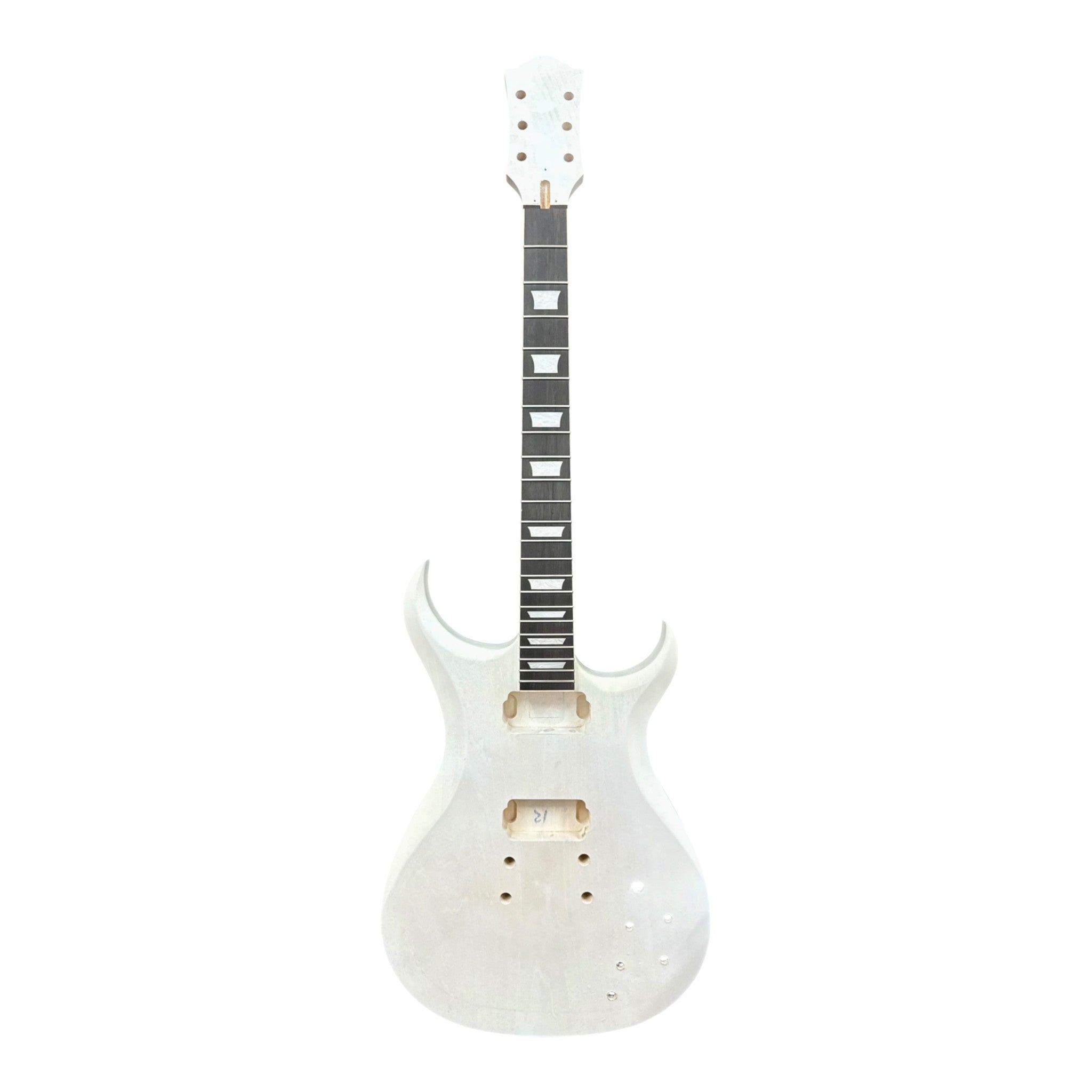

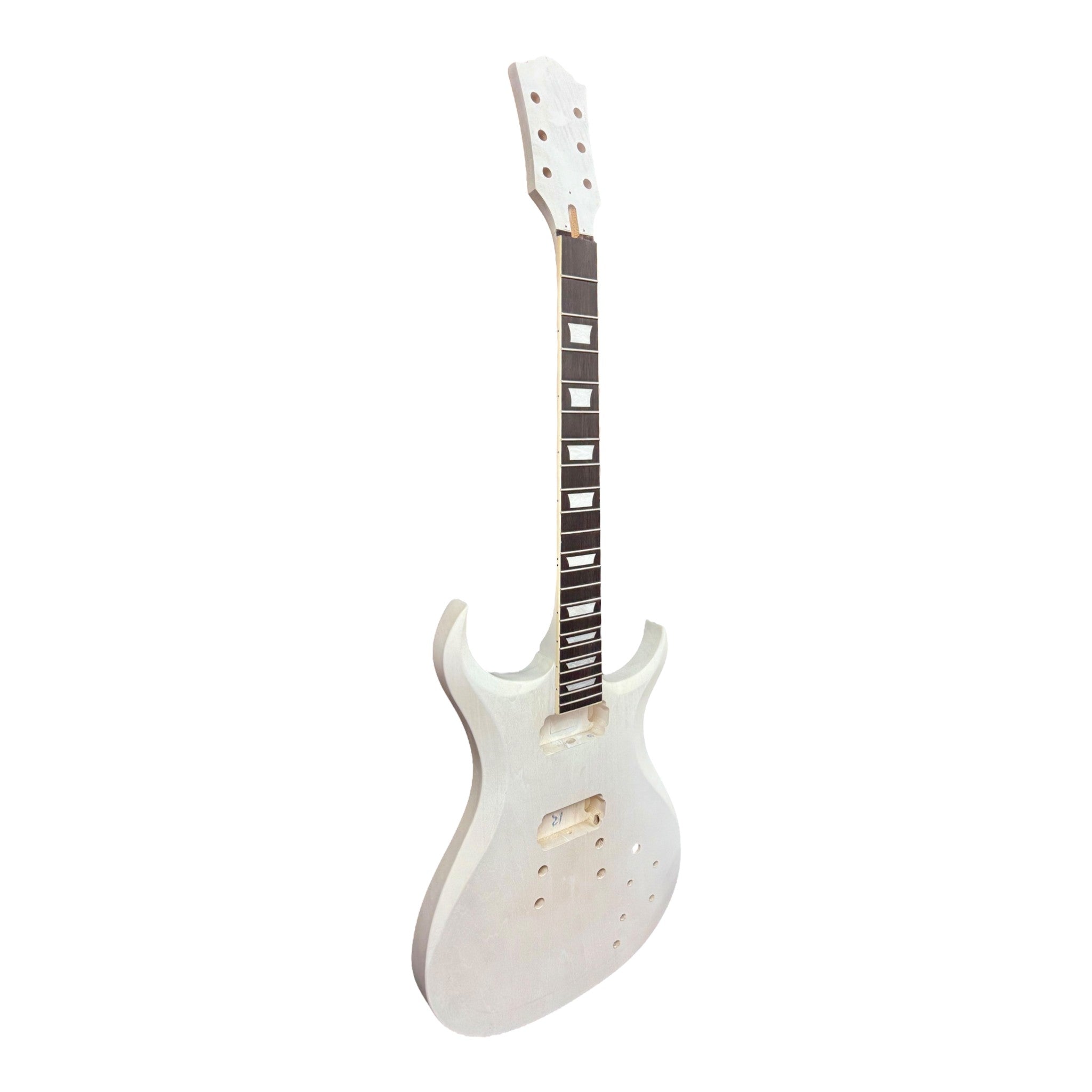

Classic GS-Inspired Body

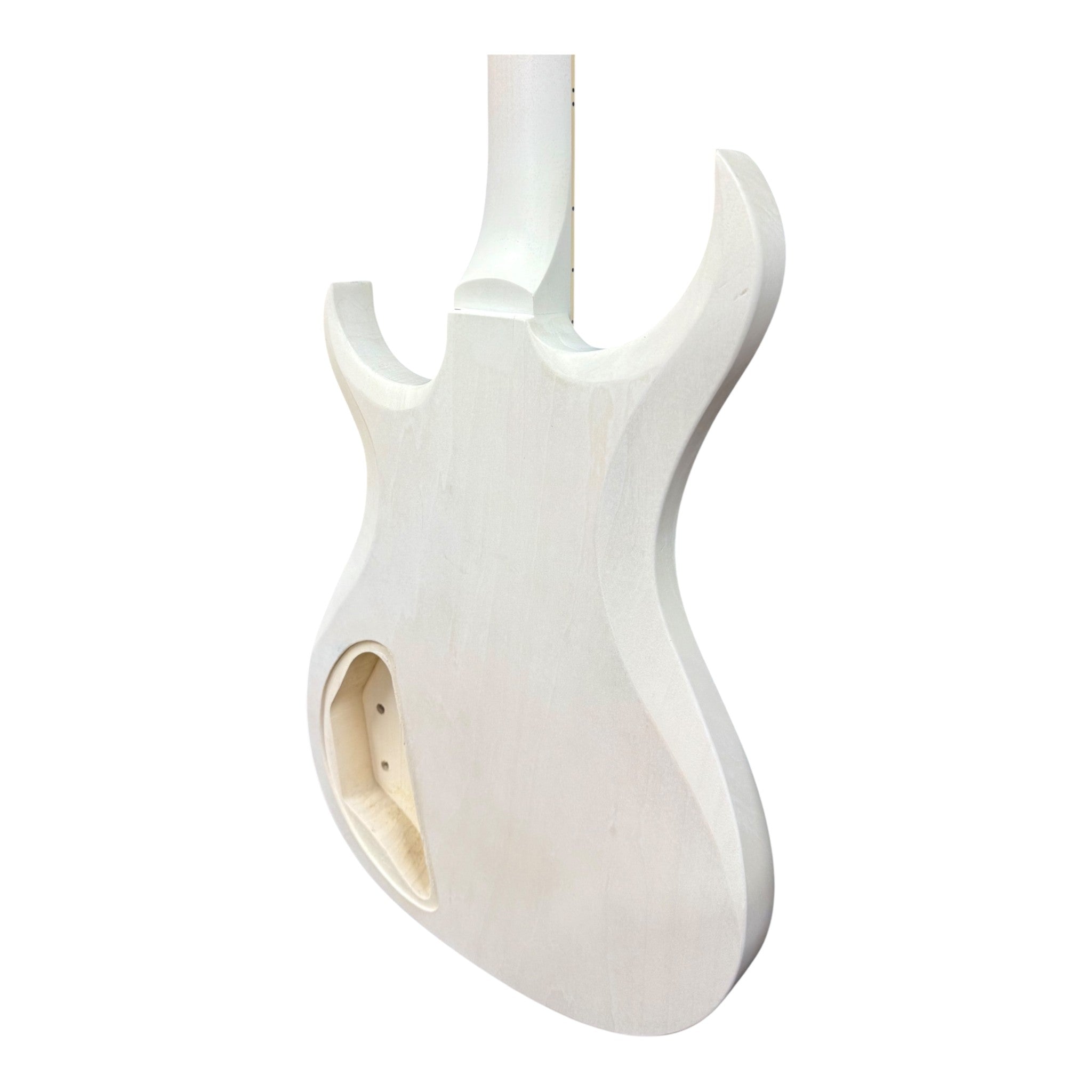

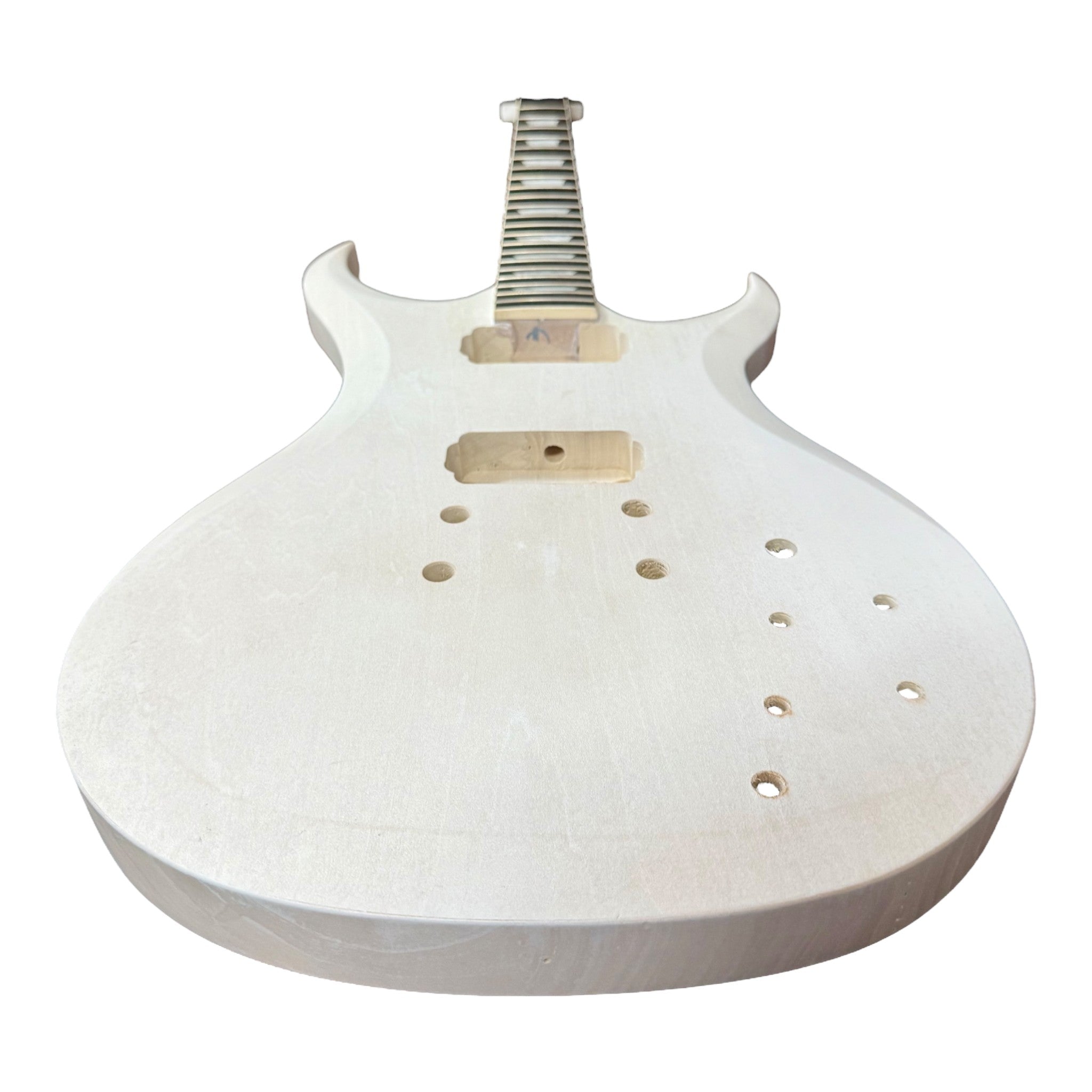

• Crafted from Poplar and pre-primed in white, this kit is ready for your custom paint job or final finish. The asymmetrical double cutaway ensures easy upper-fret access and aggressive rock aesthetics.
• Featuring a modern sharp horn design that delivers both striking looks and ergonomic balance—perfect for comfortable playing in any position.

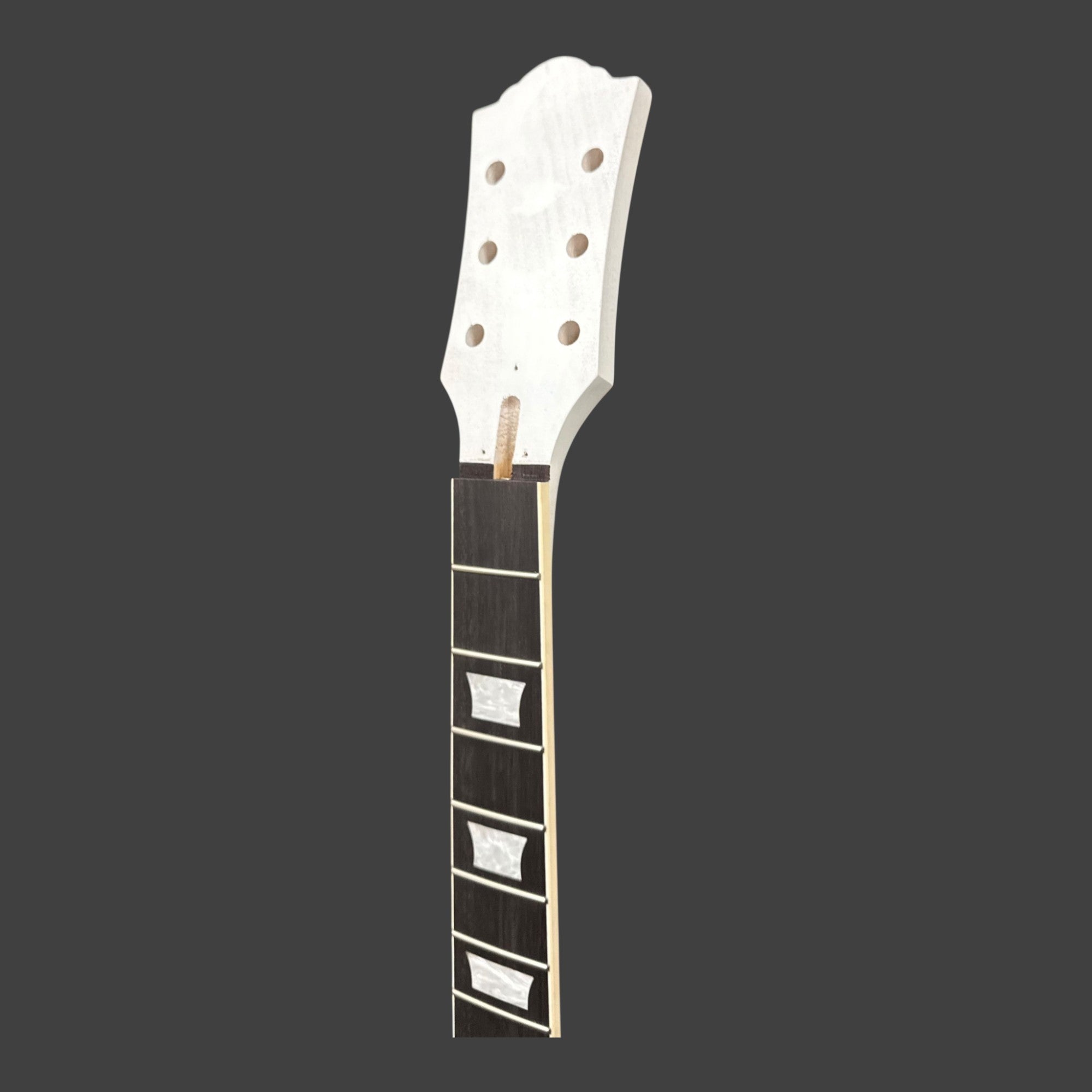

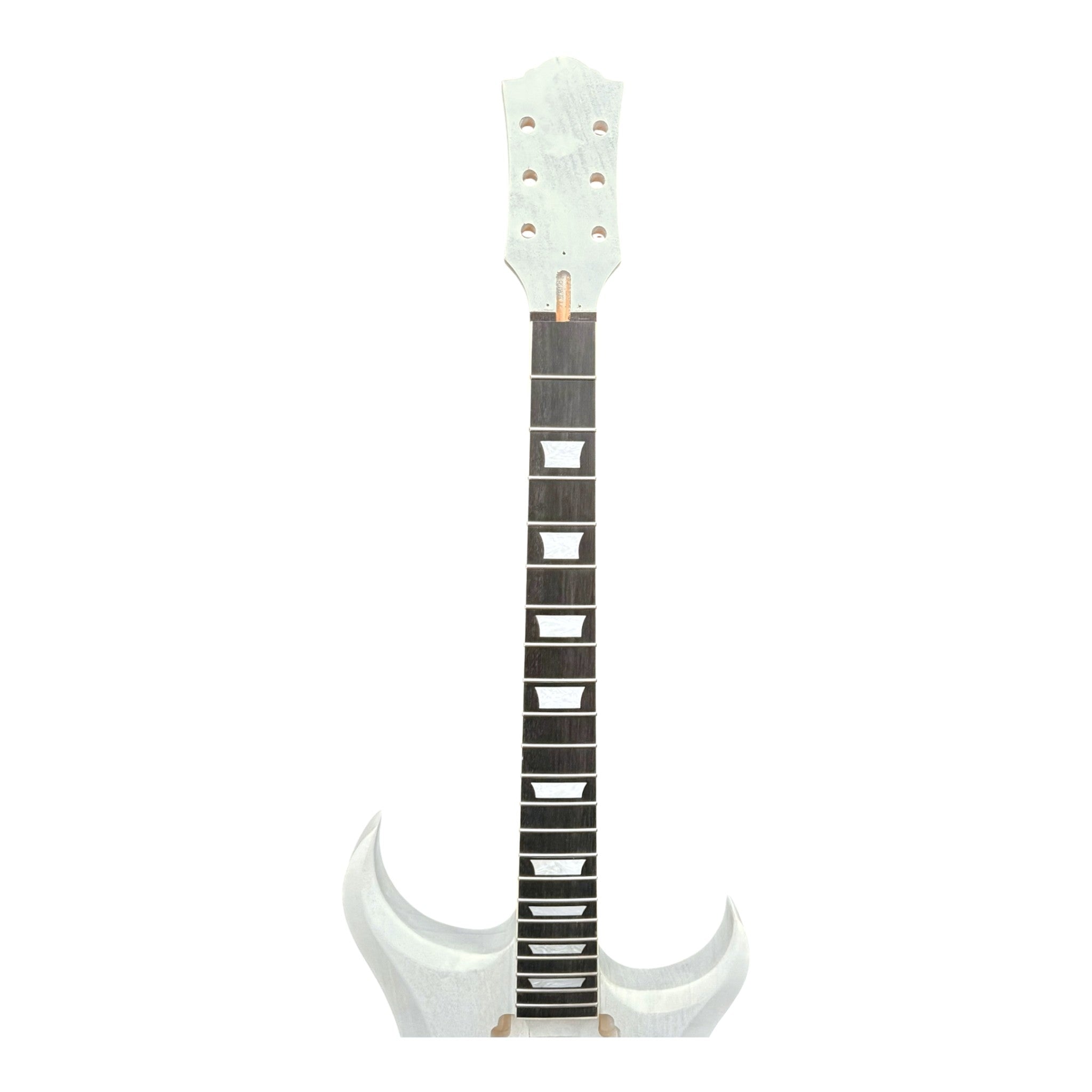

Deluxe Neck Construction

• Features a super thin-C profile maple neck with a set-in joint for superior sustain. The dark rosewood fretboard is adorned with mother-of-pearl trapezoid block inlays, adding a touch of vintage elegance.

  • Frets: 22

  • Nut: Ivory-colored plastic

  • Truss Rod: Preinstalled 2-way adjustable with 3-ply ebony coloured cover

  • Strings: Stainless steel, 6-string configuration

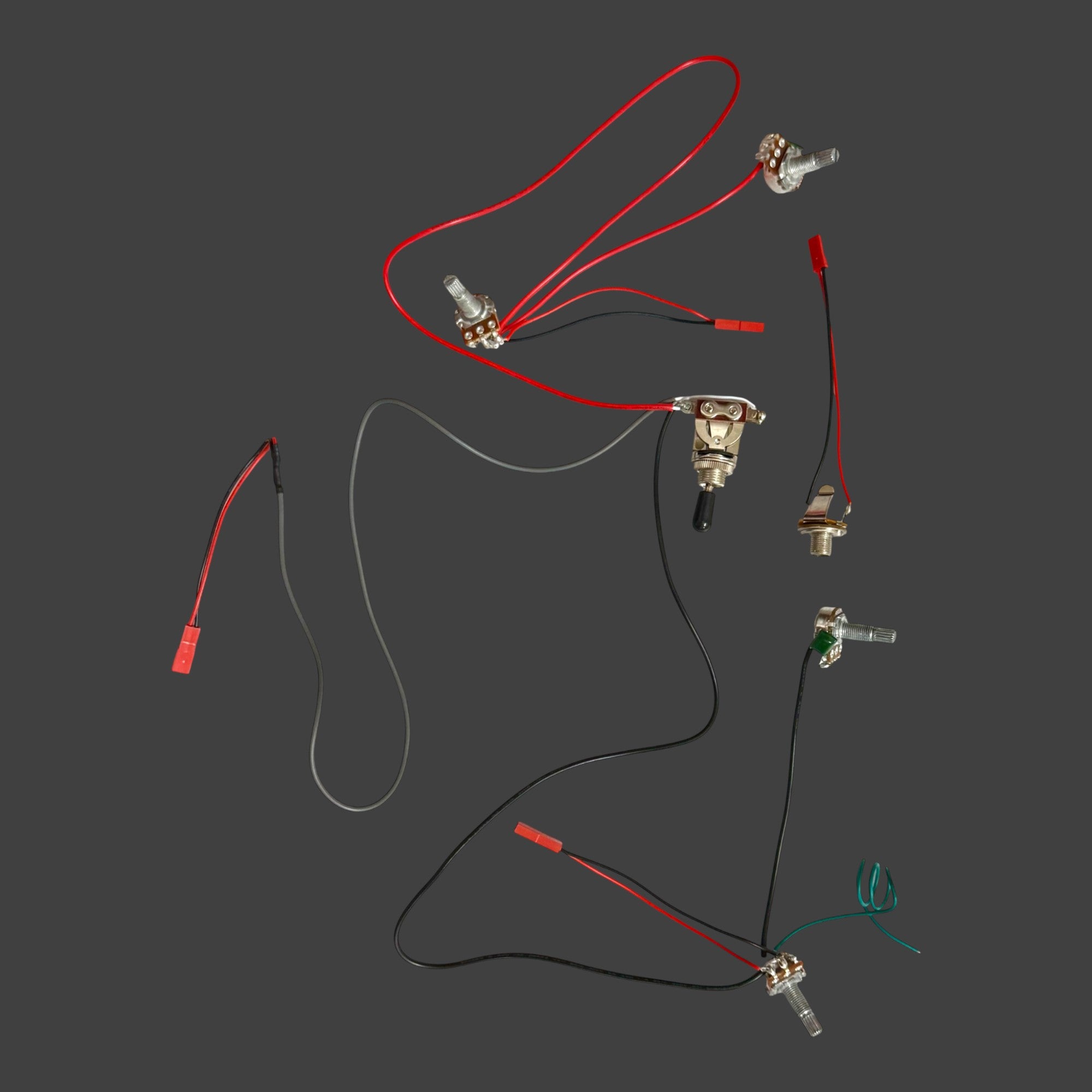

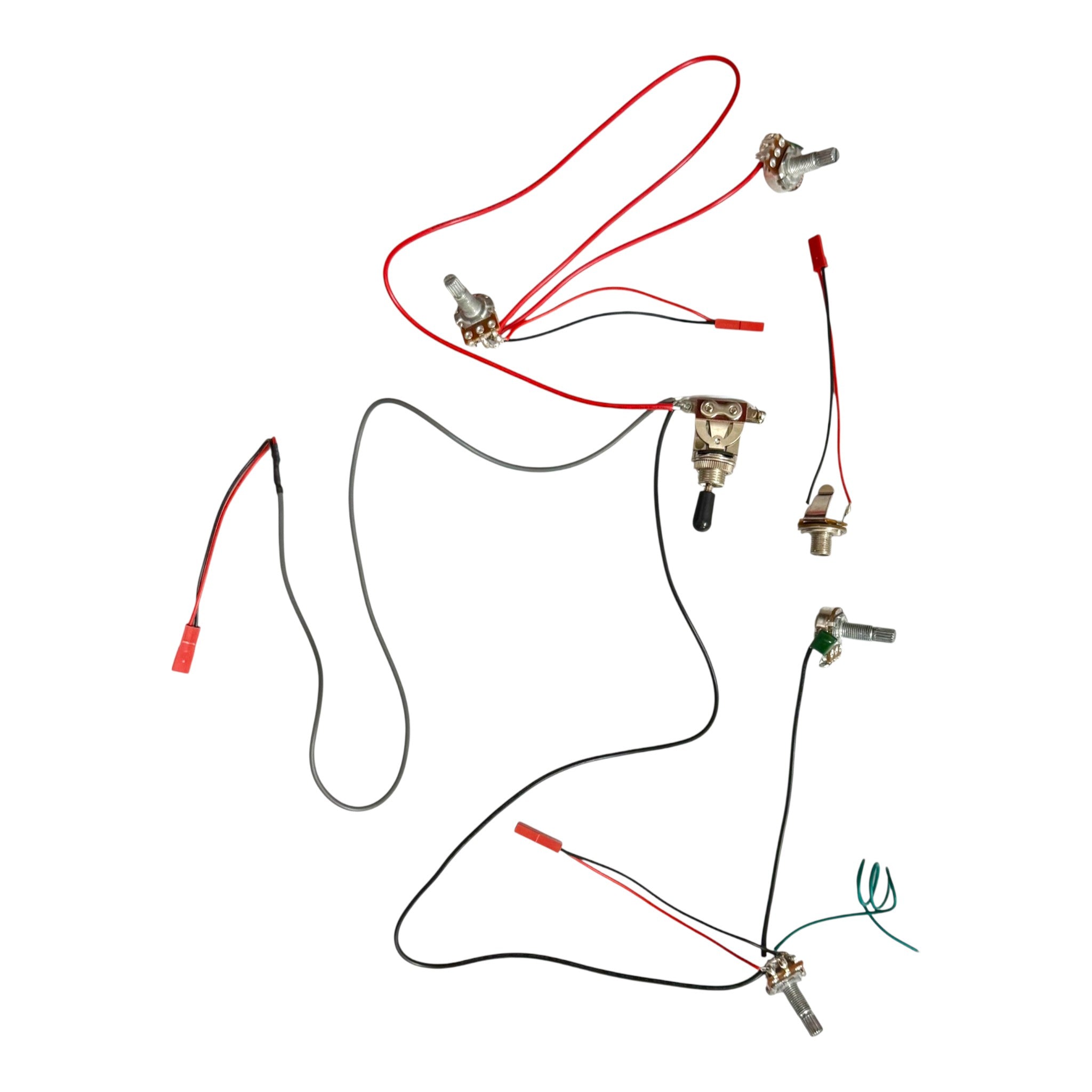

Plug-N-Play Electronics – No Soldering Required

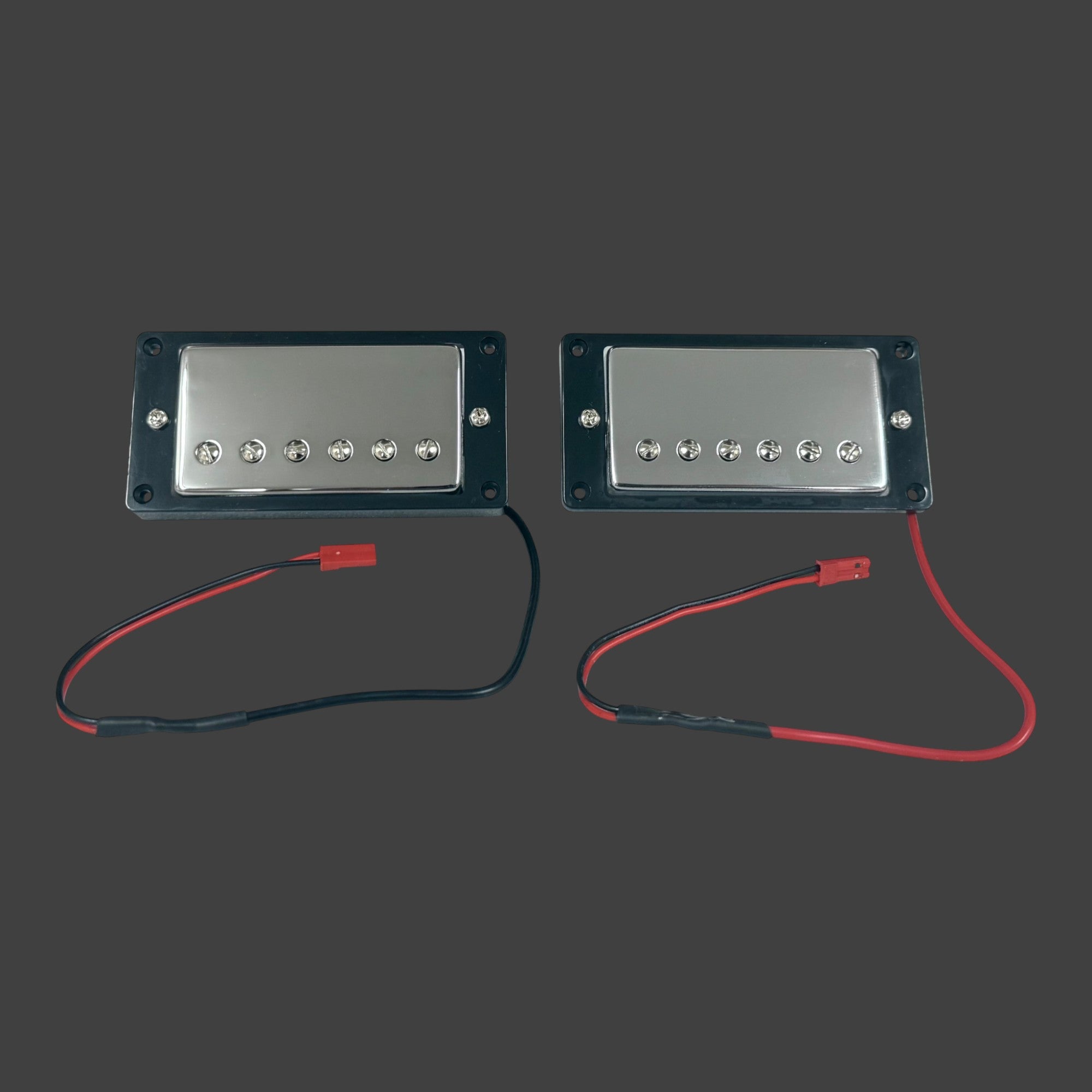

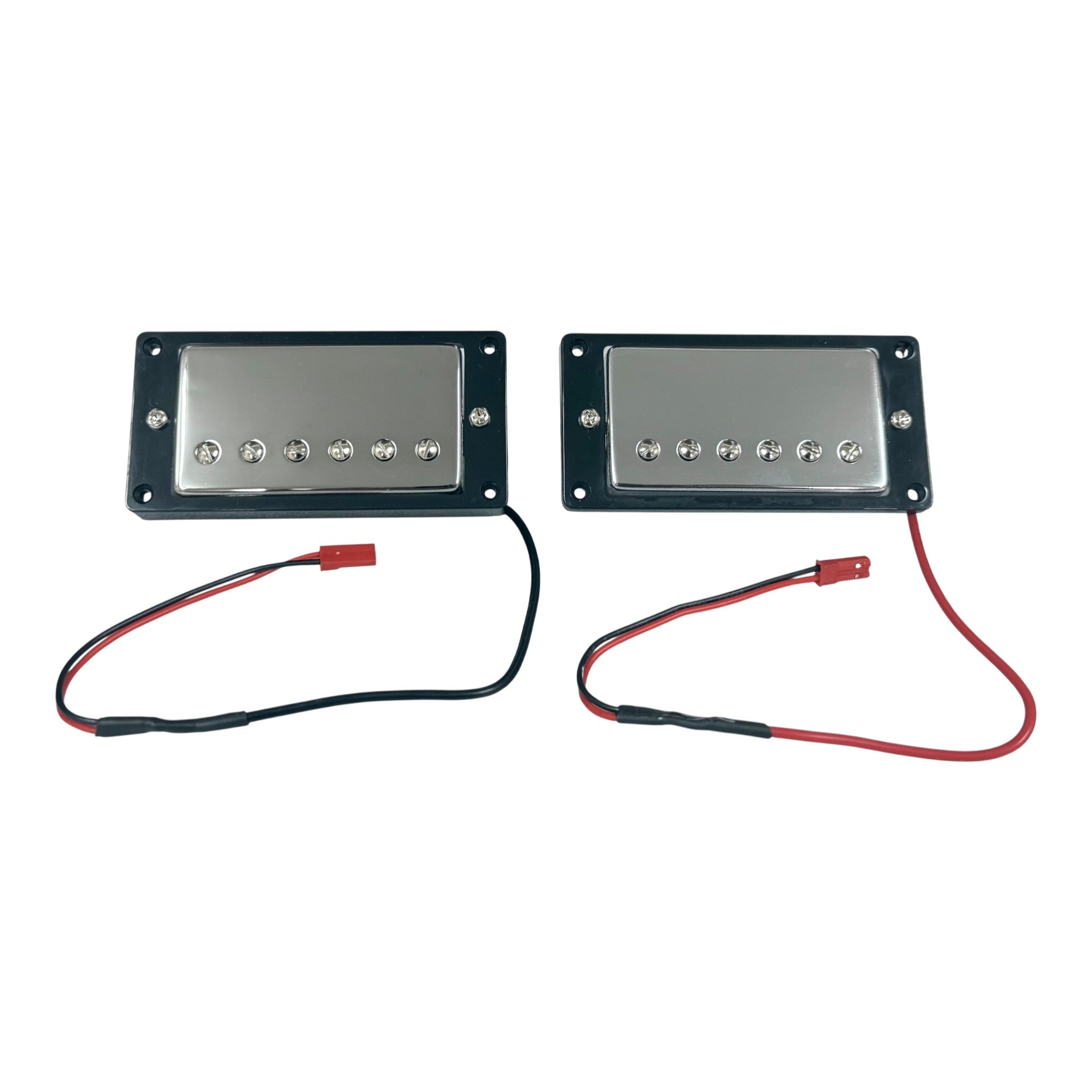

• Pre-wired H-H ceramic humbuckers deliver a bold, punchy tone. Simply connect using the included plug-n-play connections—no soldering iron needed.
• Neck Pickup: P-3002-50 (8.5K, 3.5H)
• Bridge Pickup: P-3002-52.5 (8.8K, 3.9H)
• Controls: 2 Volume / 2 Tone with classic silver-black “top hat” knobs
• Switch: 3-way toggle for versatile tone control

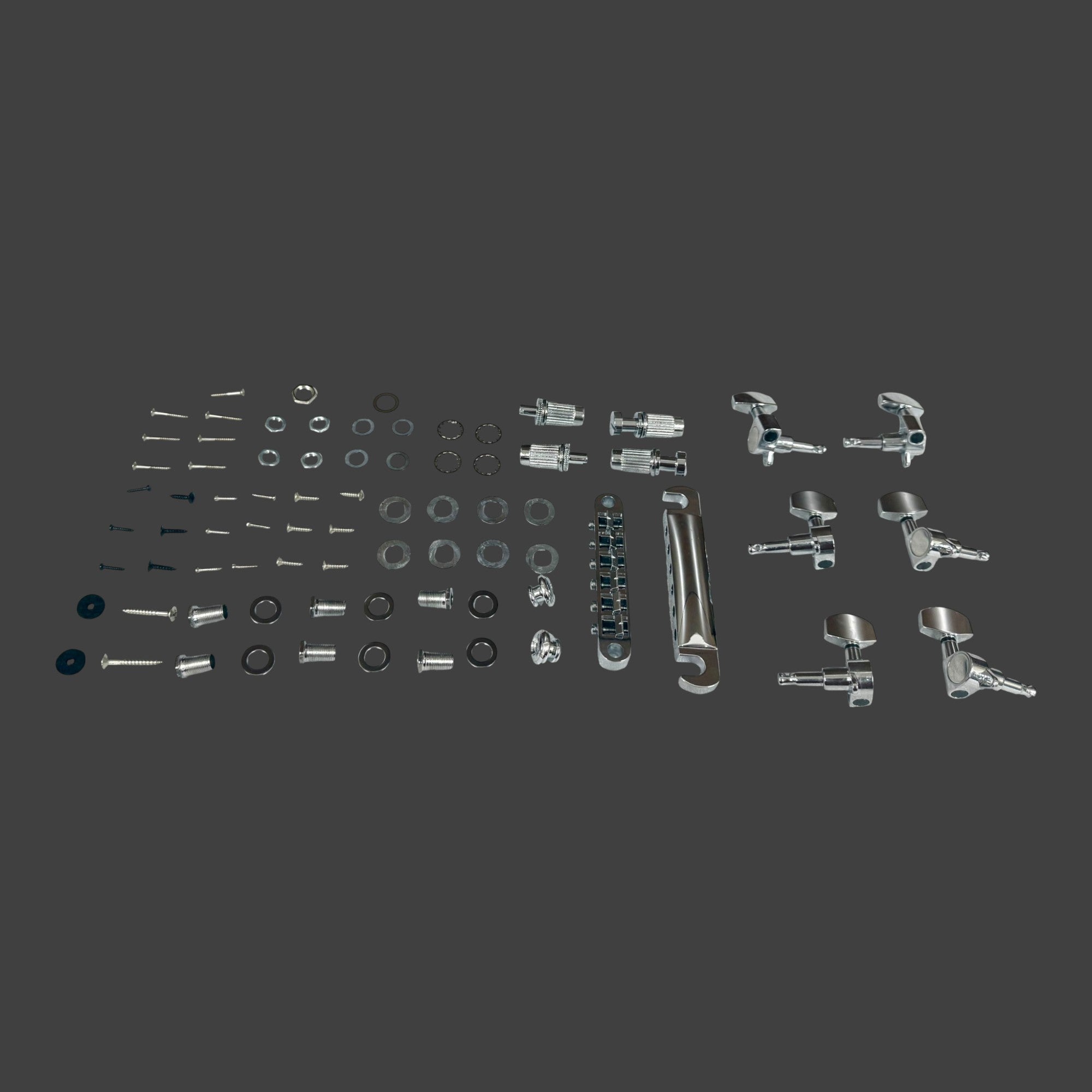

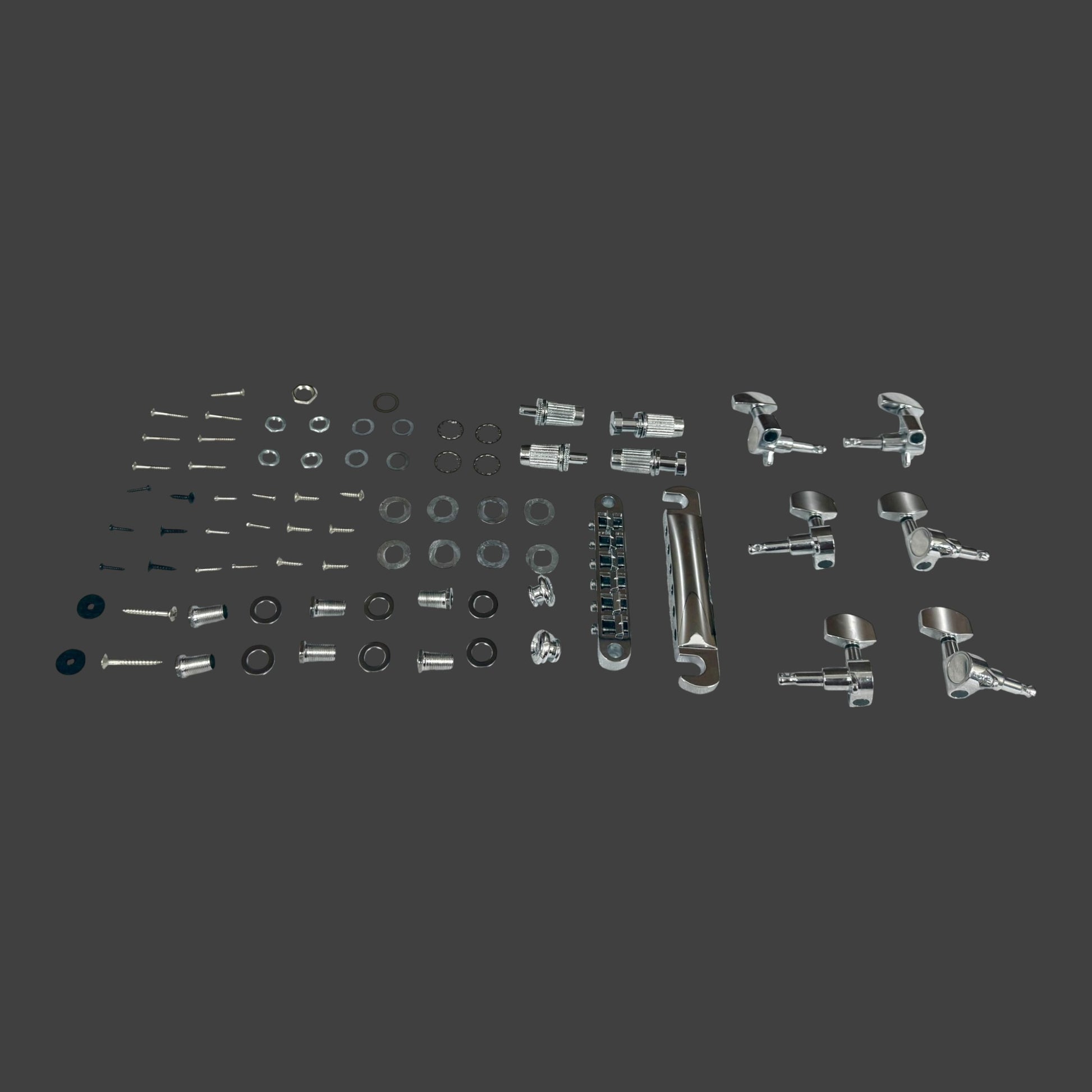

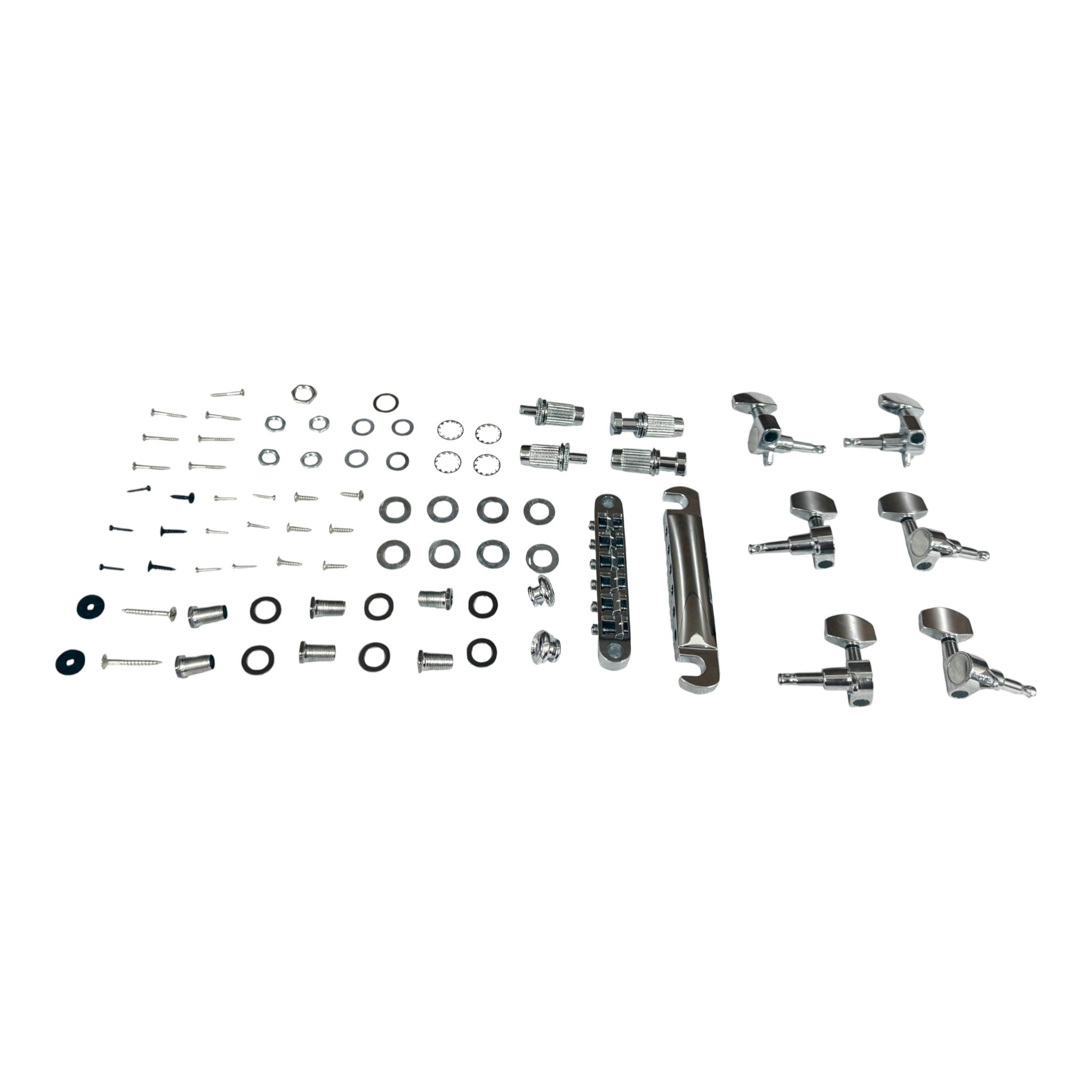

High-Quality Hardware

• Outfitted with chrome-plated hardware, this kit features a Tune-O-Matic bridge paired with a Lock-Tone saddle for enhanced sustain and precise intonation, along with Gotoh-style sealed Rotomatic tuners to ensure stable tuning and smooth, accurate adjustments during play.

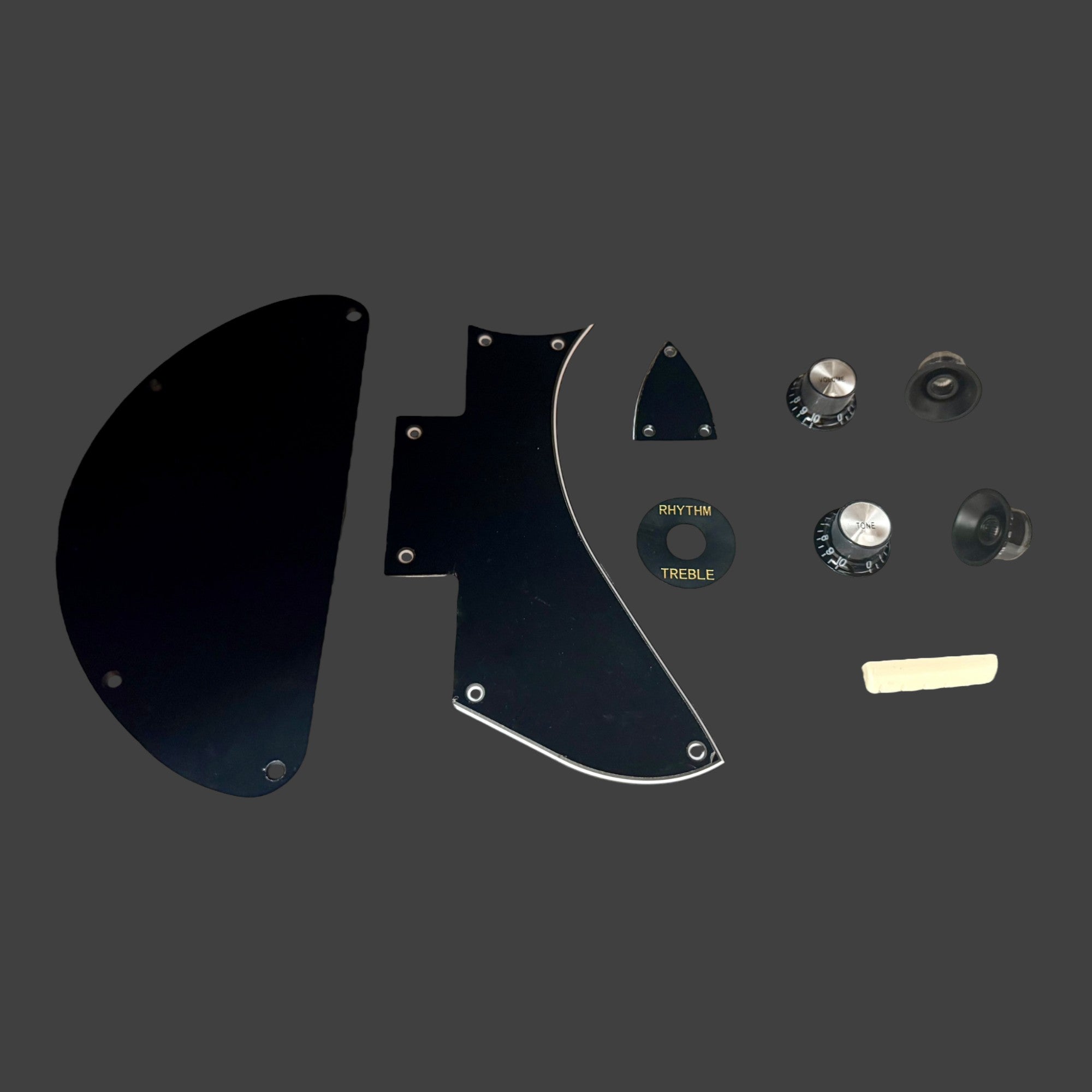

Classic Finishing Touches

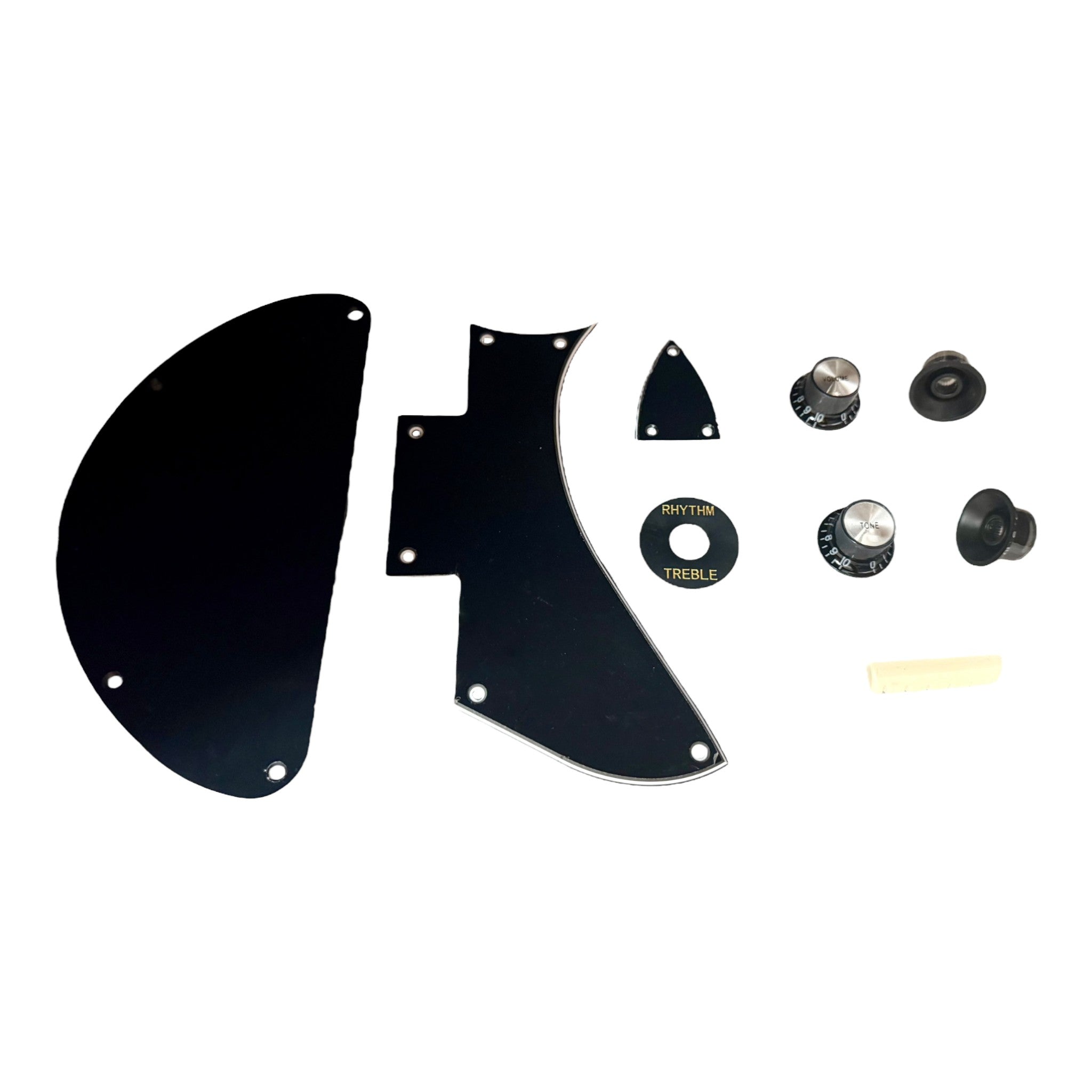

• Vintage-style 3-ply ivory pickguard evokes classic ’63-era design.
• Deluxe ABS vintage cream binding on the neck provides a refined, high-end finish.

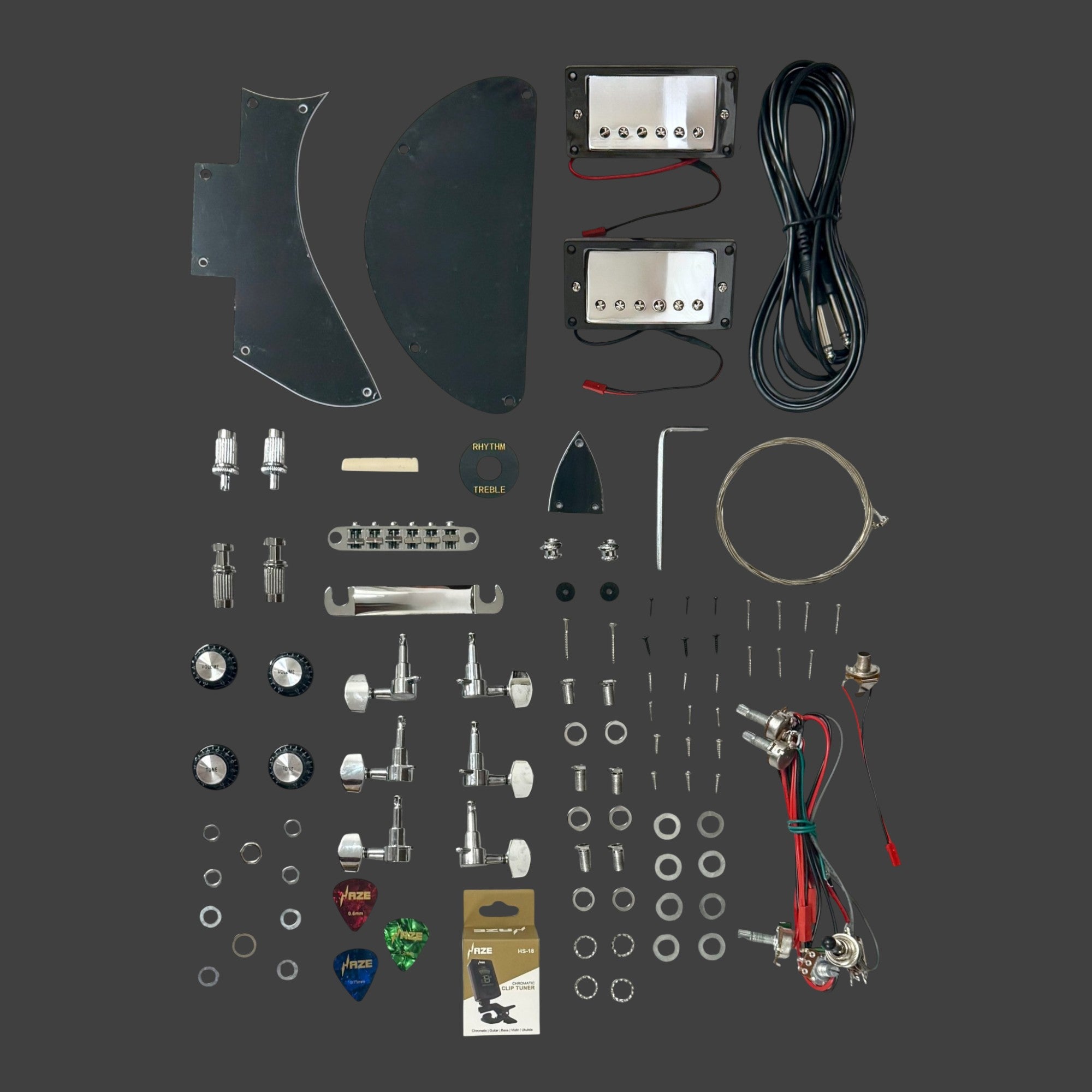

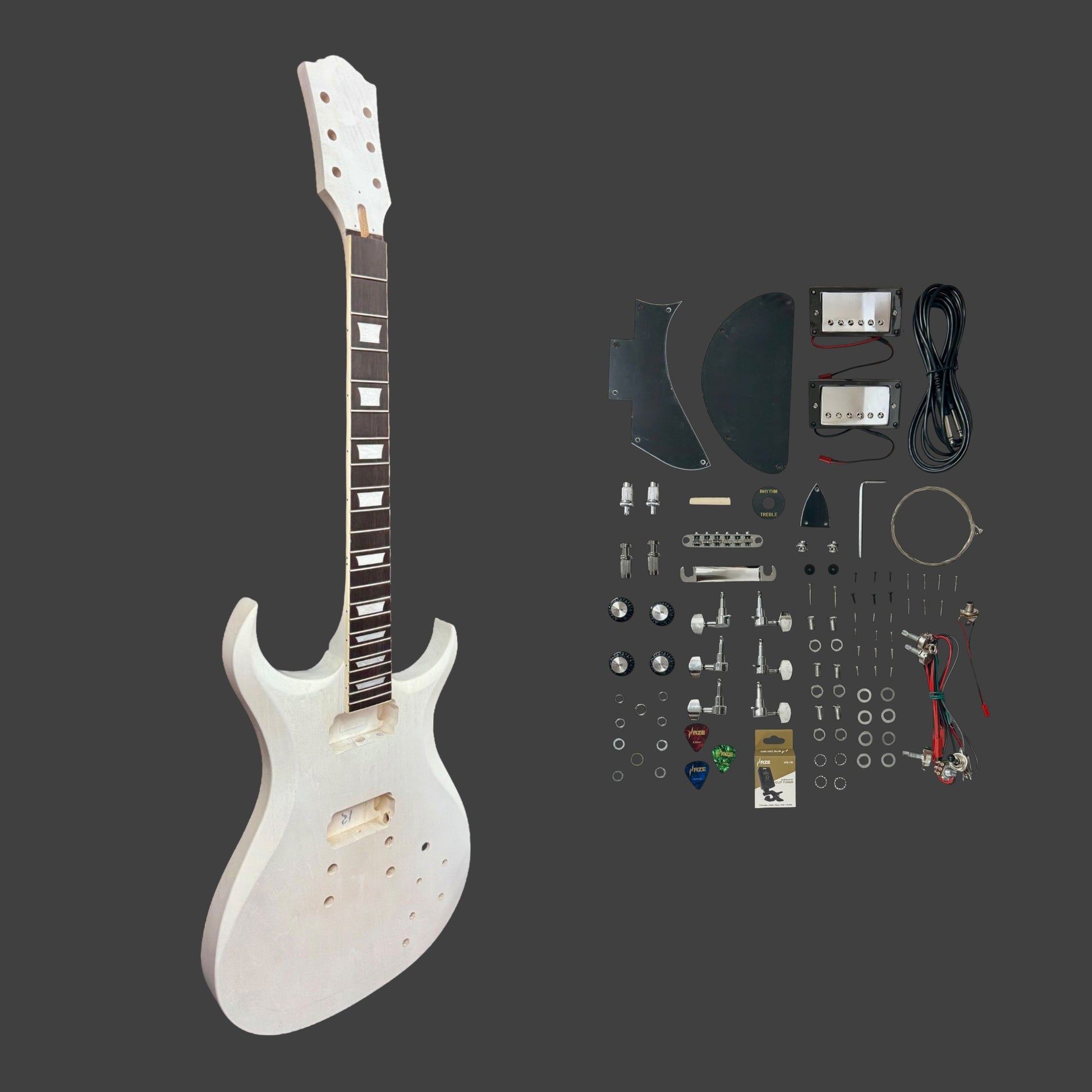

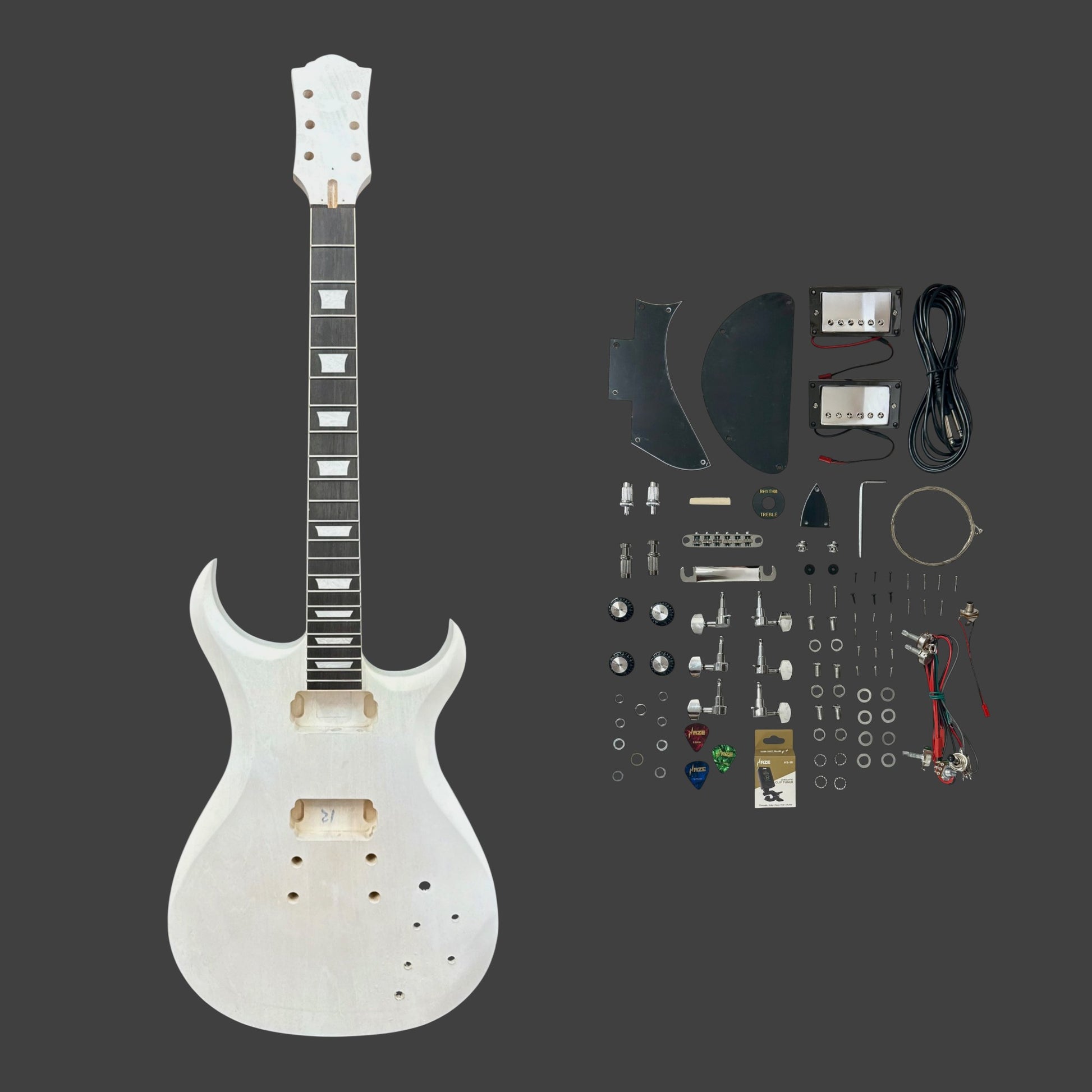

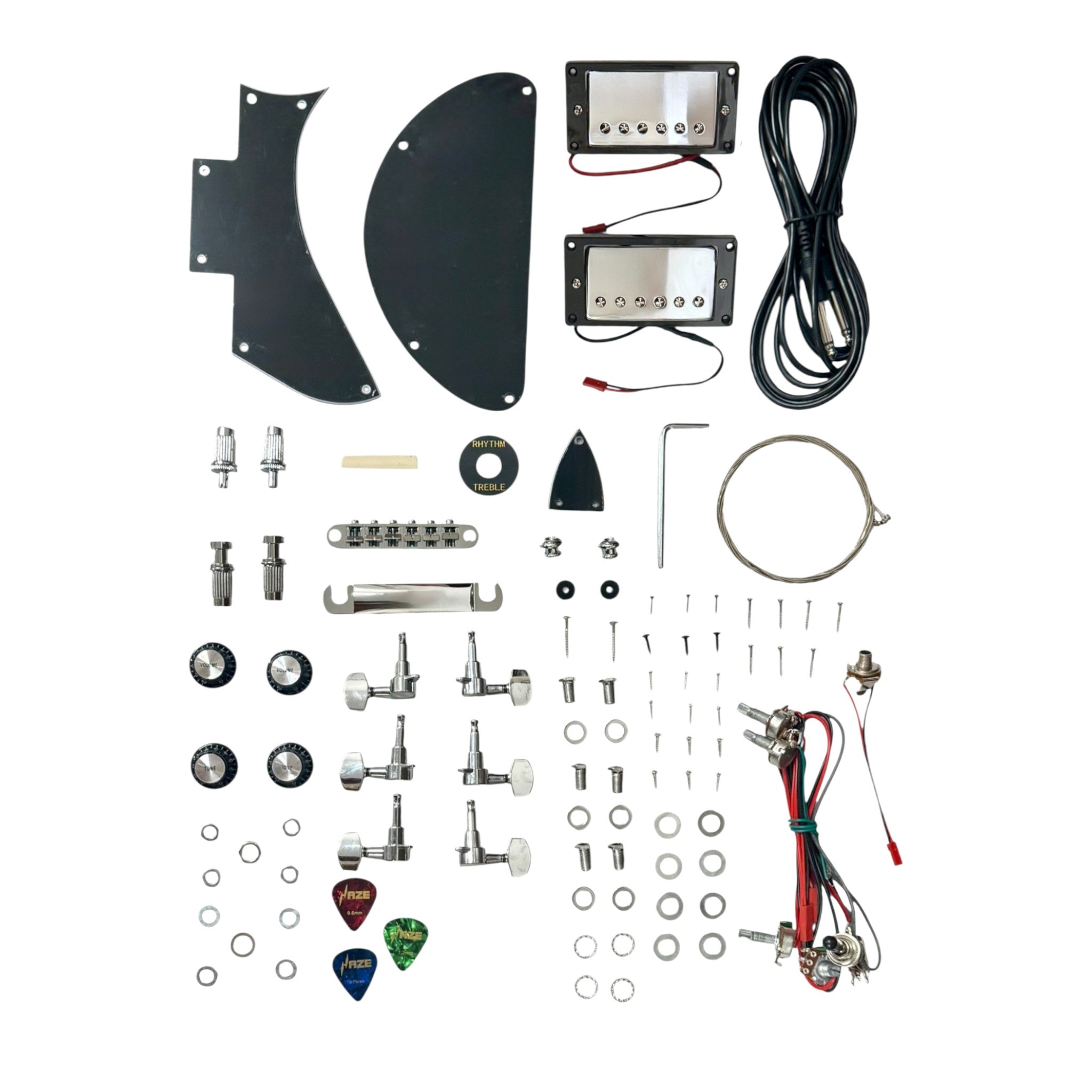

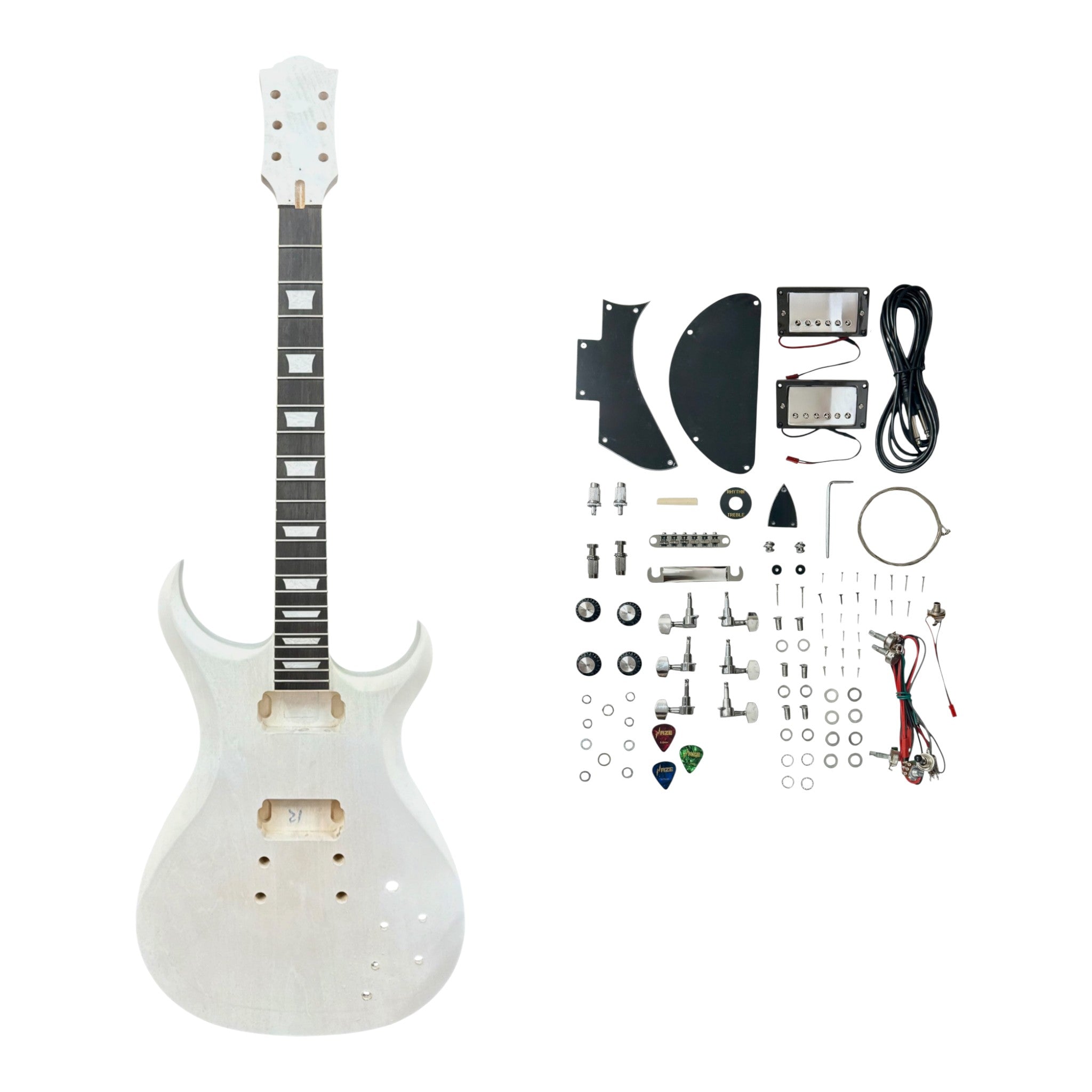

Kit Includes

• 3 Guitar Picks
• Instrument Cable
• Truss Rod Adjustment Key

With the E575DIY, you’re not just building a guitar—you’re crafting a personal instrument that reflects your style and creativity. Whether you're into blues, rock, or metal, this guitar kit delivers professional-level components in a DIY-friendly format.

Click to Download

→ DIY Assembly Guide

→ Electronics Overview

→ Electronics Diagram

*Please Note, Instructions and Diagrams show a different guitar body shape but are still relevant for this DIY Kit. The wiring, parts and functionality are 100% identical between kits.

Specifications

• Model Number : E575DIY
• Instrument : Electric Guitar (GS style) (DIY Kit)
• Body : Poplar (HGS)
• Binding : Deluxe ABS vintage cream
• Fretboard : Dark Rosewood w/ Mother-of-Pearl trapezoid block inlays
• Neck : Maple (super thin-c)
• Neck Joint : Set-In
• Number of Frets : 22
• Electronics Connections : Plug-n-Play connectors
• Controls - Knobs  : 2 Volume / 2 Tone (silver-black “top hat” knobs)
• Controls - Switch : 3-Way Toggle Switch
• Pickups : H-H (Humbucker-Humbucker) Ceramic w/ Chrome cover
• Pickups - Neck : P-3002-50 (Ferrites: 8.5K 3.5H / Dimensions: 70.5mm x 38.5mm)
• Pickups - Bridge : P-3002-52.5 (Ferrites: 8.8K 3.9H / Dimensions: 70.5mm x 38.5mm)
• Tuners : Tuners: Gotoh-style Sealed Rotomatic
• Truss Rod : 2-way adjustable w/ ebony coloured cover
• Nut : Plastic (ivory colour)
• Bridge : Tune-O-Matic
• Saddle : Lock-Tone
• Strings : 6 (Stainless Steel)
• Hardware : Chrome
• Pickguard/Trims : 3-ply ’63 vintage-style (ebony colour)
• Finish : White Primed
• Includes : 3 Picks, Instrument Cable, & Truss Rod Key

Dimensions

• Length : 990mm (excluding endpin)
• Scale Length : 628mm
• Weight - Body/Neck : 2.05kg
• Weight - Electronics/Hardware : 0.95kg

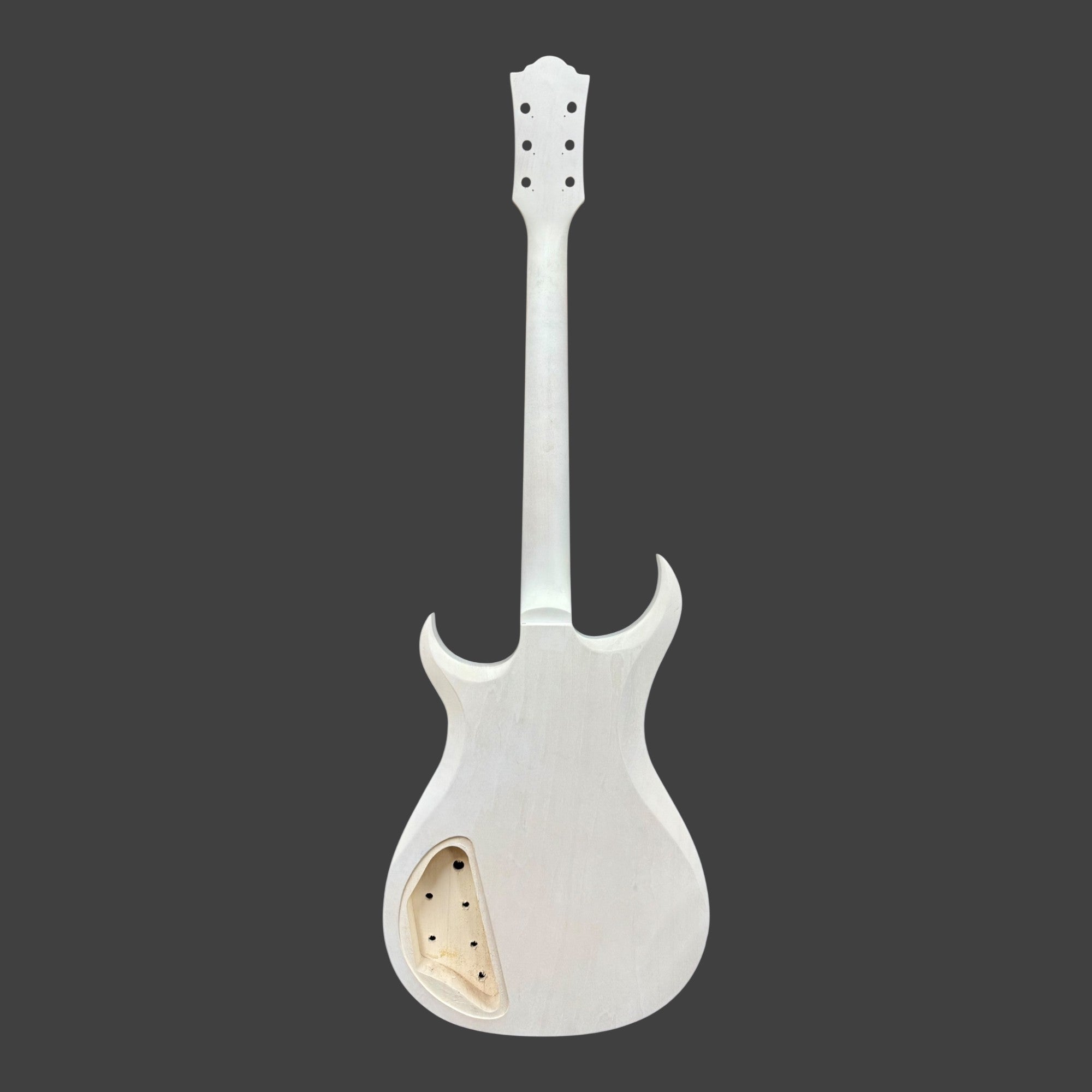

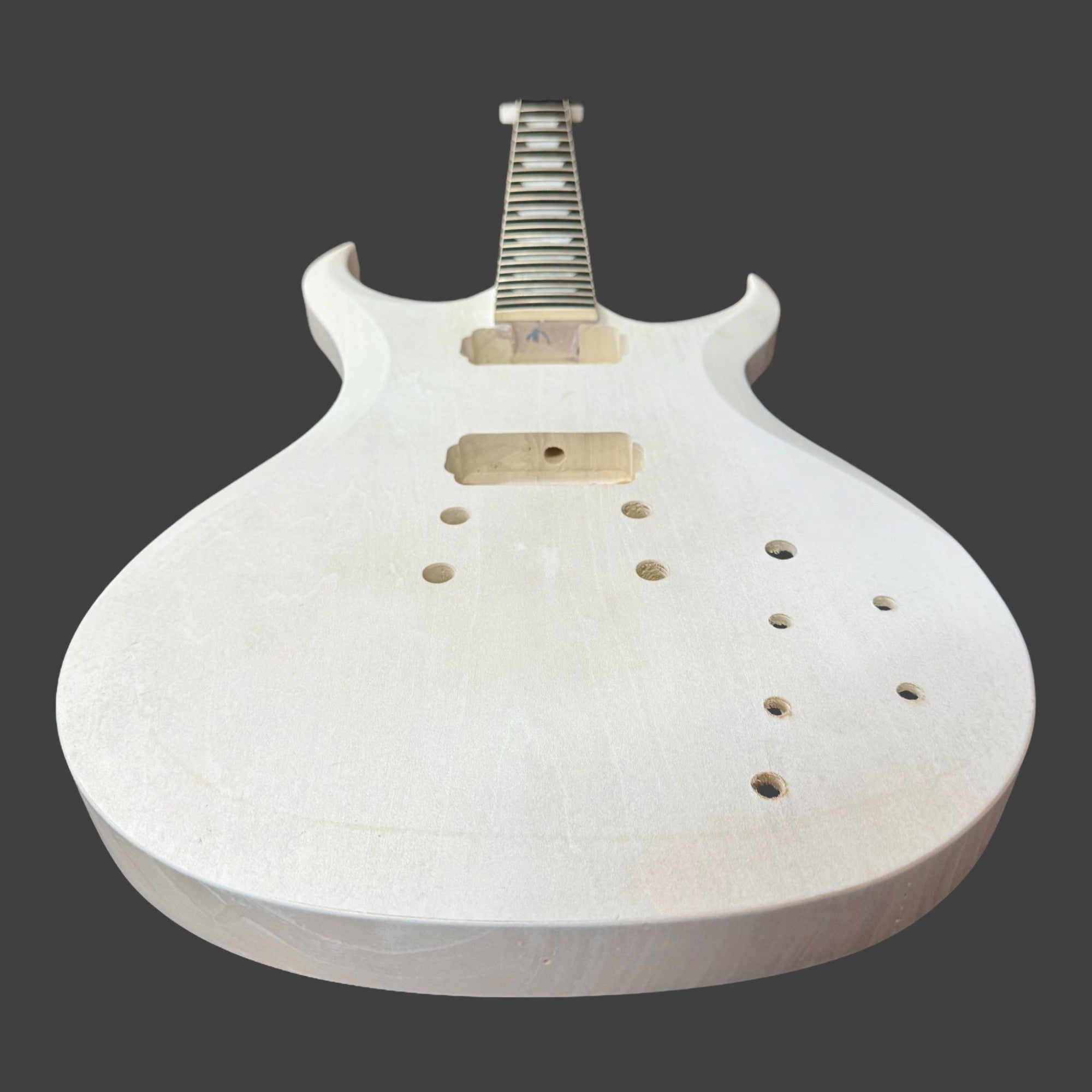

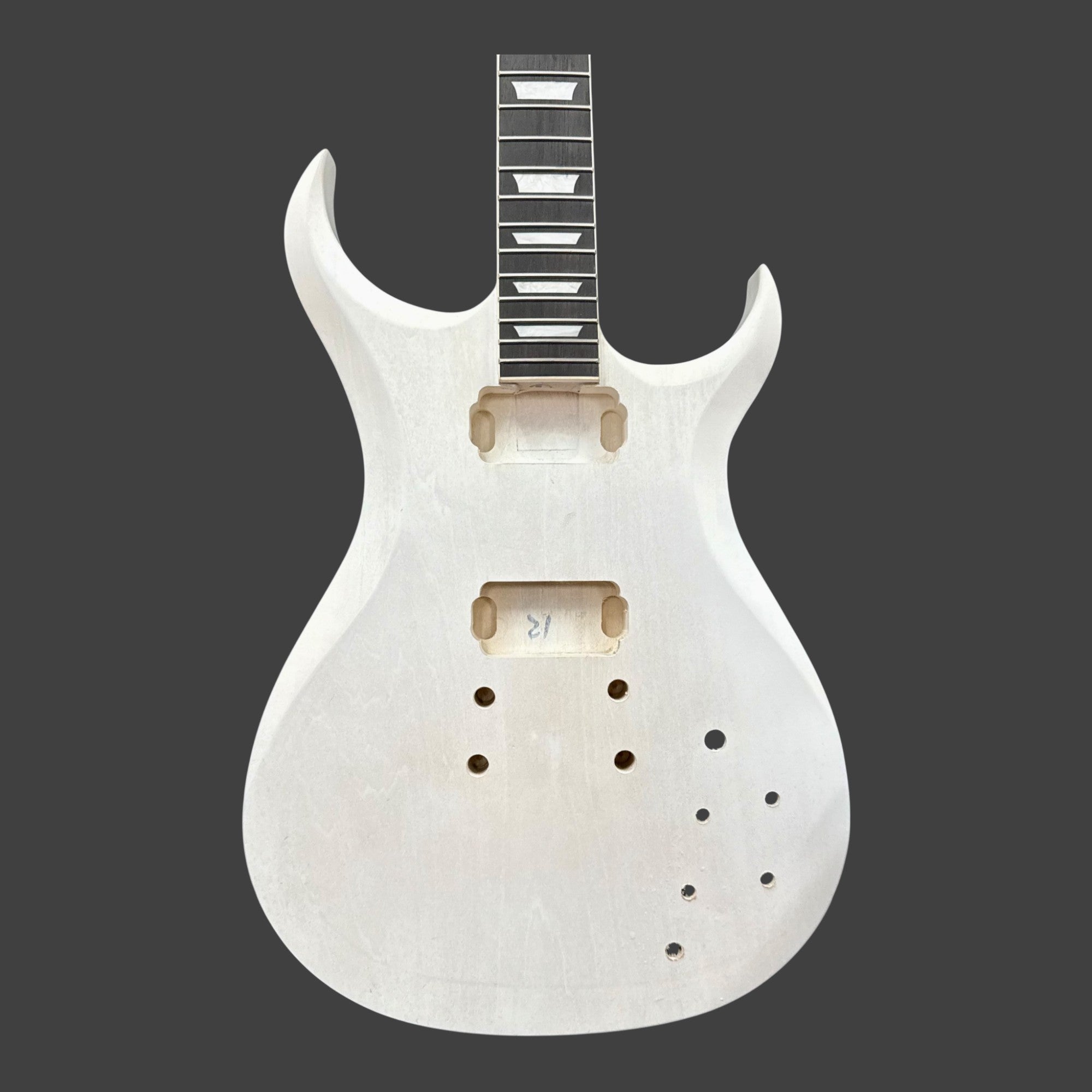

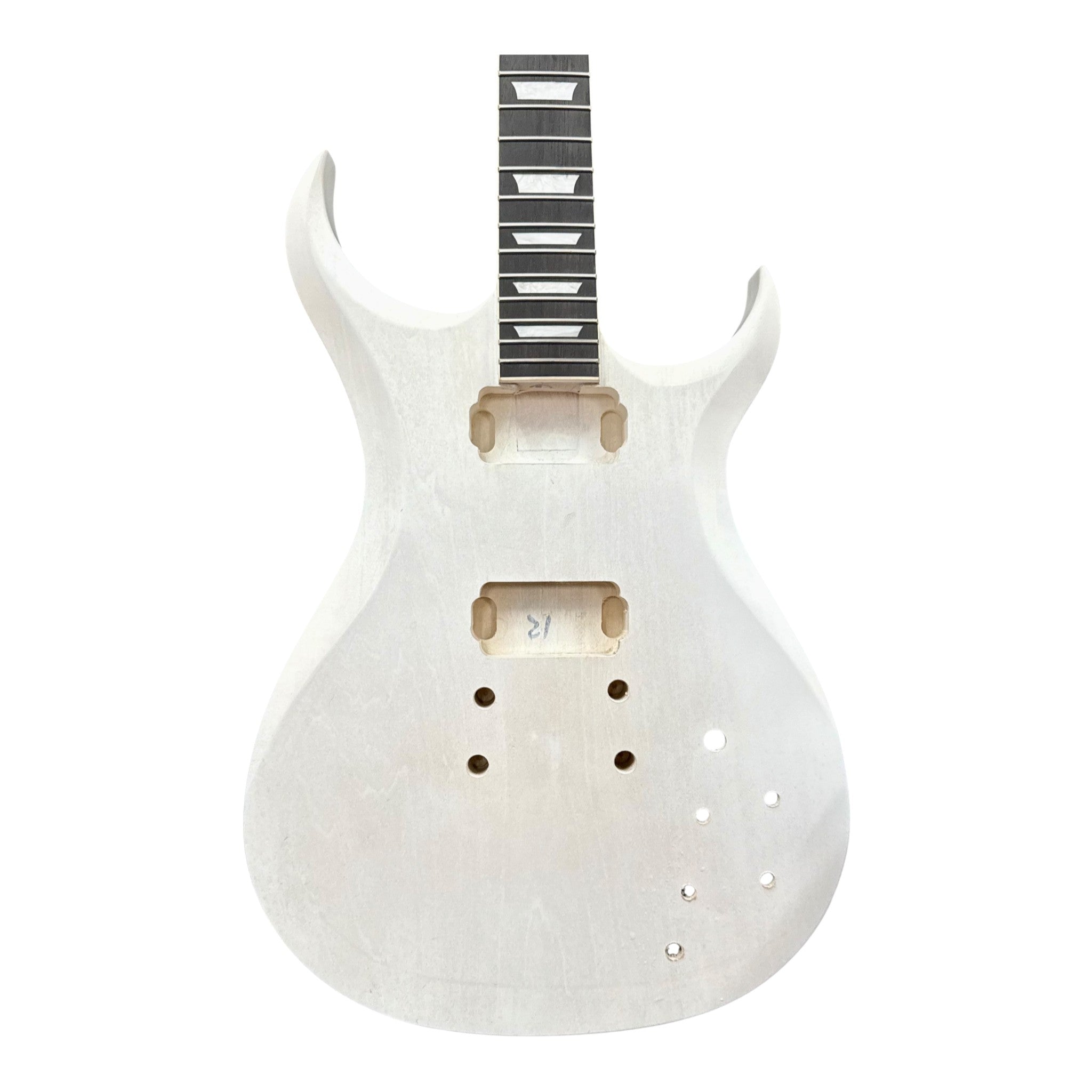

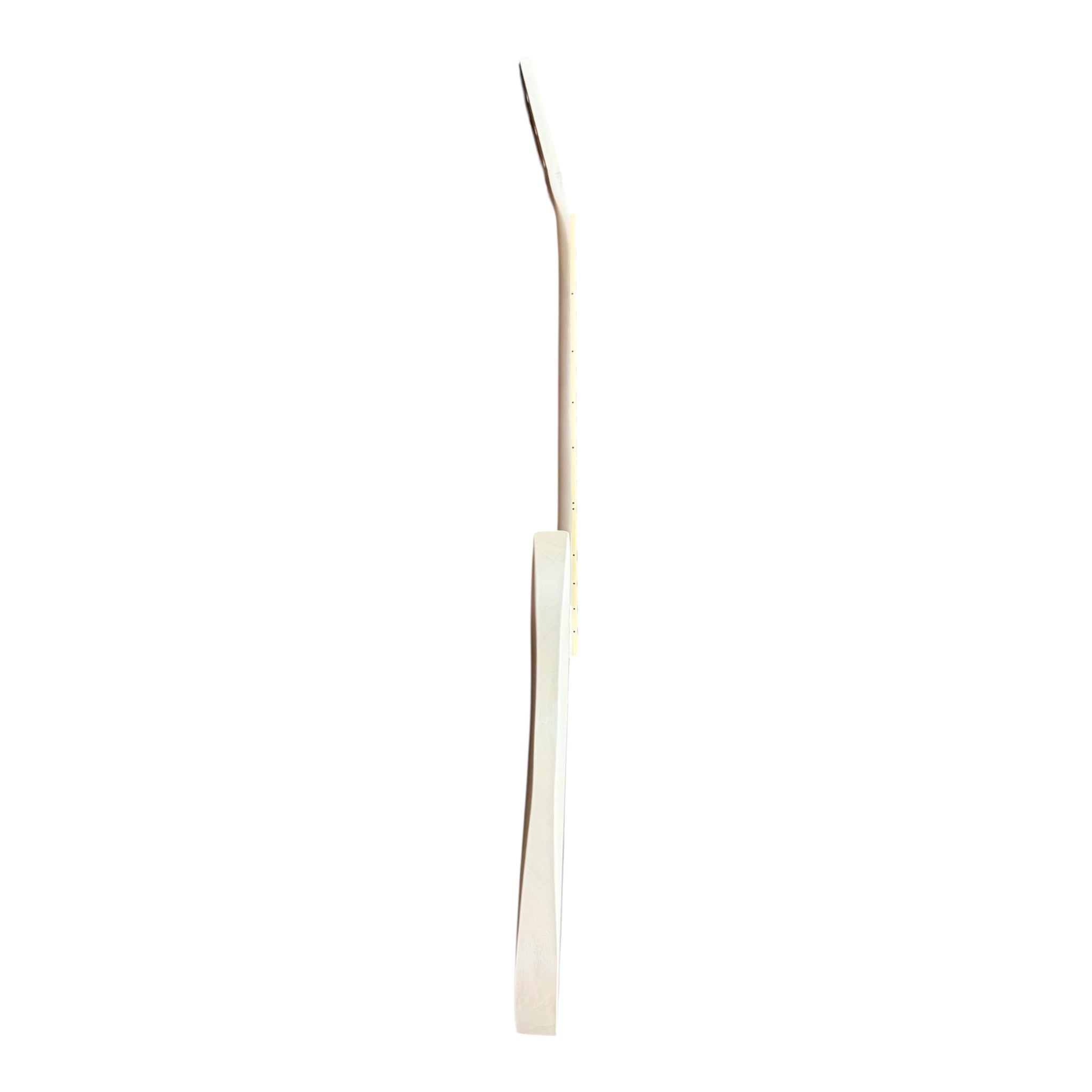

Body

• Length : 410mm
• Width - Upper Bout : 280mm
• Width - Inner Body : 205mm
• Width - Lower Bout : 330mm
• Depth : 36mm (includes top, measured on side)

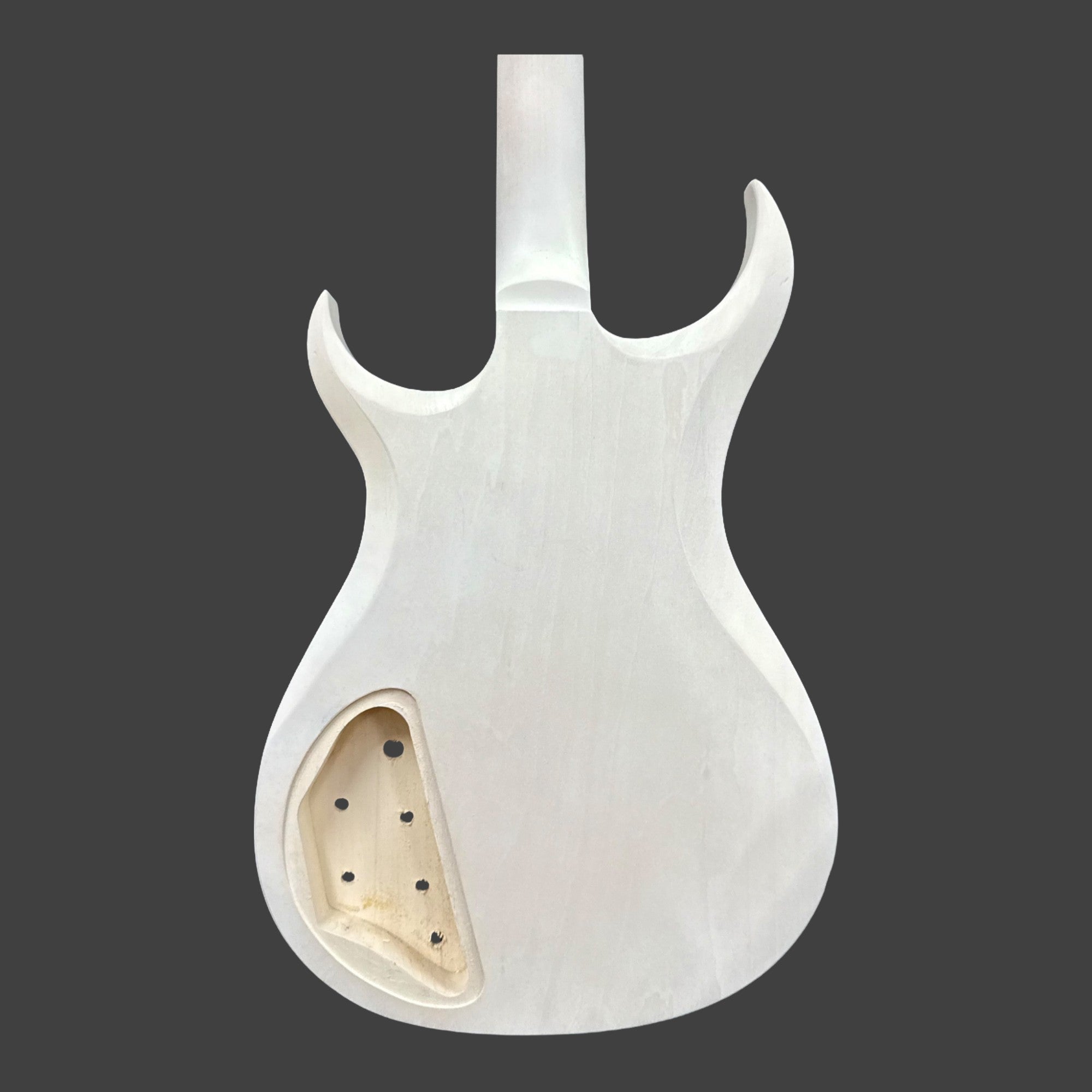

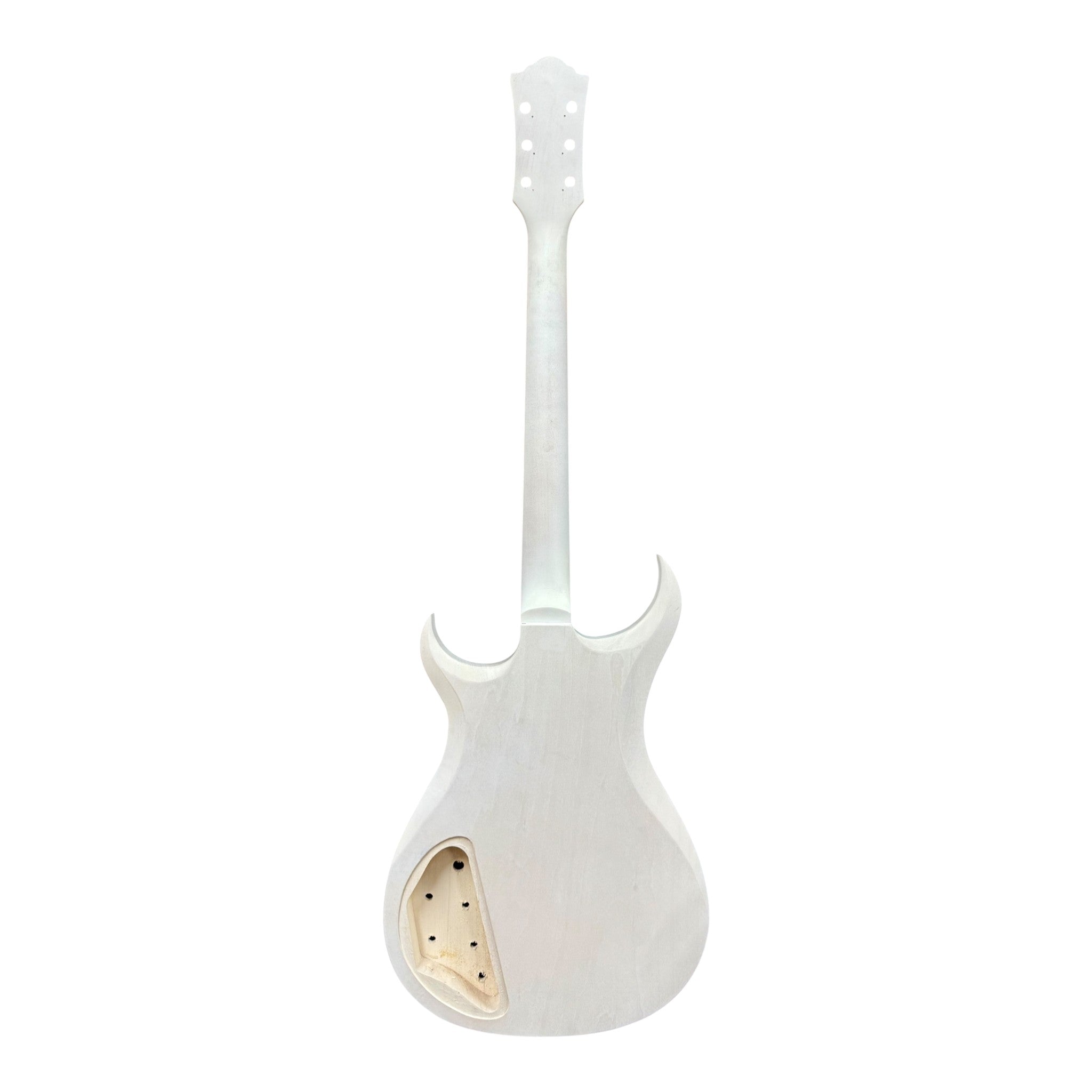

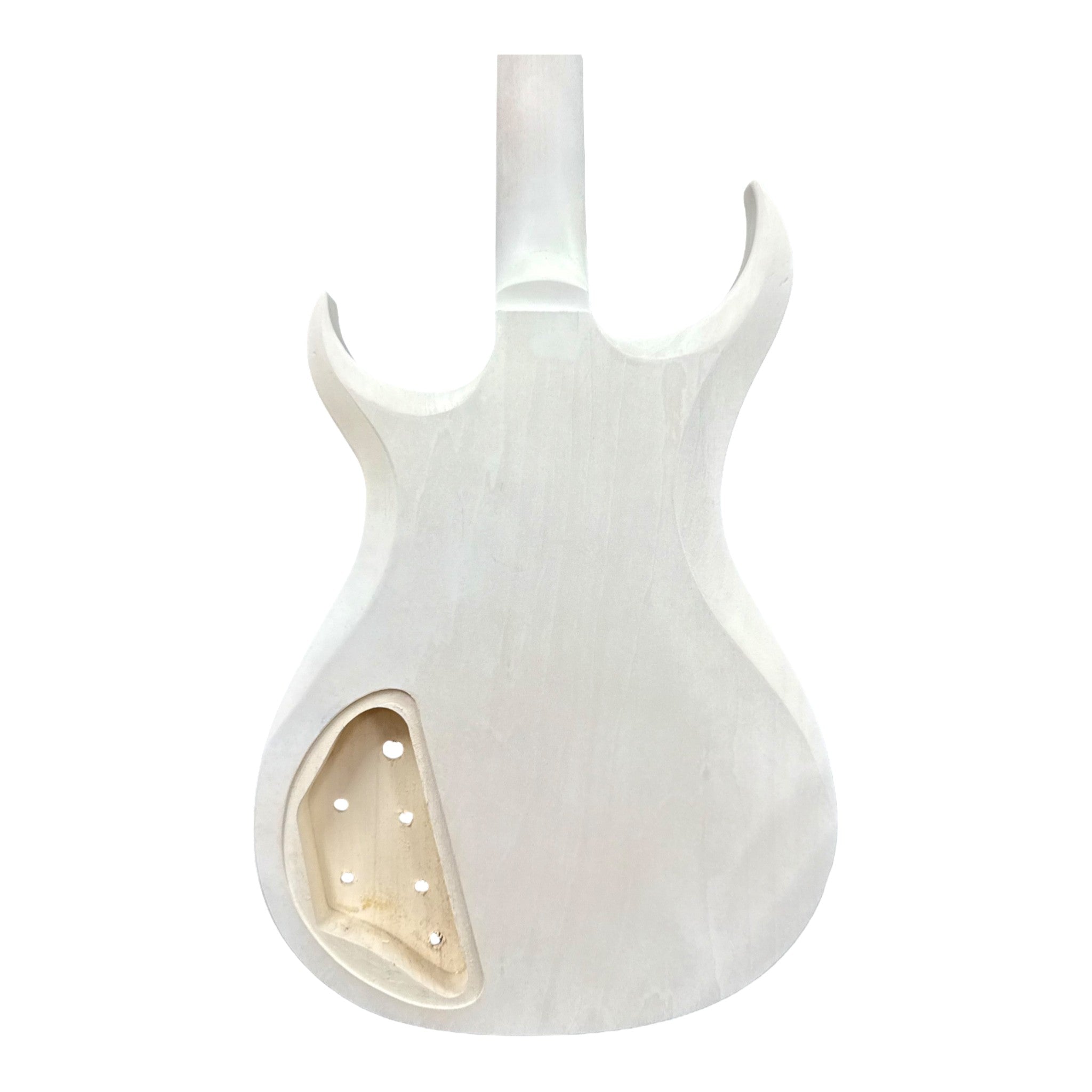

Body Compartments

• Length - Pickups : 43mm
• Width - Pickups : 88mm
• Control Knobs - Back : 170mm x 75mm
• Line Out : 10mm
• Controls : 8mm
• Switch : 12mm
• Bridge & Saddle : 12mm
• Distance - Pickup Compartments: 62mm
• Distance - Bridge Holes : 62mm
• Distance - Saddle Holes : 70mm

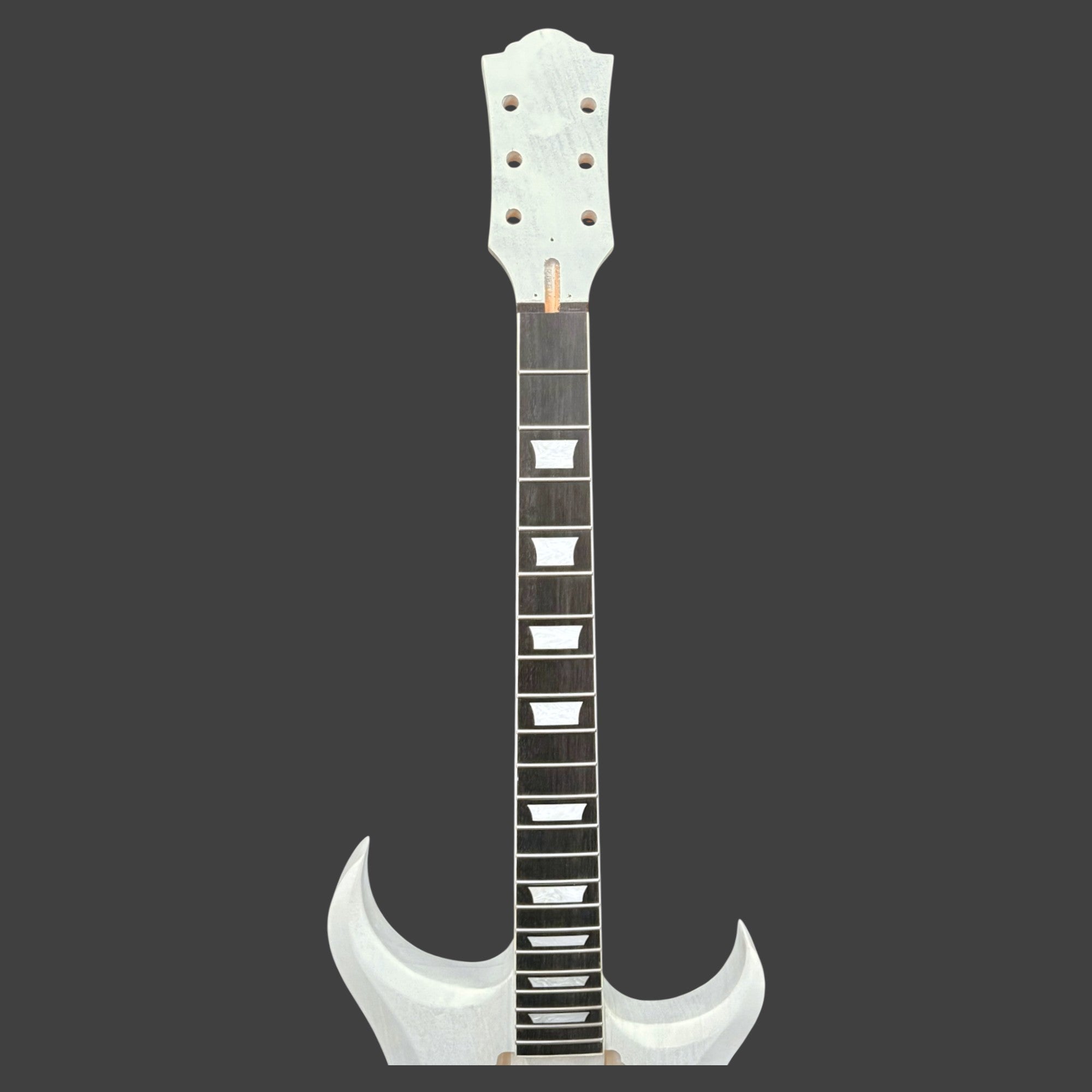

Neck

• Length : 642mm
• Length - Fretboard : 462mm
• Thickness : 22mm
• Thickness - Fretboard : 5mm
• Radius : 12 (Straight)
• Width - Nut : 42mm
• Width - 12th Fret : 52mm

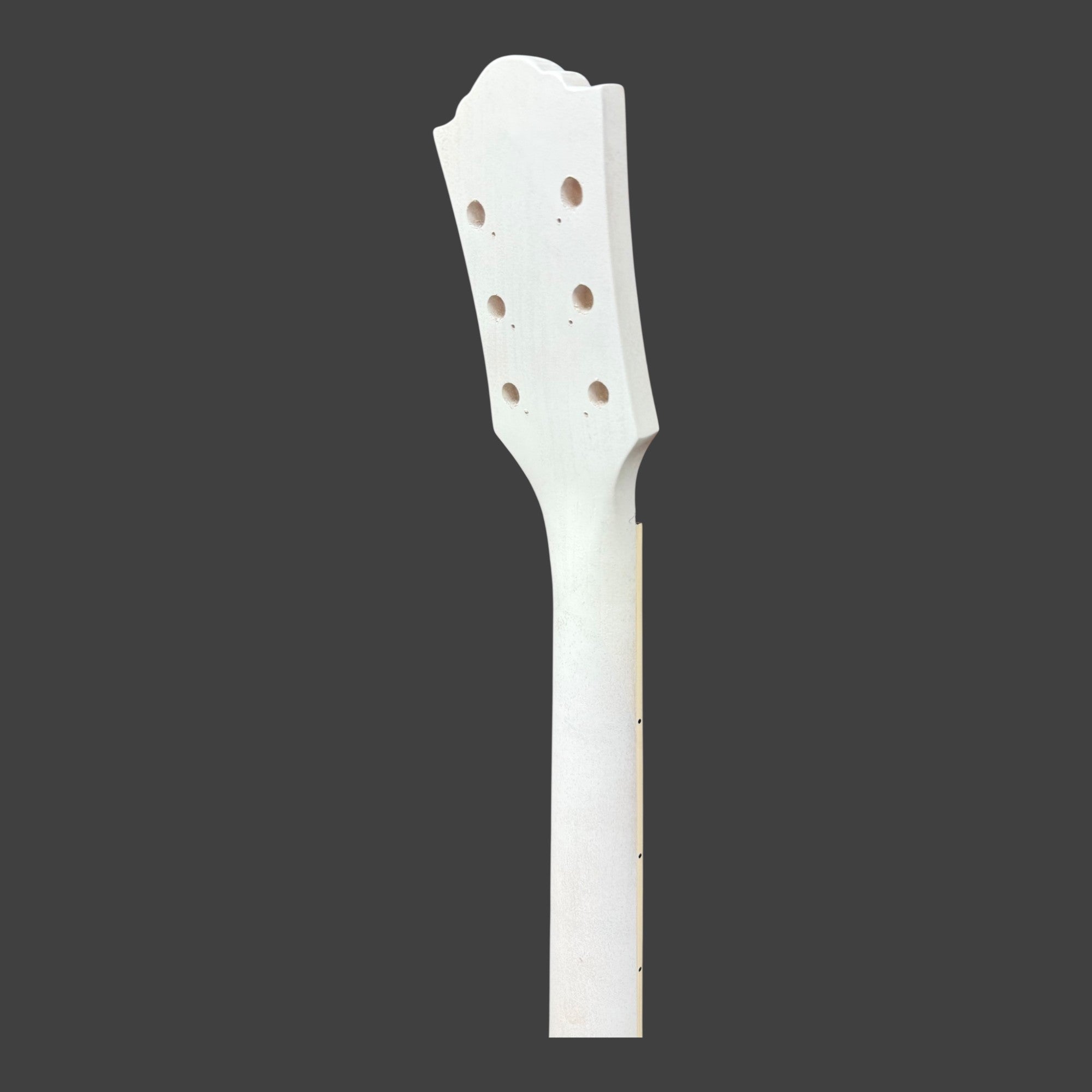

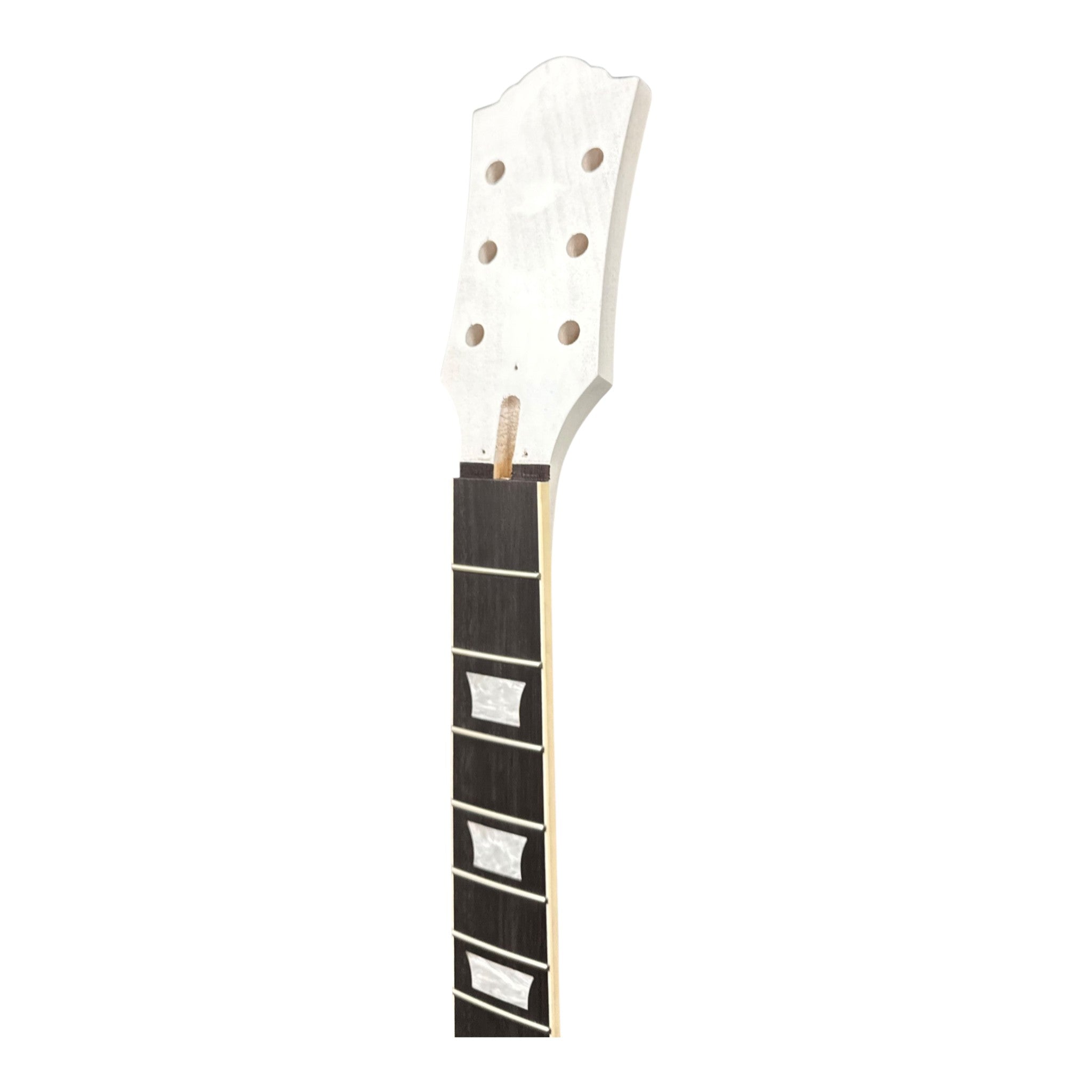

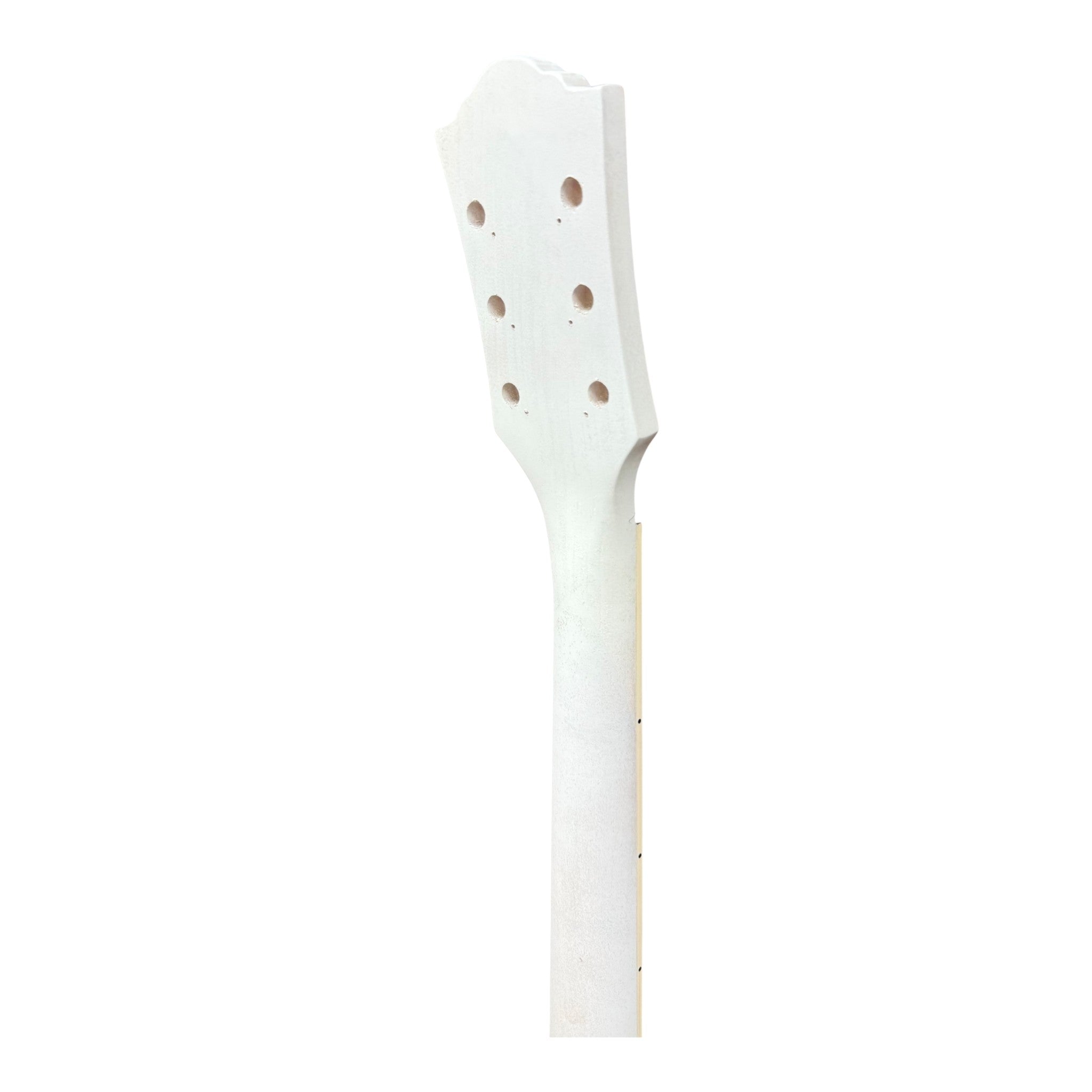

Headstock

• Length: 177mm
• Width - Upper: 79mm
• Width - Inner: 68mm
• Width - Lower : 75mm
• Thickness : 14mm
• Tuner Holes : 10mm

Nut

• Length : 43mm
• Width : 8mm
• Height : 6mm

Note: All product measurements are taken by hand and may vary slightly. Please allow for minor differences in size and dimensions.

-
