Black Electric Guitar Hardware Accessories Parts TL 19100PP-BK

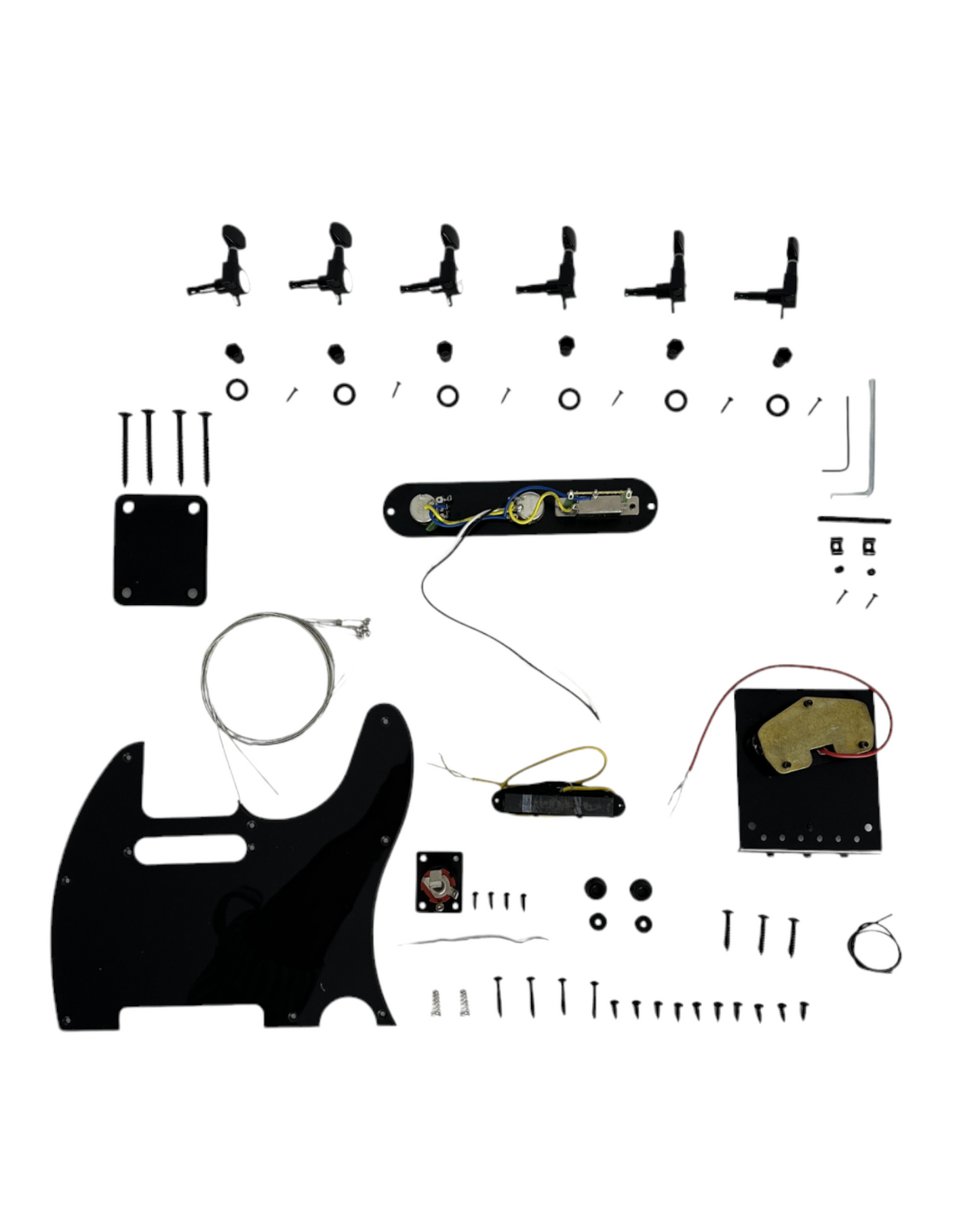

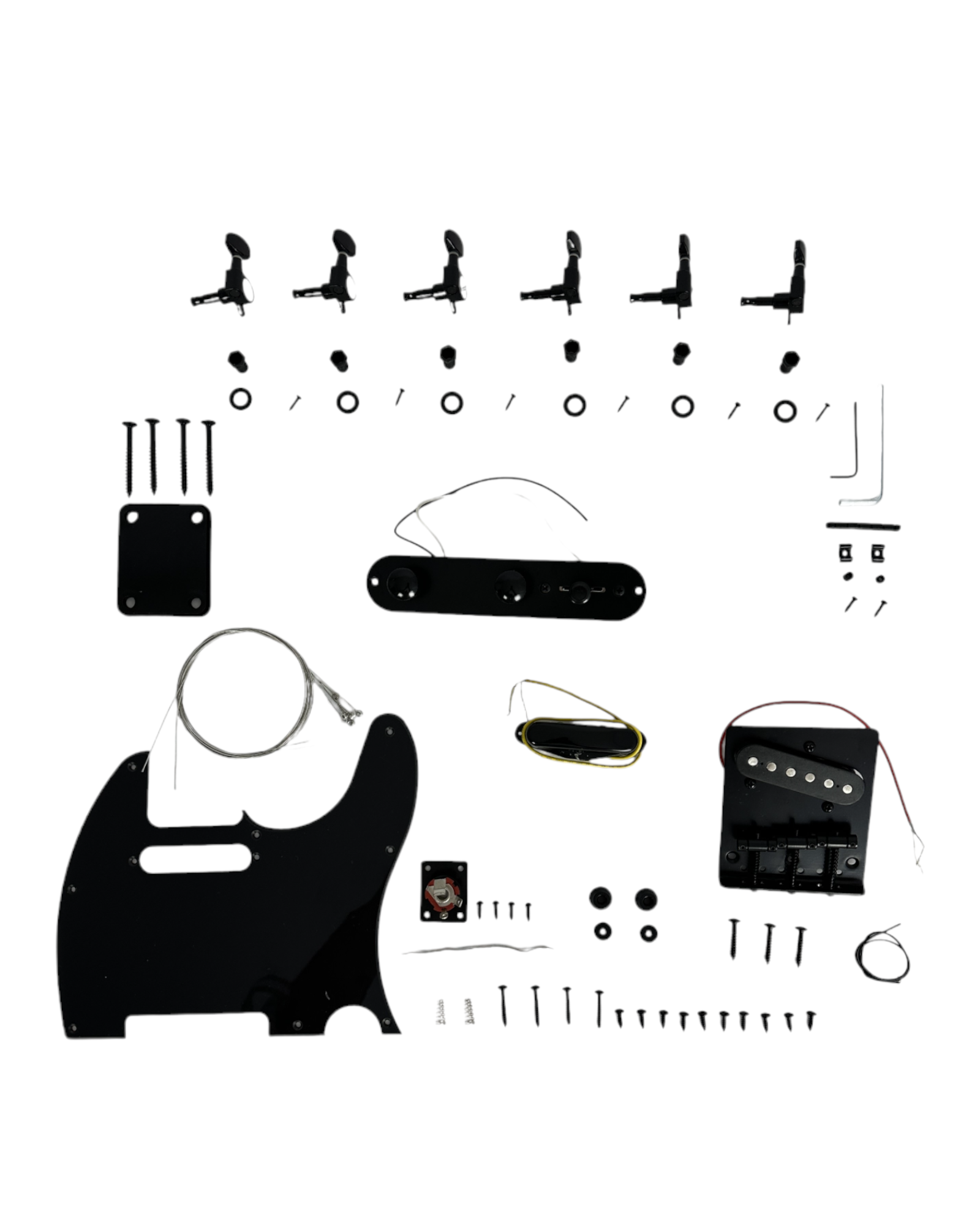

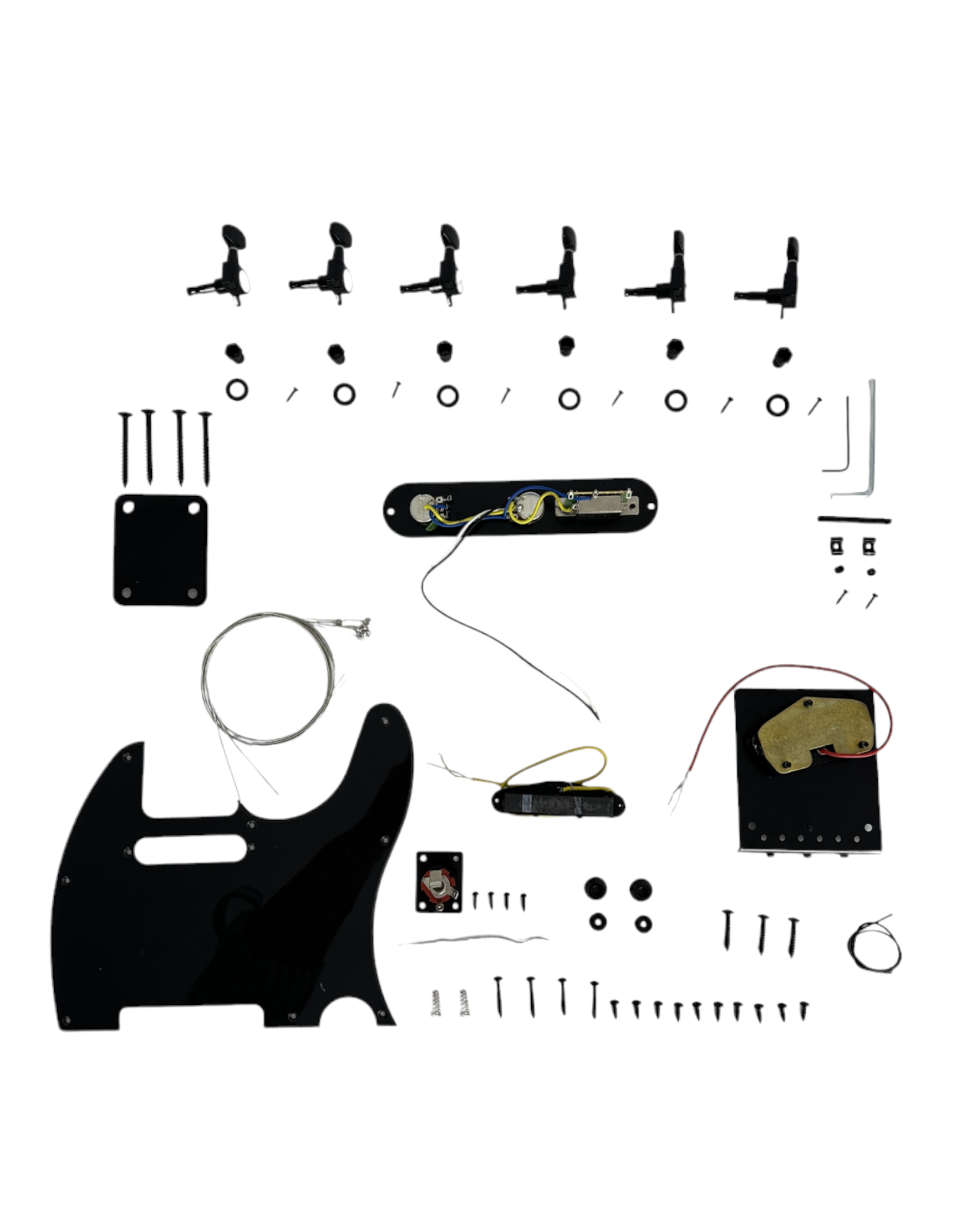

This full set of DIY electric guitar accessories has everything you need to build your own electric guitar.

Click to Download

→ Electronics Diagram

Specifications

Model                            TL 19100PP-BK

Scale                              25.5” (648mm)

Nut Width                     1.65” (42mm)

Nut                                Black

Pickguard                      Black

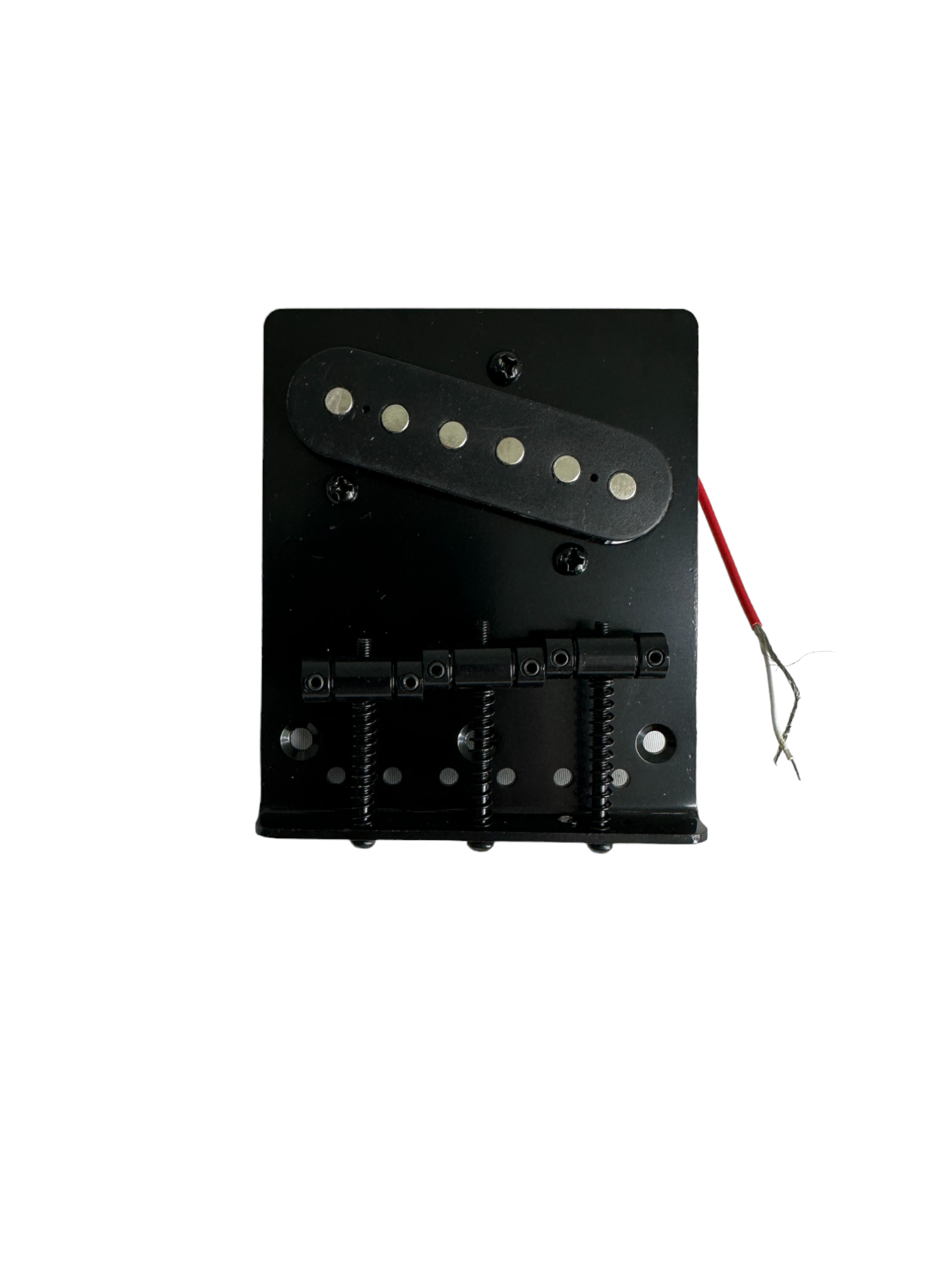

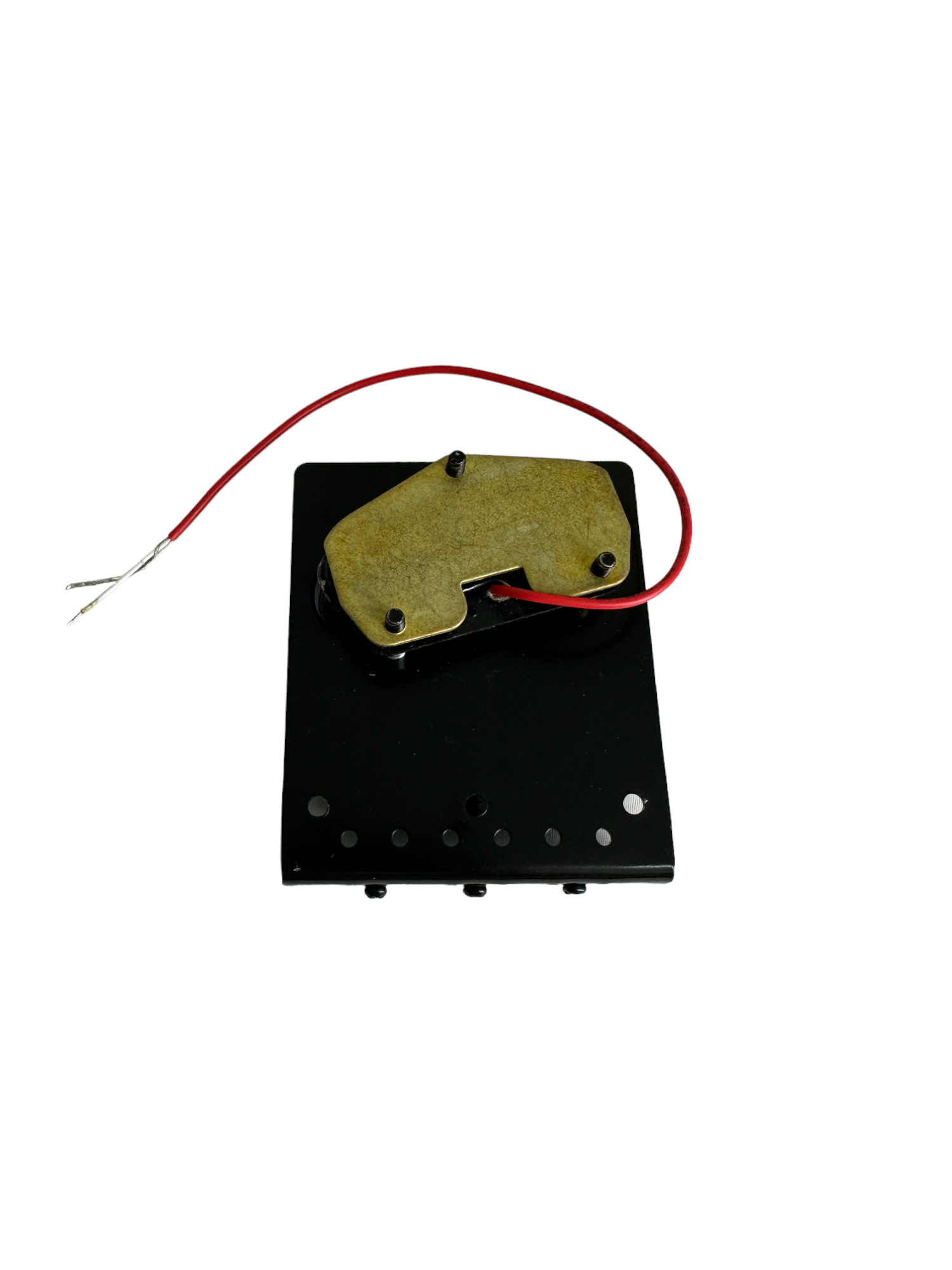

Bridge                           Black Tele. Style bridge,  string through

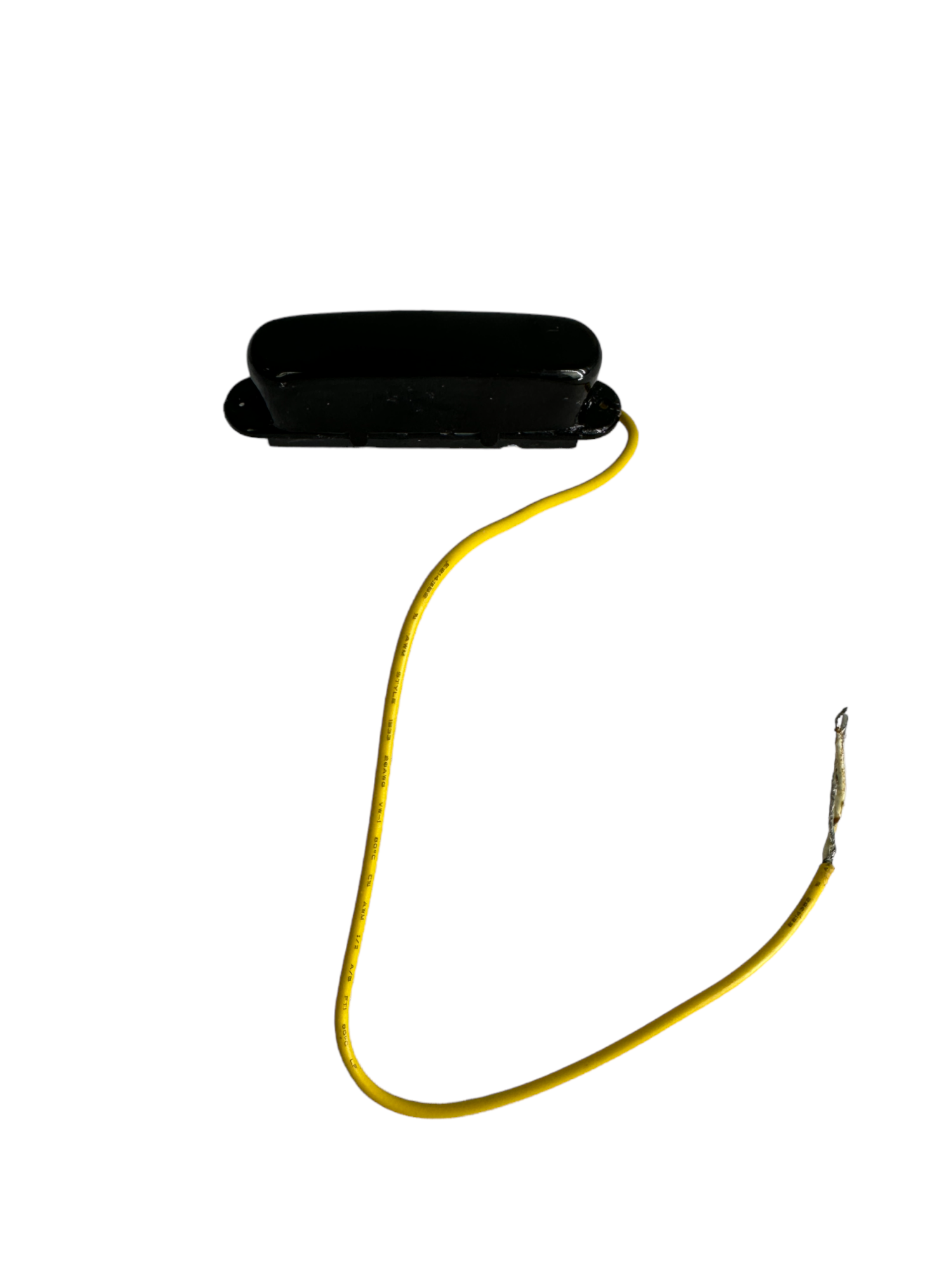

Pickups                          2 vintage Tele. style single coil pickups (S-S)

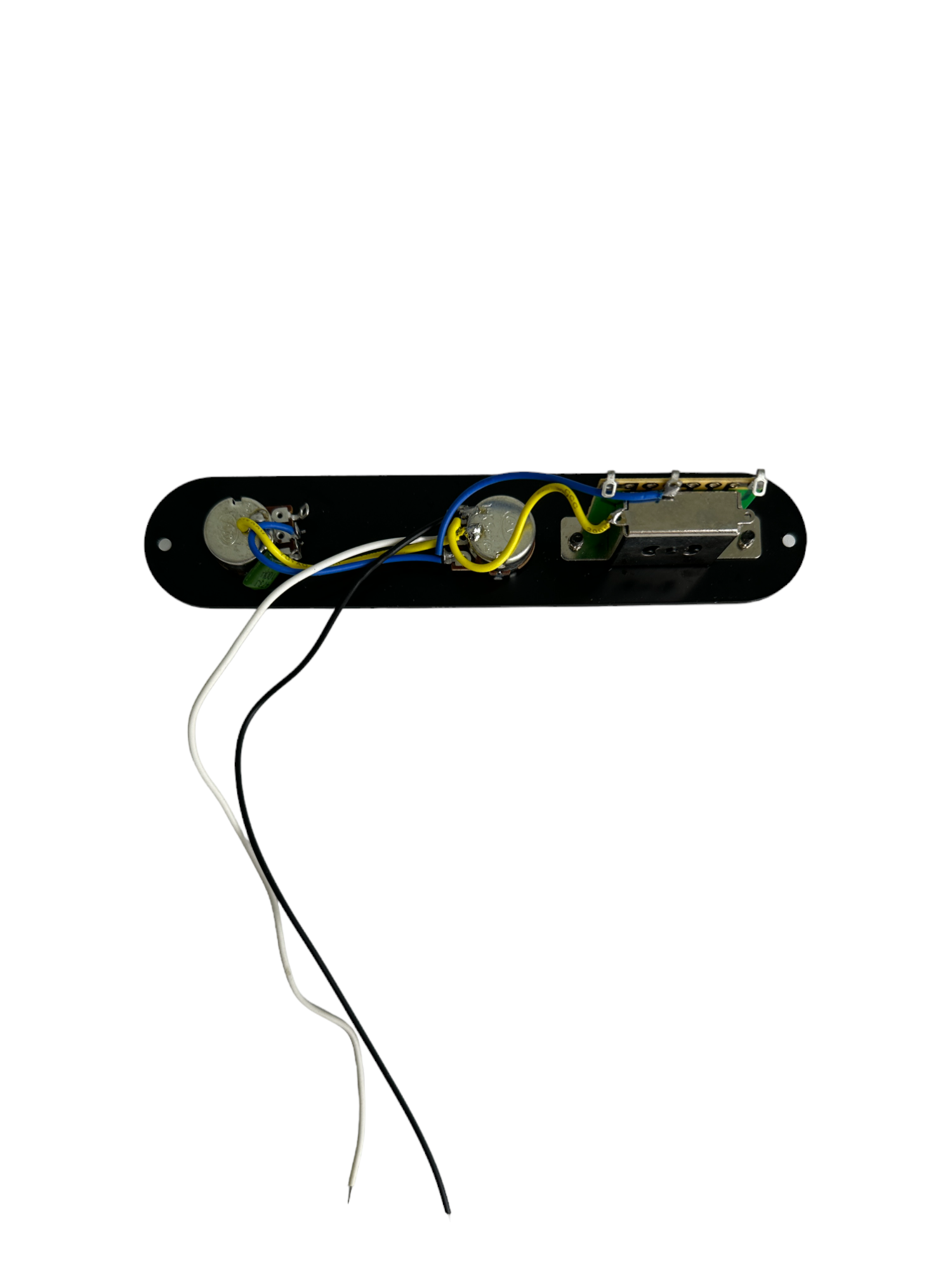

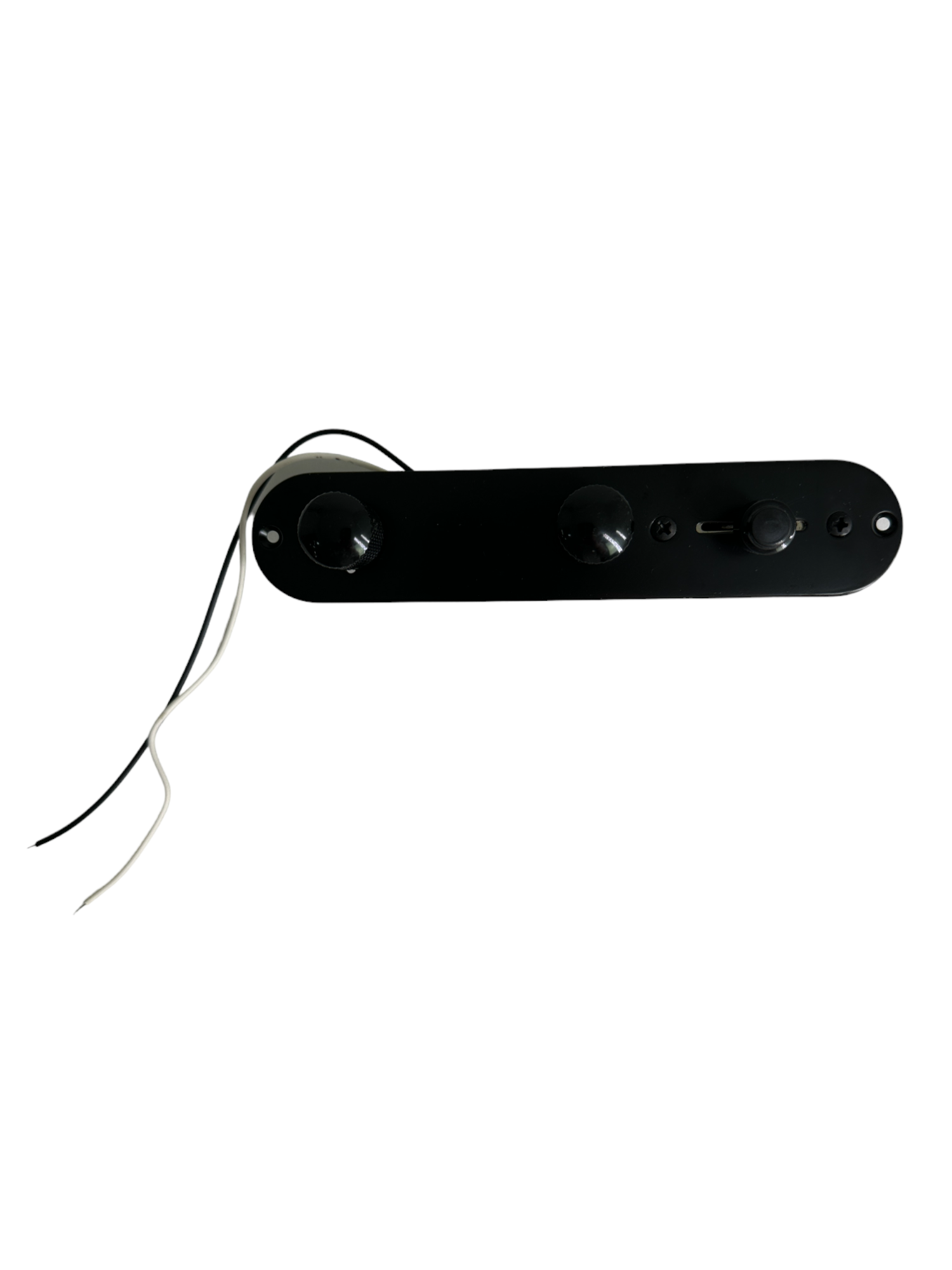

Controls                         1 Volume, 1 Tone, 3-way toggle selector, Black knurled knobs, Mounted on black control plate

Tuners                            Black Die-Cast + screws + ferrules

End Pins                         x2 Black strap pins + felts pads + screws

Included                        1 set of XL strings,  Truss rod key, Saddle adjust key

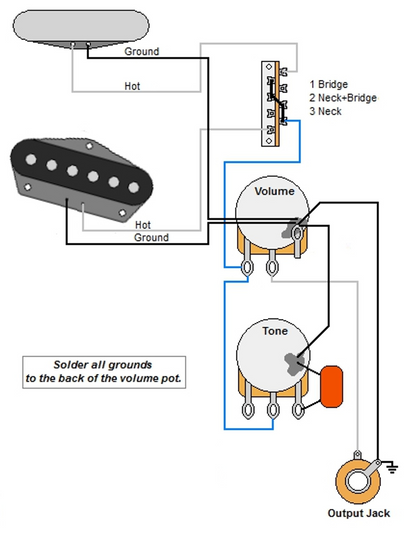

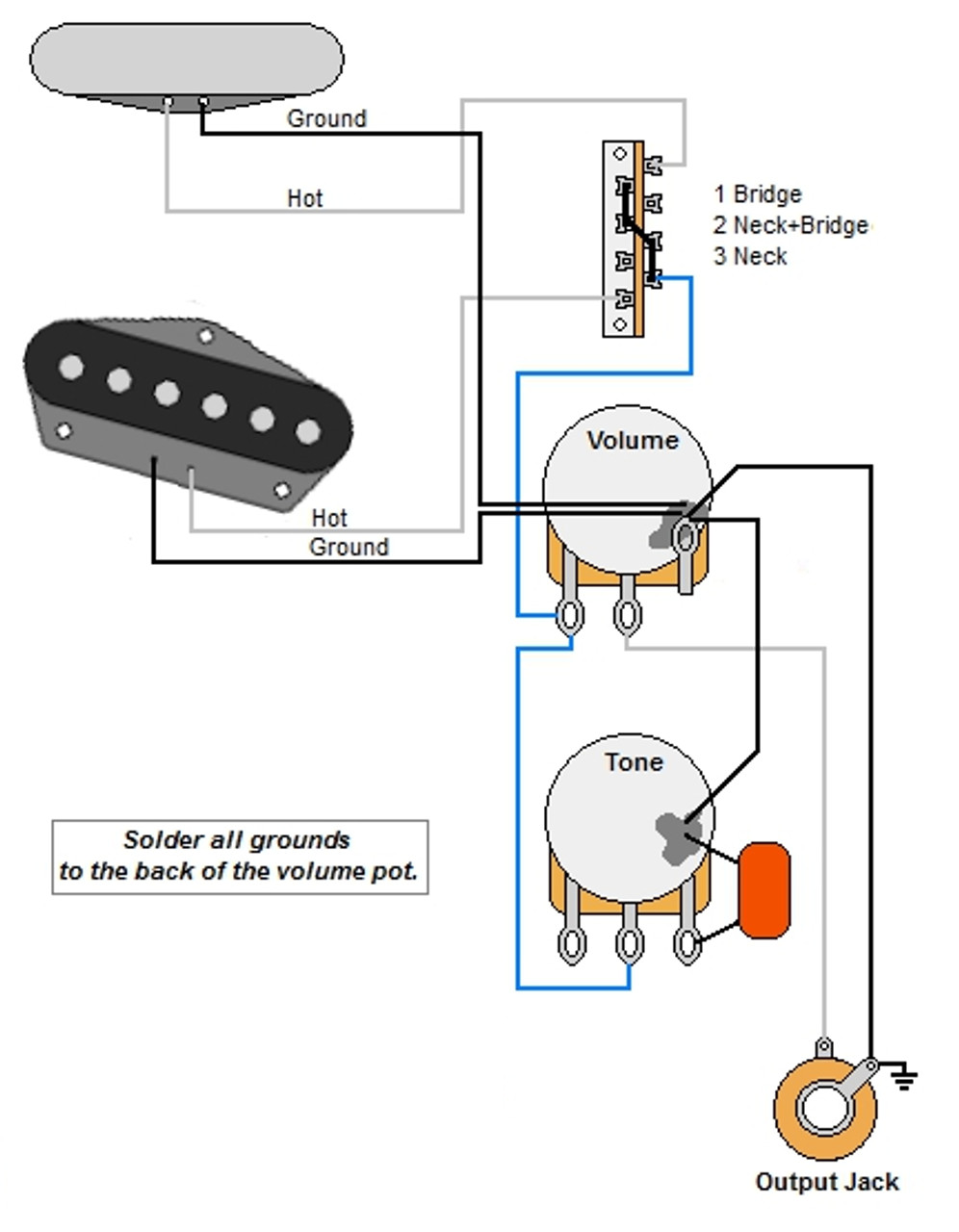

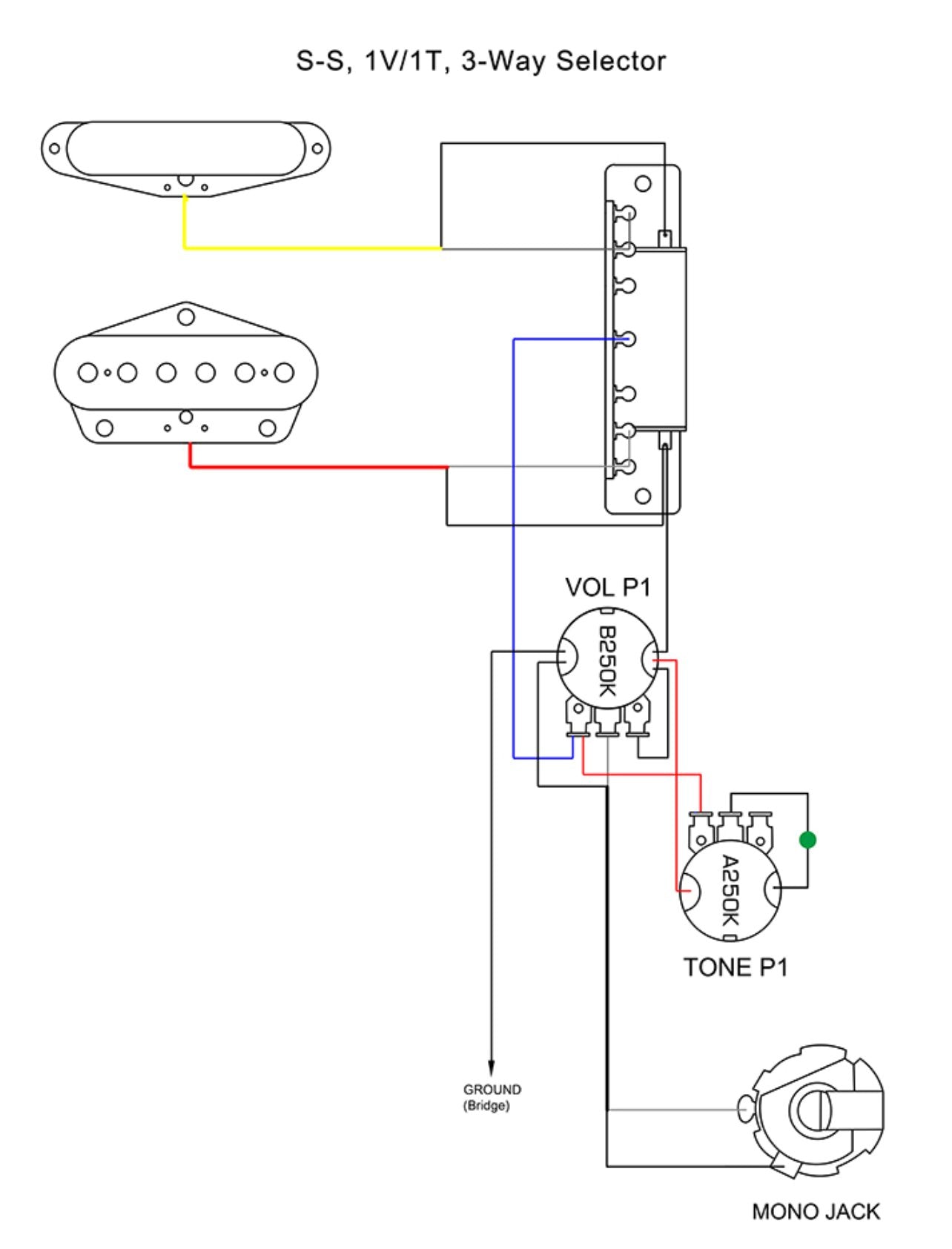

🎸 Wiring Diagram (Text Description):

Pickups to Switch:

• Bridge Pickup Hot (white or yellow wire) → 3-way switch (position 1 lug)

• Neck Pickup Hot (white wire) → 3-way switch (position 3 lug)

• Both Pickup Grounds → back of volume pot

Switch to Volume Pot:

• Middle lug of switch (common output) → volume pot input lug (left lug)

Volume Pot Wiring:

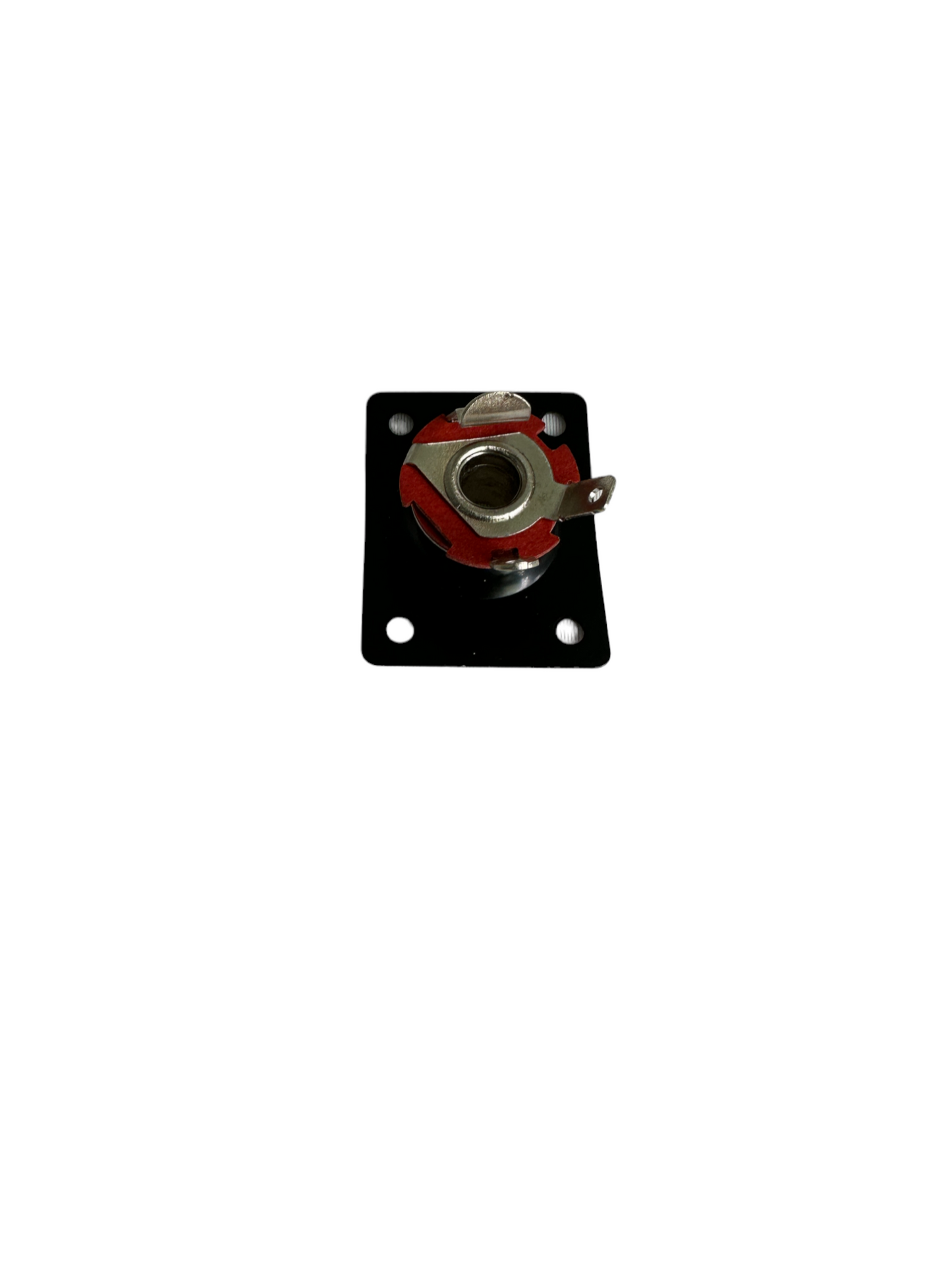

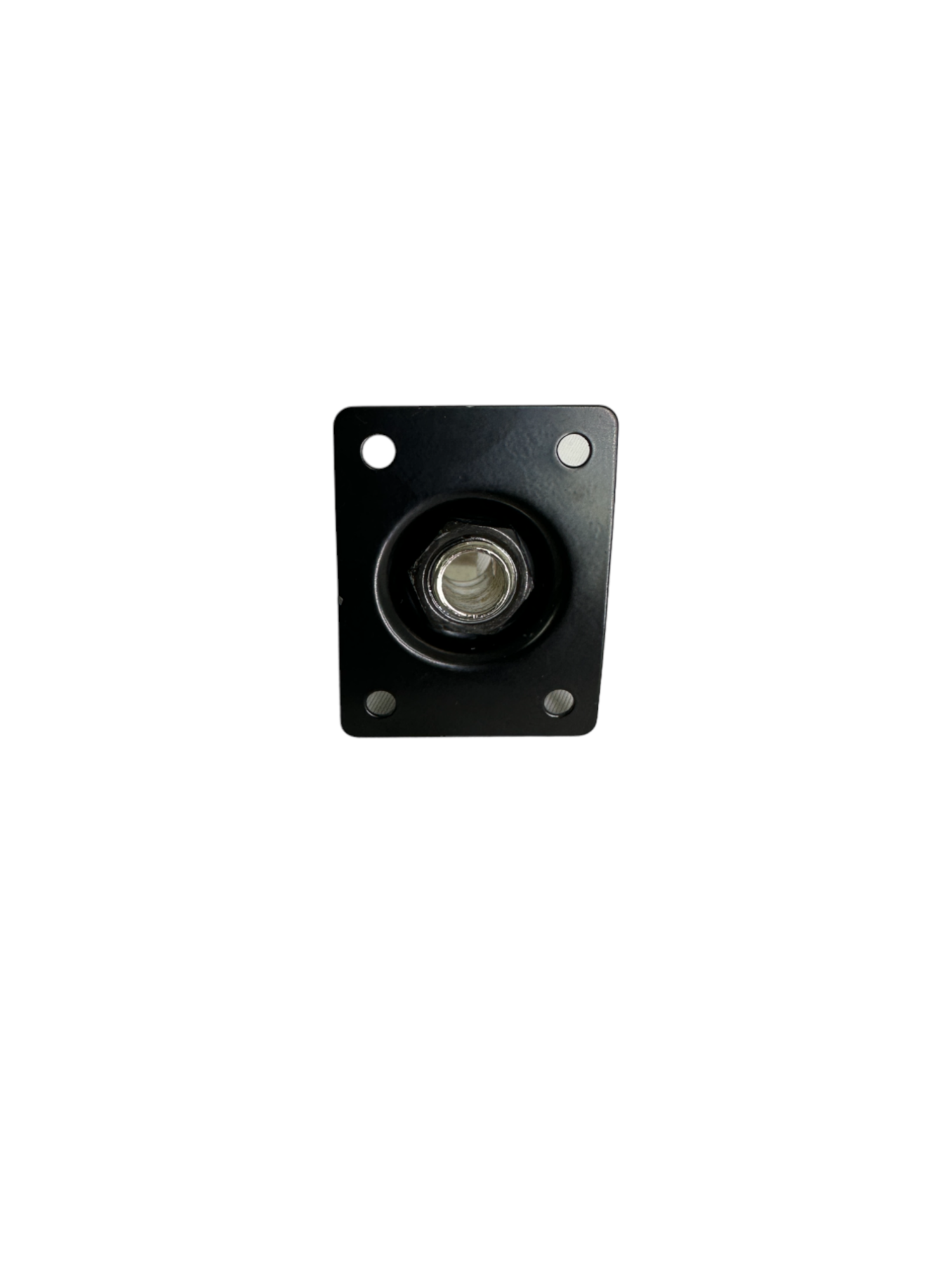

• Middle lug (output) → output jack tip

• Right lug grounded to pot casing

Tone Pot Wiring:

• One lug of tone pot → tone cap → volume pot input lug

• Middle lug (wiper) not connected

• Other lug → ground

Grounding:

• All component grounds (pickup grounds, pot casings, bridge ground) are connected

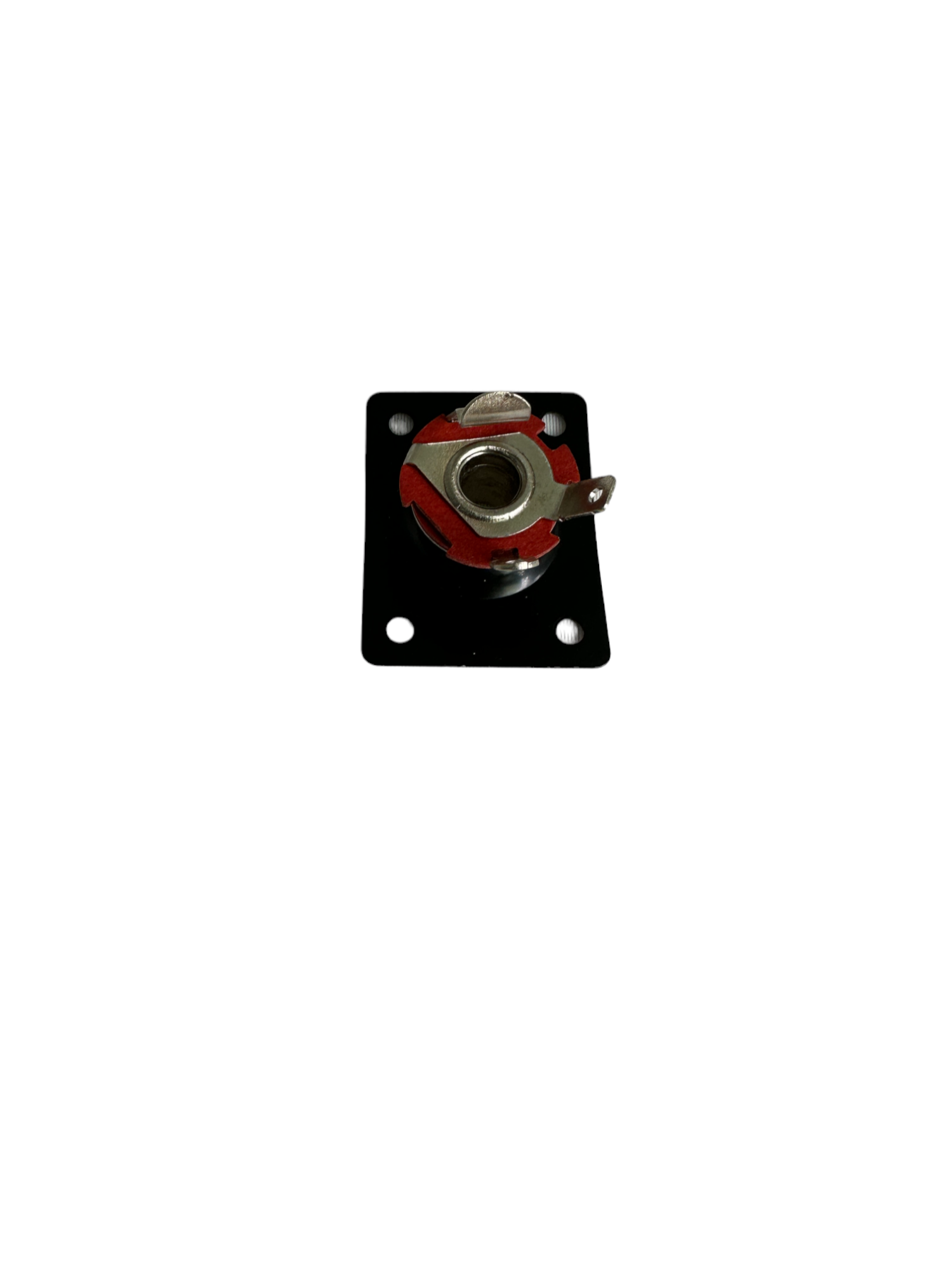

• Sleeve of output jack → ground
