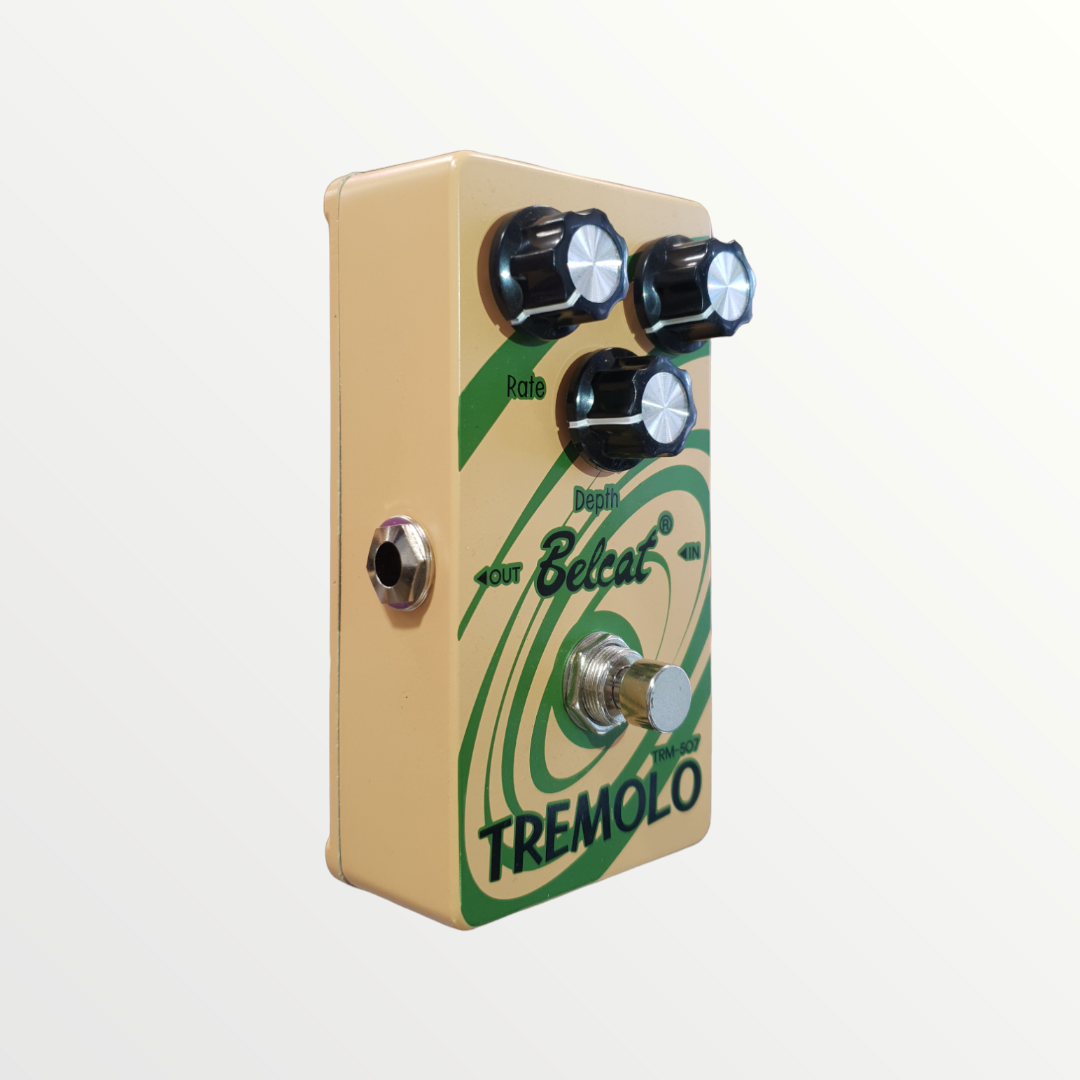

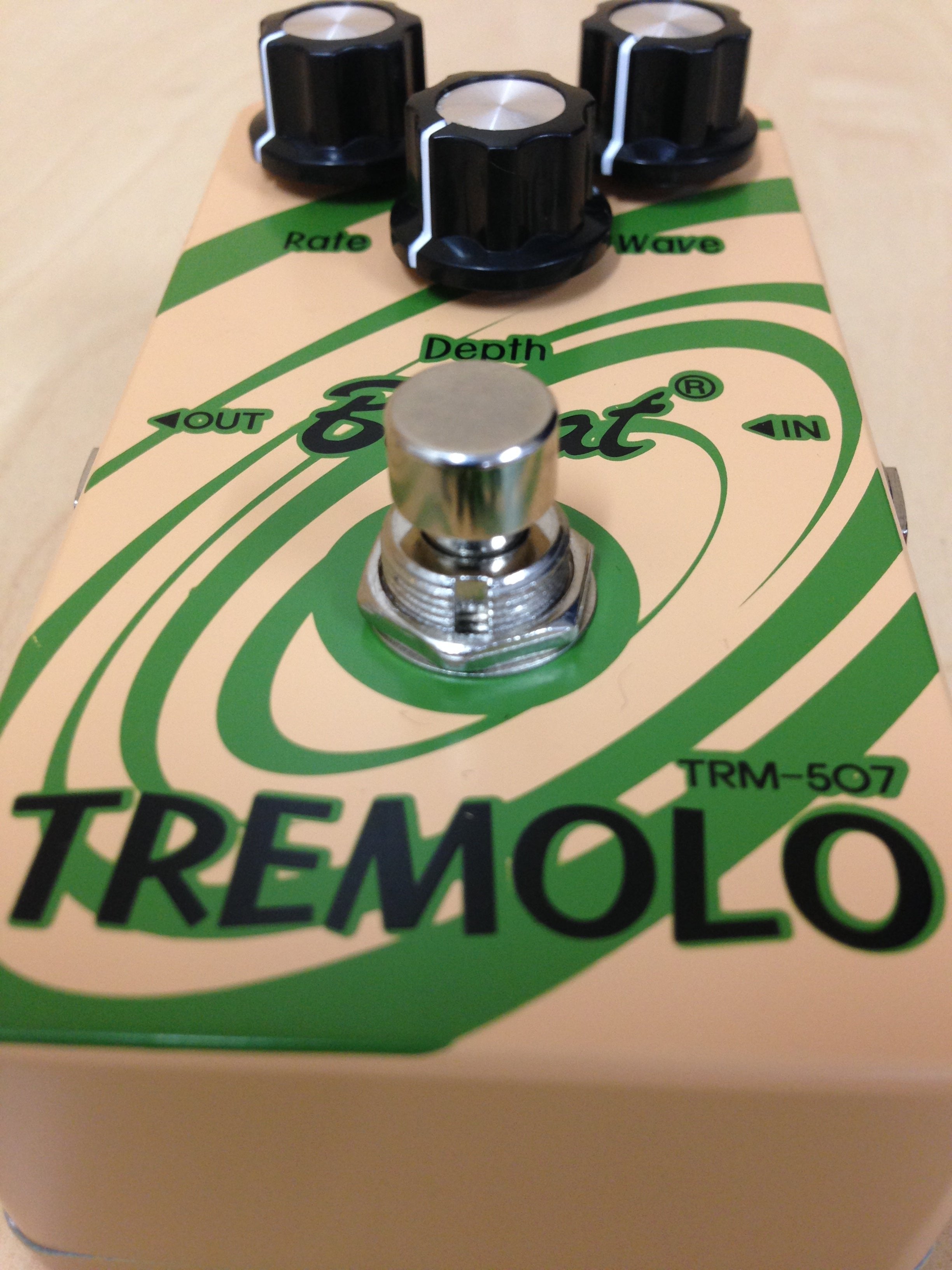

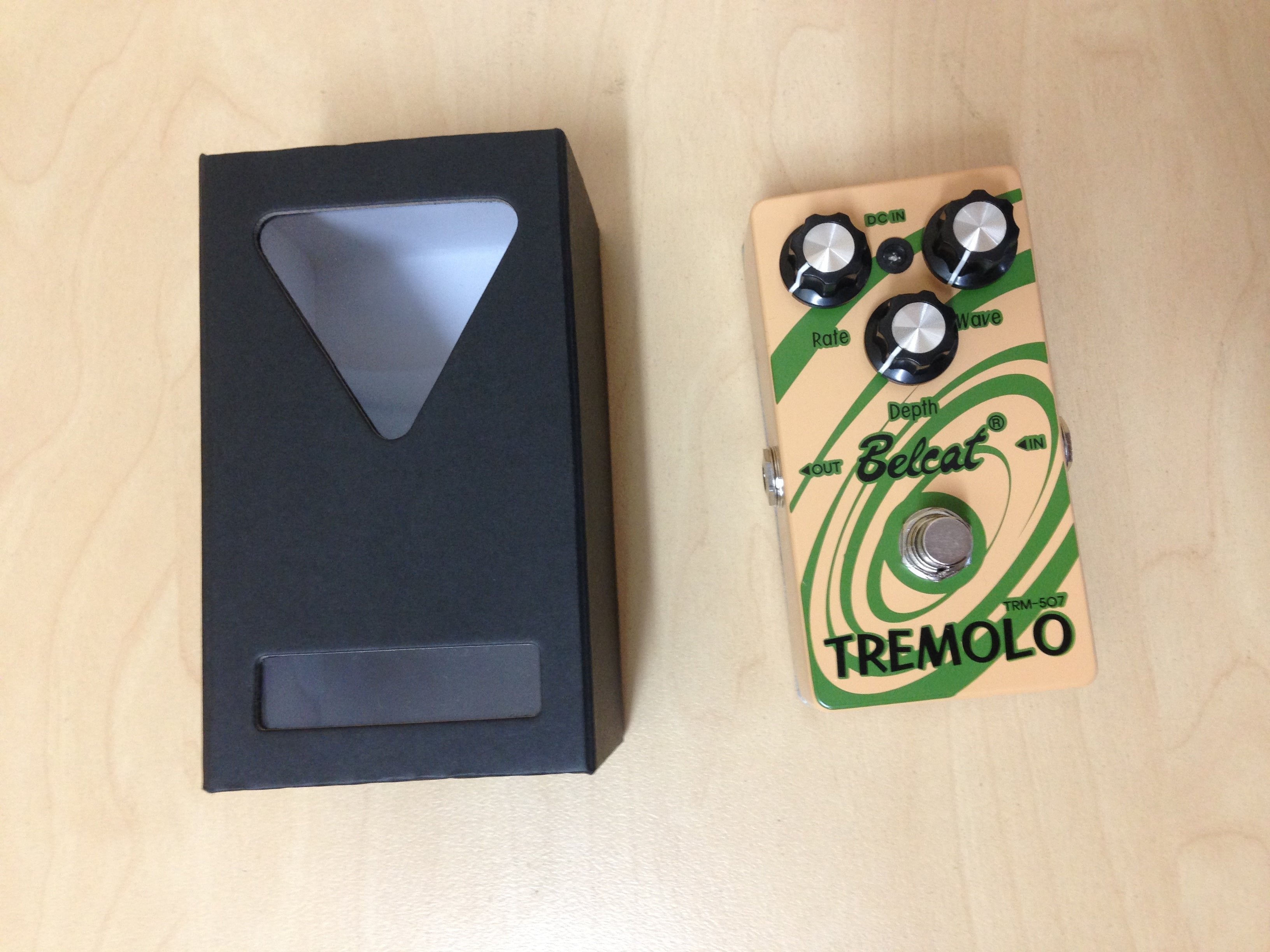

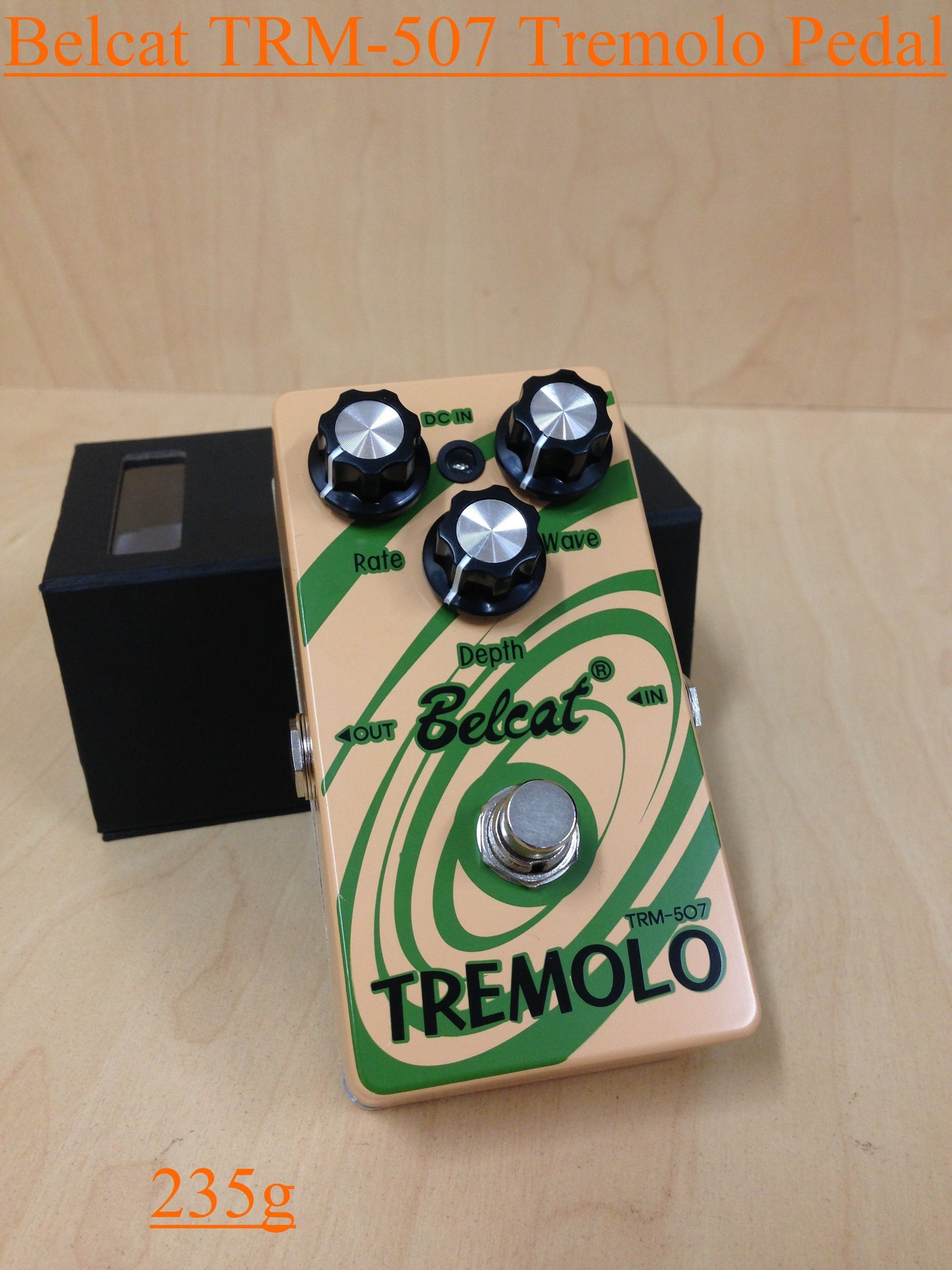

Belcat TRM-507 Tremolo Guitar Effects Pedal

https://www.youtube.com/watch?v=PXVfd8xtm38

The Belcat TRM-507 Tremolo Pedal is of robust yet light-weight construction, a solid steel unit that is controlled by three Precise controls - Rate, Wave and Depth. These ensure that virtually any tremolo sound can be achieved - a fine addition to any gigging musicians pedal board.

Specifications:

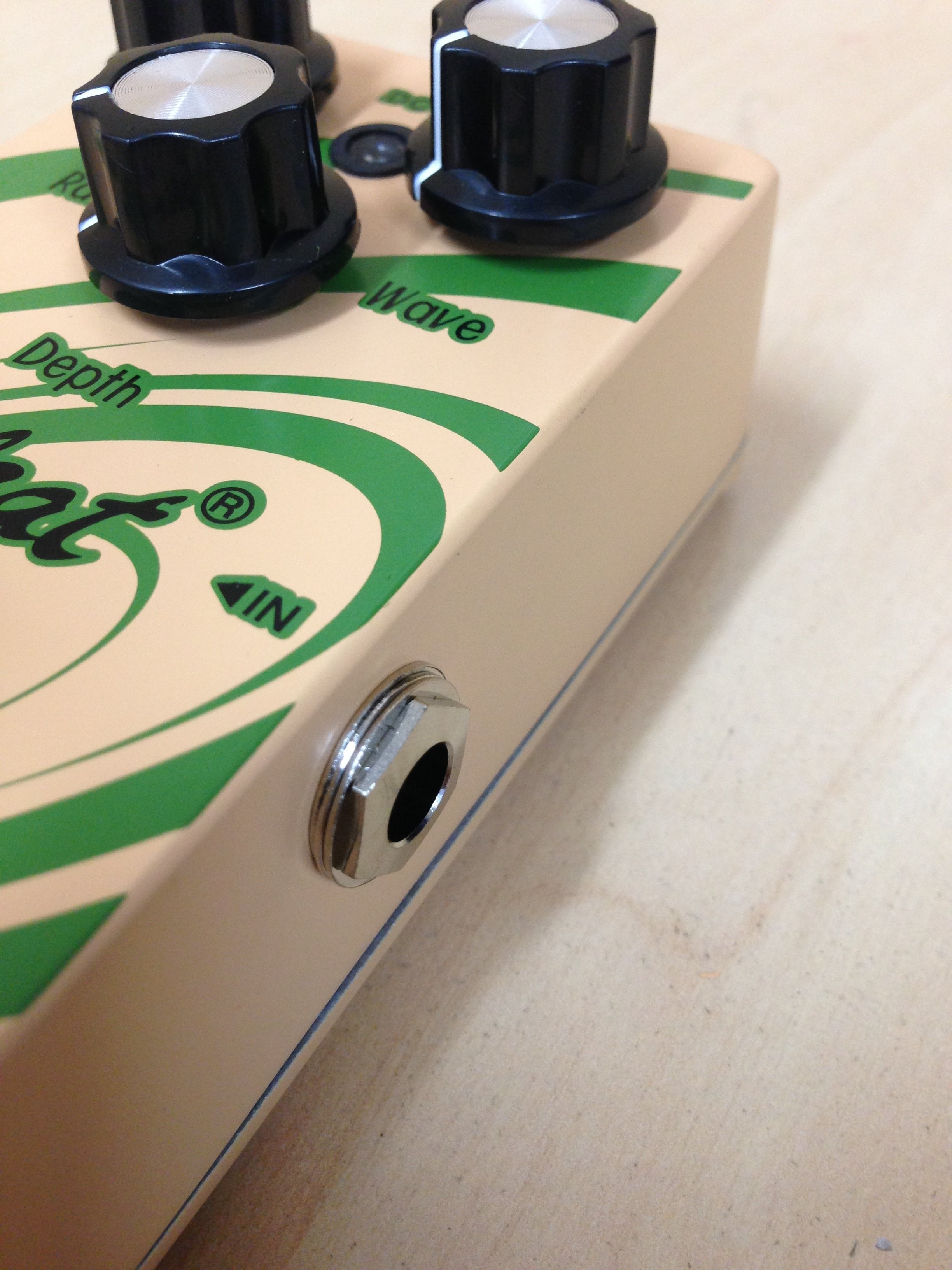

Input Connector:           1/4’’ TS

Input Impedance:           1MΩ (1 megaohms)

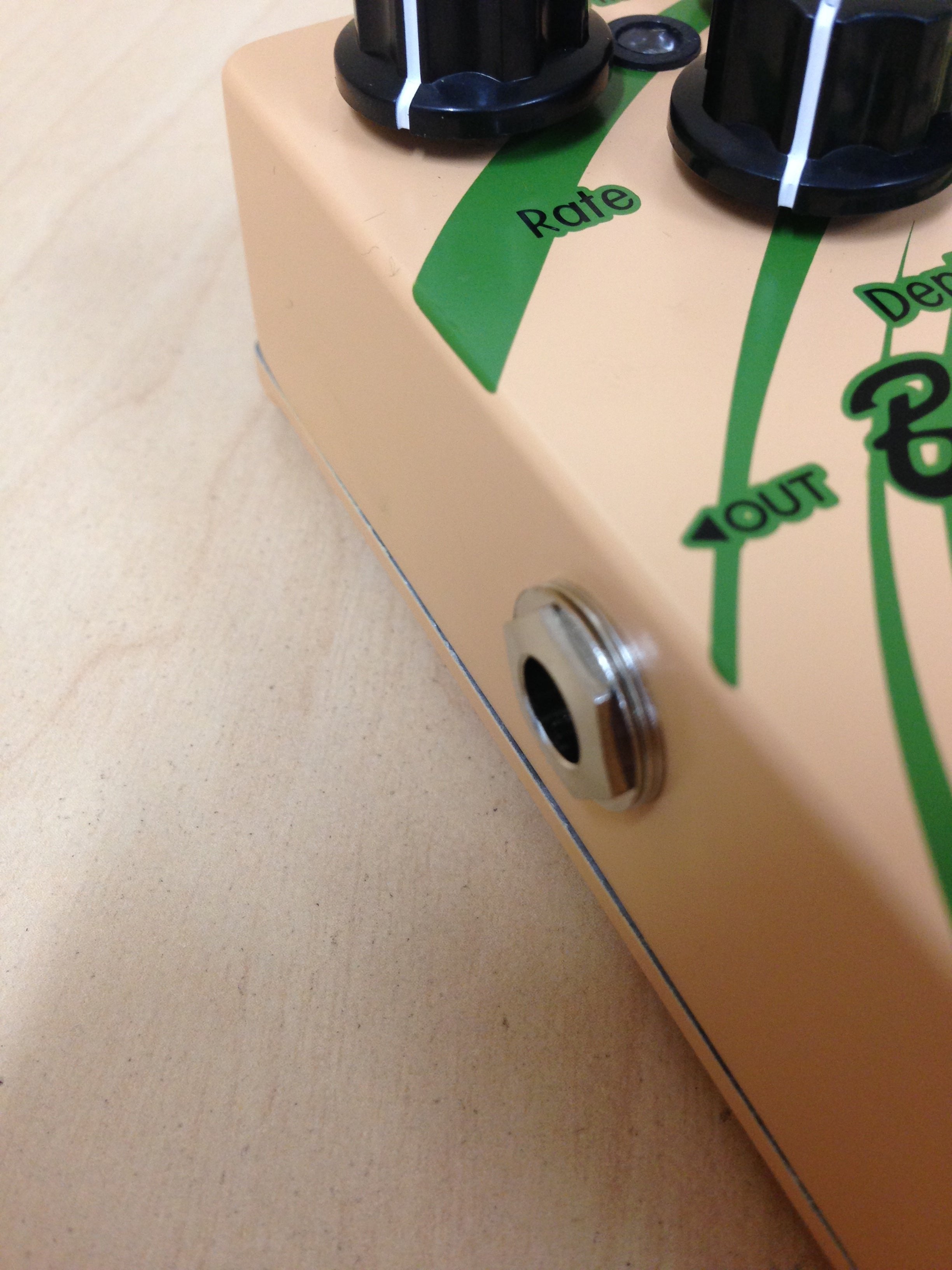

Output Connector:          1/4’’ TS

Output Impedance:         1KΩ less (1 Kohms)

Nominal Output Level: -20dBu

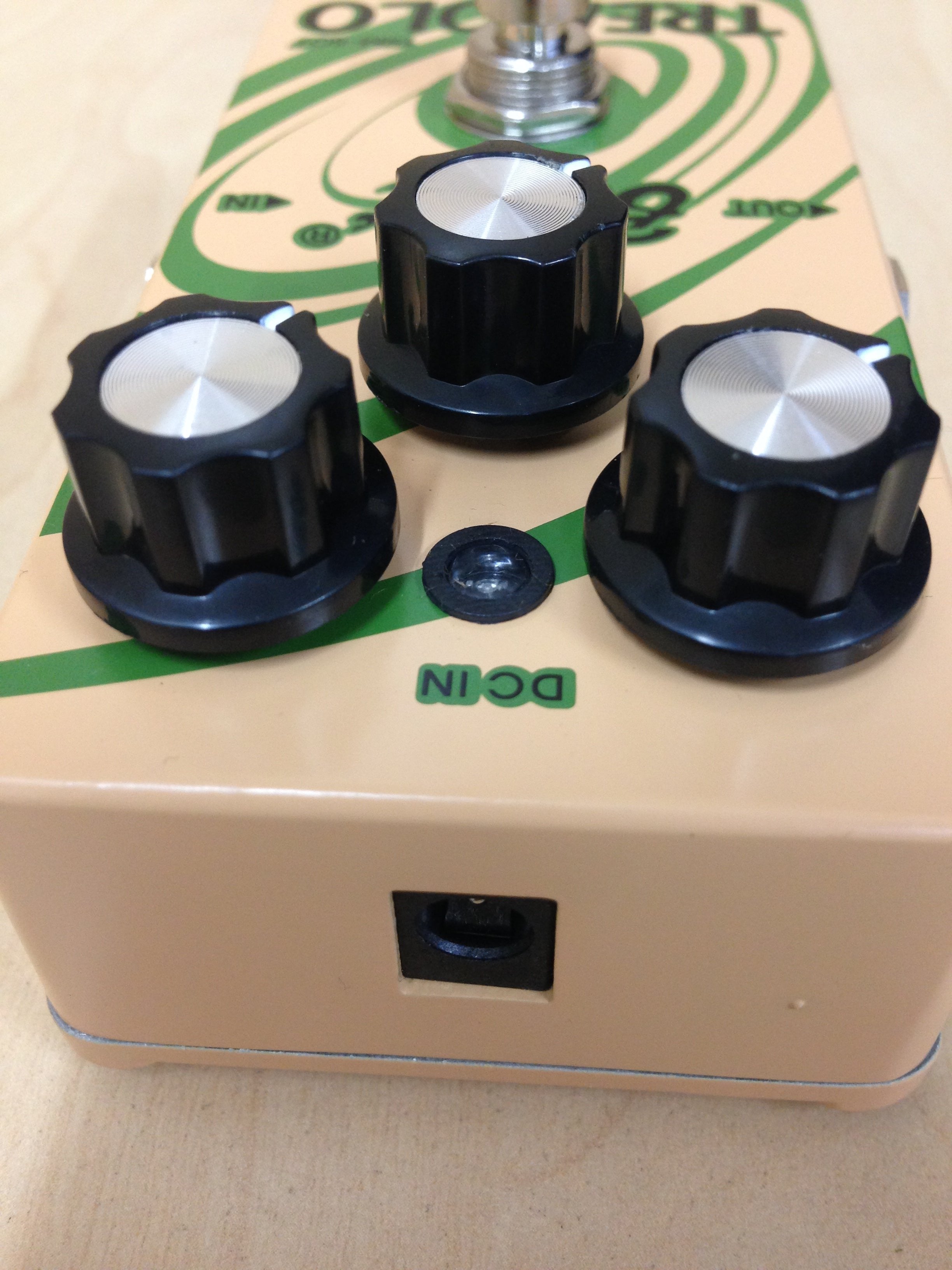

Power Connector:           2.5mm DC Jack

Rate Control:                  90ms ~ 900ms

Power Supply:                9V (6F22) Battery or DC 9V ADAPTER

Power Consumption:     20mA

Connectors:                   Input Jack, Output Jack, DC input

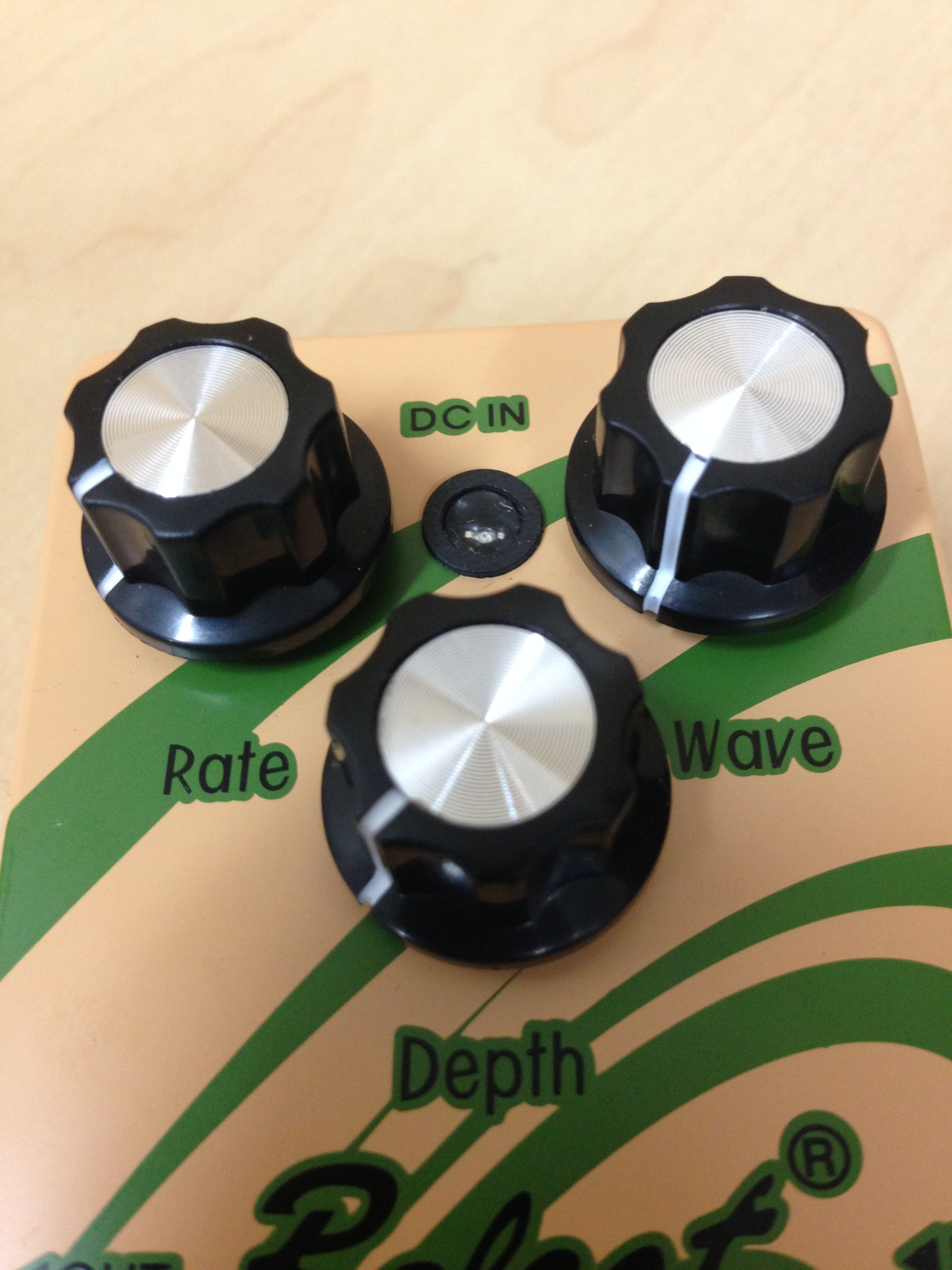

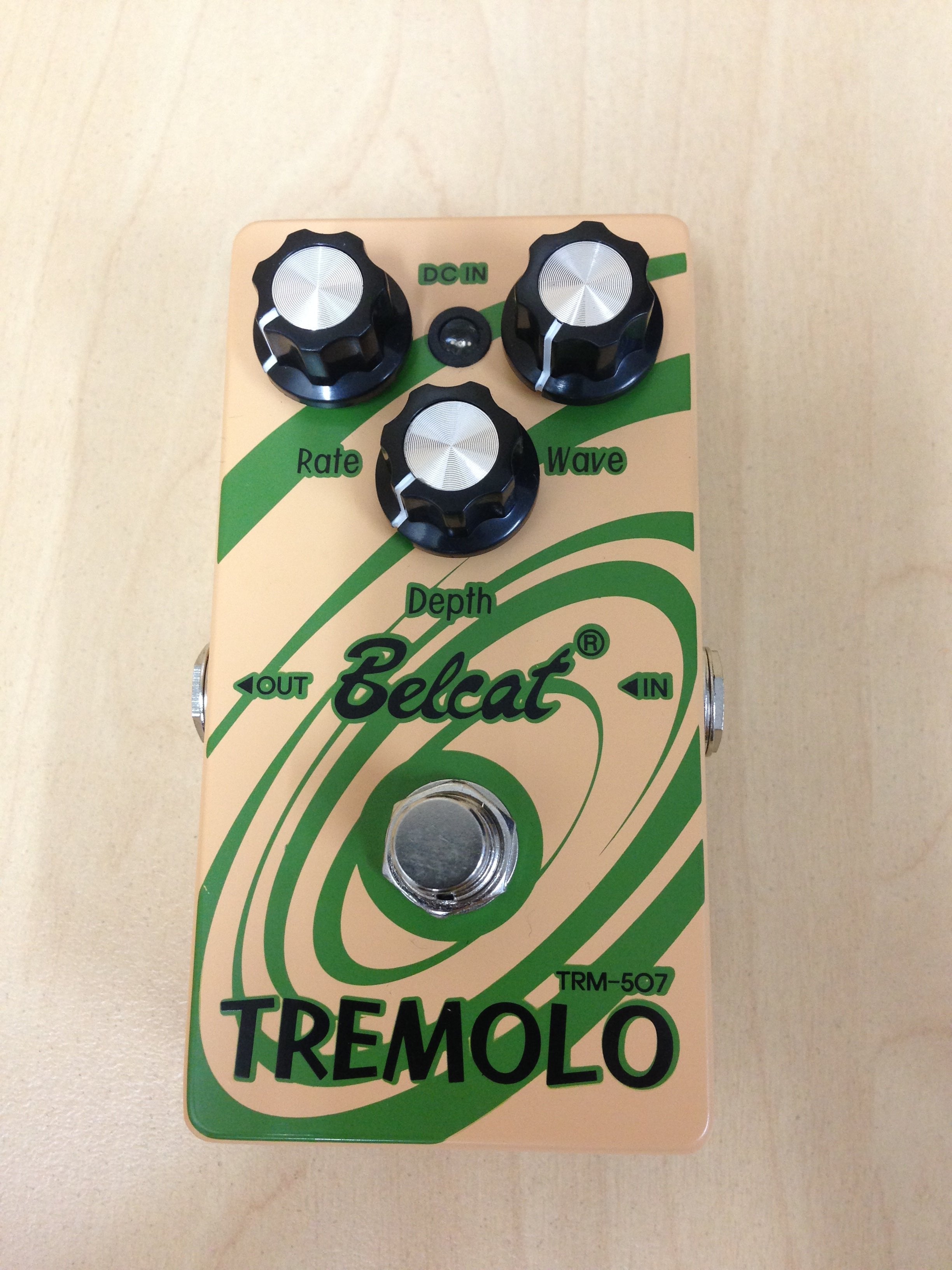

Controls:                       Rate, Wave, Depth

Bypass:                          True bypass

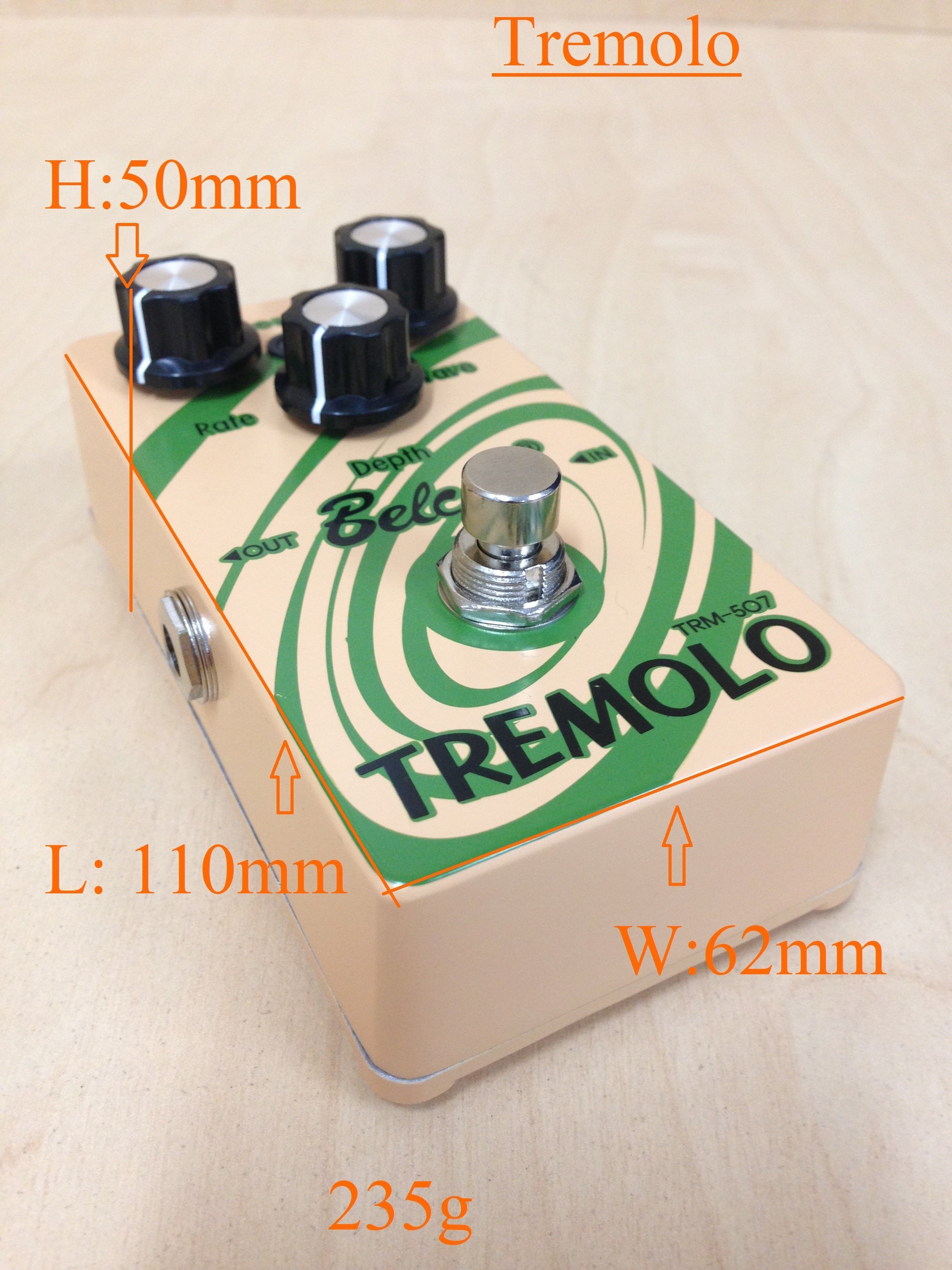

Dimension:                    L 110mm X W 62mm X H 50mm (4.33" X 2.44" X 1.97')

Weight:                          235g

Colour:                            Yellow brown

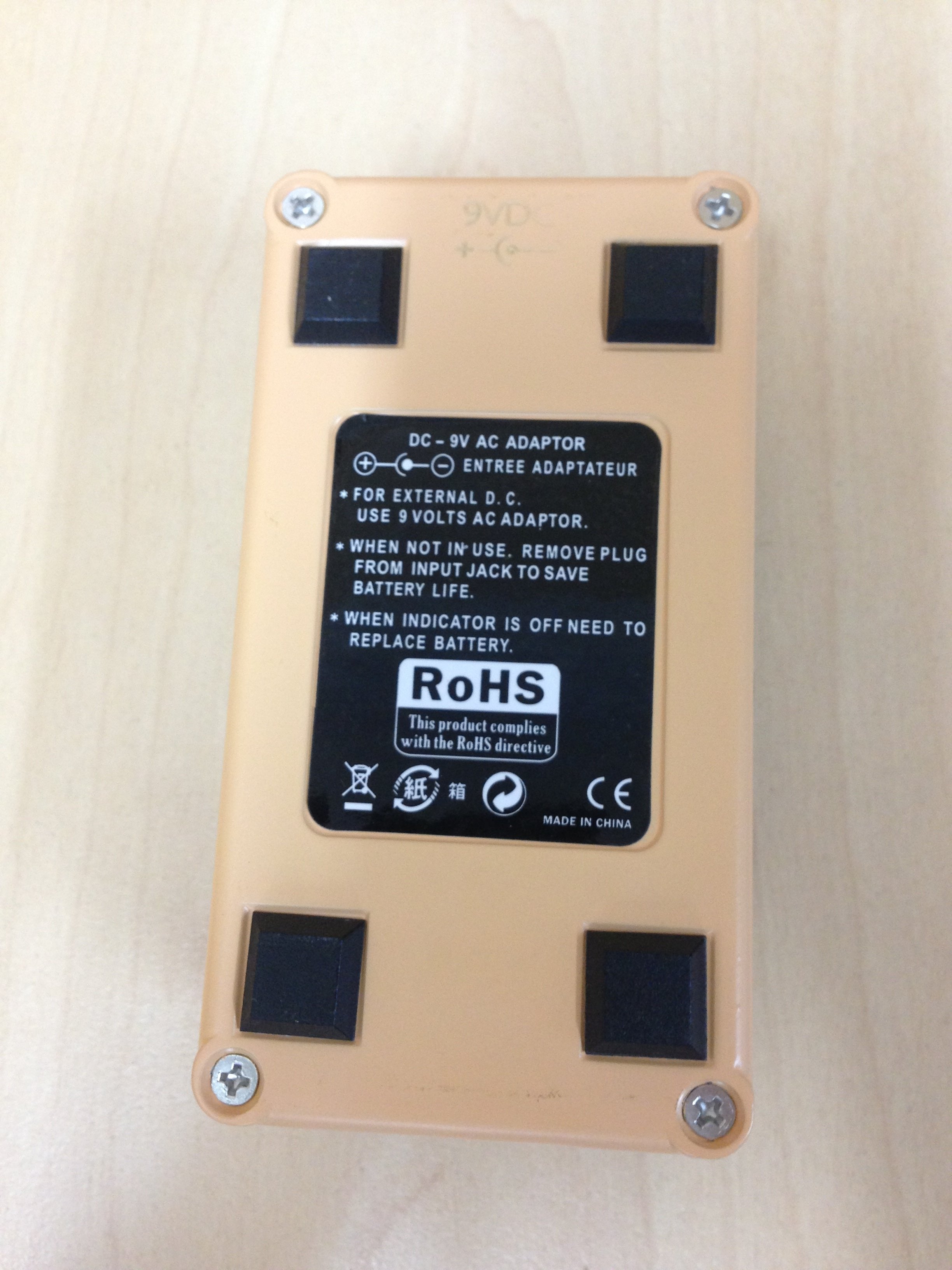

Changing the battery

When indicator LED becomes dim or does not light, it means the battery must be replaced.

 In order to replace battery, please follow step below.

1. Release the 4 screws on the back side to open it.
2. Remove old battery and put a new battery in.
3. Close the cover and screw it.
