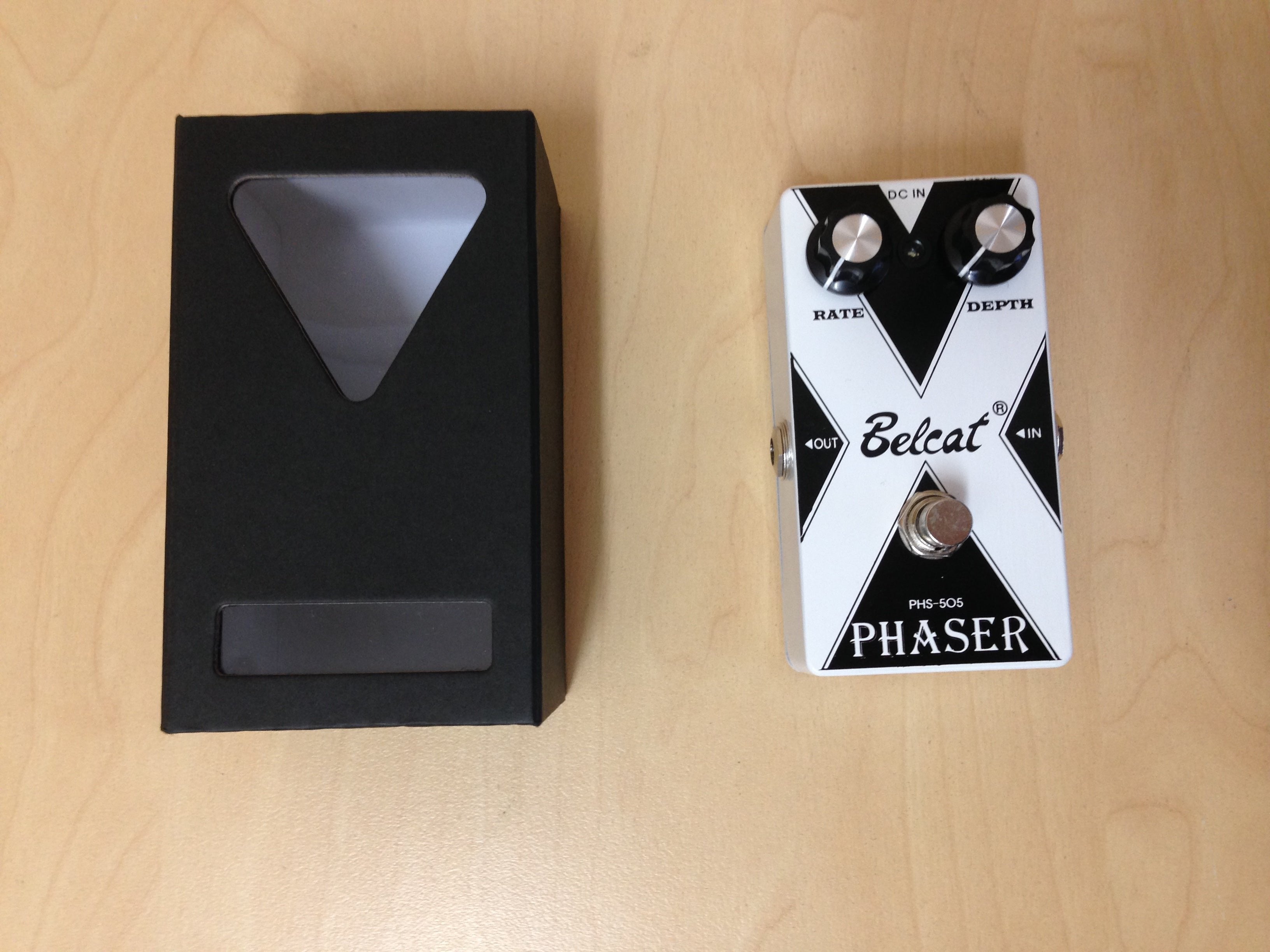

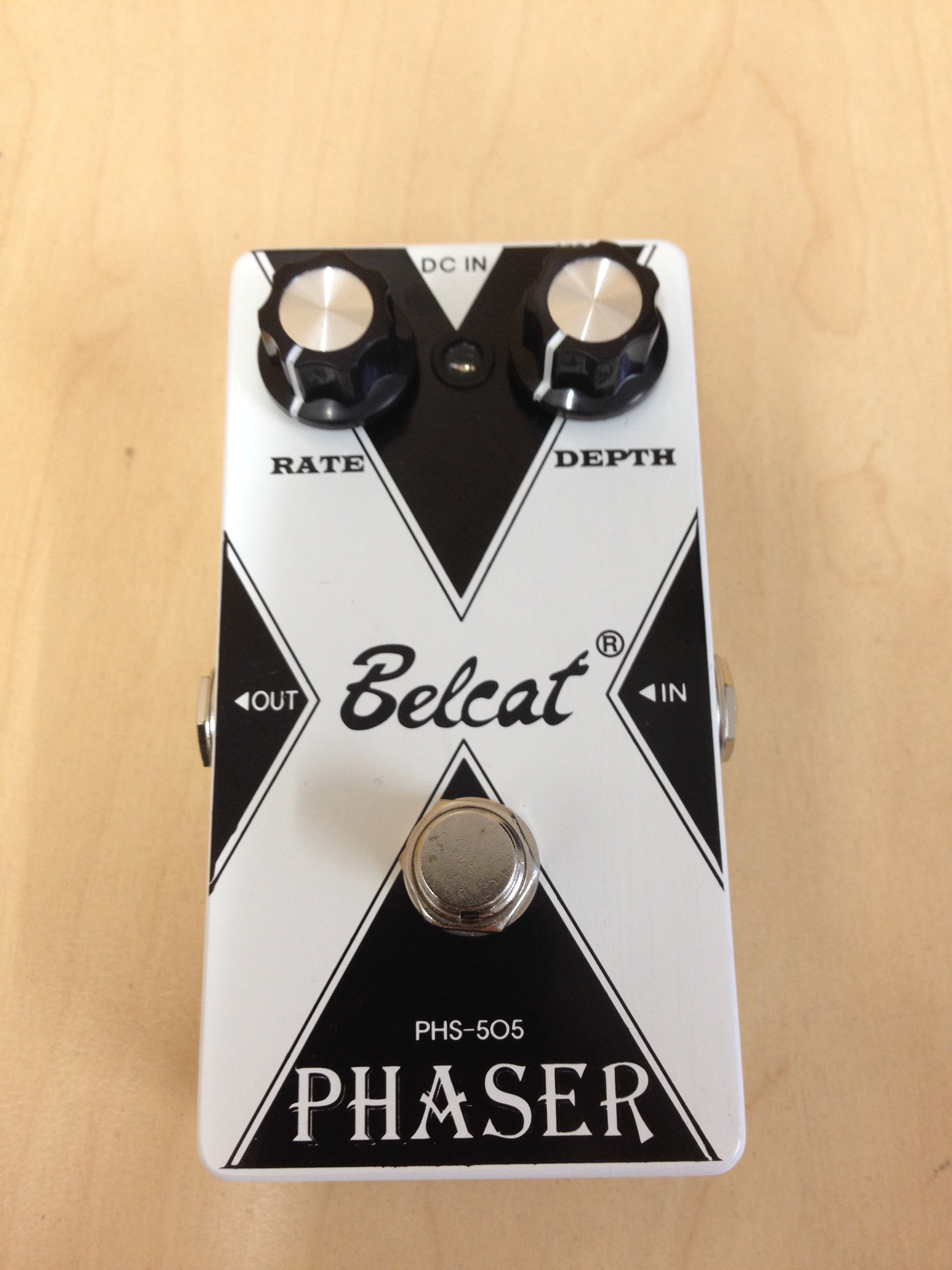

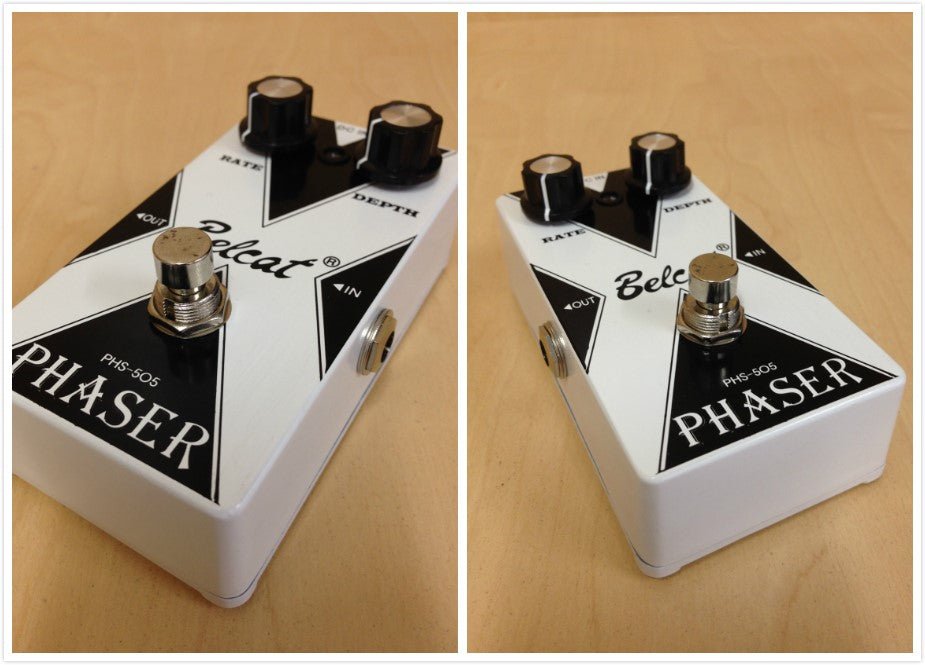

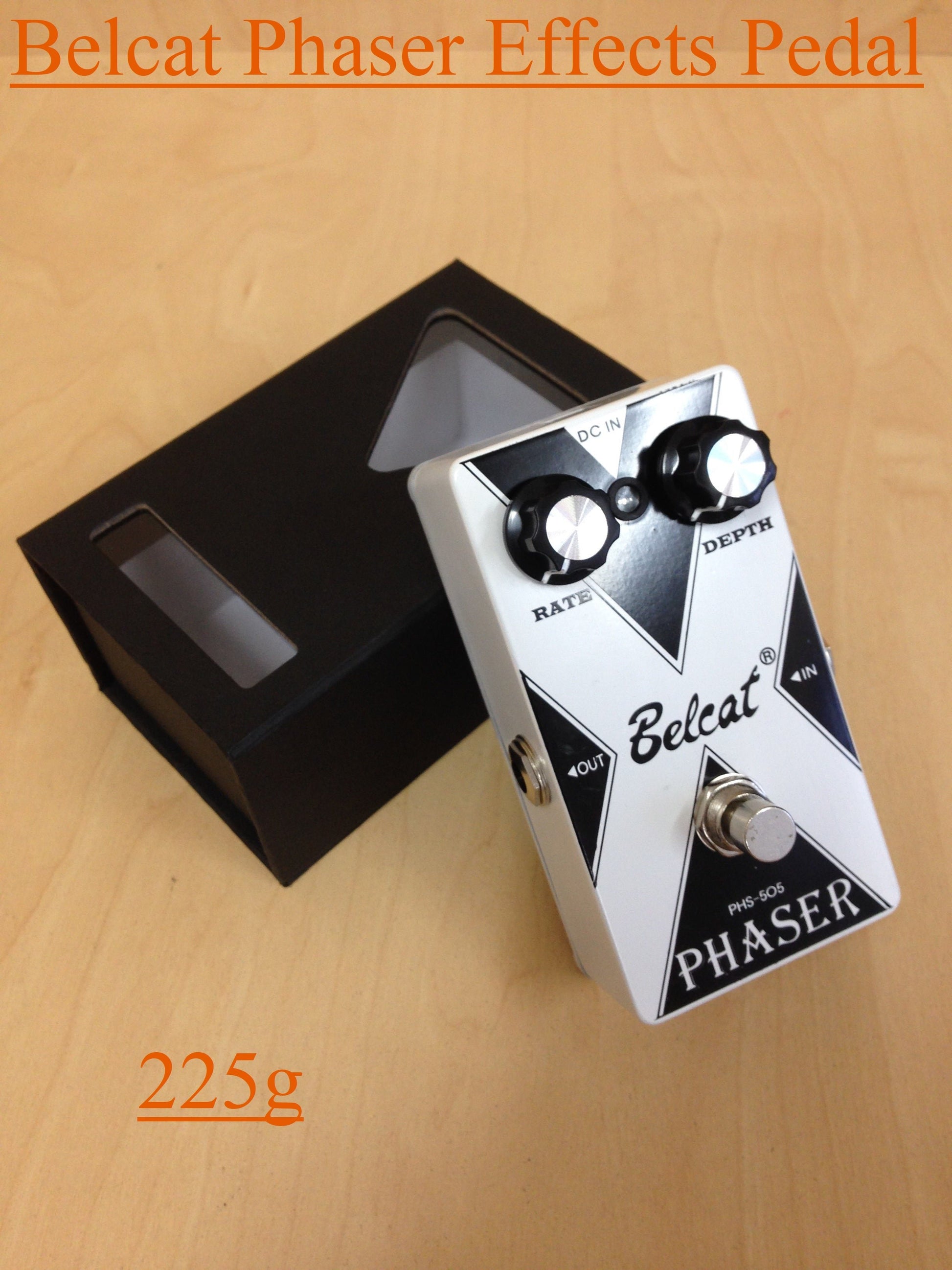

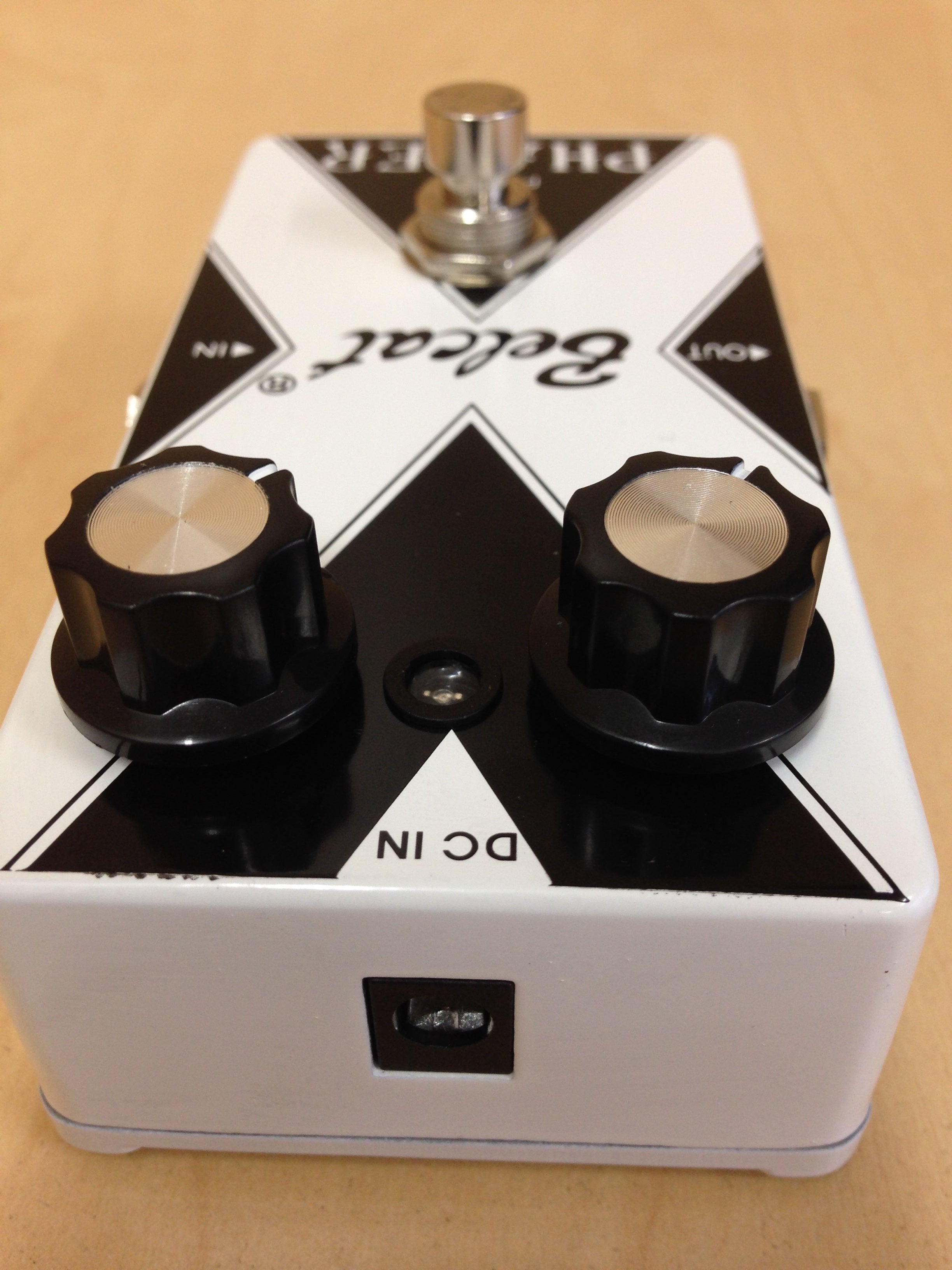

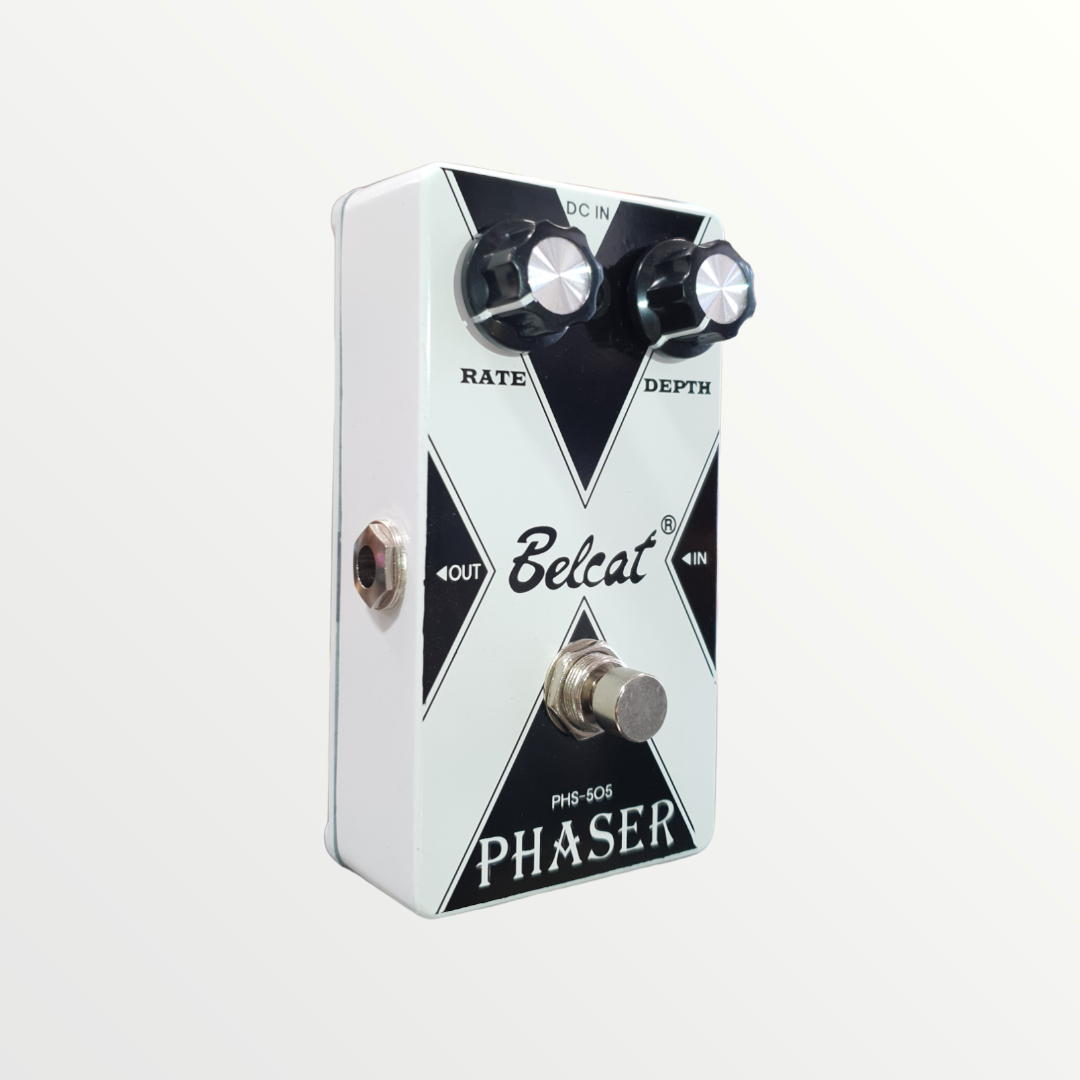

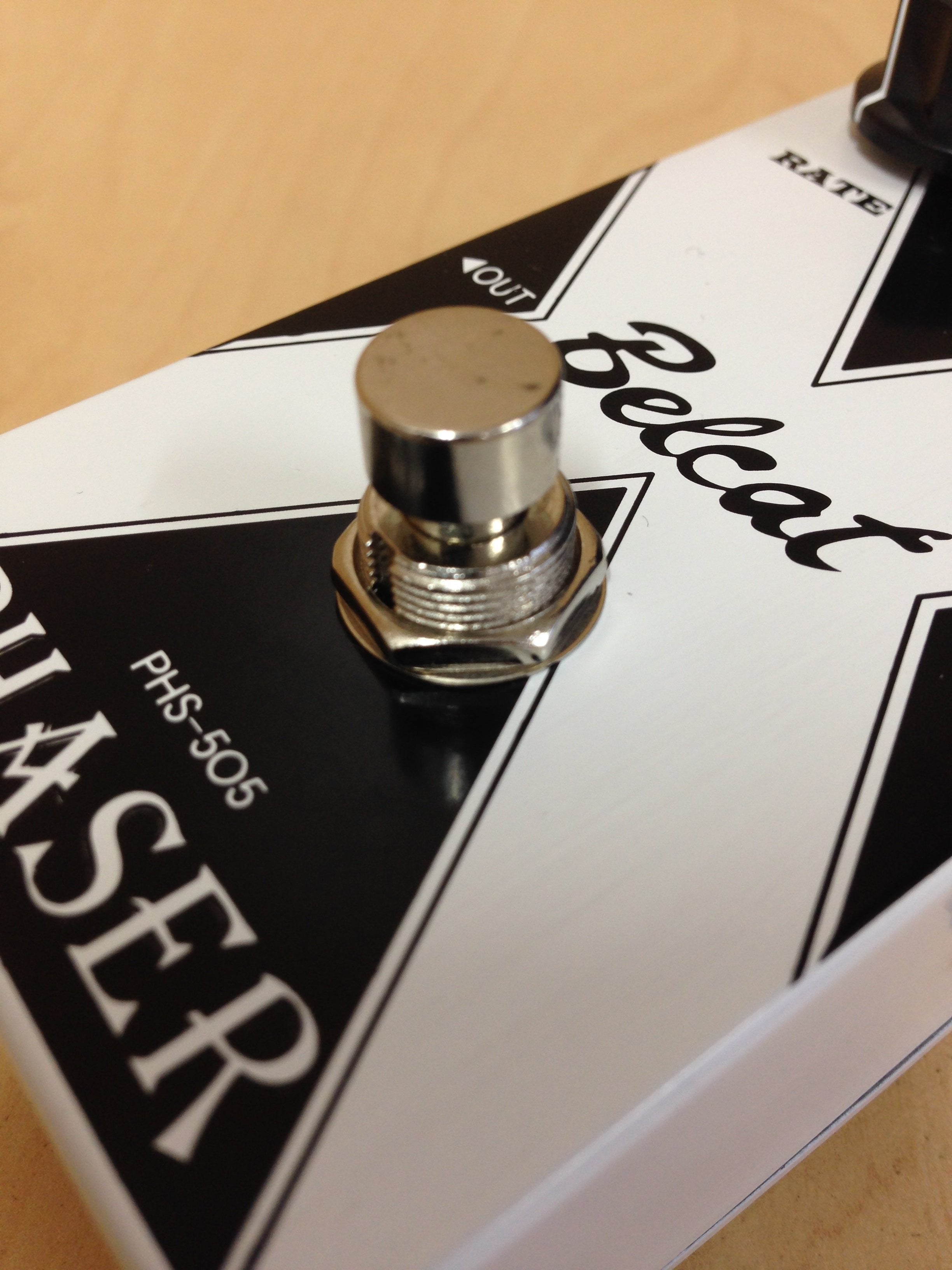

Belcat PHS-505 Phaser Guitar Effects Pedal

https://www.youtube.com/watch?v=Xtn2YMDGKS8

The PHS-505 provides just the amount of the effect that you want to give you that classic Phaser sound!

Specifications:

Input Connector:         1/4’’ TS

Input Impedance:        1MΩ (1 megaohms)

Output Connector:      1/4’’ TS

Output Impedance:     1KΩ less (1 Kohms)

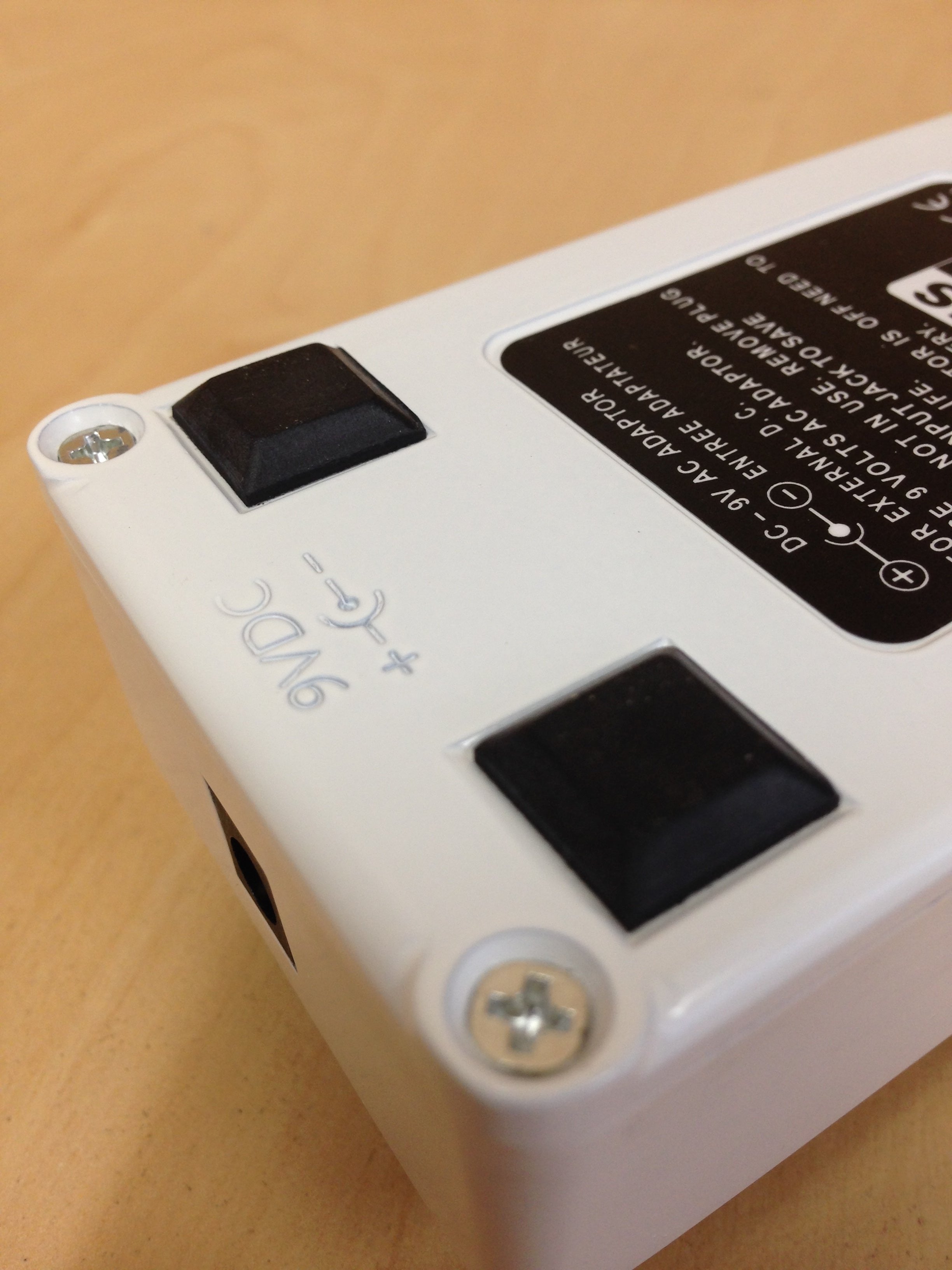

Power Connector:       2.5mm DC Jack

Rate Control:               100ms ~ 6.35s

Power Supply:             9V (6F22) Battery or DC 9V ADAPTER

Power Consumption:   8.2mA

Connectors:                 Input Jack, Output Jack, DC input

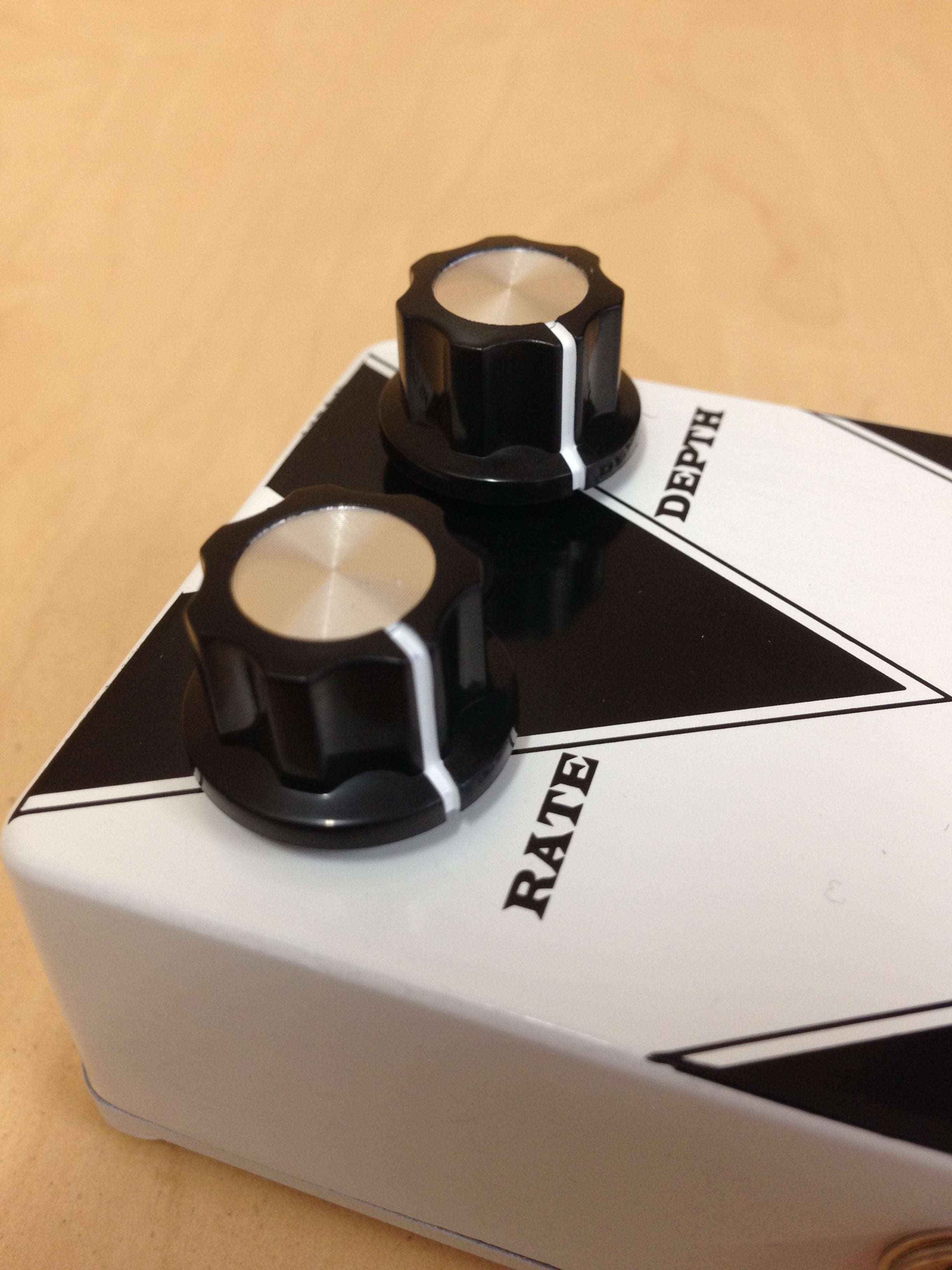

Controls:                      Rate, Depth

Bypass:                        True bypass

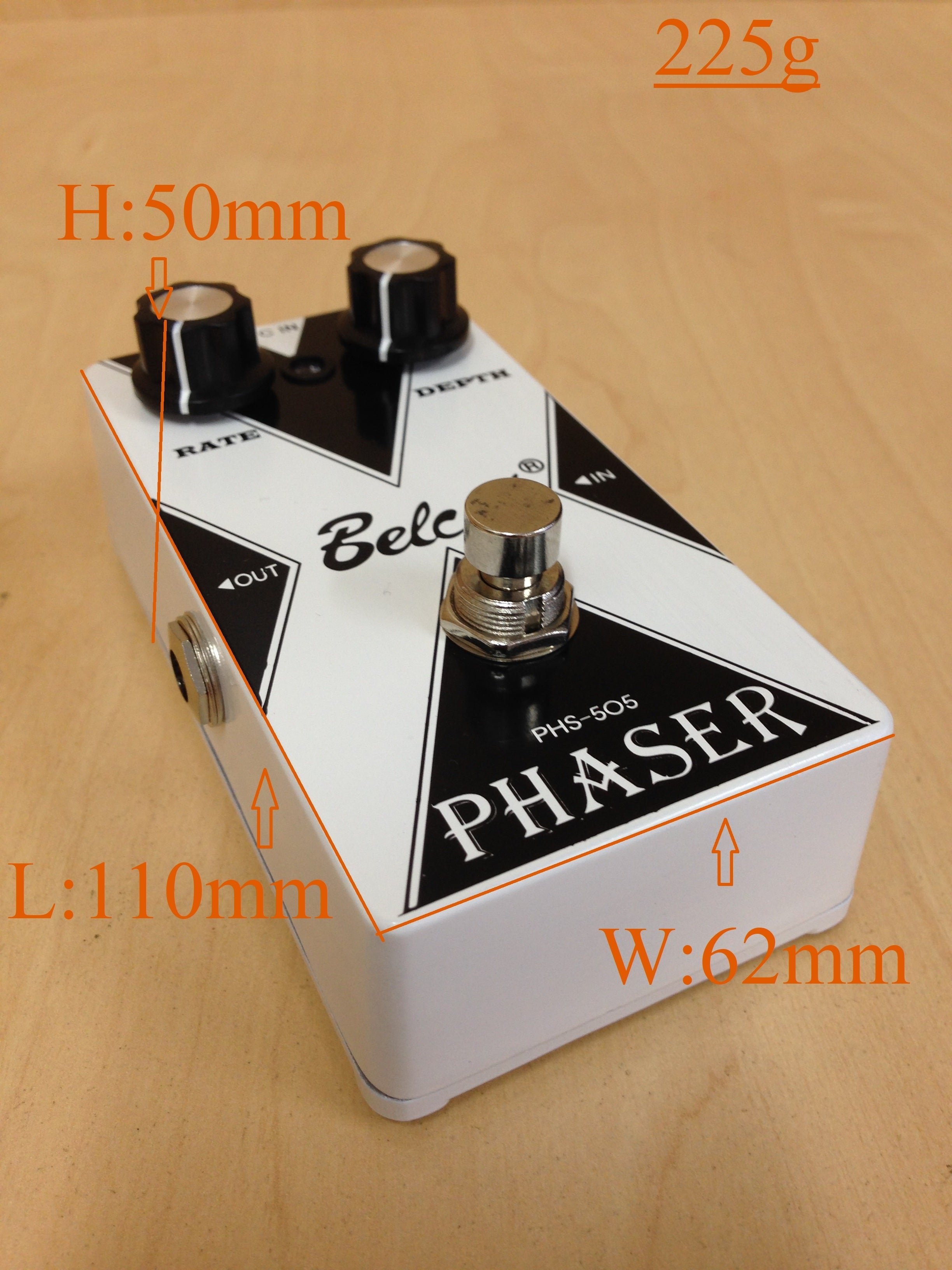

Dimension:                  L 110mm X W 62mm X H 50mm (4.33" X 2.44" X 1.97')

Weight:                       225g

Colour:                        White

Changing the battery

When the indicator LED becomes dim or does not light, it means the battery must be replaced.

In order to replace the battery, please follow the steps below.

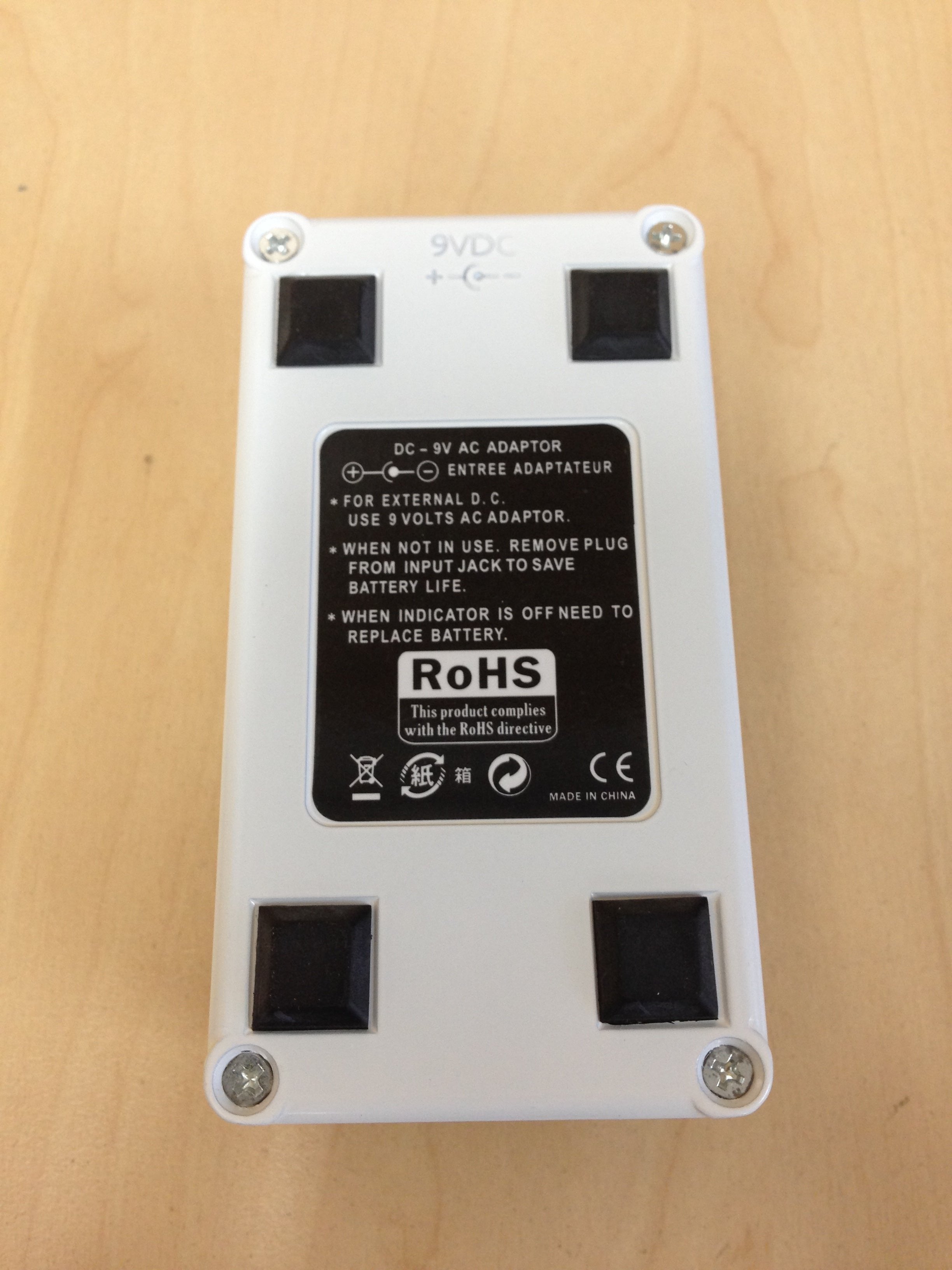

1. Release the 4 screws on the back side to open it.
2. Remove the old battery and put a new battery in.
3. Close the cover and screw it.
