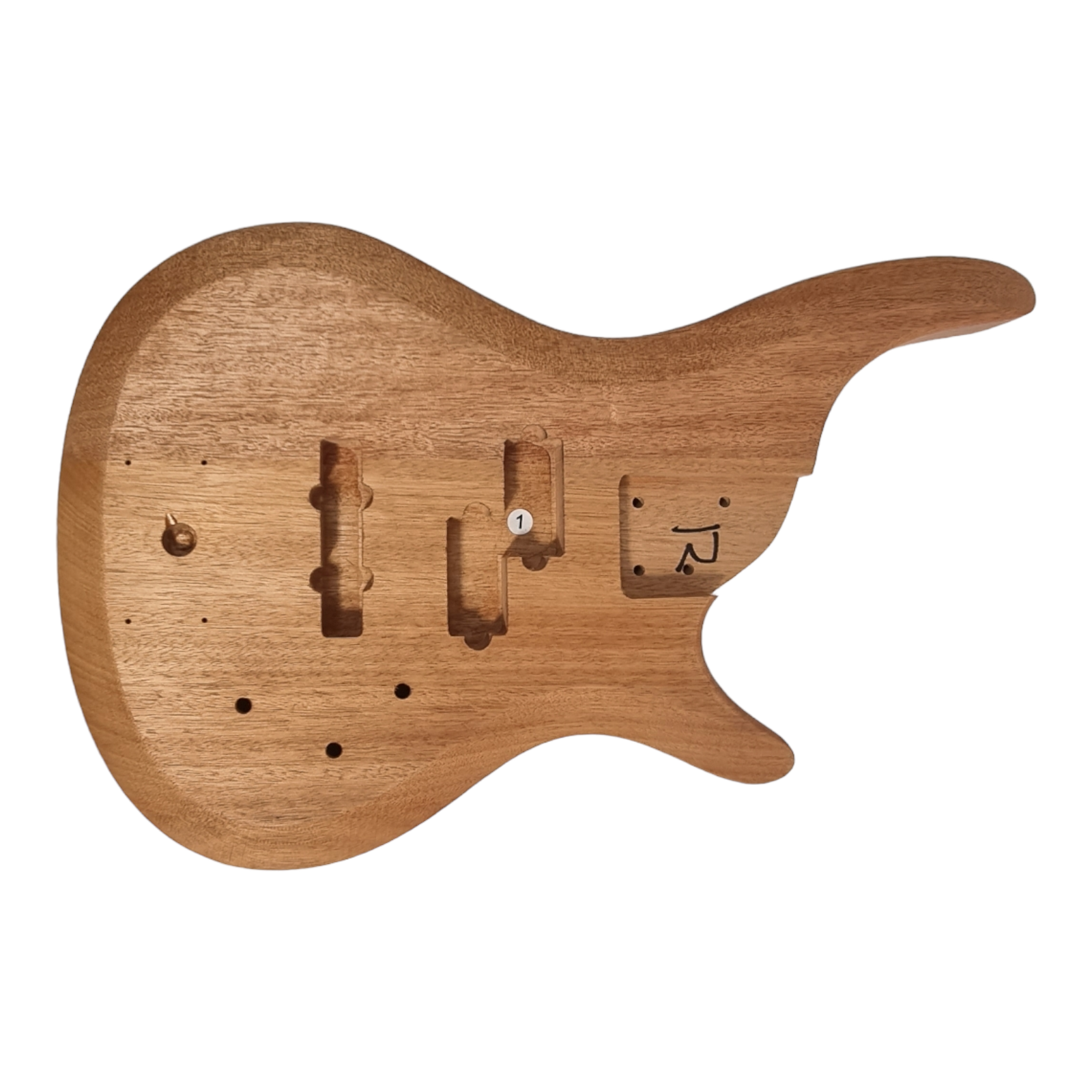

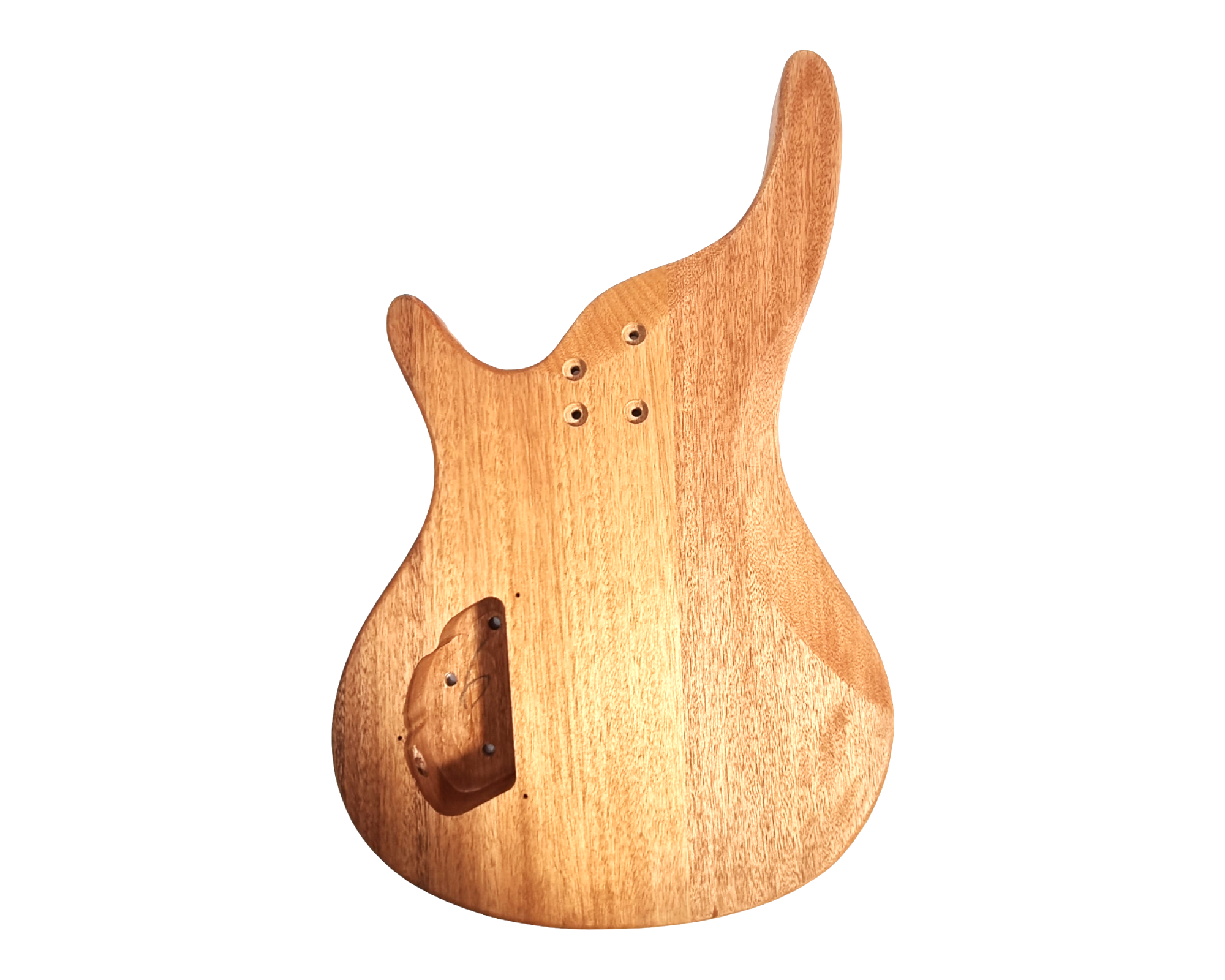

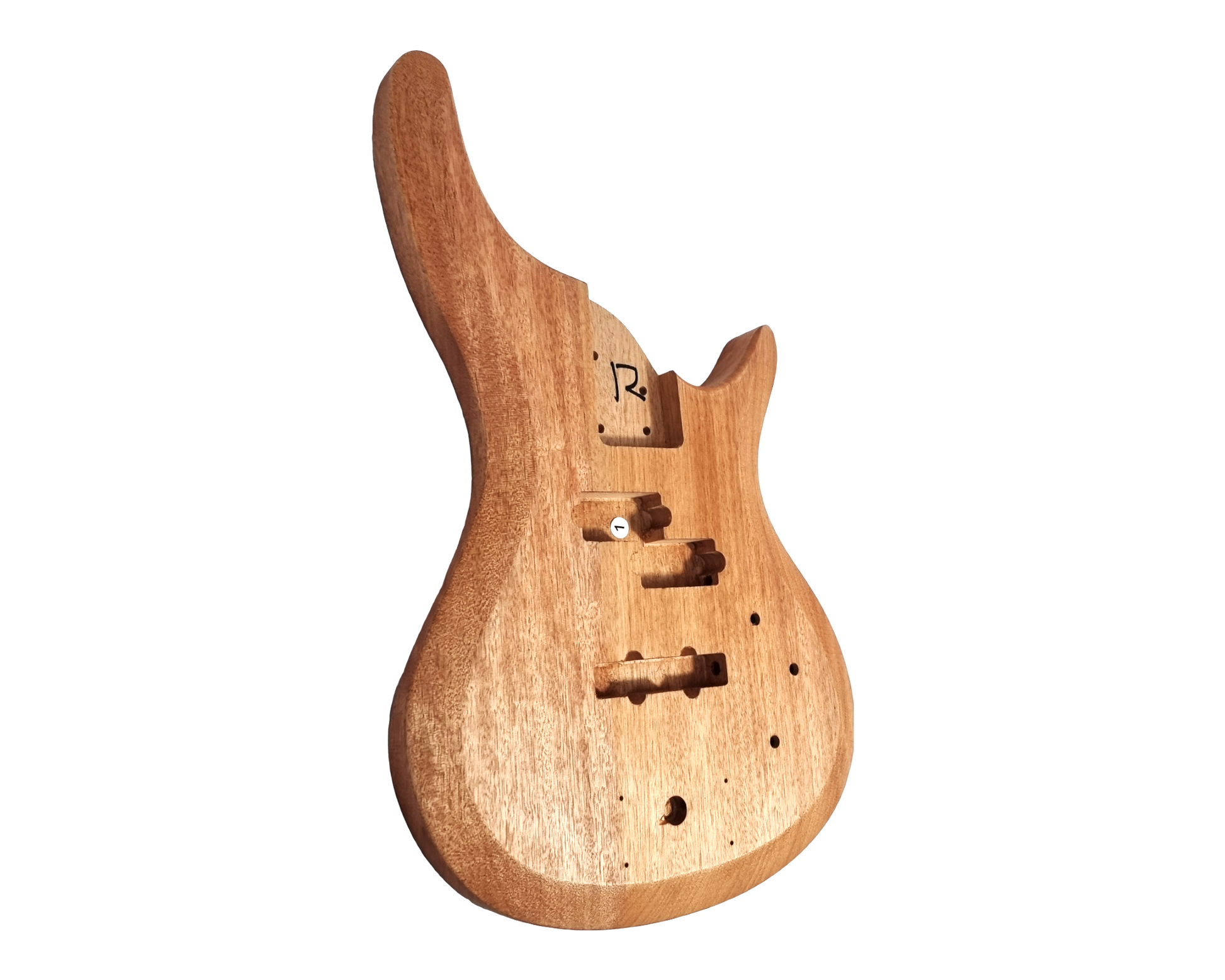

Solid Mahogany Electric Bass Guitar DIY - 325BODY (Body Only)
Solid Mahogany Electric Bass Guitar DIY - 325BODY (Body Only)
Save 25%
Regular price
$75.00
Sale price
$75.00
Regular price
$100.00
Available in stock
Couldn't load pickup availability
Overview
Overview
Body Weight: 1.7kg
34" scale

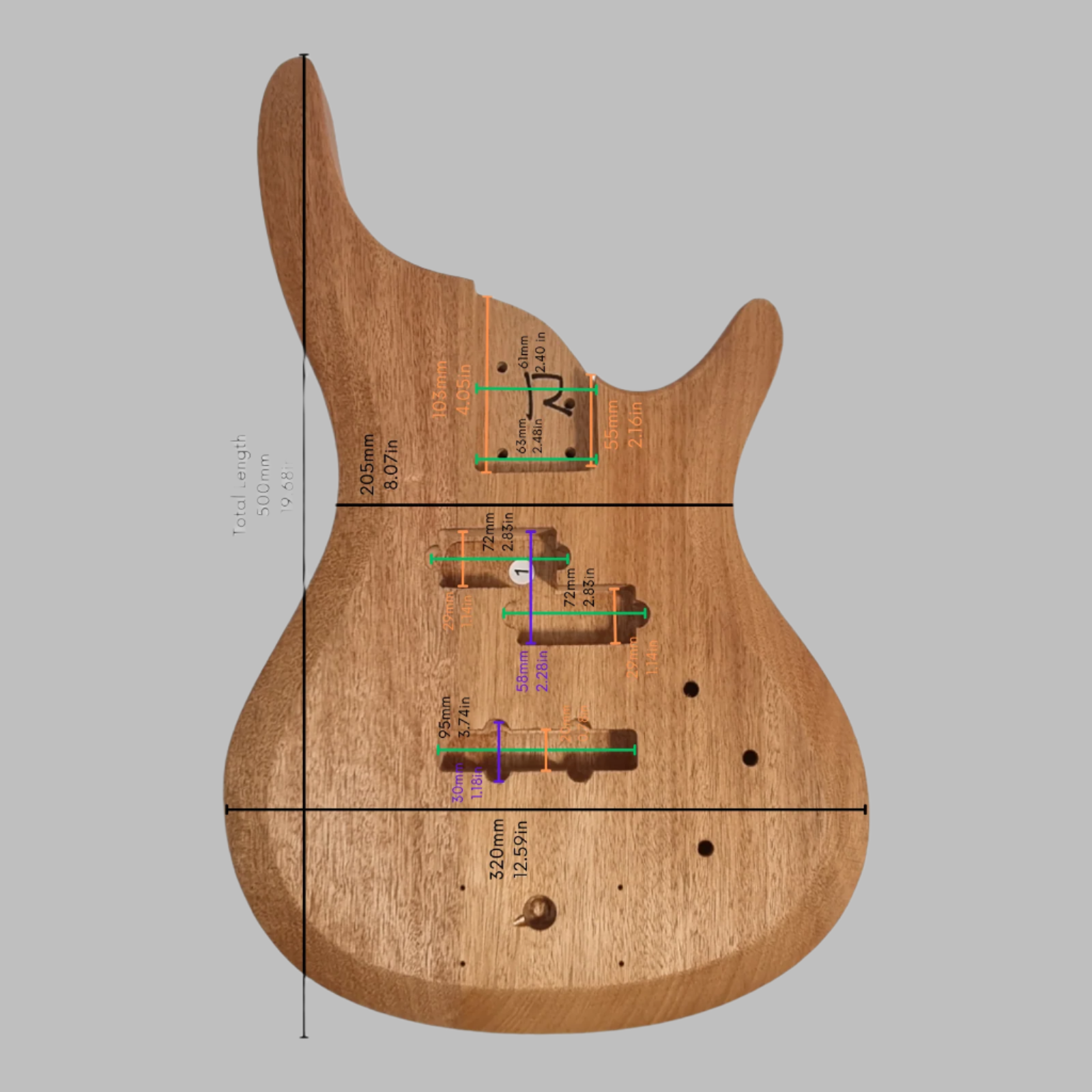

| B325DIY Body Dimensions | measurement in mm ±1mm | measurement in Inches ±0.04in |
| Body | ||
| Body Length | 500 | 19.68 |
| Body Width (@ widest part) | 320 | 12.59 |
| Body Width (@ Narrowest part) | 205 | 8.07 |
| Body Depth (@ raised section) | 41 | 1.61 |
| Body Depth (@ lower section) | 30 | 1.18 |
| Neck | ||
| Neck Length (@ short Point) | 55 | 2.16 |
| Neck Length (@ long Point) | 103 | 4.05 |
| Neck Width (@ Base) | 63 | 2.48 |
| Neck Width (@ Edge) | 61 | 2.4 |
| Neck Depth | 19 | 0.74 |
| Neck Pick Ups | ||
| Pick up Length | 29 | 1.14 |
| Pick up Length (@ mid section) | 58 | 2.28 |
| Pick up Width | 72 | 2.83 |
| Pick up Depth | 21 | 0.82 |
| Bridge Pick up | ||
| Pick up Length | 20 | 0.78 |
| Pick up Length (@ rounded section) | 30 | 1.18 |
| Pick up Width | 95 | 3.74 |
| Pick up Depth | 21 | 0.82 |
