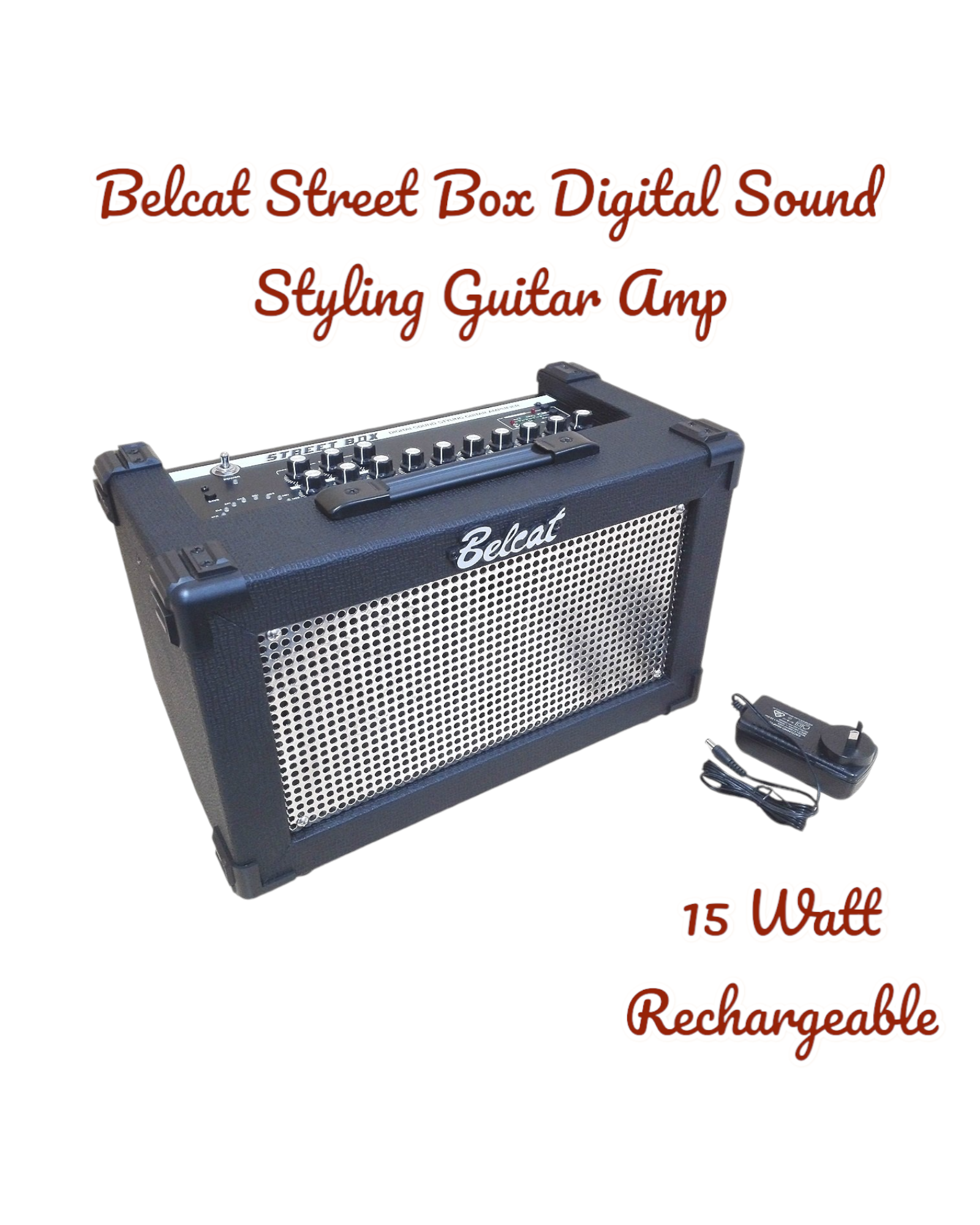

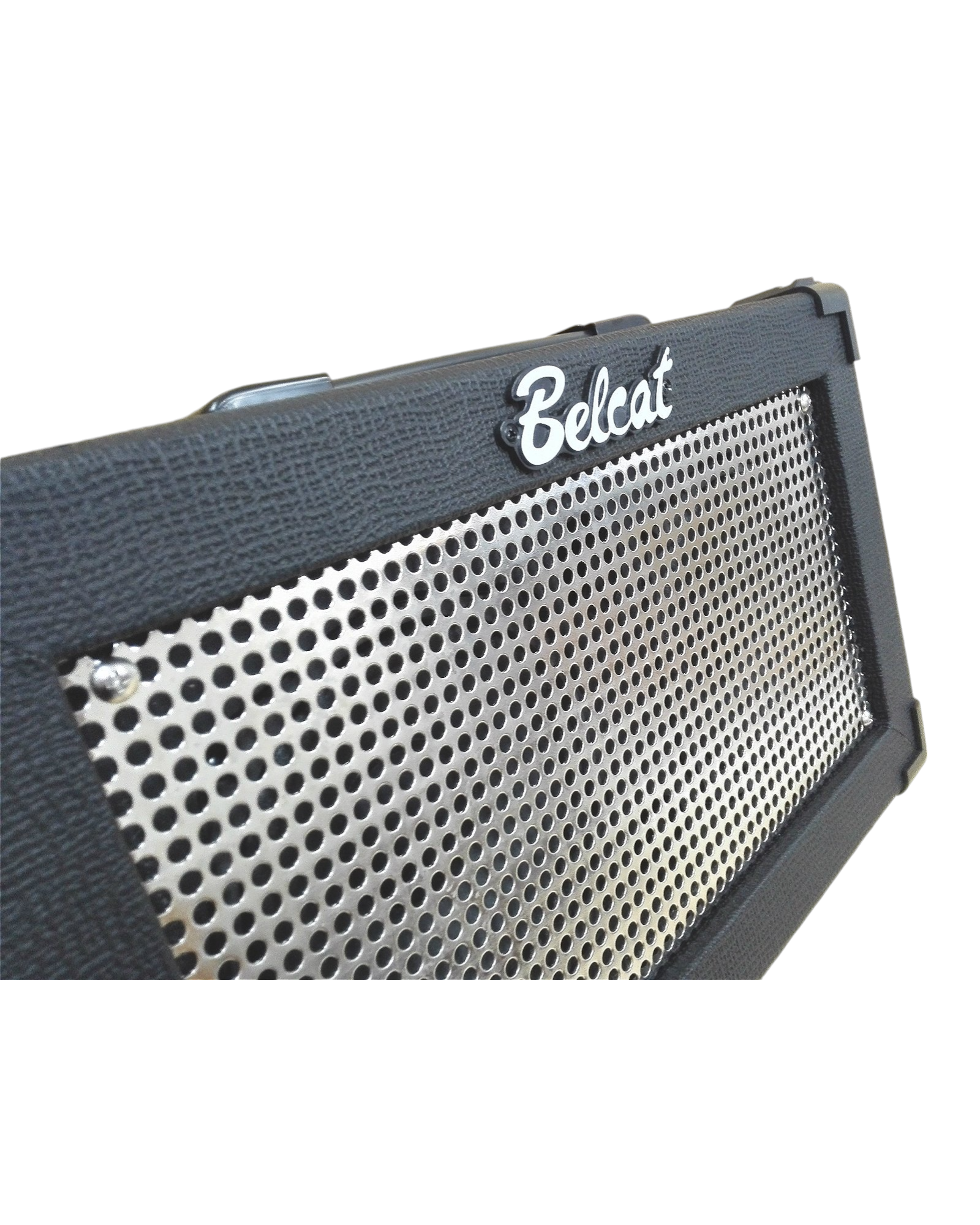

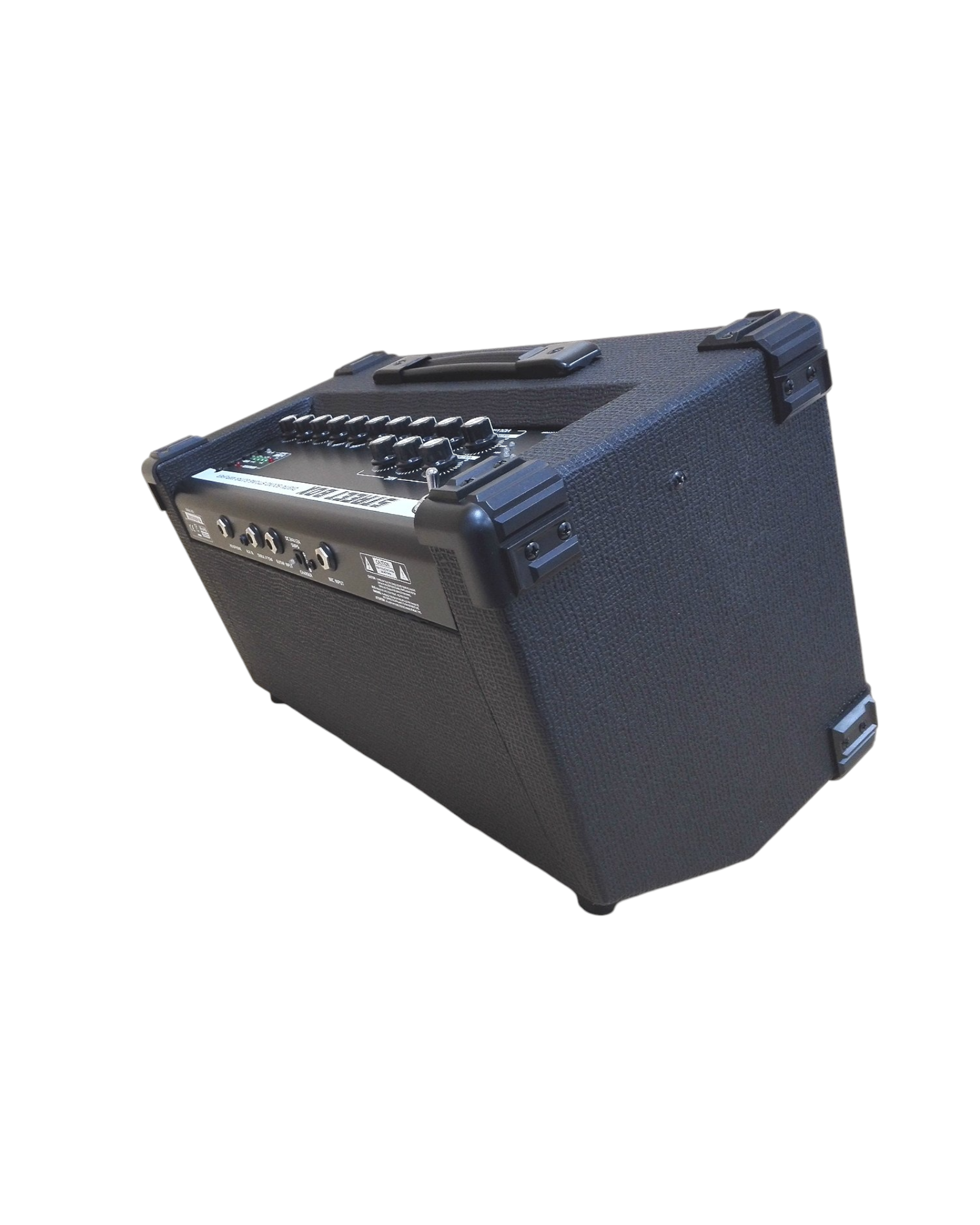

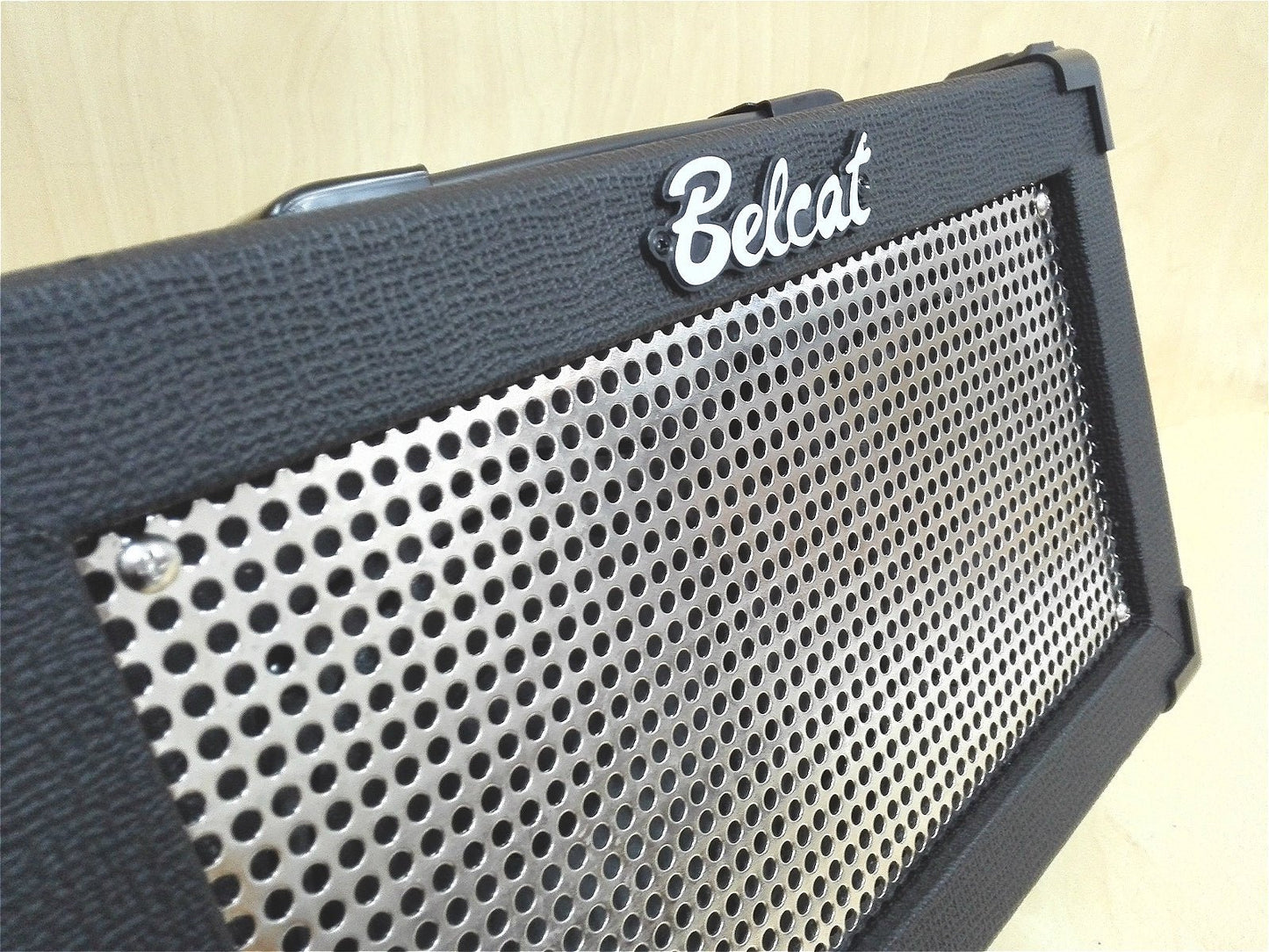

Belcat Street Box Digital Sound Styling Guitar Amplifier, 15 Watt, Rechargeable


** Specifications **

OUTPUT POWER:        RMS 15W(MAX), Min. 8Ω@5% THD, 1KHz

INPUT IMPEDANCE:    470k Ω

SPEAKER:                     5.25(Inch) *2 Custom Speaker

TUNER:                        C1 (32.7Hz) ~ A5 (880Hz)

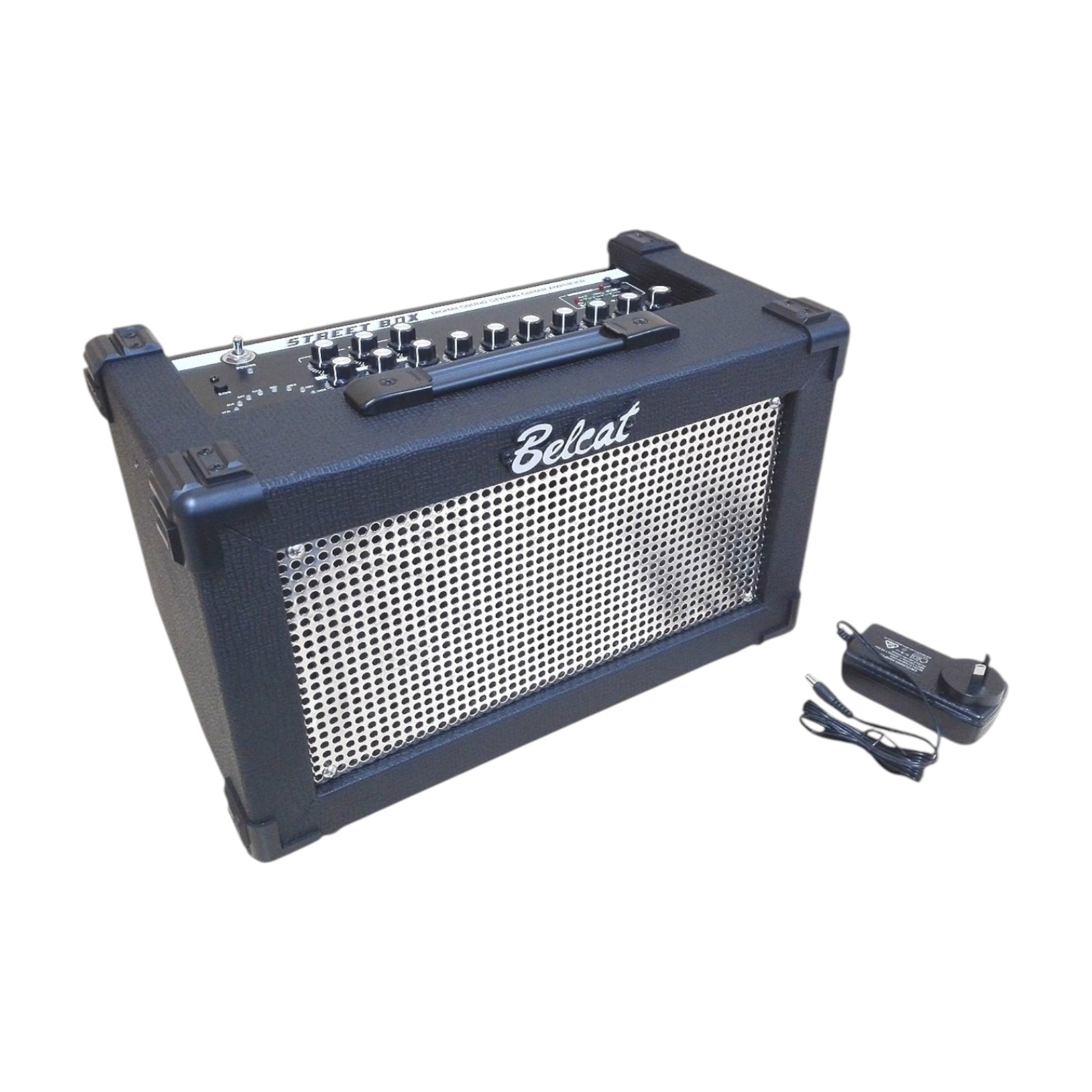

AC/DC ADAPTER:        SMPS DC24V 1.2A (Come with the Amp.)

BATTERY:                    Rechargeable, Lithium-ion 18.5V 2200mAh charge current 24V 1A. 1 fully charged for over 4 hours using.

BLUETOOTH:               4.0

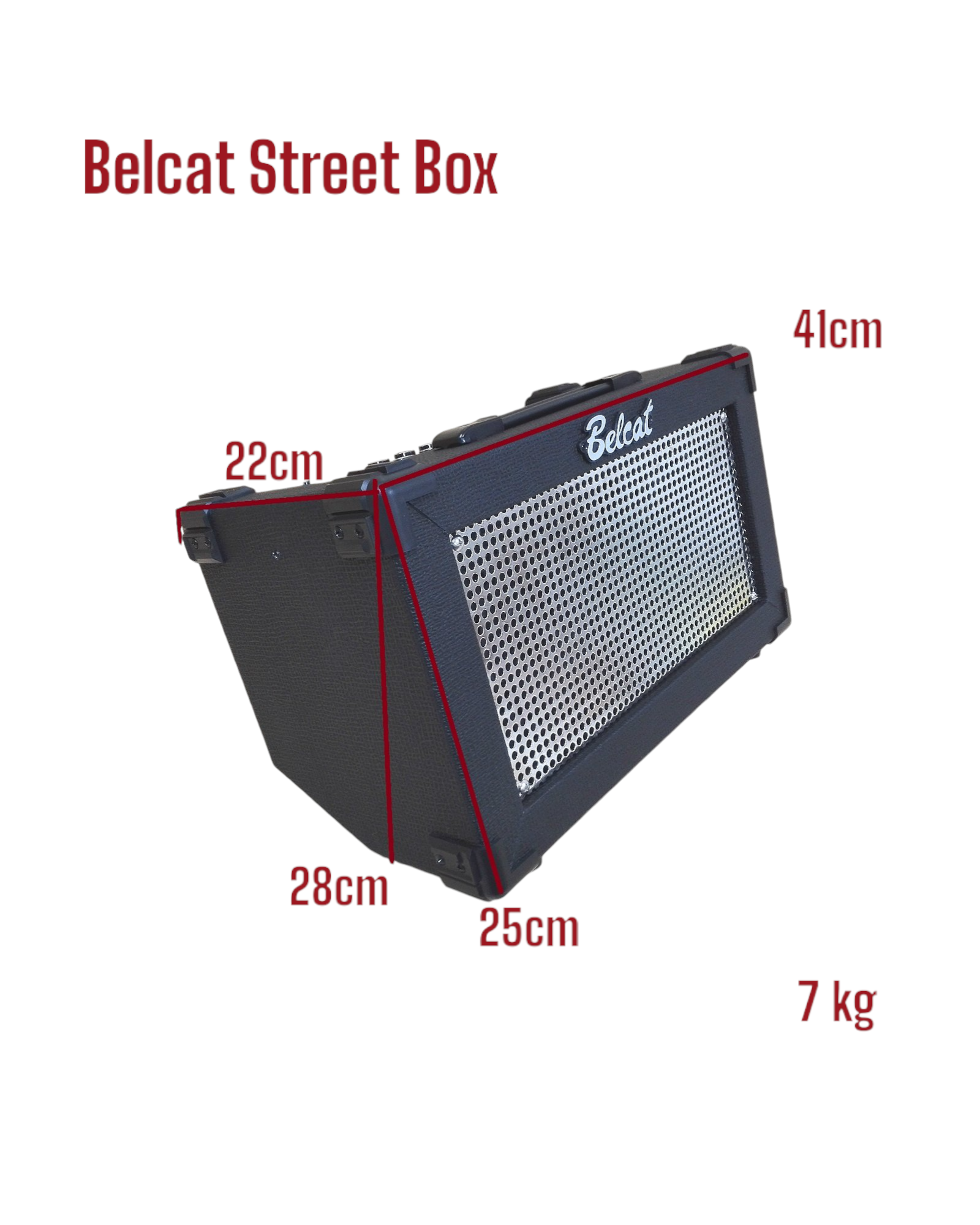

DIMENSIONS:              25.5~28(H) * 41 (W) * 22 (D) cm

NET WEIGHT:              7.0kg

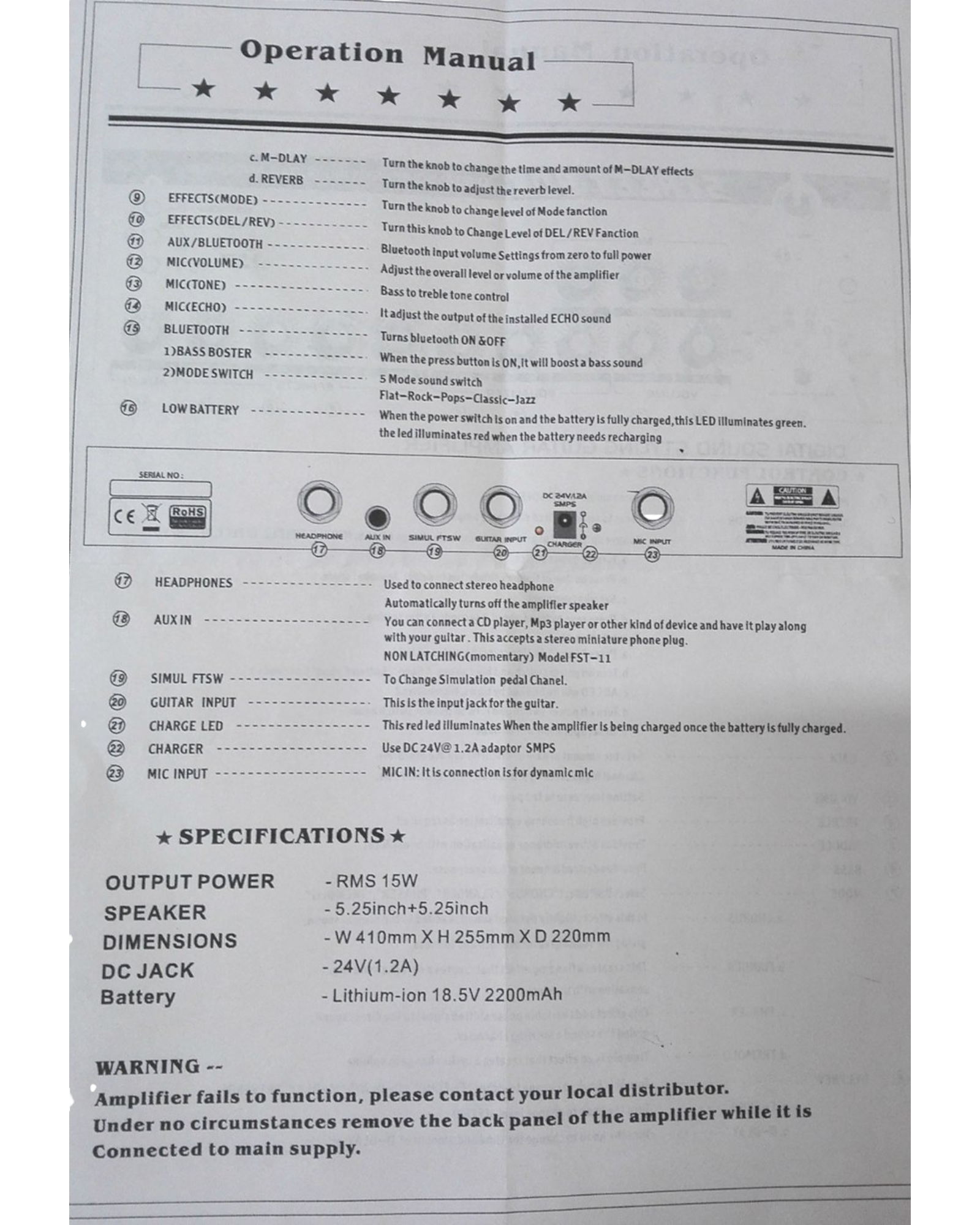

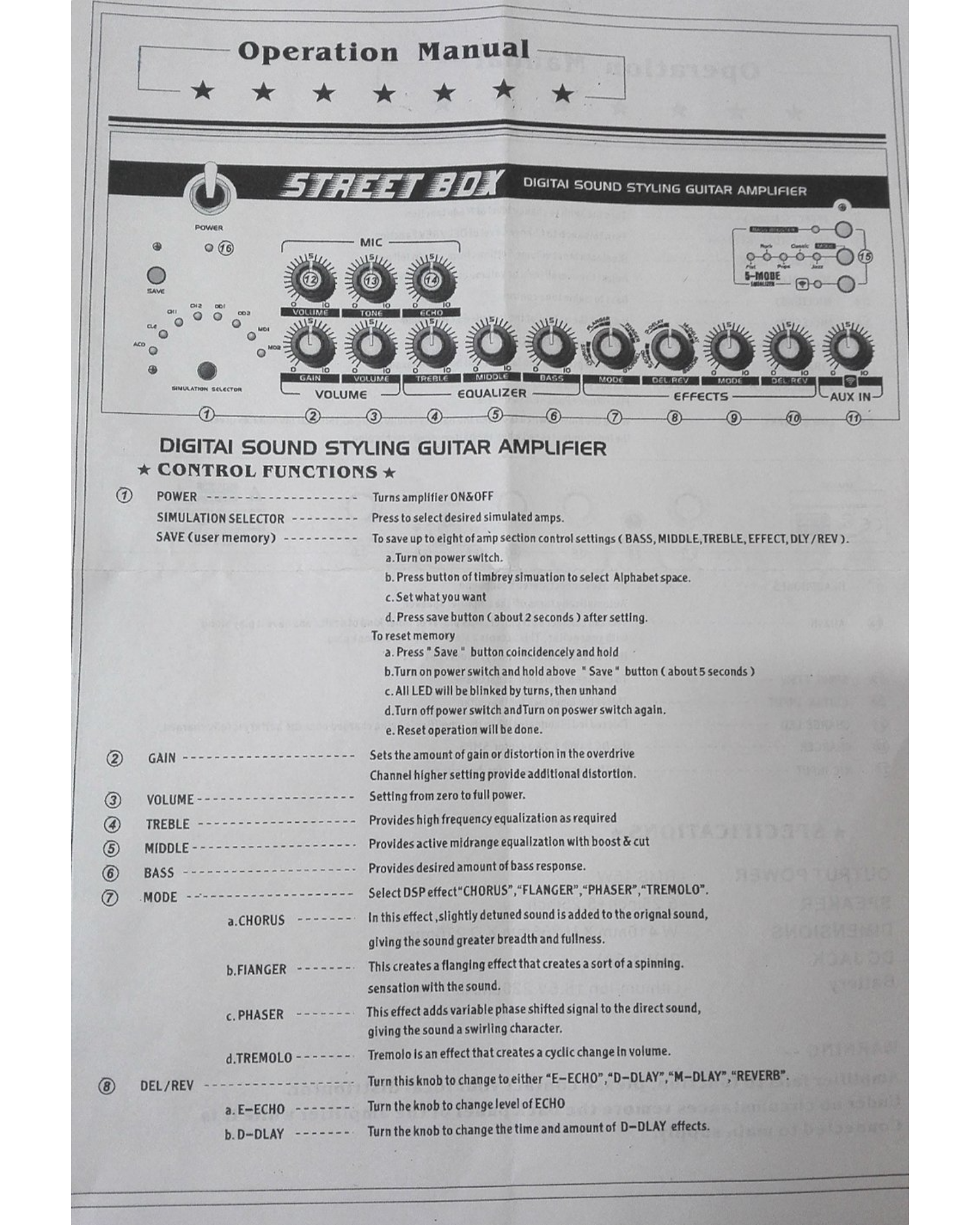

Operation Manual

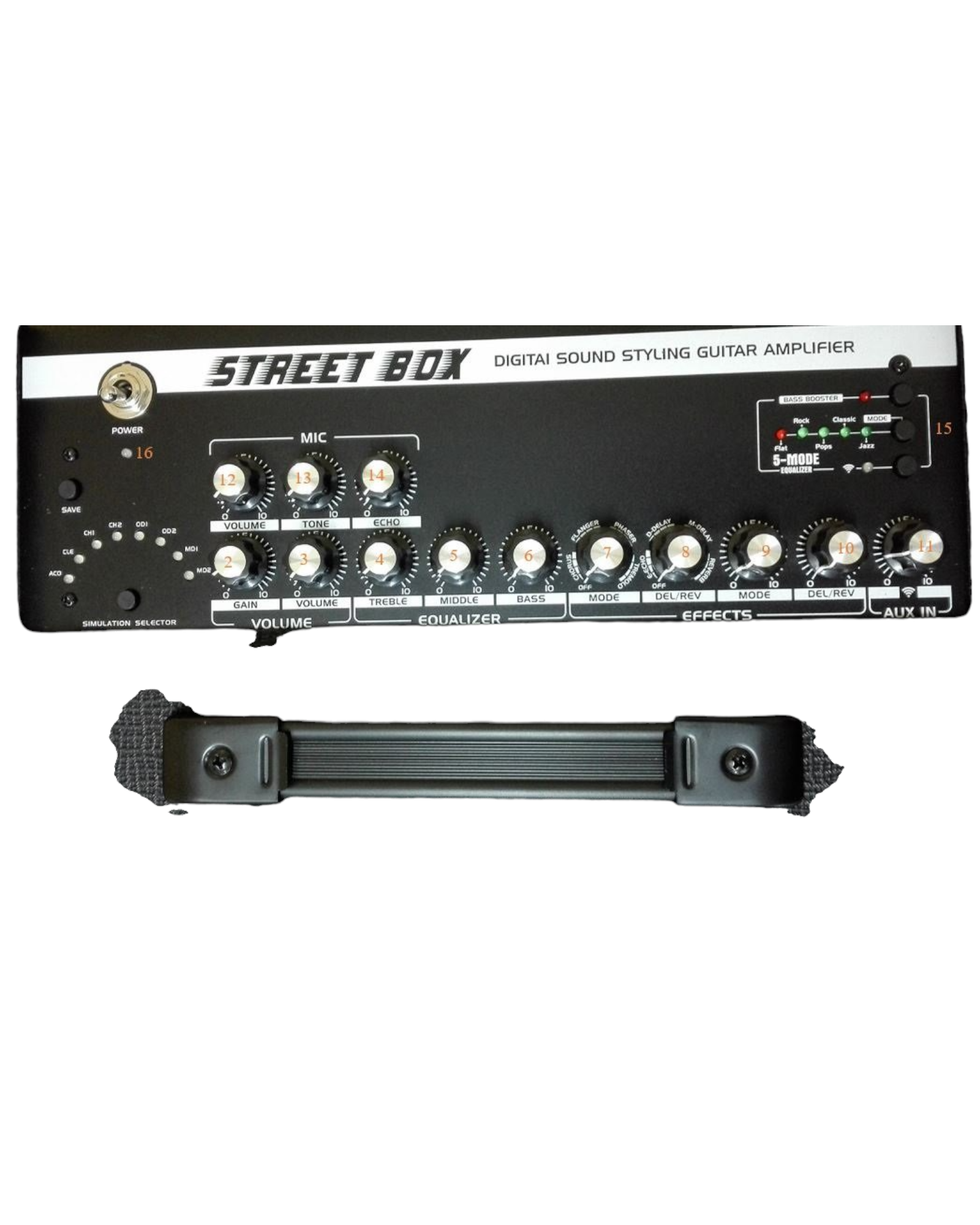

 ** Control Functions **

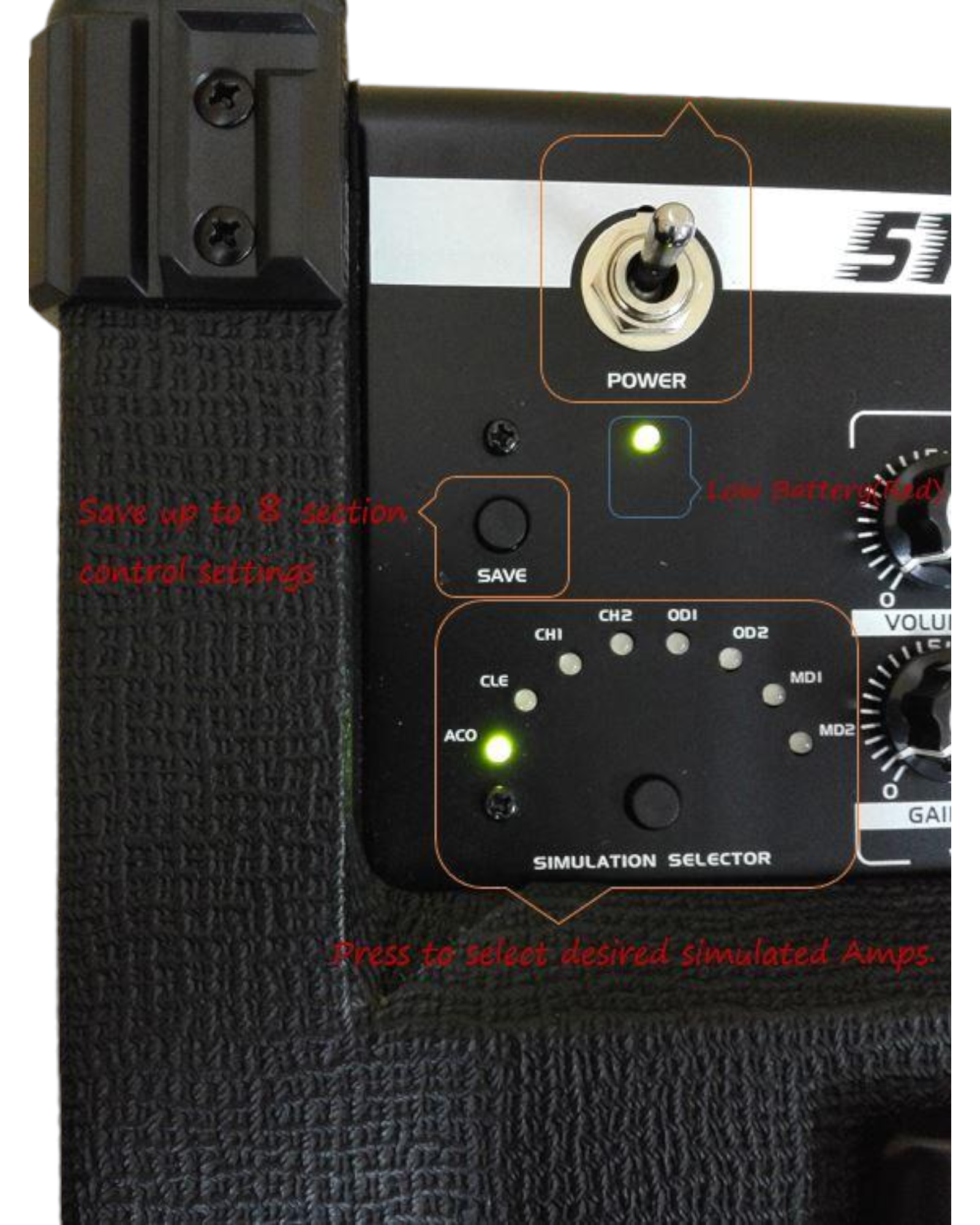

Power:                         Turns Amplifier ON / OFF

Simulation Selector:    Press to select desired simulated amps.

Save (user memory):   To Save up to 8 section control settings(Bass, Middle, Treble, Effect, DLY/REV)

1. Turn on power switch
2. Press button of timbrel simulation to select alphabet space
3. Set what you want
4. Press save button(about 2 seconds) after setting

To reset memory

1. Press “Save” button continuously and hold
2. Turn on power switch and hold about “Save” button for about 5 seconds
3. All LED will be blinking by turns, then unpress the button
4. Turn off power switch and turn on power again
5. GAIN:             Sets the amount of gain or distortion in the overdrive channel, higher    setting provides additional distortion
6. VOLUME:             Setting from 0 to full power
7. TREBLE:             Controls the boost and cut of the upper frequency range
8. MIDDLE:             Controls the boost and cut of the middle frequency range
9. BASS:              Controls the boost and cut of the low frequency range
10. MODE:              Select Digital Signal Processing effects:
11. CHORUS:             Will fatten up the sound of a bass, rhythm guitar, or solo guitar, adds spaciousness
12. FLANGER:             This creates a flanging effect, a sort of spinning sensation with the sound
13. PHASER:             an electronic sound processor used to filter a signal by creating a series of peaks and troughs in the frequency spectrum
14. TREMOLO:             A modulation effect that rhythmically changes the volume of your signal
15. DEL/REV:             To change the function among “E-ECHO”, “D-DELAY”, “M-DELAY”, “REVERB”
16. E-ECHO:             Changing the level of ECHO
17. D-DELAY:             Changing the time and amount of D-DELAY effects
18. M-DELAY:             Changing the time and amount of M-DELAY effects
19. REVERB:             To adjust the REVERB level
20. EFFECTS(MODE): To change the level of MODE function
21. EFFECTS(DEL/REV):  To change the level of DEL/REV function
22. AUX/BLUETOOTH: Bluetooth input volume settings, from 0 to full power

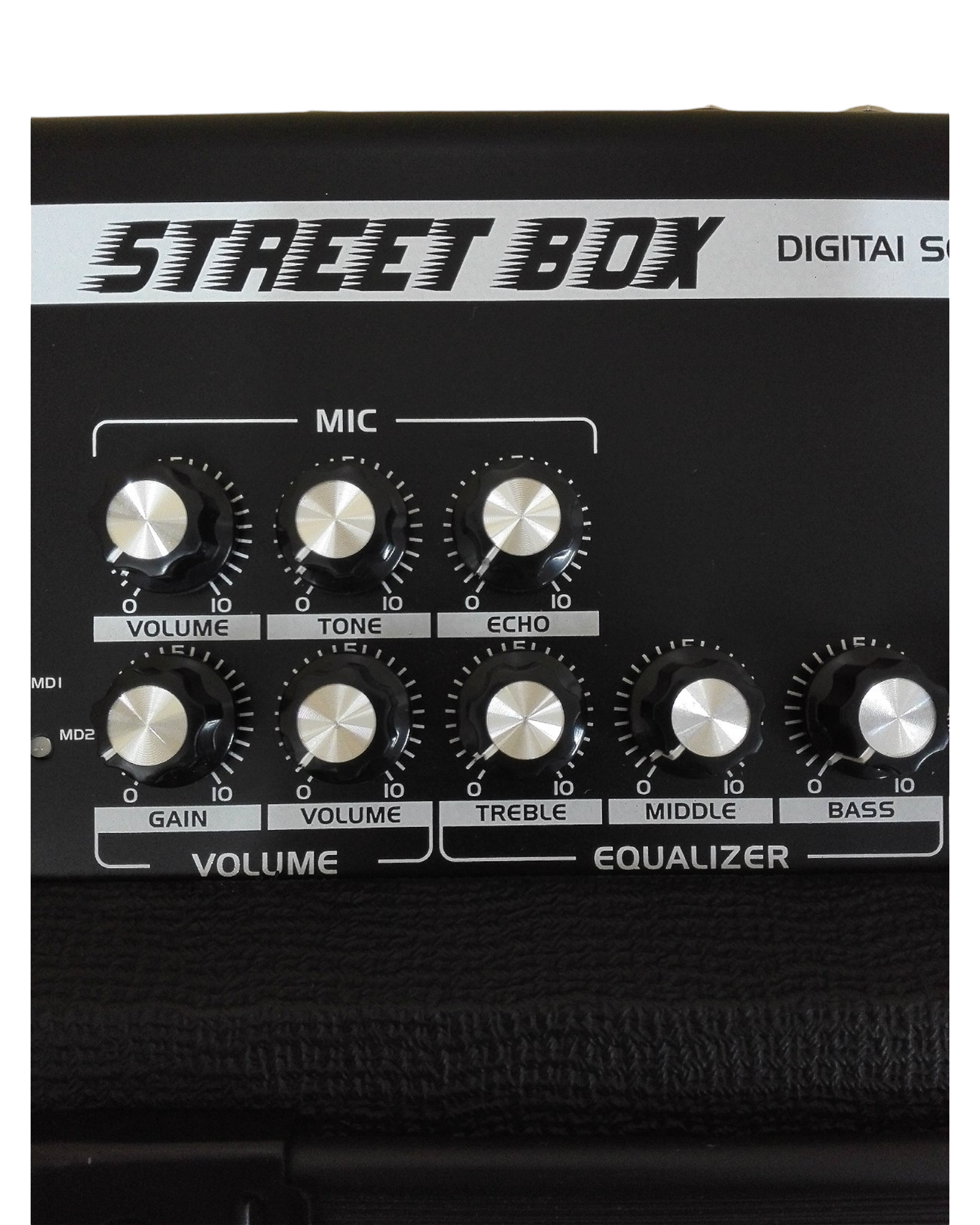

23. MIC(VOLUME): Adjust the output volume of the Microphone
24. MIC(TONE):  Adjust the output tone of the Microphone
25. MIC(ECHO): Adjust the output of the echo sound
26. BLUETOOTH: Turns Bluetooth ON / OFF

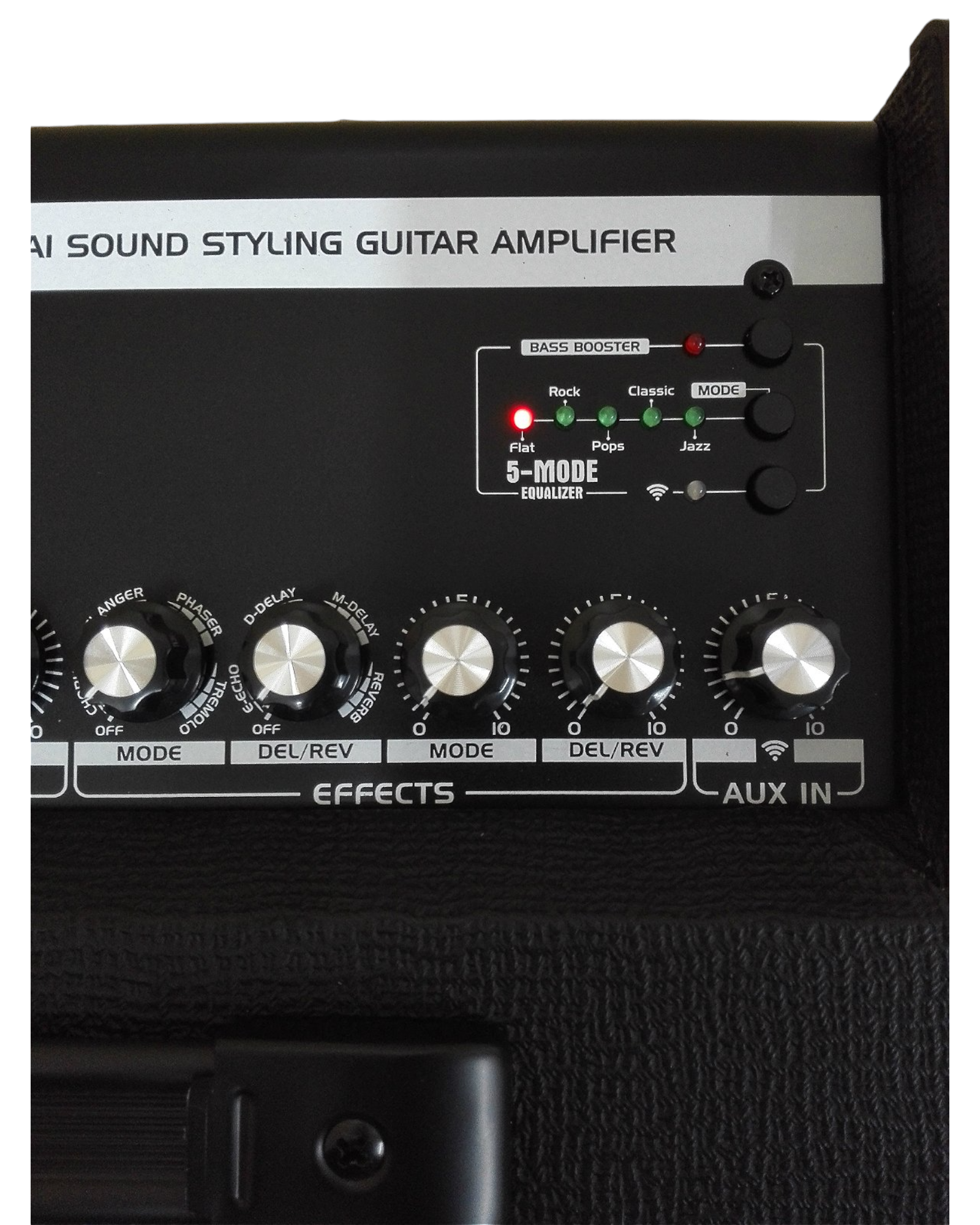

27. BASS BOOSTER: Boost a bass sound
28. MODE SWITCH: 5-Mode sound switch Flat-Rock-Pops-Classic-Jazz
29. LOW BATTERY: Green-à Fully charged / Red-à Low battery

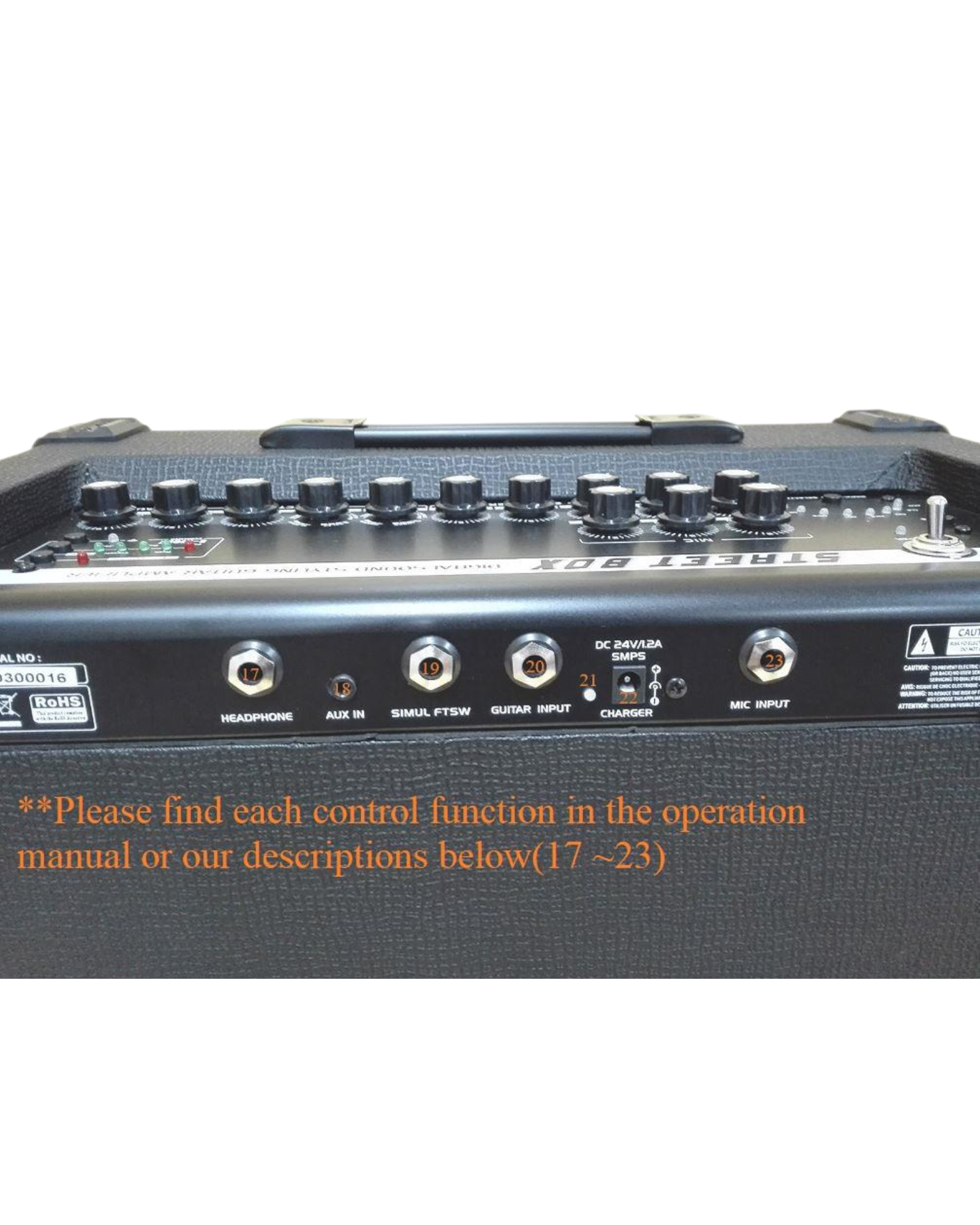

30. HEADPHONES: To connect stereo headphone. When using the headphone jack, the amplifier speaker is disconnected.
31. AUX IN: To connect for accompaniment or other signals, such like CD player, MP3 player…. Non-latching(momentary) Model FST-11
32. SIMUL FTSW: To change Simulation pedal channels
33. GUITAR INPUT: To connect with a guitar
34. CHARGE LED: Redà The amplifier is being charged
35. CHARGER: Use DC 24V@1.2A adaptor SMPS (come with the amplifier)
36. MIC INPUT:  To connect to microphone
